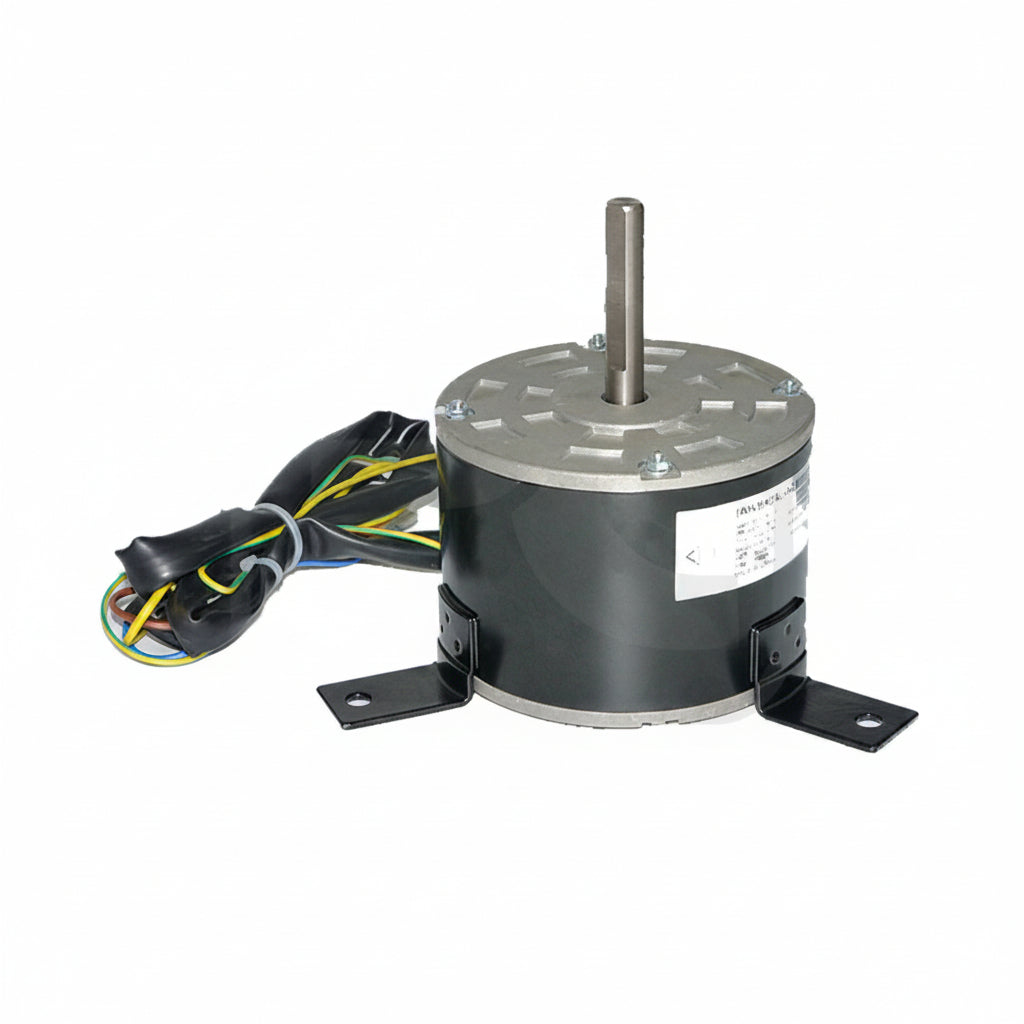

1600RPM 3 Speed Electric Motor Customized Indoor AC Fan Motor Double Shaft

Key features

1. The ambient temperature of the shaded-pole motor is -25°C~+50°C, the insulation class is class B, the protection grade is IP42, and it has been widely used in condensers, evaporators, and other equipment. There is a ground line in each motor.2. Motor has impedance protection if the output is below...

Shop with confidence

Payment Badge
Fast Delivery
Payment Badge
Buy Now Pay Later
Payment Badge
Secure Payments
Payment Badge
Trusted Quality

1. The ambient temperature of the shaded-pole motor is -25°C~+50°C, the insulation class is class B, the protection grade is IP42, and it has been widely used in condensers, evaporators, and other equipment. There is a ground line in each motor.
2. Motor has impedance protection if the output is below 10W, and we install thermal protection(130 °C ~140 °C ) to protect the motor if the output is more than 10W.
3. There are screw holes on the end cover; bracket installation; grid installation; flange installation; also we can customize it according to your request.
4. We can custom-made motor with different voltage, frequency, wire length, bearing, special use of the environment, etc.

Products details:

Model Number Voltage

/V

 Frequency

/Hz

 Output Power

/W

 Rated Speed

/RPM

 Capacitor

/μF
YSK120-37-4A 220-240 50 37 1350/3 SPD 3/370
YSK120-40-4A3 220-240 50 40 1100/3 SPD 3/370
YSK120-50-4A2 220-240 50 50 1300/3 SPD 3/400
YSK120-64-4A 220-240 50 64 1320/3 SPD 3/400
YSK120-90-4A 220-240 60 90 1600/3 SPD 4/370
YSK120-90-4A4 220-240 50 90 1300/3 SPD 5/370
YSK120-90-4A5 220-240 50 90 1175/3 SPD 4/370
YSK120-120-4A 220-240 60 120 1300/4 SPD 3/370
YSK120-185-4A 220-240 60 185
