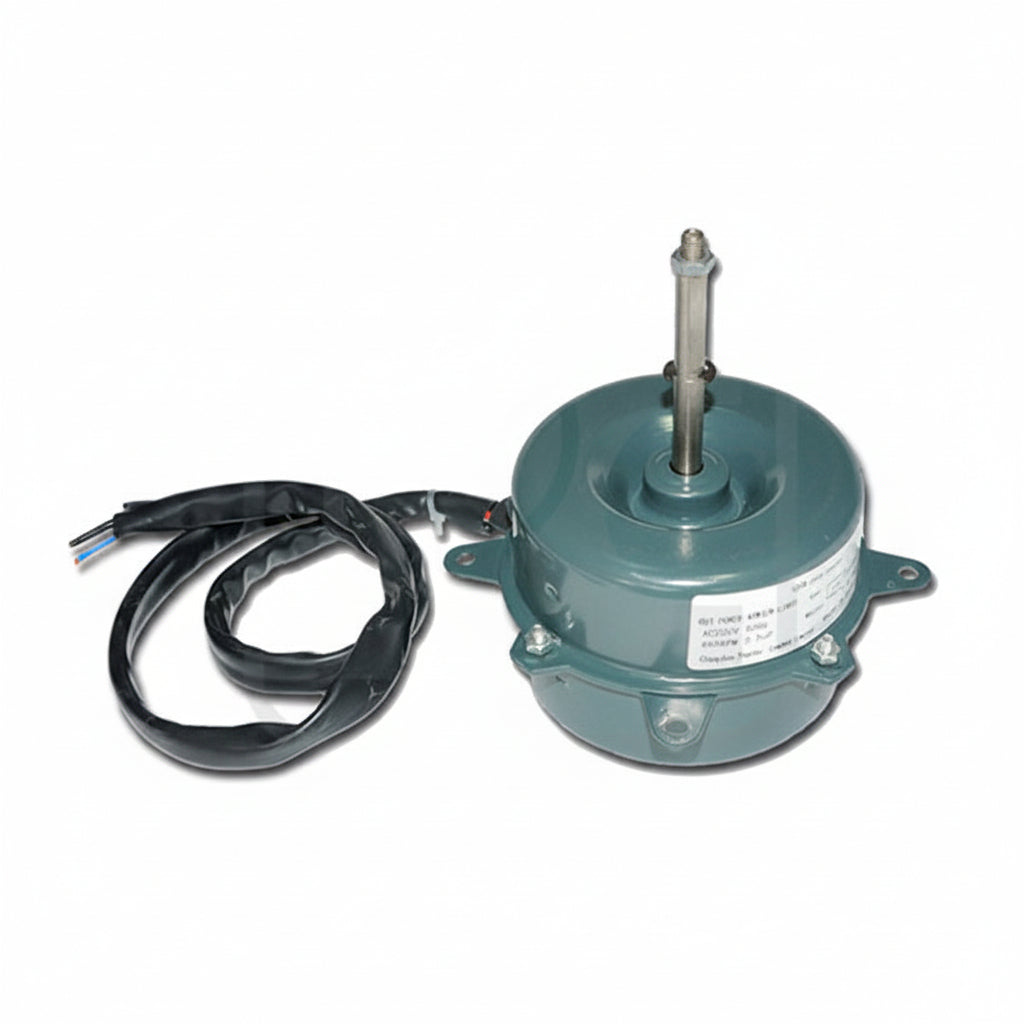

55W Outdoor Fan Motor / Single Phase Asynchronous Motor For Air Conditioner

Key features

Motor Application: The YDK120 series outdoor fan motor is widely used in split air conditioner outdoor units, as well as other fresh air ventilation systems, also if customized mounting type, the 120 series fan motor can be applied for ceiling type air conditioners. Product Features: Bearing: rolling bearing, NSK low...

Shop with confidence

Payment Badge
Fast Delivery
Payment Badge
Buy Now Pay Later
Payment Badge
Secure Payments
Payment Badge
Trusted Quality

Motor Application:

The YDK120 series outdoor fan motor is widely used in split air conditioner outdoor units, as well as other fresh air ventilation systems, also if customized mounting type, the 120 series fan motor can be applied for ceiling type air conditioners.

Product Features:

Bearing: rolling bearing, NSK low noise high-quality material.
Brass terminals plug-in.
Shaft: single shaft, nickel plating treatment.
Enclosure: electrophoretic coating treatment.
Winding: 100% pure copper.



Model Number Output Power

/W

 Voltage

/V

 Frequency

/Hz

 Rated Speed

/RPM

 Rated Current

/A
YDK95-20-6 20 220-240 50/60 830 0.25
YDK95-25-6 25 220-240 50/60 830 0.27
YDK95-30-6 30 220-240 50/60 830 0.3
YDK95-35-6 35 220-240 50/60 800 0.33
YDK95-40-6 40 220-240 50/60 850 0.4
YDK120-50-6 50 220-240 50/60 850 0.55
YDK120-55-6 55 220-240 50/60 850 0.57
YDK120-60-6 60 220-240 50/60 850 0.6
YDK120-70-6 70 220-240 50/60 850
