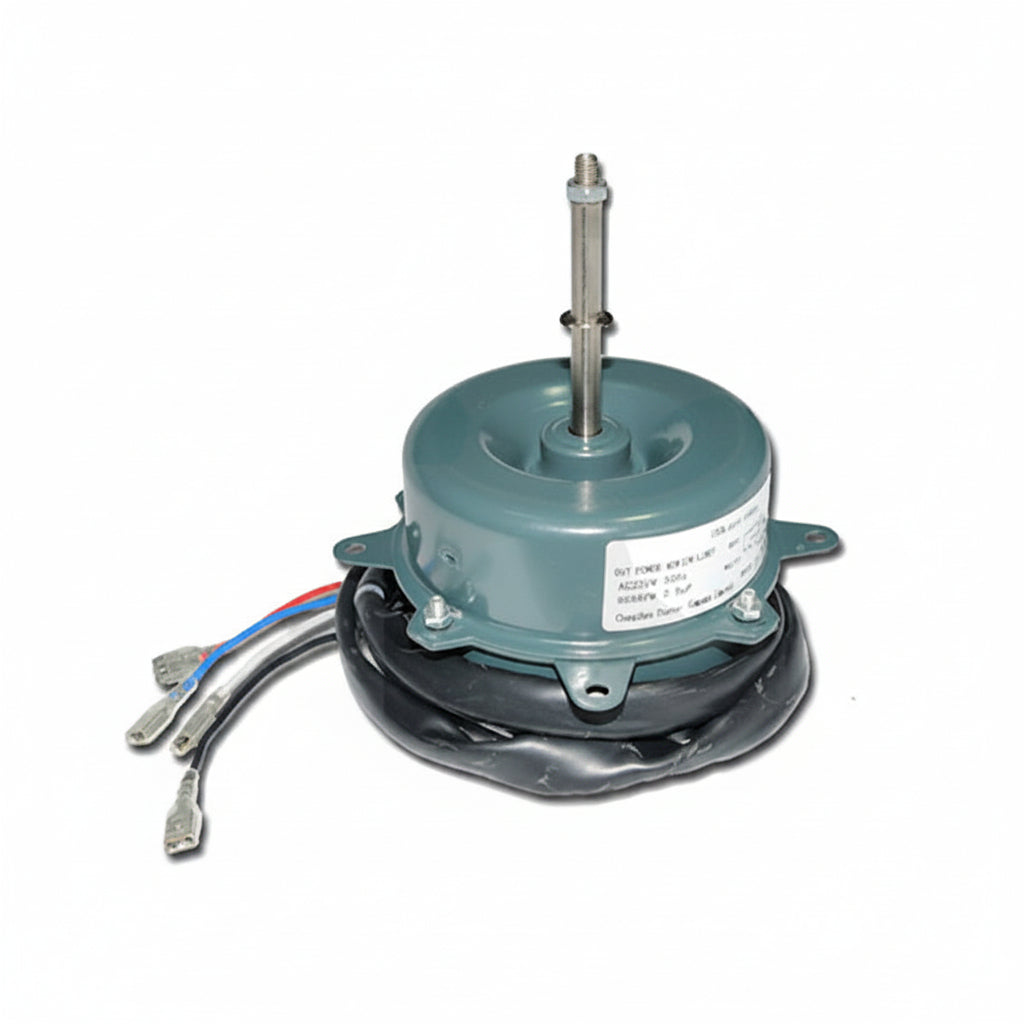

AC Outdoor Fan Motor 830RPM 2.5uf 20W Single Phase Single Shaft

Key features

Product Features: Reasonable structure: according to abundant industry experience in motor structure designing.High efficiency and low-temperature rise:using pure copper leads to make winding, as well as rotator and stator, motors can achieve higher efficiency in all AC motors.Low noise and small vibration:being adapted internationally famous qualified low noise ball bearing,...

Shop with confidence

Payment Badge
Fast Delivery
Payment Badge
Buy Now Pay Later
Payment Badge
Secure Payments
Payment Badge
Trusted Quality

Product Features:

Reasonable structure:

according to abundant industry experience in motor structure designing.
High efficiency and low-temperature rise:
using pure copper leads to make winding, as well as rotator and stator, motors can achieve higher efficiency in all AC motors.
Low noise and small vibration:
being adapted internationally famous qualified low noise ball bearing, it makes motor long life and no need for more oil supply.

Product Applications:

Split air conditioner outdoor unit and related fresh air ventilation system.

Technical Parameters:

Model Number Output Power

/W

 Voltage

/V

 Frequency

/Hz

 Rated Speed

/RPM

 Rated Current

/A
YDK95-20-6 20 220-240 50/60 830 0.25
YDK95-25-6 25 220-240 50/60 830 0.27
YDK95-30-6 30 220-240 50/60 830 0.3
YDK95-35-6 35 220-240 50/60 800 0.33
YDK95-40-6 40 220-240 50/60 850 0.4
YDK120-50-6 50 220-240 50/60 850 0.55
YDK120-55-6 55 220-240 50/60 850 0.57
YDK120-60-6 60 220-240 50/60 850 0.6
YDK120-70-6 70 220-240 50/60 850 0.65
