Akytec

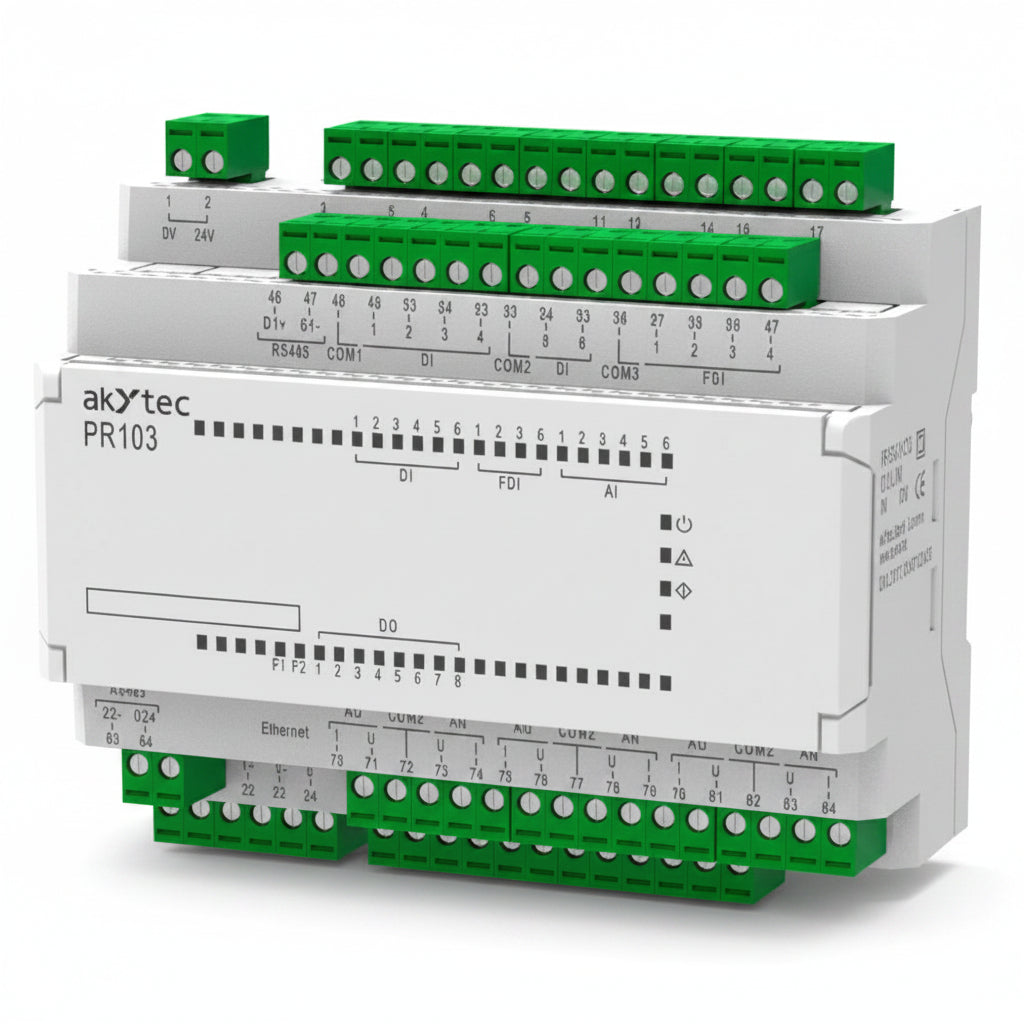

Akytec Ethernet Enabled Mini PLC PR103

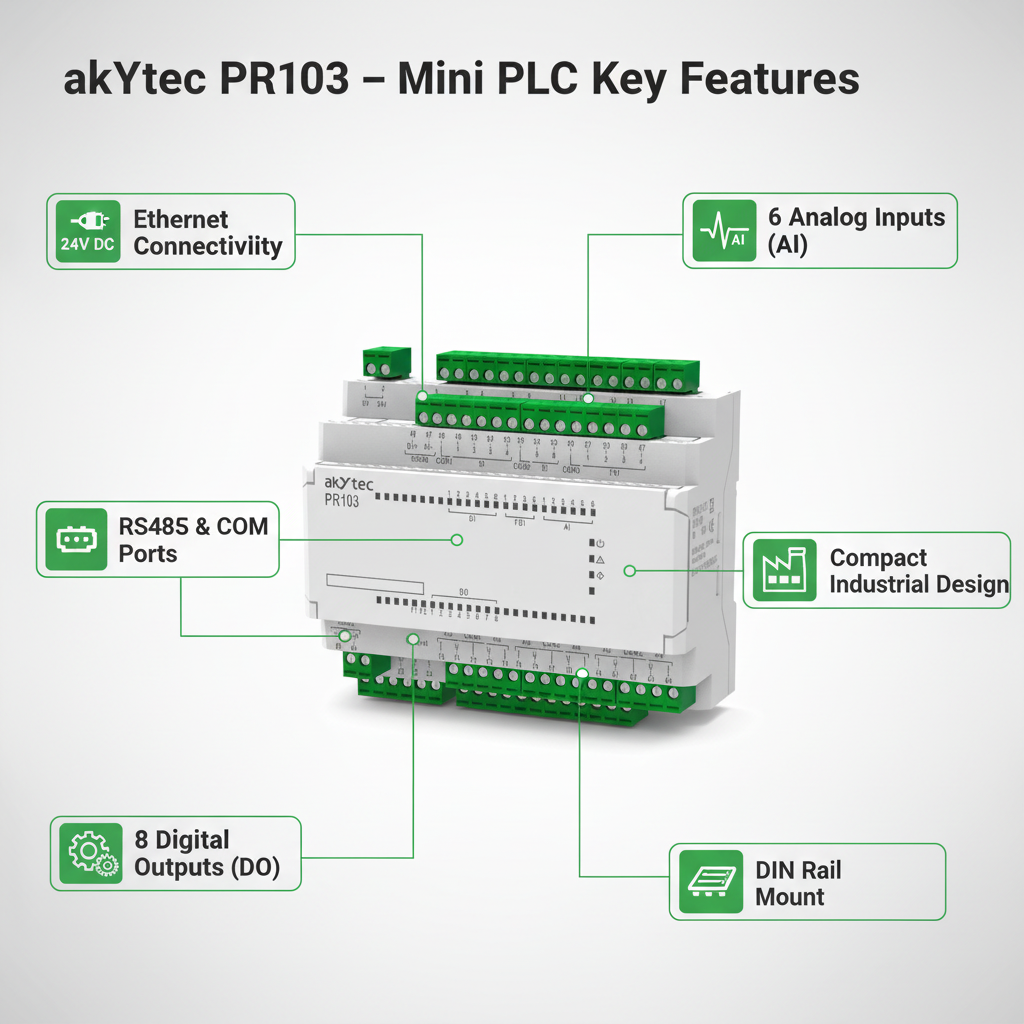

Key features

• Built-in 6DI + 8DO + 4Fast DI + 6AI + 2AO +1xEthernet + 2xRS485 in one device
• 6 analog inputs, each capable of connecting:
• RTD sensors (Pt500/1000, Ni500/1000, etc.)
• NTC/PTC sensors
• 4-20 mA / 0-10 V signals
• Digital signals
• 10 digital inputs, 4 of which support pulse counting (up to 100 kHz)
• 2 analog outputs configurable for 4-20 mA or 0-10 V
• Ethernet interface with support for Modbus TCPclient (master) / server (slave)
• 2xRS485 interfaces with support for Modbus RTU / ASCII | Master/Slave
• PRM-expandable: up to 32 additional I/O points over an internal bus with no loss in performance
• Real-time clock
• USB-powered in the programming mode

Shop with confidence

Payment Badge
Fast Delivery
Payment Badge
Buy Now Pay Later
Payment Badge
Secure Payments
Payment Badge
Trusted Quality

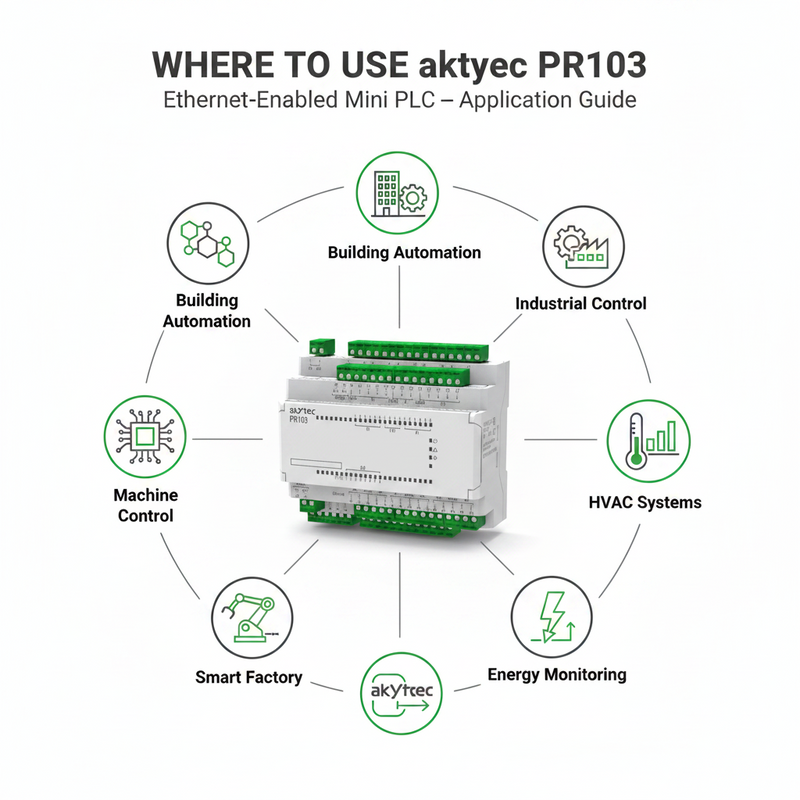

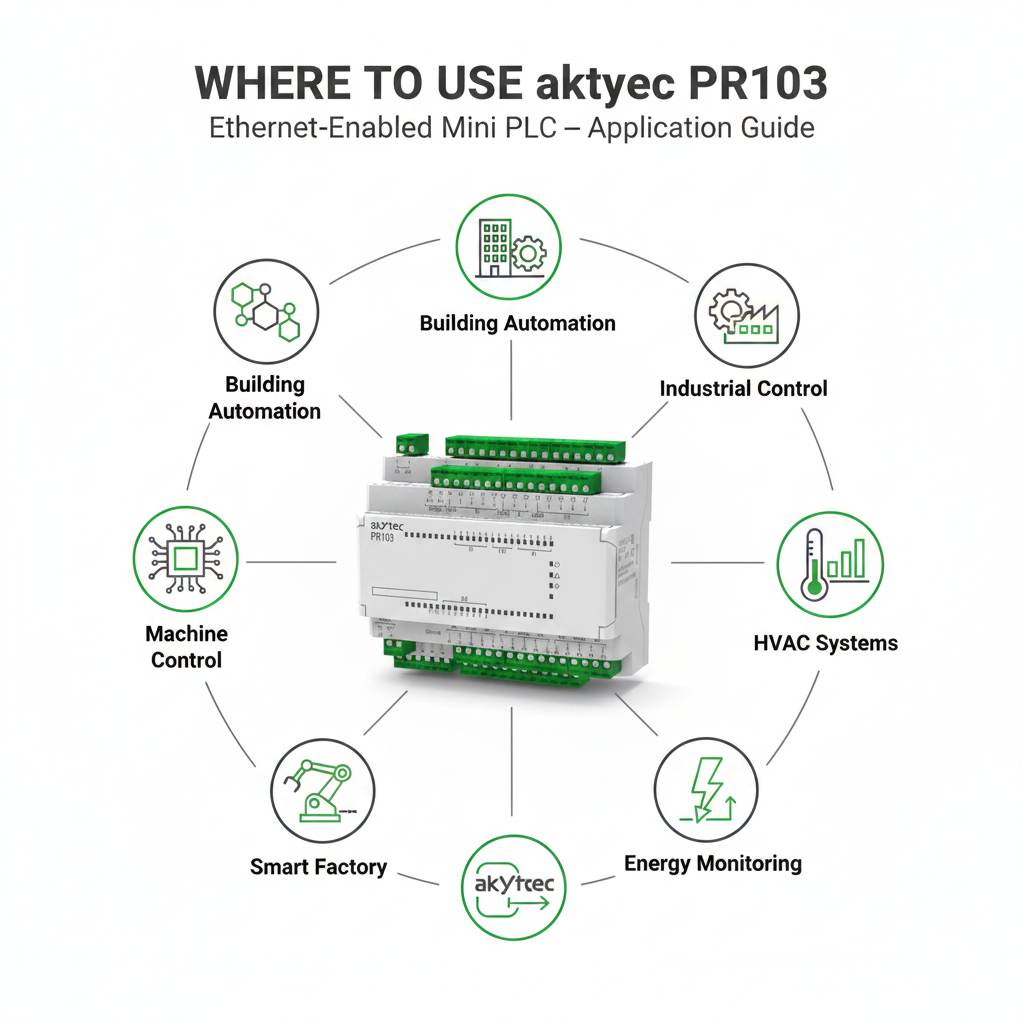

  • PR103 (PR103.24.3.2, PR103.24.6.2) is the first akYtec programmable relay with Ethernet on board. It is designed to control ventilation, heating, pump groups and other equipment. Ethernet interface allows to integrate the device into distributed systems, to realize remote control and management of equipment using akYtec Cloud service (Soon). Compact PLC PR103 has 2 RS-485 interfaces on board for data transmission to the upper level.
  • To expand its own inputs/outputs, the PRM expansion modules can be connected via the internal bus. Algorithm writing is performed by the user in FBD language with support of function blocks on ST in free programming environment ALP.
  • Algorithm loading and configuration is performed via microUSB, Ethernet or RS-485.
