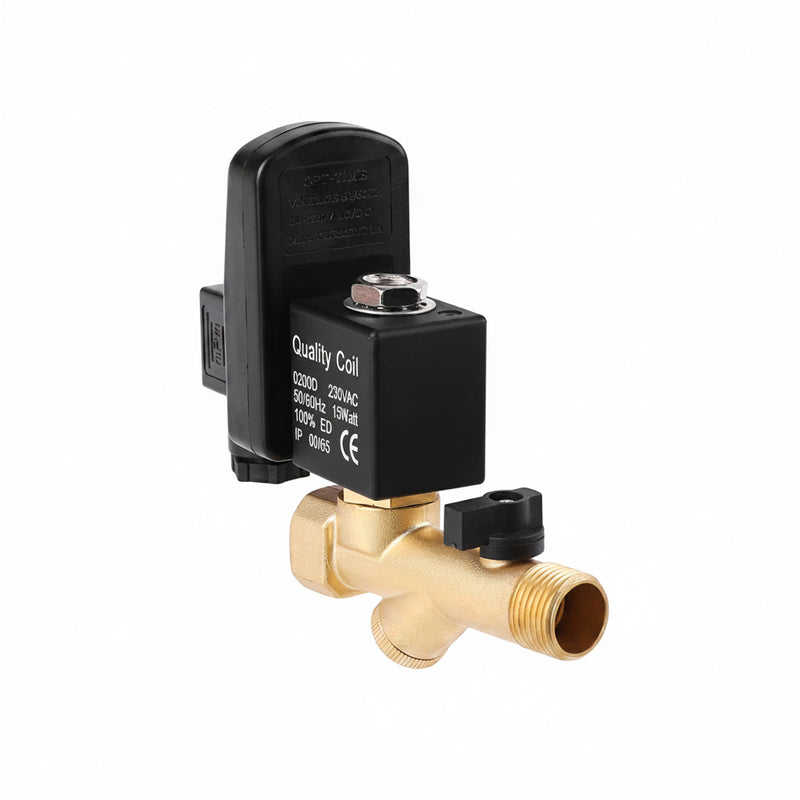

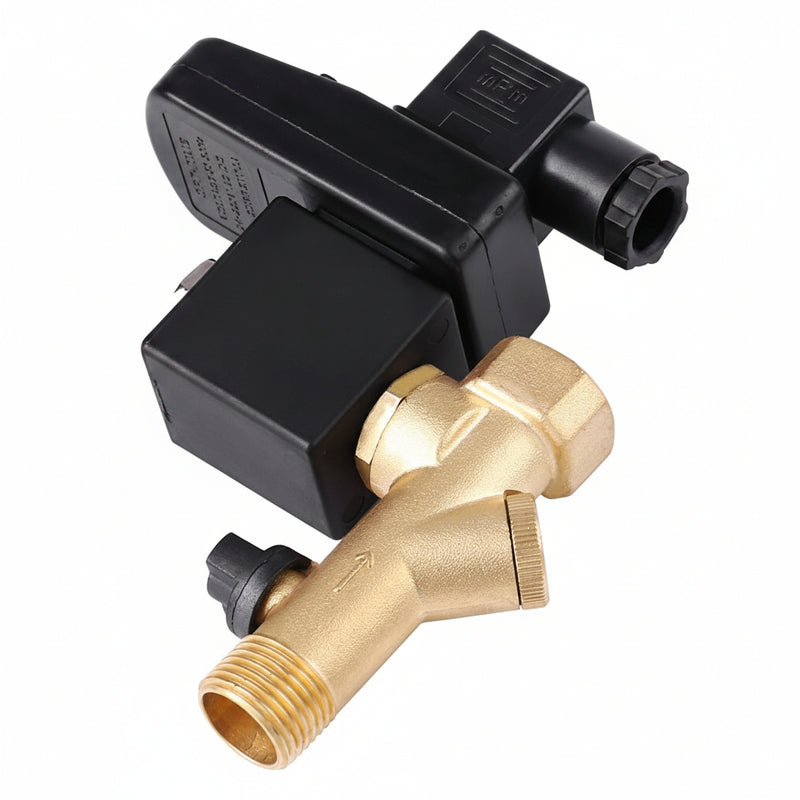

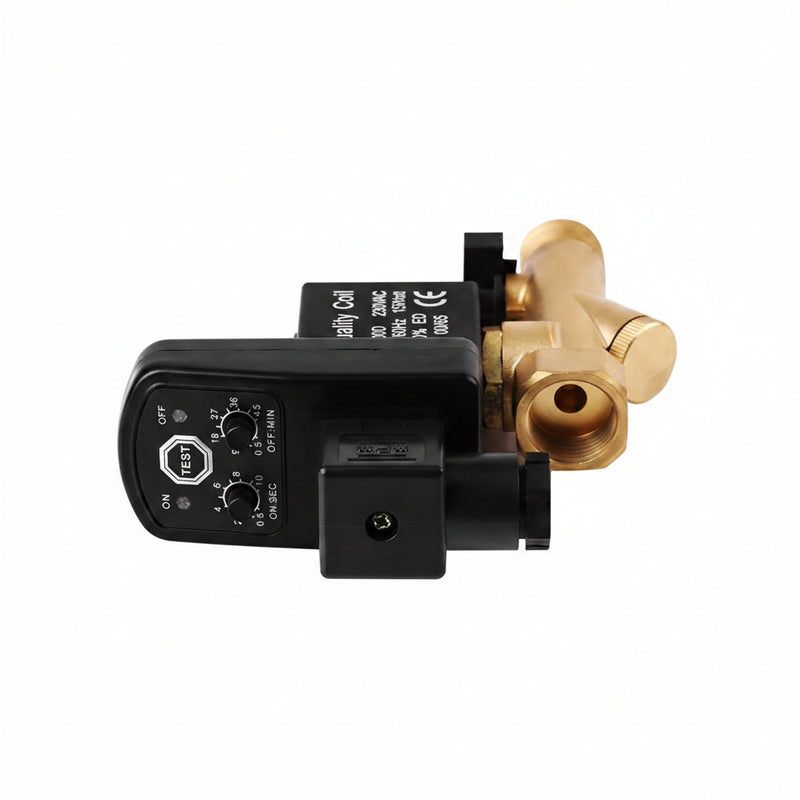

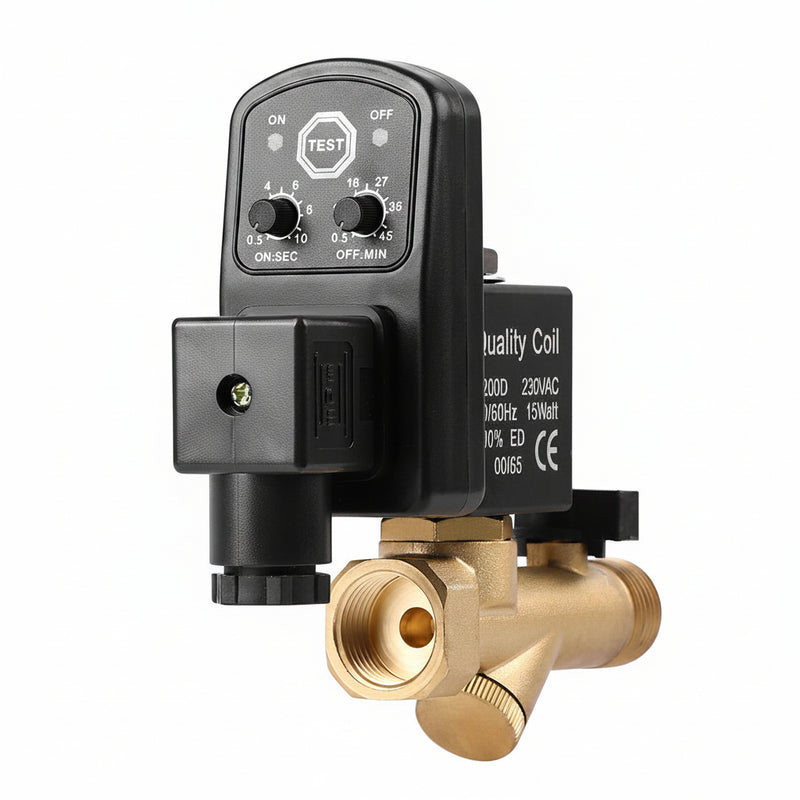

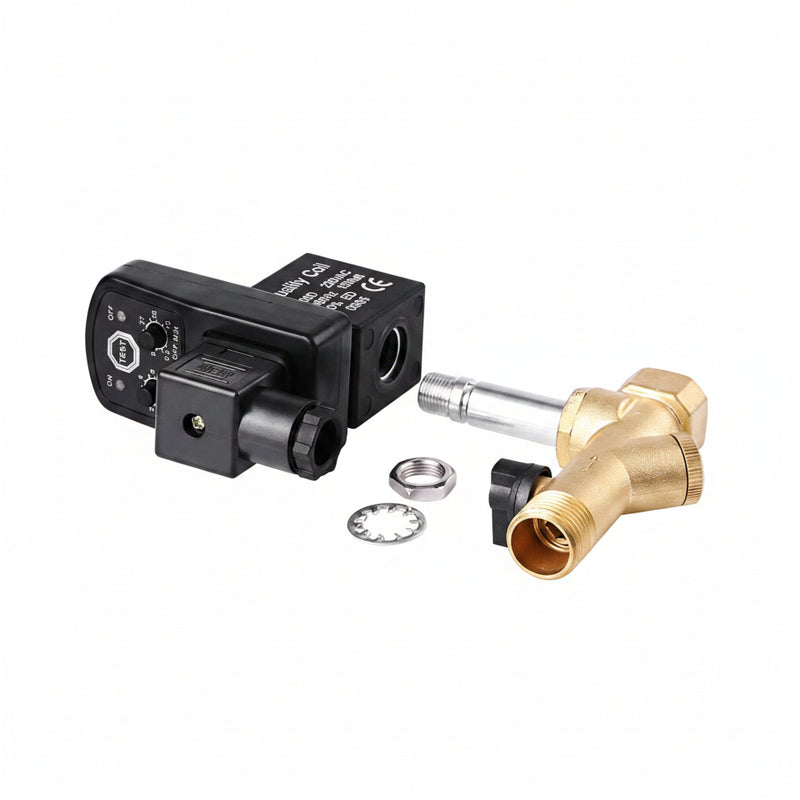

Automatic Electronic Timed Drain Valve Air Tank Water Moisture for Air Compressor Condensate G1 2 DN15 Integrated Valve AC 230V

• G1/2 thread is widely used and can fit most air compressors
• This is a reliable, high-quality condensate drain valve to keep compressed air treatment equipment running optimally
• A timed electric drain valve can be programmed to discharge condensate at the timed interval to match conditions

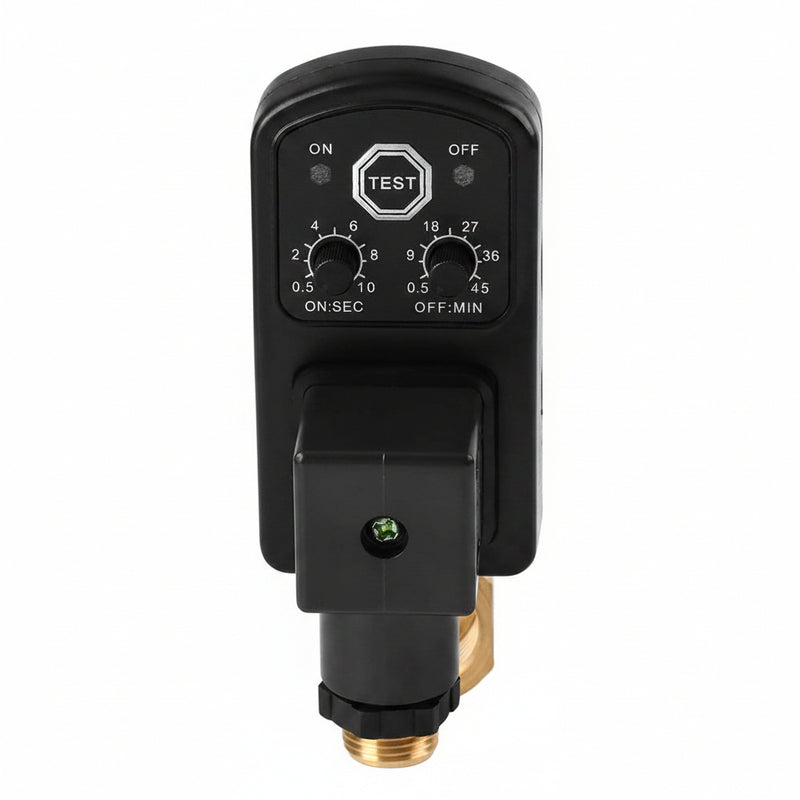

• Valve open time is adjustable from 0.5 to 10 seconds, and close time is from 0.5 to 45 minutes
• It operates automatically and wastes less compressed air when discharging condensate

Specifications:

• Voltage: AC110V, AC230V (Optional)
• Valve Type: Integrated
• Valve Material: Brass
• Valve Operating Modes: Direct-acting
• Interval(OFF): 0.5-45min.
• Discharge Time: 0.5-10sec.
• Thread: G1/2 (DN15)
• Thread Outer Diameter: Approx. 21mm
• Pressure: 0-1.6Mpa
• Fluid: Air, water
• Fluid Temperature: -5℃~80℃
• Fluid Direction: One-way
