Description

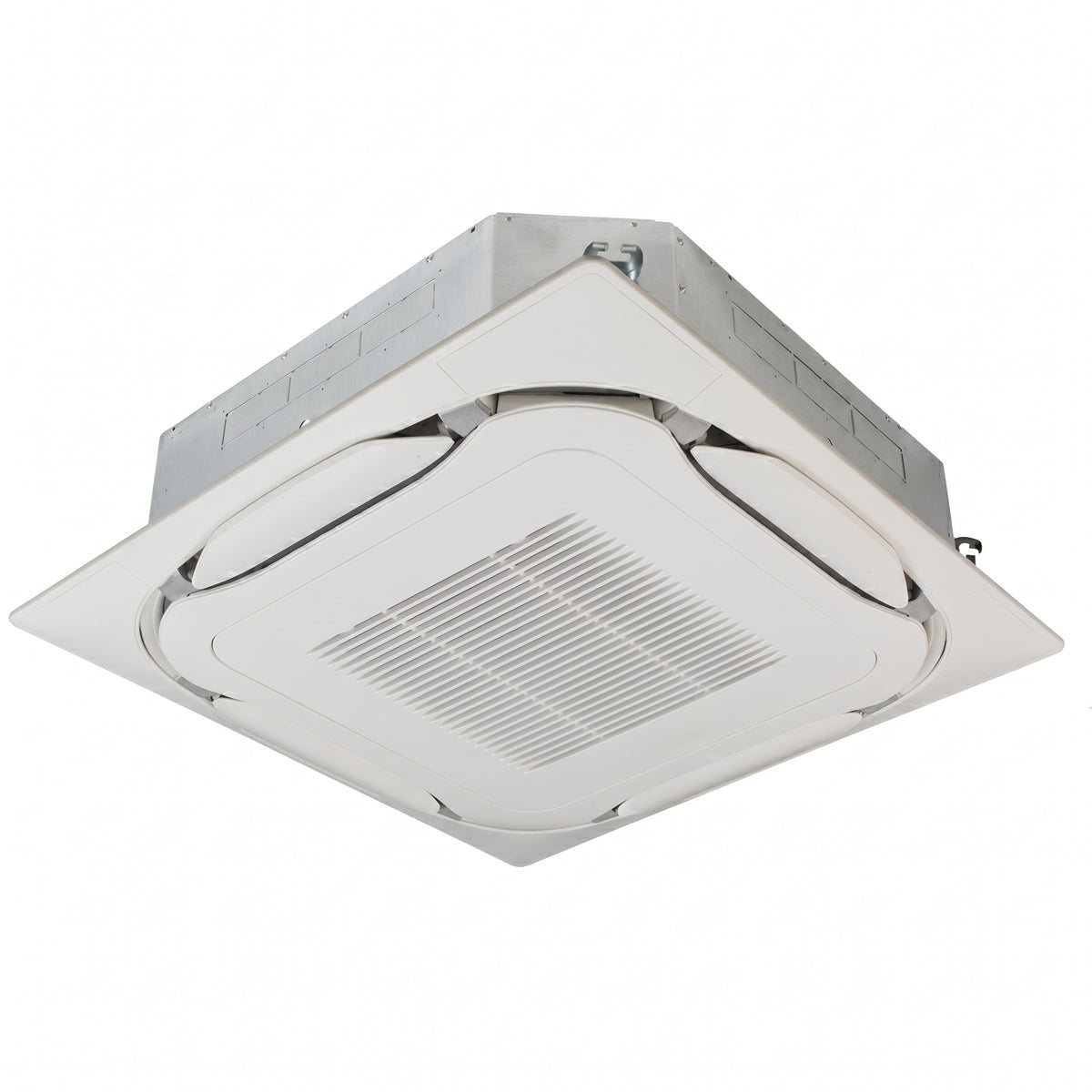

The Daikin FXFSQ25ARV1 is a compact VRV ceiling mounted cassette indoor unit designed to provide comfortable and even air conditioning through its advanced 360° airflow system. It uses circulation airflow, individual airflow control, and direct airflow to distribute air across the room, helping reduce uneven temperatures and cold air pockets at floor level. ❄️
Key Features
| Feature | Description |
|---|---|
| Brand | Daikin |
| Model | FXFSQ25ARV1 |
| Series | FXFSQ-ARV1 |
| Product Type | VRV cassette indoor unit |
| Installation Type | Ceiling mounted cassette round flow |
| Cooling Capacity | 2.8 kW / 9,600 Btu/h |
| Heating Capacity | 3.2 kW / 10,900 Btu/h |
| Airflow System | 360° airflow / all-round flow |
| Main Technology | Circulation airflow and individual airflow setting |
| Drain Pump | Standard drain pump with 850 mm lift |
| Application | Offices, shops, restaurants, meeting rooms, showrooms, and commercial interiors |
Product Features
| Feature | Details |
|---|---|
| 360° Airflow Distribution | Provides all-round airflow to improve temperature distribution and create a comfortable indoor environment. |
| Circulation Airflow | Straight, horizontal, and strong airflow travels across the room, reaches the wall, and falls toward the floor for full-room comfort. |
| Individual Airflow Setting | Airflow direction can be individually adjusted for each discharge outlet to suit room layout and occupant position. |
| Direct Airflow Control | Helps direct airflow according to seating areas, working zones, windows, and comfort requirements. |
| New Wide Flaps | Wide flaps increase airflow straightness and help improve coverage compared with conventional cassette models. |
| Ceiling Dirt Reduction | New wide flap construction helps direct airflow downward to reduce ceiling dirt and grime. |
| Optimized Horizontal Airflow | Maintains a more horizontal airflow route even when the flap is raised. |
| Two-Way Flow Option | Selected outlets can be controlled to create stronger airflow in required directions. |
| Improved Air Velocity | Two-way flow helps increase air velocity for powerful and effective air distribution. |
| Energy Saving Comfort | Helps save energy by reducing uneven room temperature and improving comfort across the room. |
| Room Layout Adaptability | Suitable for different layouts in offices, shops, restaurants, meeting rooms, and commercial interiors. |
| Standard Drain Pump | Built-in drain pump supports condensate lift up to 850 mm for flexible ceiling installation. |
Technical Parameters
| Specification | Details |
|---|---|
| Model | FXFSQ25ARV1 |
| Power Supply | 1-phase, 220–240V, 50/60 Hz |
| Cooling Capacity | 9,600 Btu/h / 2.8 kW |
| Heating Capacity | 10,900 Btu/h / 3.2 kW |
| Casing | Galvanized steel plate |
| Airflow Rate High / Medium / Low | 13 / 11.5 / 10 m³/min |
| Airflow Rate High / Medium / Low | 459 / 406 / 353 cfm |
| Sound Level High / Medium / Low | 30 / 28.5 / 27 dB(A) |
| Dimensions H × W × D | 256 × 840 × 840 mm |
| Machine Weight | 19 kg |
| Liquid Pipe Connection | 6.4 mm flare |
| Gas Pipe Connection | 12.7 mm flare |
| Drain Connection | Dia. 26 hole |
| Standard Panel Model | BYCQ125EAF9, Fresh White |
| Panel Dimensions H × W × D | 50 × 950 × 950 mm |
| Panel Weight | 5.5 kg |
| Drain Pump Lift | 850 mm |
| Installation Type | Ceiling mounted cassette round flow |
Application Scope
| Application Area | Details |
|---|---|
| Offices | Helps provide balanced airflow for desks, small work areas, meeting rooms, and zones near windows. |
| Restaurants | Suitable for dining spaces where even comfort is required across different seating areas. |
| Retail Shops | Provides comfortable cooling for customer areas, counters, and product display spaces. |
| Showrooms | Helps maintain consistent comfort across open commercial interiors. |
| Meeting Rooms | Individual airflow settings help reduce direct airflow on occupants. |
| Commercial Interiors | Ideal for ceiling cassette VRV applications requiring flexible and even air distribution. |
Main Benefits
- Compact VRV ceiling mounted cassette indoor unit
- Cooling capacity of 2.8 kW / 9,600 Btu/h
- Heating capacity of 3.2 kW / 10,900 Btu/h
- 360° all-round airflow for improved room comfort
- Circulation airflow helps cool the entire room evenly
- Individual airflow control for each outlet
- New wide flap design improves airflow coverage
- Helps reduce ceiling dirt and grime
- Built-in drain pump with 850 mm lift
- Suitable for offices, restaurants, shops, showrooms, and commercial spaces
