Description

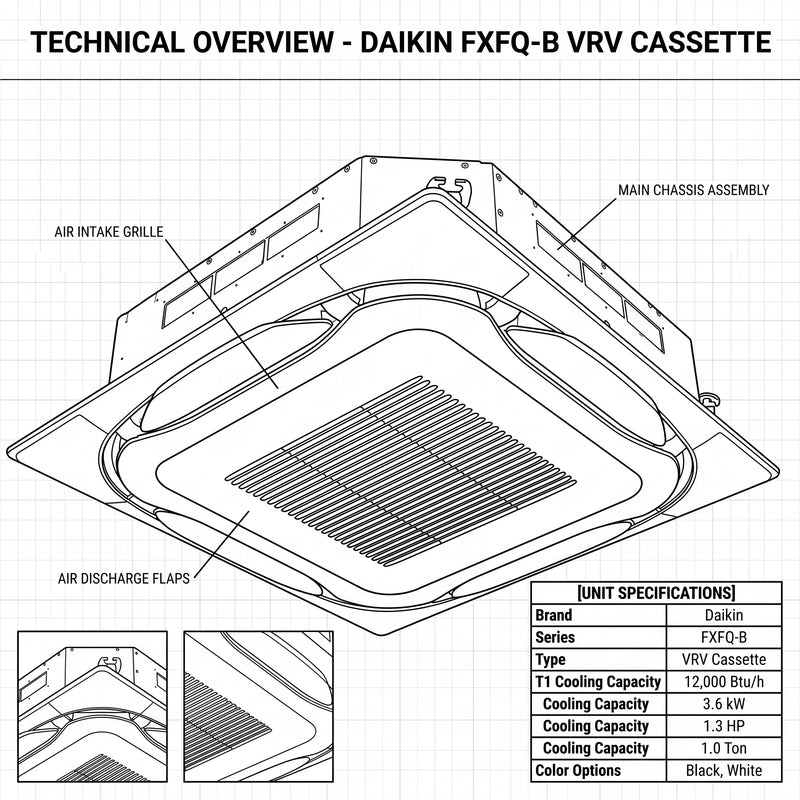

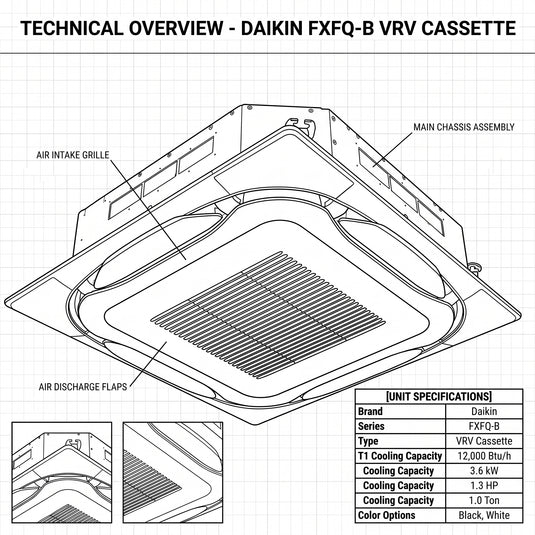

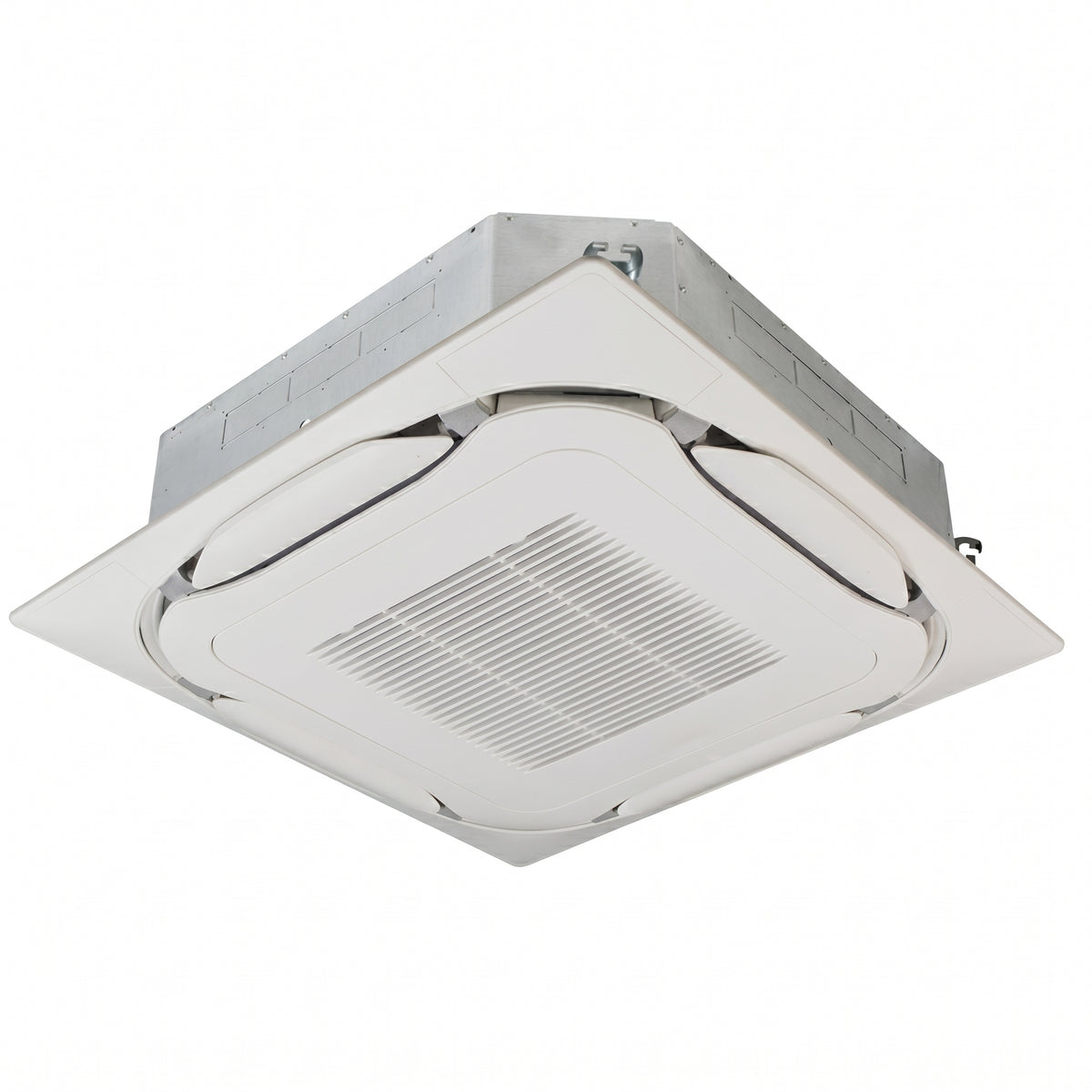

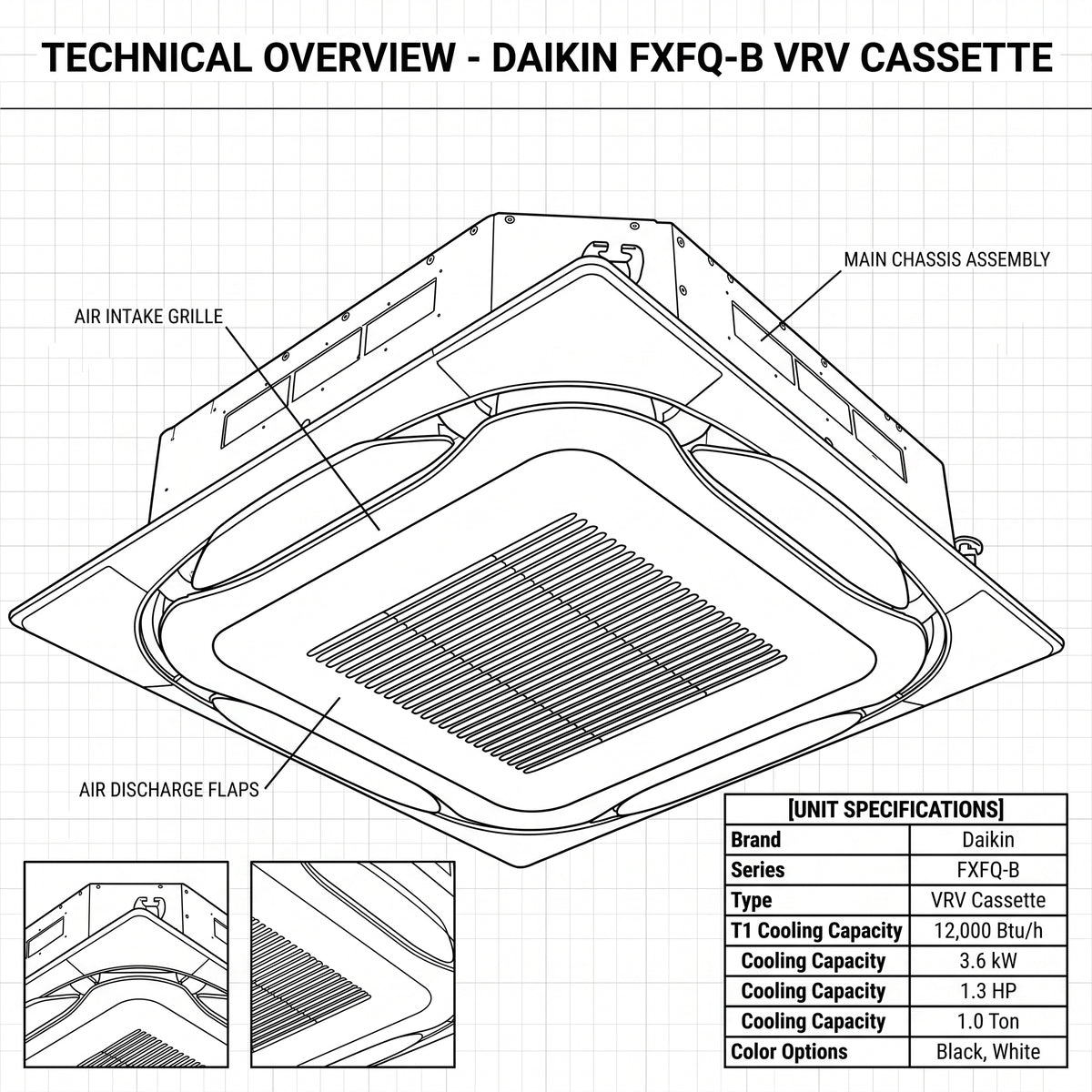

The Daikin FXFQ32B is a compact and efficient VRV round flow cassette indoor unit designed to provide 360° air discharge for balanced cooling, heating, and indoor comfort. It offers flexible airflow control, optional intelligent sensors, and multiple decoration panel choices, making it suitable for offices, restaurants, shops, hotels, meeting rooms, showrooms, and commercial interiors. ❄️
Key Features
| Feature | Description |
|---|---|
| Brand | Daikin |
| Model | FXFQ32B |
| Series | FXFQ-B |
| Product Type | VRV round flow cassette indoor unit |
| Installation Type | Ceiling mounted cassette |
| Cooling Capacity | 3.60 kW |
| Heating Capacity | 4.00 kW |
| Airflow System | 360° air discharge |
| Panel Options | White, full white, black, auto-cleaning, and designer panels |
| Drain Pump | Standard drain pump with 675 mm lift |
| Refrigerant | R-410A |
| Application | Offices, restaurants, shops, hotels, showrooms, and commercial spaces |
Product Features
| Feature | Details |
|---|---|
| 360° Air Discharge | Provides all-round airflow for optimum efficiency, comfort, and balanced room air distribution. |
| Automatic Filter Cleaning Option | Optional auto-cleaning panel helps maintain higher efficiency and comfort while reducing maintenance requirements. |
| Optional Intelligent Sensors | Presence and floor sensors help improve energy efficiency and comfort by detecting room occupancy and average floor temperature. |
| Wide Decoration Panel Choice | Available with standard panels, auto-cleaning panels, designer panels, white panel, full white panel, and black panel options. |
| Bigger Flaps & Unique Swing Pattern | Supports improved equal air distribution across the room. |
| Individual Flap Control | Allows airflow direction to be adjusted for different room layouts without changing the unit location. |
| Low Installation Height | Compact cassette body supports installation flexibility, especially in limited ceiling spaces. |
| Optional Fresh Air Intake | Supports fresh air connection to improve indoor air quality. |
| Branch Duct Discharge | Helps optimize air distribution in irregular-shaped rooms or supply air to small adjacent rooms. |
| Standard Drain Pump | Built-in drain pump with 675 mm lift increases installation flexibility and speed. |
| Ceiling Soiling Prevention | Helps reduce ceiling dirt by improving airflow direction and discharge pattern. |
| Vertical Auto Swing | Distributes air evenly for improved indoor comfort. |
| Fan Only Operation | Can be used as a fan without cooling or heating when only air circulation is needed. |
| Dry Programme | Helps reduce humidity without major changes in room temperature. |
| Auto Restart & Self Diagnosis | Automatically restarts after power failure and supports easier fault diagnosis. |
| Remote Control Options | Compatible with infrared, wired, and centralized control options. |
Technical Parameters
| Specification | Details |
|---|---|
| Model | FXFQ32B |
| Power Supply | 1-phase, 220–240V / 220V, 50/60 Hz |
| Cooling Capacity | 3.60 kW |
| Heating Capacity | 4.00 kW |
| Power Input Cooling | 0.040 kW |
| Power Input Heating | 0.040 kW |
| Unit Dimensions H × W × D | 204 × 840 × 840 mm |
| Unit Weight | 19.0 kg |
| Casing | Galvanized steel plate |
| Airflow Rate Cooling High / Medium / Low | 14.8 / 12.6 / 10.4 m³/min |
| Airflow Rate Heating High / Medium / Low | 14.8 / 12.6 / 10.4 m³/min |
| Air Filter Type | Resin net |
| Sound Power Level Cooling | 51.0 dB(A) |
| Sound Pressure Level Cooling High / Medium / Low | 33.0 / 30.0 / 29.0 dB(A) |
| Sound Pressure Level Heating High / Medium / Low | 33.0 / 30.0 / 29.0 dB(A) |
| Refrigerant Type / GWP | R-410A / 2087.5 |
| Liquid Pipe Connection OD | 6.35 mm |
| Gas Pipe Connection OD | 12.7 mm |
| Drain Connection | VP25, O.D. 32 mm / I.D. 25 mm |
| Standard Panel Options | BYCQ140E, BYCQ140EW, BYCQ140EB |
| Auto Cleaning Panel Options | BYCQ140EGF / BYCQ140EGFB |
| Designer Panel Options | BYCQ140EP / BYCQ140EPB |
| Standard Panel Dimensions H × W × D | 50 × 950 × 950 mm |
| Auto Cleaning Panel Dimensions H × W × D | 130 × 950 × 950 mm |
| Designer Panel Dimensions H × W × D | 50 × 950 × 950 mm |
| Standard Panel Weight | 5.4 kg |
| Auto Cleaning Panel Weight | 10.3 kg |
| Designer Panel Weight | 5.4 kg |
| Drain Pump Lift | 675 mm |
Application Scope
| Application Area | Details |
|---|---|
| Offices | Suitable for private offices, meeting rooms, cabins, and work areas requiring even airflow. |
| Restaurants | Provides comfortable 360° air distribution across dining spaces and seating zones. |
| Retail Shops | Ideal for boutiques, customer areas, display spaces, and showrooms. |
| Hotels | Suitable for guest areas, small lobbies, meeting rooms, and hospitality interiors. |
| Commercial Interiors | Works well in ceiling cassette applications requiring flexible airflow control. |
| Irregular Room Layouts | Branch duct discharge and individual flap control help improve air distribution in complex layouts. |
Main Benefits
- Compact VRV round flow cassette indoor unit
- Cooling capacity of 3.60 kW
- Heating capacity of 4.00 kW
- 360° air discharge for efficient comfort
- Optional auto-cleaning panel for lower maintenance
- Optional intelligent sensors for comfort and energy savings
- Wide panel choices in white and black finishes
- Individual flap control for flexible airflow direction
- Optional fresh air intake and branch duct discharge
- Built-in drain pump with 675 mm lift
- Suitable for offices, restaurants, hotels, shops, and commercial interiors
