Description

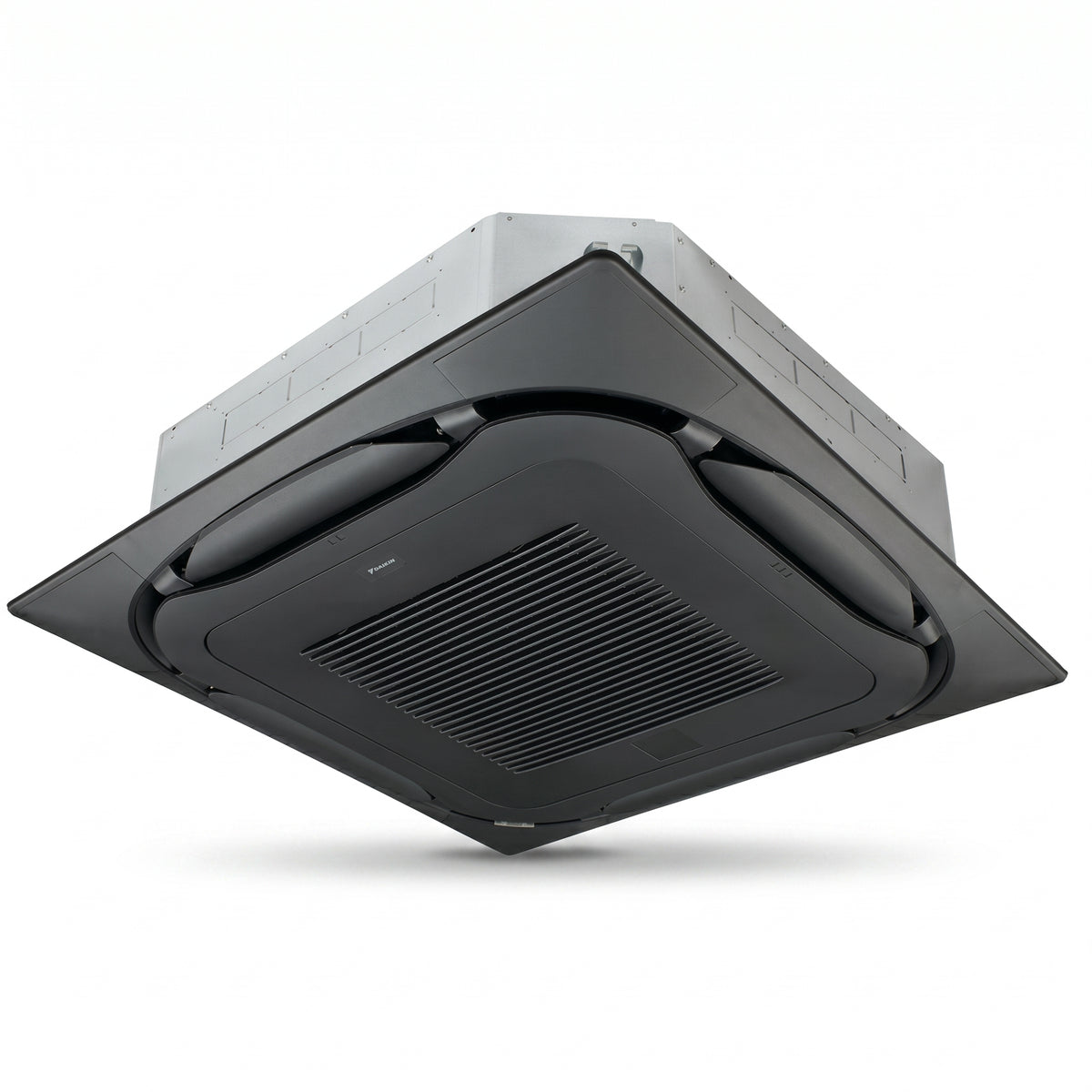

The Daikin FXFQ80B is a high-performance VRV round flow cassette indoor unit designed to deliver 360° air discharge for optimum efficiency, comfort, and balanced air distribution. It is ideal for offices, restaurants, shops, hotels, showrooms, meeting rooms, and commercial interiors where flexible ceiling-mounted cooling and heating are required. ❄️
Key Features
| Feature | Description |
|---|---|
| Brand | Daikin |
| Model | FXFQ80B |
| Series | FXFQ-B |
| Product Type | VRV round flow cassette indoor unit |
| Installation Type | Ceiling mounted cassette |
| Cooling Capacity | 9.00 kW |
| Heating Capacity | 10.00 kW |
| Airflow System | 360° air discharge |
| Panel Options | White, full white, black, auto-cleaning, and designer panels |
| Drain Pump | Standard drain pump with 675 mm lift |
| Refrigerant | R-410A |
| Application | Offices, restaurants, shops, hotels, showrooms, and commercial spaces |

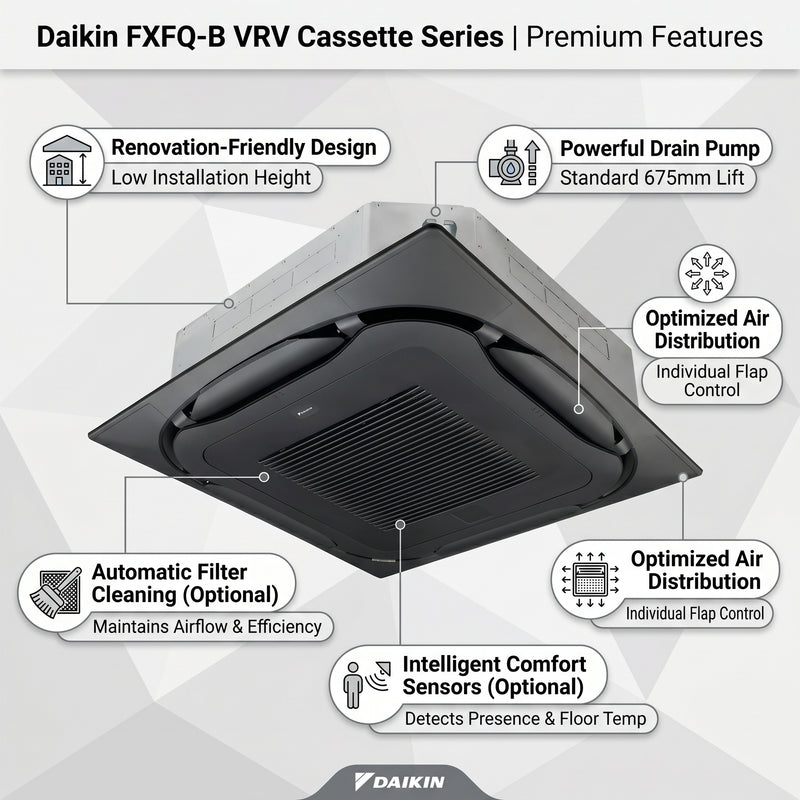

Product Features
| Feature | Details |
|---|---|
| 360° Air Discharge | Provides all-round airflow for optimum comfort and efficient air distribution throughout the room. |
| Automatic Filter Cleaning Option | Optional auto-cleaning panel helps maintain higher efficiency and comfort while reducing maintenance needs. |
| Optional Intelligent Sensors | Presence and floor sensors help improve energy efficiency and comfort by detecting room occupancy and floor temperature. |
| Wide Decoration Panel Choice | Available with standard panels, auto-cleaning panels, designer panels, white panel, full white panel, and black panel options. |
| Bigger Flaps & Unique Swing Pattern | Helps improve equal air distribution across the room. |
| Individual Flap Control | Allows airflow direction to be adjusted to suit room layout without changing the unit location. |
| Optional Fresh Air Intake | Supports fresh air connection for better indoor air quality. |
| Branch Duct Discharge | Helps optimize air distribution in irregular-shaped rooms or supply air to small adjacent rooms. |
| Standard Drain Pump | Built-in drain pump with 675 mm lift increases installation flexibility and speed. |
| Ceiling Soiling Prevention | Helps reduce ceiling dirt by improving airflow direction and discharge pattern. |
| Vertical Auto Swing | Distributes air evenly for improved comfort. |
| Fan Only Operation | Can be used as a fan without cooling or heating when only air circulation is needed. |
| Dry Programme | Helps reduce humidity without major changes in room temperature. |
| Auto Restart & Self Diagnosis | Automatically restarts after power failure and supports easier fault diagnosis. |
| Remote Control Options | Compatible with infrared, wired, and centralized control options. |
Technical Parameters
| Specification | Details |
|---|---|
| Model | FXFQ80B |
| Power Supply | 1-phase, 220–240V / 220V, 50/60 Hz |
| Cooling Capacity | 9.00 kW |
| Heating Capacity | 10.00 kW |
| Power Input Cooling | 0.090 kW |
| Power Input Heating | 0.090 kW |
| Unit Dimensions H × W × D | 246 × 840 × 840 mm |
| Unit Weight | 24.0 kg |
| Casing | Galvanized steel plate |
| Airflow Rate Cooling High / Medium / Low | 23.5 / 19.2 / 13.5 m³/min |
| Airflow Rate Heating High / Medium / Low | 22.5 / 18.5 / 13.0 m³/min |
| Air Filter Type | Resin net |
| Sound Power Level Cooling | 55.0 dB(A) |
| Sound Pressure Level Cooling High / Medium / Low | 40.0 / 34.0 / 30.0 dB(A) |
| Sound Pressure Level Heating High / Medium / Low | 40.0 / 34.0 / 30.0 dB(A) |
| Refrigerant Type / GWP | R-410A / 2087.5 |
| Liquid Pipe Connection OD | 9.52 mm |
| Gas Pipe Connection OD | 15.9 mm |
| Drain Connection | VP25, O.D. 32 mm / I.D. 25 mm |
| Standard Panel Options | BYCQ140E, BYCQ140EW, BYCQ140EB |
| Auto Cleaning Panel Options | BYCQ140EGF / BYCQ140EGFB |
| Designer Panel Options | BYCQ140EP / BYCQ140EPB |
| Standard Panel Dimensions H × W × D | 50 × 950 × 950 mm |
| Auto Cleaning Panel Dimensions H × W × D | 130 × 950 × 950 mm |
| Designer Panel Dimensions H × W × D | 50 × 950 × 950 mm |
| Standard Panel Weight | 5.4 kg |
| Auto Cleaning Panel Weight | 10.3 kg |
| Designer Panel Weight | 5.4 kg |
| Drain Pump Lift | 675 mm |
Application Scope
| Application Area | Details |
|---|---|
| Offices | Suitable for open offices, meeting rooms, private cabins, and work areas requiring even airflow. |
| Restaurants | Provides comfortable 360° air distribution across dining spaces and seating zones. |
| Retail Shops | Ideal for boutiques, customer areas, display spaces, and showrooms. |
| Hotels | Suitable for guest areas, lobbies, conference rooms, and hospitality interiors. |
| Commercial Interiors | Works well in ceiling cassette applications requiring flexible airflow control. |
| Irregular Room Layouts | Branch duct discharge and individual flap control help improve air distribution in complex layouts. |
Main Benefits
- High-performance VRV round flow cassette indoor unit
- Cooling capacity of 9.00 kW
- Heating capacity of 10.00 kW
- 360° air discharge for efficient comfort
- Optional auto-cleaning panel for lower maintenance
- Optional intelligent sensors for comfort and energy savings
- Wide panel choices in white and black finishes
- Individual flap control for flexible airflow direction
- Optional fresh air intake and branch duct discharge
- Built-in drain pump with 675 mm lift
- Suitable for offices, restaurants, hotels, shops, and commercial interiors ⚙️
