Description

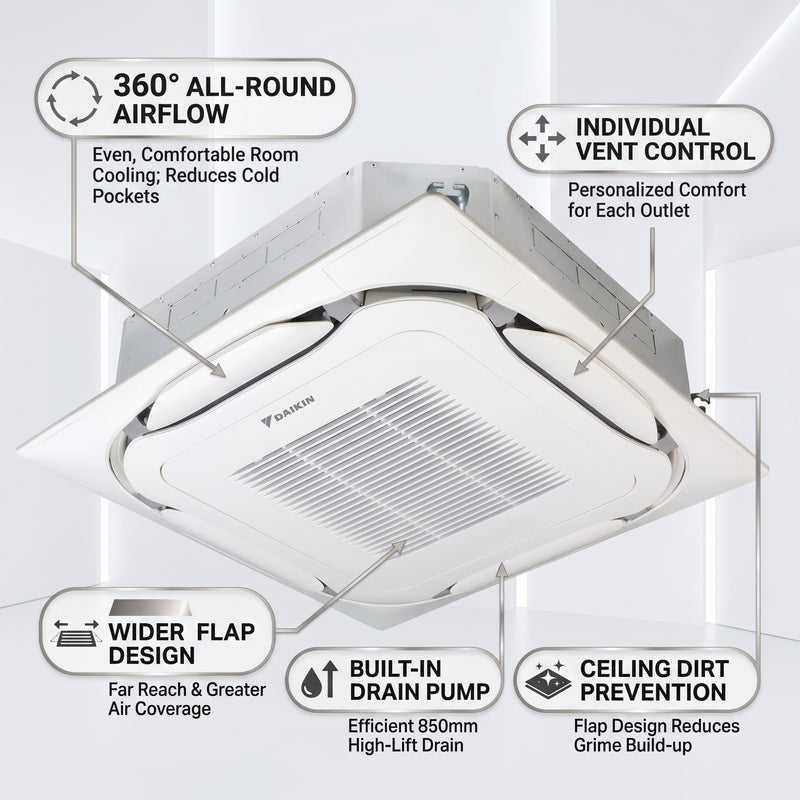

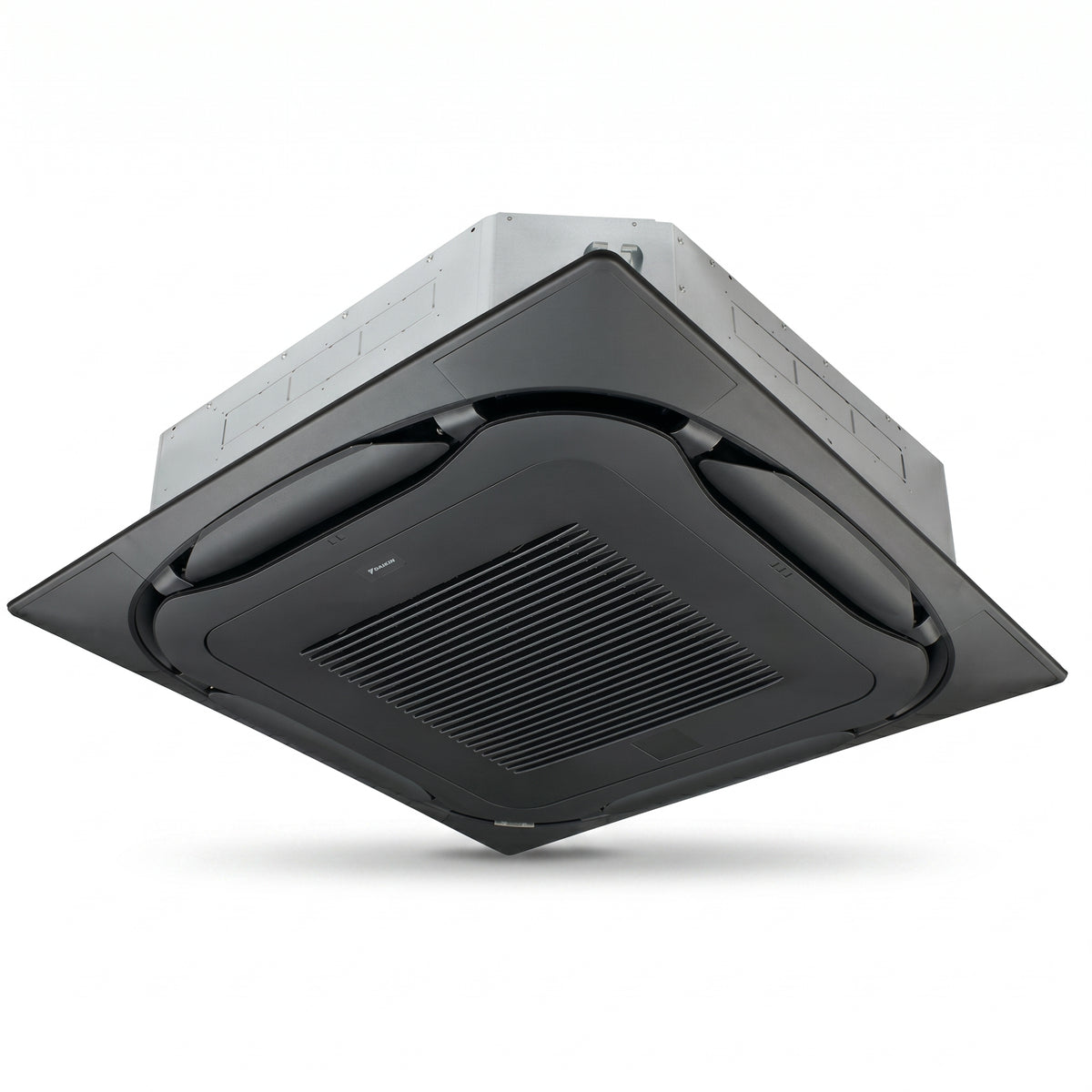

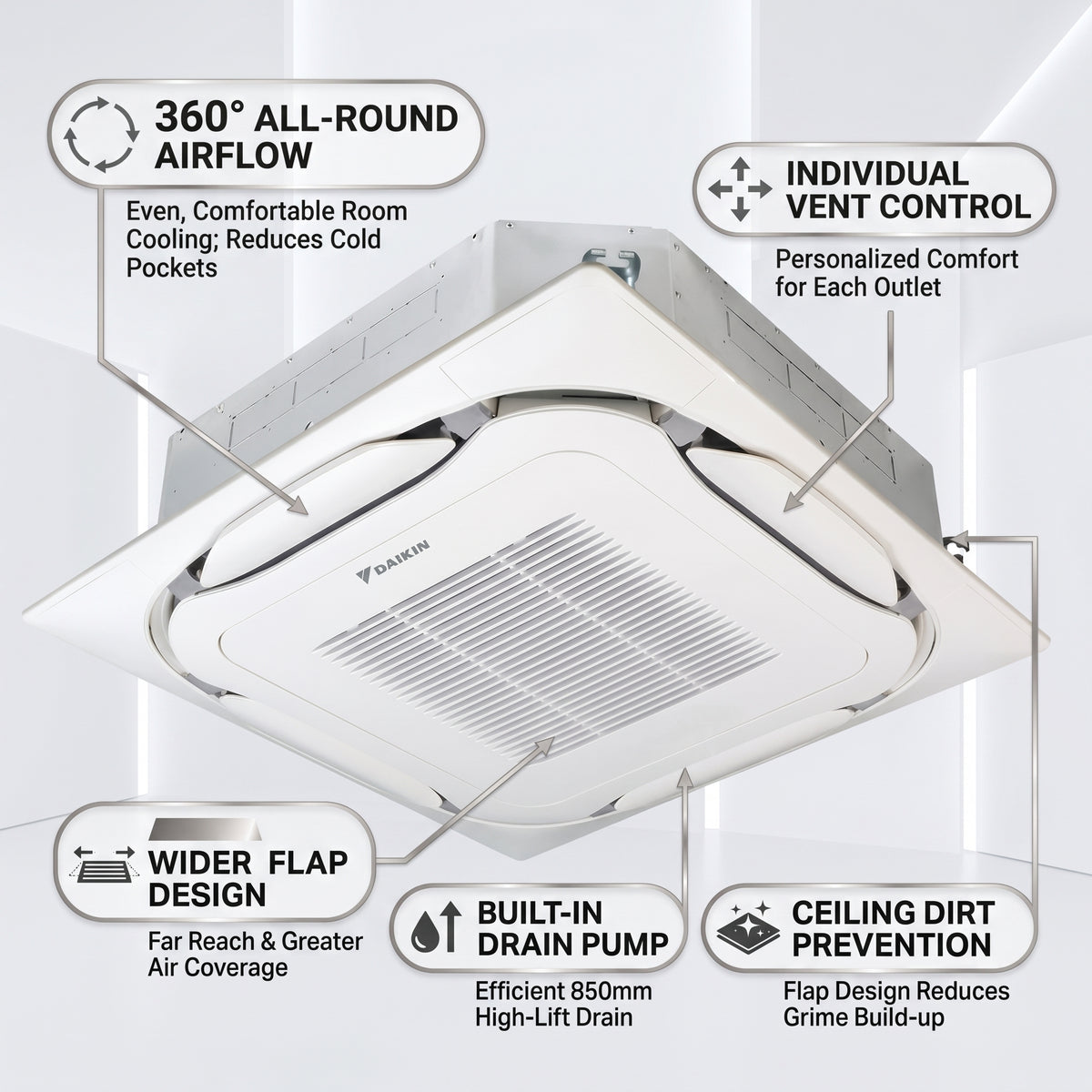

The Daikin FXFSQ100ARV1 is a high-performance VRV ceiling mounted cassette indoor unit designed to provide comfortable and even air conditioning with its advanced 360° airflow system. It uses circulation airflow, individual airflow control, and direct airflow to help deliver balanced temperature distribution across the room, reducing cold air pockets and improving comfort in commercial interiors. ❄️
Key Features
| Feature | Description |
|---|---|
| Brand | Daikin |
| Model | FXFSQ100ARV1 |
| Series | FXFSQ-ARV1 |
| Product Type | VRV cassette indoor unit |
| Installation Type | Ceiling mounted cassette round flow |
| Cooling Capacity | 11.2 kW / 38,200 Btu/h |
| Heating Capacity | 12.5 kW / 42,700 Btu/h |
| Airflow System | 360° airflow / all-round flow |
| Main Technology | Circulation airflow and individual airflow setting |
| Drain Pump | Standard drain pump with 850 mm lift |
| Application | Offices, shops, restaurants, meeting rooms, showrooms, and commercial interiors |
Product Features
| Feature | Details |
|---|---|
| 360° Airflow Distribution | Provides all-round airflow to improve temperature distribution and create a comfortable indoor environment. |
| Circulation Airflow | Straight, horizontal, and strong airflow travels across the room, reaches walls, and falls toward the floor for full-room comfort. |
| Individual Airflow Setting | Airflow direction can be adjusted individually for each discharge outlet to suit the room layout. |
| Direct Airflow Control | Helps direct airflow according to occupant position and comfort requirements. |
| New Wide Flaps | Wide flaps increase airflow straightness and help improve coverage compared with conventional models. |
| Ceiling Dirt Reduction | New wide flap construction helps direct dirty-ceiling airflow downward, reducing ceiling dirt and grime. |
| Optimized Horizontal Airflow | Maintains a more horizontal airflow route even when the flap is raised. |
| Two-Way Flow Option | Selected outlets can be controlled to create stronger airflow in required directions. |
| Improved Air Velocity | Two-way flow helps increase air velocity for stronger air distribution. |
| Energy Saving Comfort | Helps save energy by reducing uneven temperatures and improving overall room comfort. |
| Room Layout Adaptability | Suitable for different room layouts, seating positions, windows, and commercial arrangements. |
| Standard Drain Pump | Built-in drain pump supports condensate lift up to 850 mm for flexible ceiling installation. |
Technical Parameters
| Specification | Details |
|---|---|
| Model | FXFSQ100ARV1 |
| Power Supply | 1-phase, 220–240V, 50/60 Hz |
| Cooling Capacity | 38,200 Btu/h / 11.2 kW |
| Heating Capacity | 42,700 Btu/h / 12.5 kW |
| Casing | Galvanized steel plate |
| Airflow Rate High / Medium / Low | 33.5 / 27 / 21 m³/min |
| Airflow Rate High / Medium / Low | 1183 / 953 / 741 cfm |
| Sound Level High / Medium / Low | 44 / 38 / 33 dB(A) |
| Dimensions H × W × D | 298 × 840 × 840 mm |
| Machine Weight | 25 kg |
| Liquid Pipe Connection | 9.5 mm flare |
| Gas Pipe Connection | 15.9 mm flare |
| Drain Connection | Dia. 26 hole |
| Standard Panel Model | BYCQ125EAF9, Fresh White |
| Panel Dimensions H × W × D | 50 × 950 × 950 mm |
| Panel Weight | 5.5 kg |
| Drain Pump Lift | 850 mm |
| Installation Type | Ceiling mounted cassette round flow |
Application Scope
| Application Area | Details |
|---|---|
| Offices | Helps provide balanced airflow for desks, meeting areas, and zones near windows. |
| Restaurants | Suitable for dining areas where consistent airflow comfort is required across multiple seating zones. |
| Retail Shops | Provides comfortable cooling for customer areas, counters, and product display spaces. |
| Showrooms | Helps maintain even comfort across open commercial interiors. |
| Meeting Rooms | Individual airflow settings help reduce direct airflow on occupants. |
| Commercial Interiors | Ideal for ceiling cassette VRV applications requiring flexible and even air distribution. |
Main Benefits
- Powerful VRV ceiling mounted cassette indoor unit
- Cooling capacity of 11.2 kW / 38,200 Btu/h
- Heating capacity of 12.5 kW / 42,700 Btu/h
- 360° all-round airflow for better room comfort
- Circulation airflow helps cool the entire room evenly
- Individual airflow setting for each outlet
- New wide flap design improves airflow coverage
- Helps reduce ceiling dirt and grime
- Built-in drain pump with 850 mm lift
- Suitable for offices, restaurants, shops, showrooms, and commercial interiors ⚙️
