Description

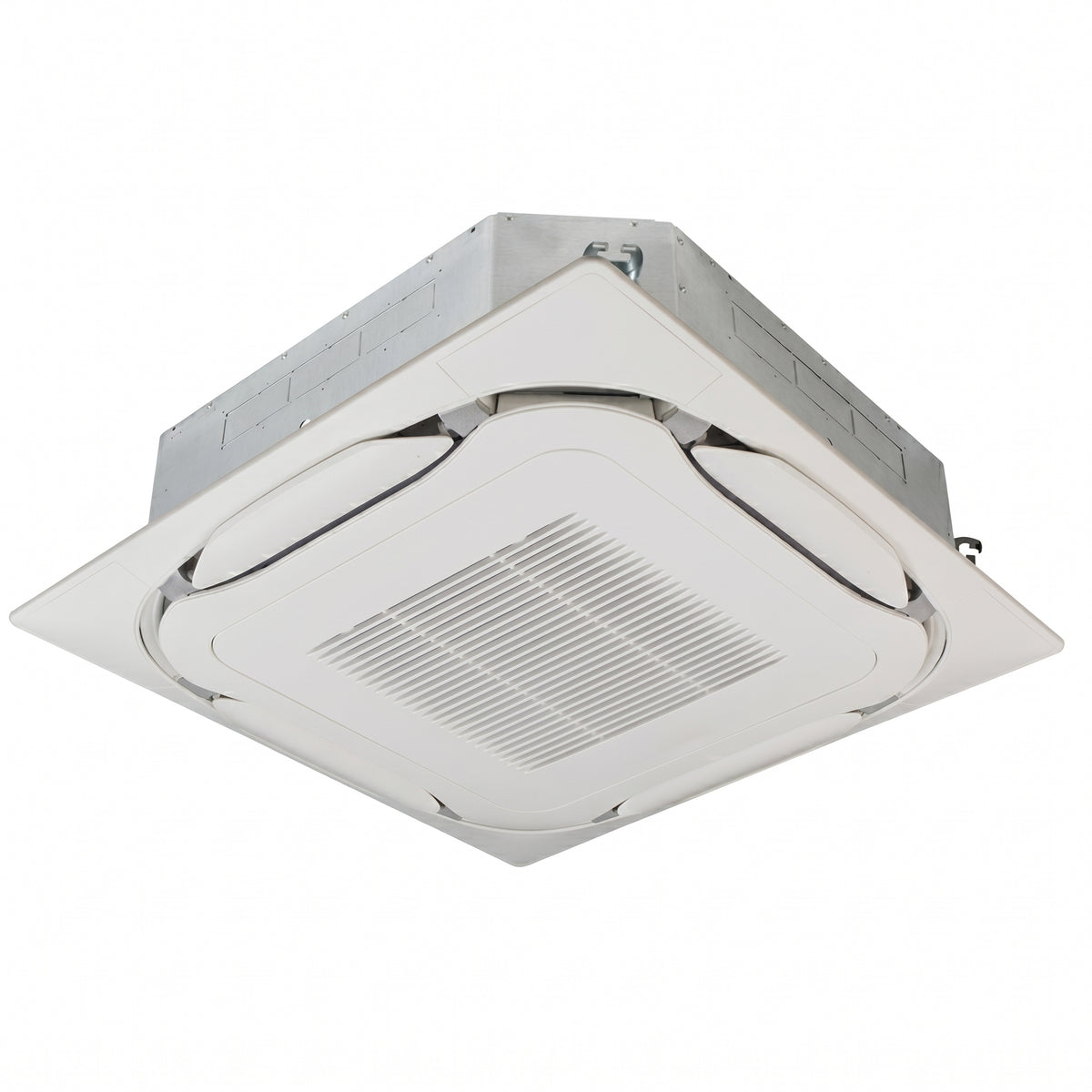

The Daikin FXFQ125B is a high-performance VRV round flow cassette indoor unit designed to deliver 360° air discharge for efficient cooling, heating, and comfort. It provides wide air distribution, flexible airflow control, and quiet operation, making it suitable for offices, shops, restaurants, showrooms, meeting rooms, hotels, and commercial interiors. ❄️
Key Features
| Feature | Description |
|---|---|
| Brand | Daikin |
| Model | FXFQ125B |
| Series | FXFQ-B |
| Product Type | VRV round flow cassette indoor unit |
| Installation Type | Ceiling mounted cassette |
| Cooling Capacity | 14.00 kW |
| Heating Capacity | 16.00 kW |
| Airflow System | 360° air discharge |
| Panel Options | White, full white, black, auto-cleaning, and designer panels |
| Drain Pump | Standard drain pump with 675 mm lift |
| Refrigerant | R-410A |
| Application | Offices, restaurants, shops, showrooms, hotels, and commercial spaces |
Product Features
| Feature | Details |
|---|---|

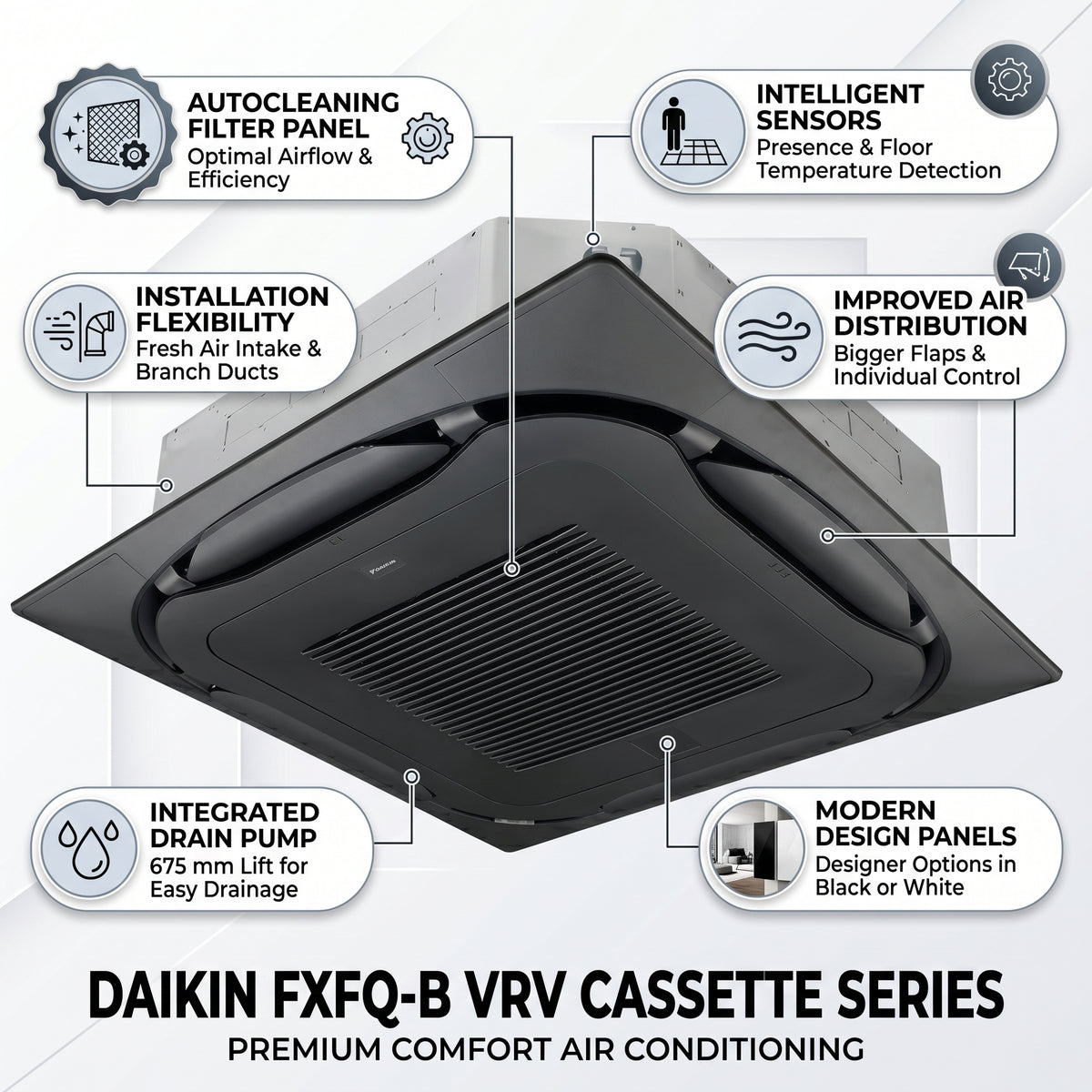

| 360° Air Discharge | Provides all-round airflow for optimum efficiency and comfortable room air distribution. |
| Automatic Filter Cleaning Option | Optional auto-cleaning panel helps maintain efficiency, comfort, and lower maintenance requirements. |
| Optional Intelligent Sensors | Presence and floor sensors help improve energy efficiency and comfort by detecting people and floor temperature. |
| Wide Decoration Panel Choice | Available with standard panels, auto-cleaning panels, designer panels, white panels, full white panels, and black panels. |
| Bigger Flaps & Unique Swing Pattern | Helps improve equal air distribution across the room. |
| Individual Flap Control | Each flap can be adjusted to suit room layout without changing the unit location. |
| Low Installation Height | Compact cassette height supports easier installation in ceiling spaces. |
| Optional Fresh Air Intake | Allows fresh air connection to support improved indoor air quality. |
| Branch Duct Discharge | Helps optimize air distribution in irregular-shaped rooms or supply air to small adjacent rooms. |
| Standard Drain Pump | Built-in drain pump with 675 mm lift improves installation flexibility and speed. |
| Ceiling Soiling Prevention | Helps reduce ceiling dirt by improving airflow direction and distribution. |
| Vertical Auto Swing | Distributes air evenly around the room for better comfort. |
| Fan Only Operation | Can operate as a fan without cooling or heating when only air circulation is needed. |
| Dry Programme | Helps reduce humidity without major room temperature change. |
| Auto Restart & Self Diagnosis | Automatically restarts after power failure and supports easier fault diagnosis. |
| Remote Control Options | Compatible with infrared, wired, and centralized control options. |
Technical Parameters
| Specification | Details |
|---|---|
| Model | FXFQ125B |
| Power Supply | 1-phase, 220–240V / 220V, 50/60 Hz |
| Cooling Capacity | 14.00 kW |
| Heating Capacity | 16.00 kW |
| Power Input Cooling | 0.190 kW |
| Power Input Heating | 0.190 kW |
| Unit Dimensions H × W × D | 288 × 840 × 840 mm |
| Unit Weight | 26.0 kg |
| Casing | Galvanized steel plate |
| Airflow Rate Cooling High / Medium / Low | 31.6 / 26.0 / 19.8 m³/min |
| Airflow Rate Heating High / Medium / Low | 30.3 / 24.9 / 18.9 m³/min |
| Air Filter Type | Resin net |
| Sound Power Level Cooling | 61.0 dB(A) |
| Sound Pressure Level Cooling High / Medium / Low | 45.0 / 40.0 / 36.0 dB(A) |
| Sound Pressure Level Heating High / Medium / Low | 45.0 / 40.0 / 36.0 dB(A) |
| Refrigerant Type / GWP | R-410A / 2087.5 |
| Liquid Pipe Connection OD | 9.52 mm |
| Gas Pipe Connection OD | 15.9 mm |
| Drain Connection | VP25, O.D. 32 mm / I.D. 25 mm |
| Standard Panel Options | BYCQ140E, BYCQ140EW, BYCQ140EB |
| Auto Cleaning Panel Options | BYCQ140EGF / BYCQ140EGFB |
| Designer Panel Options | BYCQ140EP / BYCQ140EPB |
| Standard Panel Dimensions H × W × D | 50 × 950 × 950 mm |
| Auto Cleaning Panel Dimensions H × W × D | 130 × 950 × 950 mm |
| Designer Panel Dimensions H × W × D | 50 × 950 × 950 mm |
| Standard Panel Weight | 5.4 kg |
| Auto Cleaning Panel Weight | 10.3 kg |
| Designer Panel Weight | 5.4 kg |
| Drain Pump Lift | 675 mm |
Application Scope
| Application Area | Details |
|---|---|
| Offices | Suitable for open offices, meeting rooms, private cabins, and work areas requiring even airflow. |
| Restaurants | Provides comfortable 360° air distribution across dining spaces and seating zones. |
| Retail Shops | Ideal for customer areas, display spaces, boutiques, and showrooms. |
| Hotels | Suitable for guest areas, lobbies, conference rooms, and hospitality interiors. |
| Commercial Interiors | Works well in spaces requiring ceiling cassette installation with flexible airflow control. |
| Irregular Room Layouts | Branch duct discharge and individual flap control help improve air distribution in complex layouts. |
Main Benefits
- Powerful VRV round flow cassette indoor unit
- Cooling capacity of 14.00 kW
- Heating capacity of 16.00 kW
- 360° air discharge for efficient comfort
- Optional auto-cleaning panel for lower maintenance
- Optional intelligent sensors for improved comfort and energy efficiency
- Wide choice of decoration panels in white and black
- Individual flap control for flexible airflow direction
- Optional fresh air intake and branch duct discharge
- Built-in drain pump with 675 mm lift
- Suitable for offices, restaurants, shops, hotels, and commercial interiors ⚙️
