Description

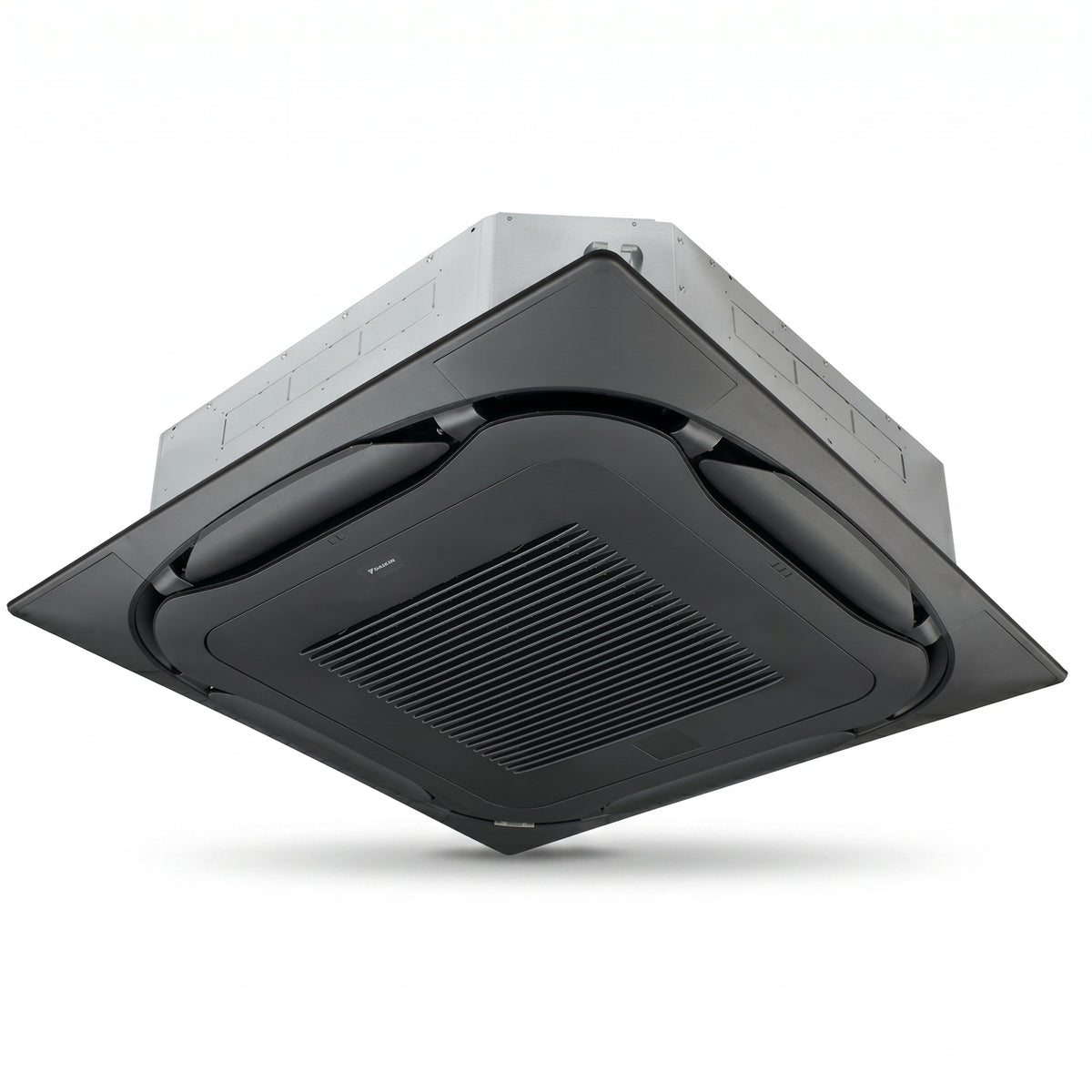

The Daikin FXFSQ125ARV1 is a high-performance VRV ceiling mounted cassette indoor unit designed to provide comfortable and even air conditioning with its advanced 360° airflow system. It uses circulation airflow, individual airflow control, and direct airflow to help distribute cool air across the entire room, reducing uneven temperatures and cold air pockets at floor level. ❄️
Key Features
| Feature | Description |
|---|---|
| Brand | Daikin |
| Model | FXFSQ125ARV1 |
| Series | FXFSQ-ARV1 |
| Product Type | VRV cassette indoor unit |
| Installation Type | Ceiling mounted cassette round flow |
| Cooling Capacity | 14.0 kW / 47,800 Btu/h |
| Heating Capacity | 16.0 kW / 54,600 Btu/h |
| Airflow System | 360° airflow / all-round flow |
| Main Technology | Circulation airflow and individual airflow setting |
| Drain Pump | Standard drain pump with 850 mm lift |
| Application | Offices, shops, restaurants, meeting rooms, showrooms, and commercial interiors |

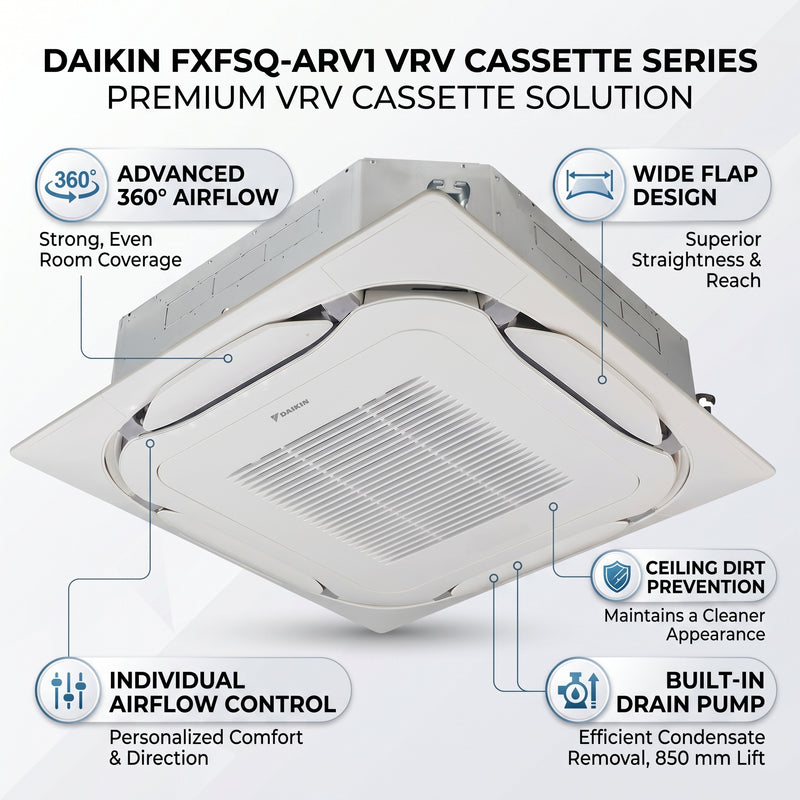

Product Features
| Feature | Details |
|---|---|
| 360° Airflow Distribution | Provides all-round airflow to improve room temperature distribution and comfort. |
| Circulation Airflow | Straight, horizontal, and strong airflow travels across the room, reaches walls, and falls to the floor to cool the entire area. |
| Individual Airflow Setting | Airflow direction can be individually adjusted for each air discharge outlet to match room layout. |
| Direct Airflow Control | Allows airflow direction to be adjusted automatically or manually for better occupant comfort. |
| New Wide Flaps | Wide flaps increase airflow straightness and help improve coverage compared with conventional models. |
| Ceiling Dirt Reduction | New wide flap construction helps direct dirty-ceiling airflow downward to reduce ceiling dirt and grime. |
| Optimized Horizontal Airflow | Maintains a strong horizontal airflow route even when the flap is raised. |
| Two-Way Flow Option | Selected outlets can be controlled to create stronger two-way airflow where required. |
| Improved Air Velocity | Two-way flow increases air velocity, helping achieve powerful airflow distribution. |
| Energy Saving Comfort | Helps save energy by reducing uneven room temperature and improving overall comfort. |
| Room Layout Adaptability | Suitable for offices, shops, and restaurants where airflow needs differ by seating or working area. |
| Standard Drain Pump | Built-in drain pump supports condensate lift up to 850 mm for easier ceiling installation. |

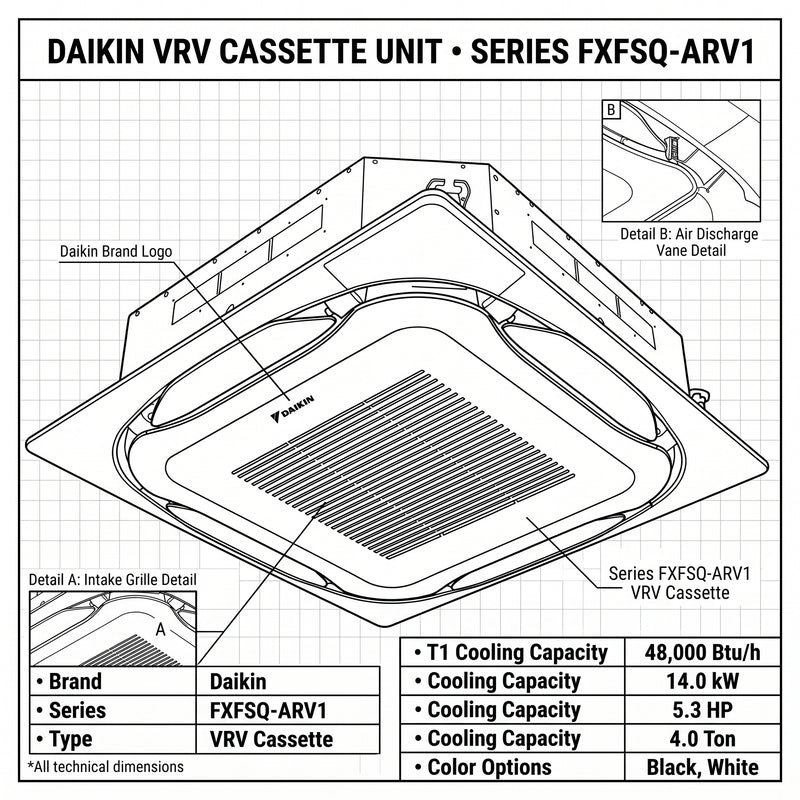

Technical Parameters
| Specification | Details |
|---|---|
| Model | FXFSQ125ARV1 |
| Power Supply | 1-phase, 220–240V, 50/60 Hz |
| Cooling Capacity | 47,800 Btu/h / 14.0 kW |
| Heating Capacity | 54,600 Btu/h / 16.0 kW |
| Casing | Galvanized steel plate |
| Airflow Rate High / Medium / Low | 34.5 / 28.5 / 23 m³/min |
| Airflow Rate High / Medium / Low | 1218 / 1006 / 812 cfm |
| Sound Level High / Medium / Low | 45 / 39.5 / 35 dB(A) |
| Dimensions H × W × D | 298 × 840 × 840 mm |
| Machine Weight | 25 kg |
| Liquid Pipe Connection | 9.5 mm flare |
| Gas Pipe Connection | 15.9 mm flare |
| Drain Connection | Dia. 26 hole |
| Standard Panel Model | BYCQ125EAF9, Fresh White |
| Panel Dimensions H × W × D | 50 × 950 × 950 mm |
| Panel Weight | 5.5 kg |
| Drain Pump Lift | 850 mm |
| Installation Type | Ceiling mounted cassette round flow |
Application Scope
| Application Area | Details |
|---|---|
| Offices | Helps provide balanced airflow for desks, meeting areas, and spaces near windows. |
| Restaurants | Suitable for dining areas where air comfort must be maintained across different seating zones. |
| Retail Shops | Provides even cooling for customer areas, counters, and product display spaces. |
| Showrooms | Helps maintain comfortable cooling across open commercial interiors. |
| Meeting Rooms | Individual airflow setting helps reduce direct airflow on occupants. |
| Commercial Interiors | Ideal for ceiling cassette VRV applications requiring flexible and even air distribution. |
Main Benefits
- Powerful VRV ceiling mounted cassette indoor unit
- Cooling capacity of 14.0 kW / 47,800 Btu/h
- Heating capacity of 16.0 kW / 54,600 Btu/h
- 360° all-round airflow for better comfort
- Circulation airflow helps cool the entire room evenly
- Individual airflow setting for each outlet
- New wide flap design improves airflow coverage
- Helps reduce ceiling dirt and grime
- Built-in drain pump with 850 mm lift
- Suitable for offices, restaurants, shops, showrooms, and commercial interiors ⚙️
