Description
The Daikin FDMF48AVMK / RZF48AYMK is a concealed ceiling air conditioning system designed to deliver powerful, efficient, and reliable cooling while maintaining a clean interior look. It is suitable for bedrooms, villas, hotels, apartments, offices, and commercial spaces where hidden ducted cooling is required.
Key Features
| Feature | Details |
|---|---|
| Brand | Daikin |
| Series | FDMF Series |
| Indoor Unit | FDMF48AVMK |
| Outdoor Unit | RZF48AYMK |
| Cooling Type | Cooling only |
| Technology | Inverter technology |
| Refrigerant | R-32 |
| Installation Type | Concealed ceiling / ducted installation |
| Compressor Type | Hermetically sealed swing inverter compressor |
| Nominal Cooling Capacity | 48,000 Btu/h |
| Power Supply | 380–415V / 3Ph / 50–60Hz |
| Indoor Air Discharge | Ducted with Auto ESP |
| Remote Controller | Optional wired remote controller |

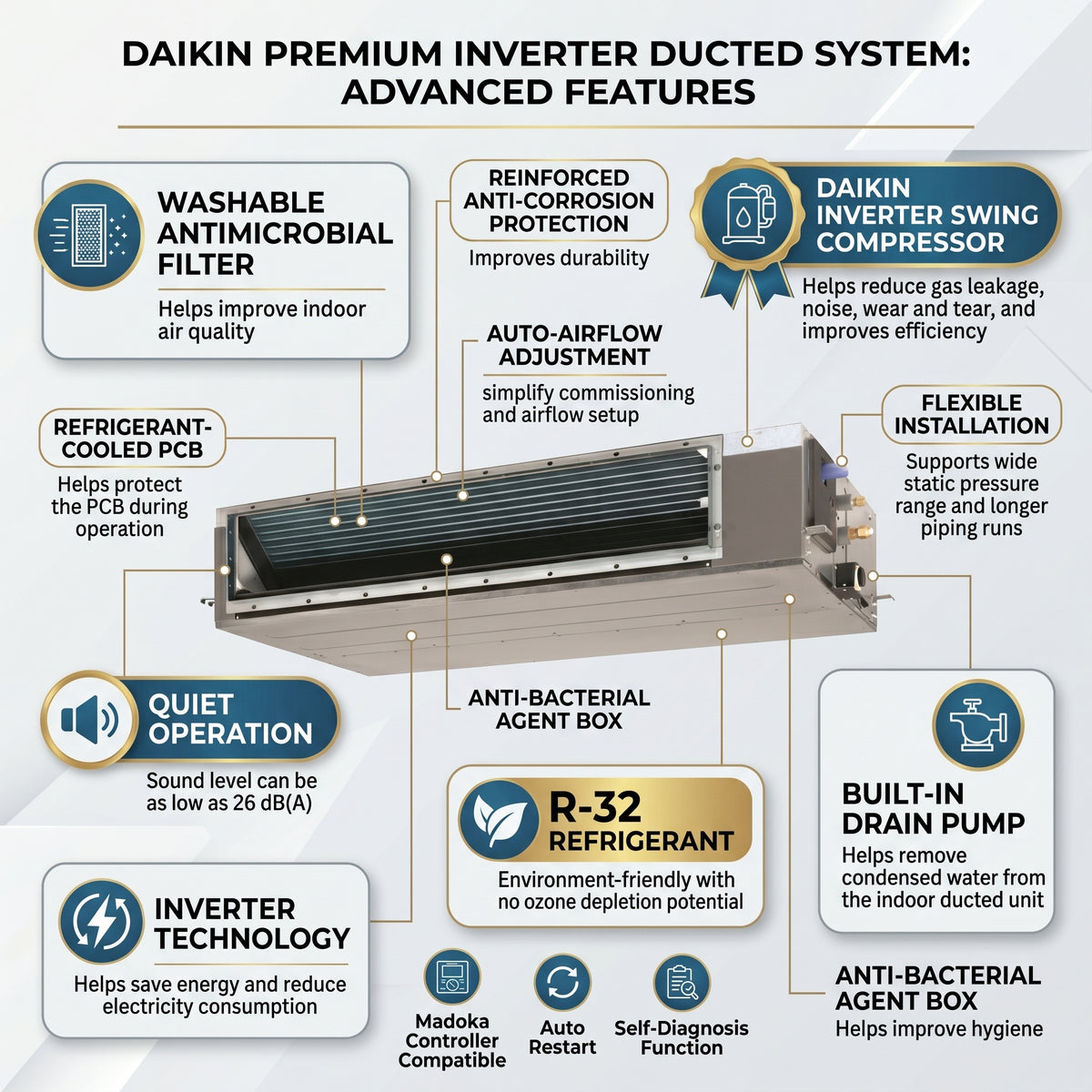

Product Features
| Feature | Description |
|---|---|
| Inverter Technology | Adjusts compressor operation according to cooling demand, helping reduce electricity consumption and maintain stable comfort. |
| R-32 Refrigerant | Provides efficient cooling with zero ozone depletion potential and reduced environmental impact. |
| Powerful Cooling | Designed to perform reliably even in high ambient temperature conditions. |
| Daikin Swing Compressor | Helps reduce refrigerant leakage, noise, wear and tear, while improving energy efficiency. |
| Flexible Installation | Suitable for ducted concealed ceiling applications with flexible piping and static pressure options. |
| Automatic Airflow Adjustment | Simplifies commissioning by automatically adjusting airflow according to duct resistance. |

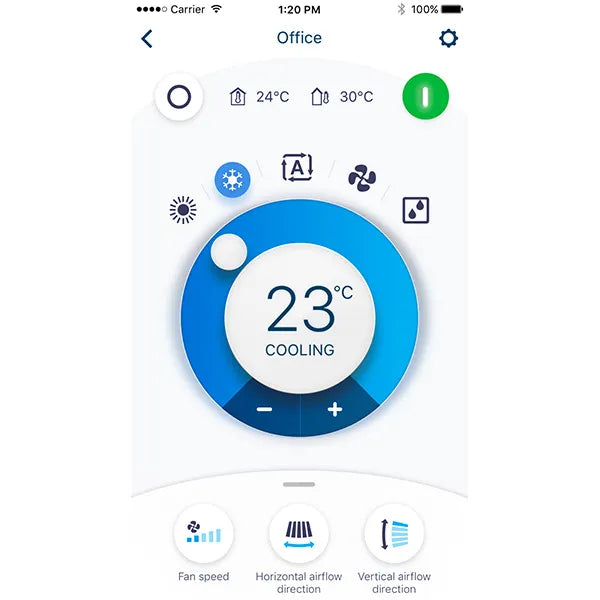

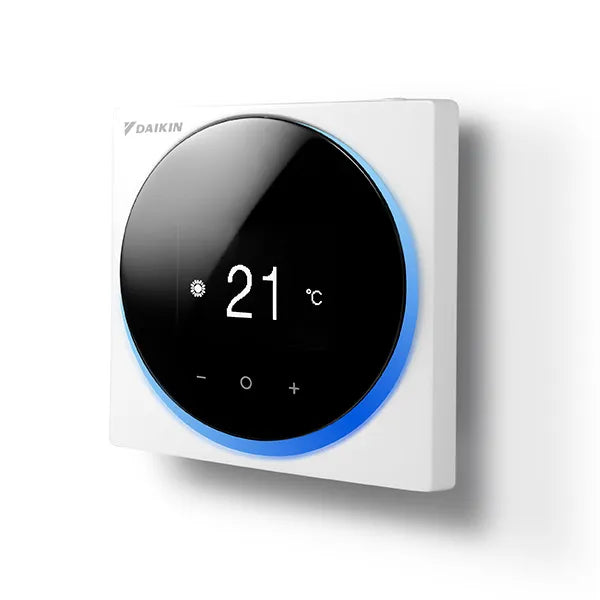

| Madoka Controller Compatibility | Supports modern control options with Bluetooth connectivity and smart operation features. |
| Built-in Drain Pump | Helps remove condensate water from the indoor unit for concealed ceiling installations. |
| Reinforced Anti-Corrosion Protection | Protects key components such as condenser coil, PCB sensors, bottom frame, and stop valve mounting plate. |
| Refrigerant-Cooled PCB | Helps maintain reliable cooling performance in demanding climate conditions. |
| Auto Restart | Restarts automatically with previous settings after power failure. |
| Self-Diagnosis Function | Displays fault codes for easier troubleshooting and maintenance. |
| Quiet Operation | Designed for low-noise comfort in bedrooms, hotels, offices, and premium indoor spaces. |
| High Indoor Air Quality | Includes washable antimicrobial filter and anti-bacterial agent box for cleaner air circulation. |
Technical Specifications
| Parameter | Specification |
|---|---|
| Indoor Unit | FDMF48AVMK |
| Outdoor Unit | RZF48AYMK |
| Cooling Capacity T1 35°C 50Hz | 48,000 Btu/h / 14.07 kW |
| Power Input T1 35°C 50Hz | 4.000 kW |
| EER T1 35°C 50Hz | 12.0 Btu/h/W |
| Cooling Capacity T1 35°C 60Hz | 48,000 Btu/h / 14.07 kW |
| Power Input T1 35°C 60Hz | 4.000 kW |
| EER T1 35°C 60Hz | 12.0 Btu/h/W |
| Cooling Capacity T3 46°C 50Hz | 42,000 Btu/h / 12.30 kW |
| Power Input T3 46°C 50Hz | 4.800 kW |
| EER T3 46°C 50Hz | 8.75 Btu/h/W |
| Cooling Capacity T3 46°C 60Hz | 42,000 Btu/h / 12.30 kW |
| Power Input T3 46°C 60Hz | 4.800 kW |
| EER T3 46°C 60Hz | 8.75 Btu/h/W |
| Power Supply | 380–415V / 3Ph / 50–60Hz |

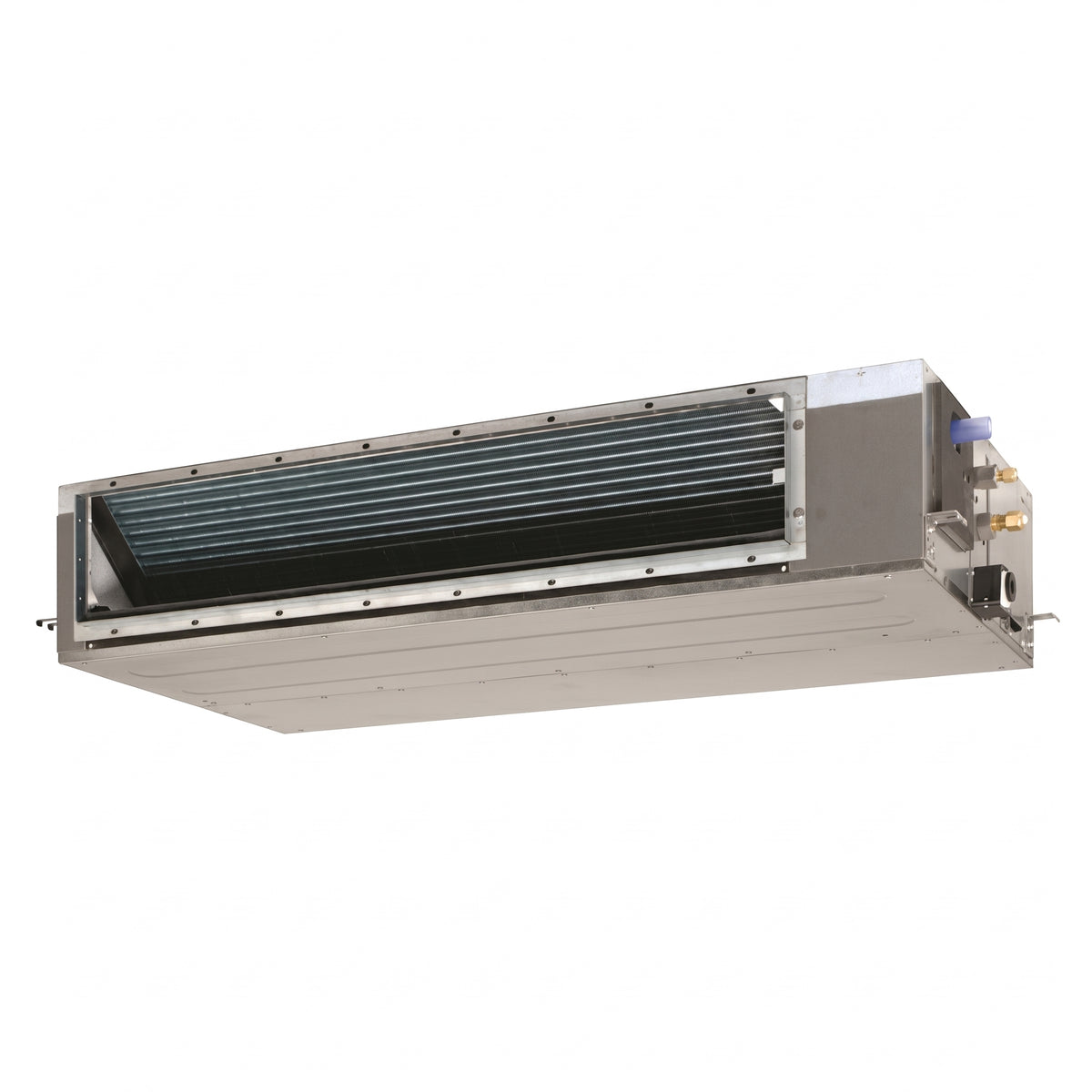

| Indoor Unit Dimensions | 400 × 1500 × 800 mm |
| Indoor Unit Weight | 59 kg |

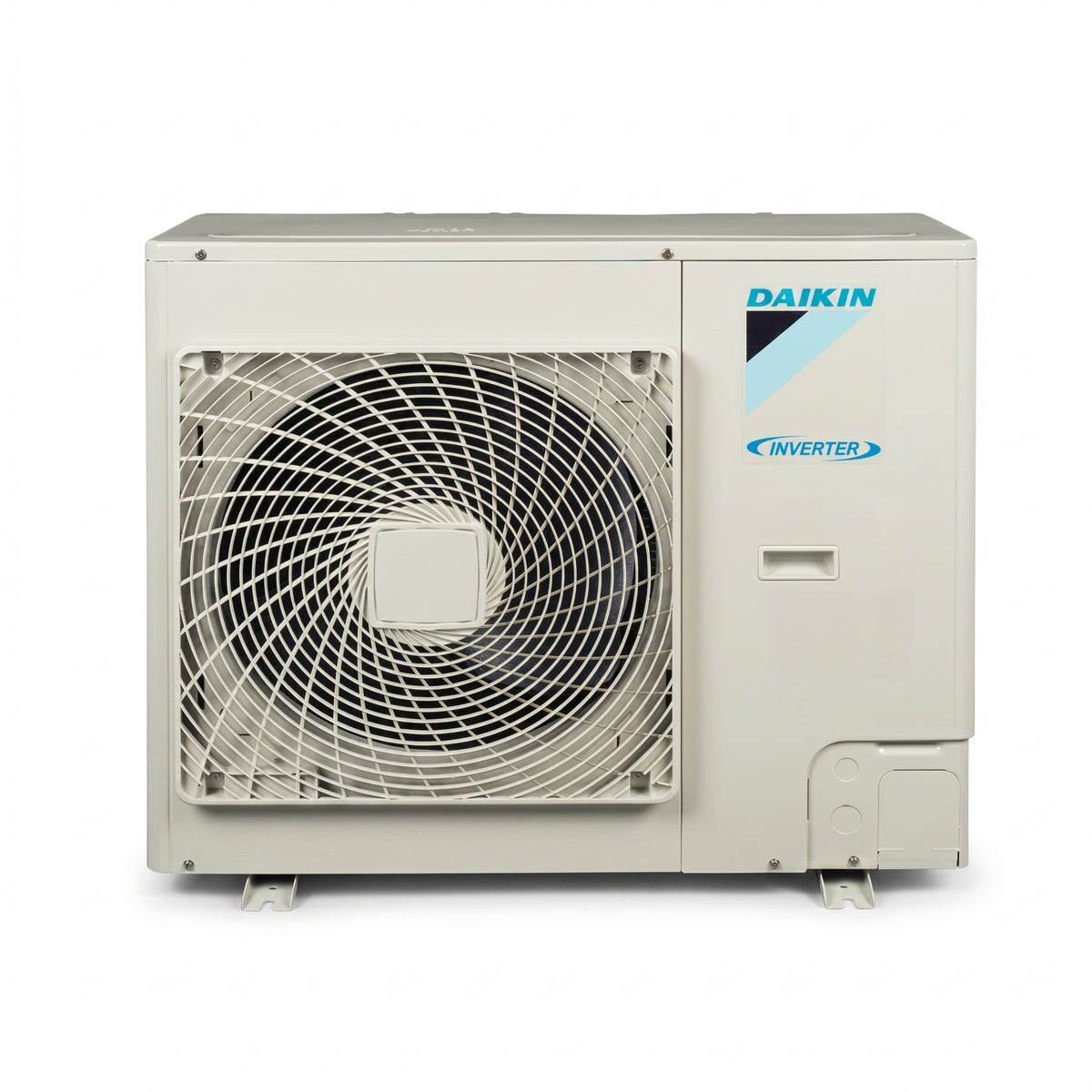

| Outdoor Unit Dimensions | 870 × 1100 × 520 mm |
| Outdoor Unit Weight | 61 kg |
| Compressor Type | Hermetically sealed swing inverter type |
| Liquid Pipe Connection | 9.5 mm / 3/8 inch |
| Gas Pipe Connection | 15.9 mm / 5/8 inch |
| Maximum Piping Length | 50 m |
| Maximum Elevation | 30 m |
| Chargeless Length | 15 m |
| Maximum Operating Range Cooling | 52°C CDB |
Application Scope
| Application Area | Details |
|---|---|
| Bedrooms | Quiet concealed cooling for comfort-focused interiors |
| Hotels | Suitable for guest rooms and suites |
| Villas | Powerful ducted cooling for larger residential spaces |
| Apartments | Hidden ceiling installation with clean interior design |
| Offices | Professional concealed air conditioning for workspaces |
| Retail Spaces | Efficient cooling without visible indoor wall units |
| Hospitality Areas | Suitable for lounges, rooms, and premium interiors |
Main Benefits
- Powerful 48,000 Btu/h cooling performance
- Energy-saving inverter technology
- Eco-friendly R-32 refrigerant
- Concealed ceiling design for a clean interior look
- Flexible duct installation with Auto ESP
- Automatic airflow adjustment for easier commissioning
- Daikin swing inverter compressor for efficient performance
- Built-in drain pump for reliable condensate removal
- Reinforced anti-corrosion protection for harsh climates
- Refrigerant-cooled PCB for improved reliability
- Auto restart and self-diagnosis function
- Quiet operation for comfortable indoor environments
- Suitable for UAE and Middle East cooling conditions
