Description
Main Function

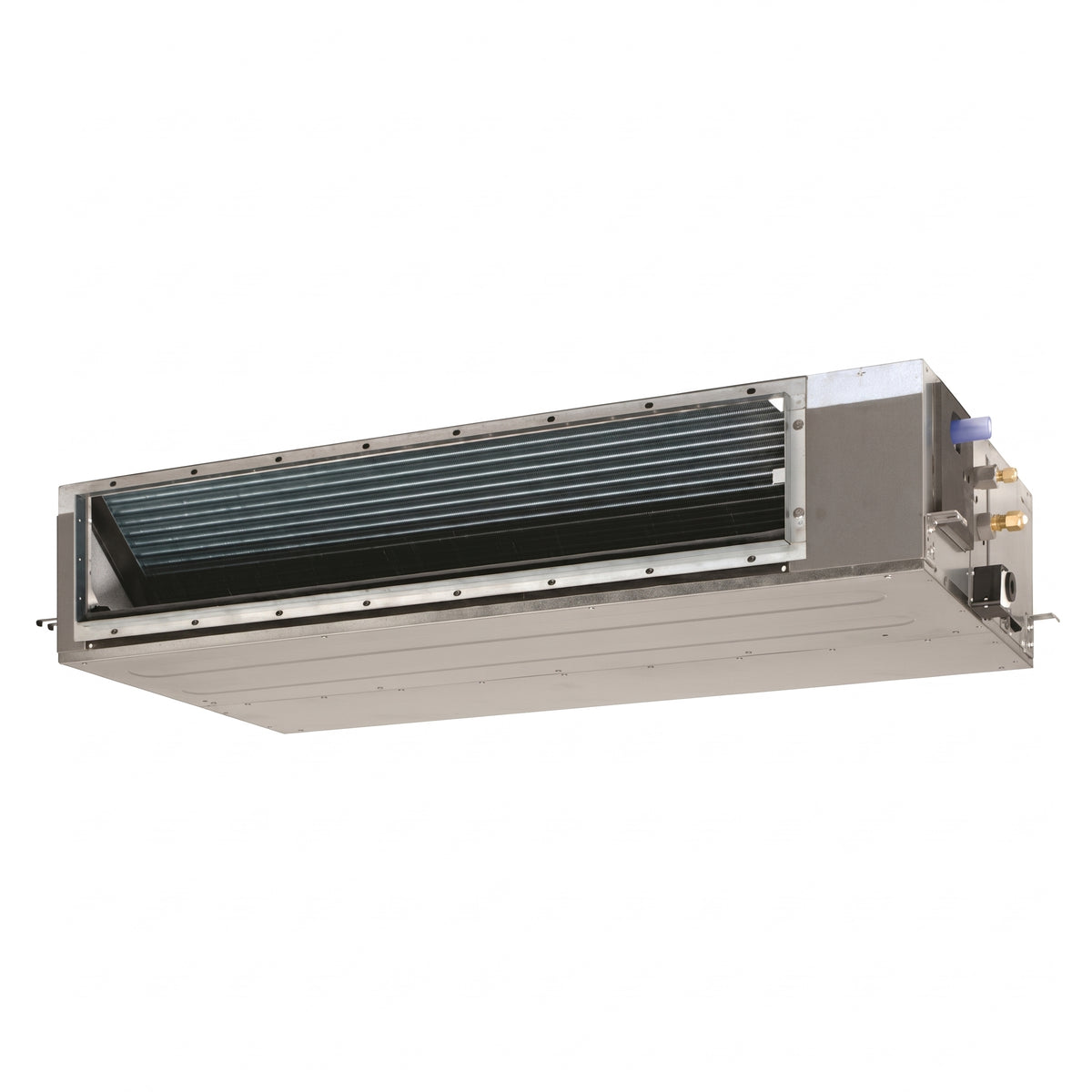

The Daikin FDMF54AVMK / RZF54AYMK is a high-performance concealed ceiling air conditioning system designed for powerful, efficient, and reliable cooling. It is suitable for homes, villas, hotels, apartments, offices, and commercial spaces where a clean ceiling-concealed installation is required.
Key Features
| Feature | Details |
|---|---|
| Brand | Daikin |
| Series | FDMF Series |
| Indoor Model | FDMF54AVMK |
| Outdoor Model | RZF54AYMK |
| Product Type | Concealed ceiling / ducted split AC |
| Cooling Type | Cooling only |
| Technology | Inverter technology |
| Refrigerant | R-32 |
| Compressor Type | Hermetically sealed swing inverter compressor |
| Nominal Cooling Capacity | 54,000 Btu/h |
| Nominal Cooling Capacity | 15.83 kW |
| Power Supply | 380–415V / 3Ph / 50–60Hz |
| Indoor Air Discharge | Ducted with Auto ESP |

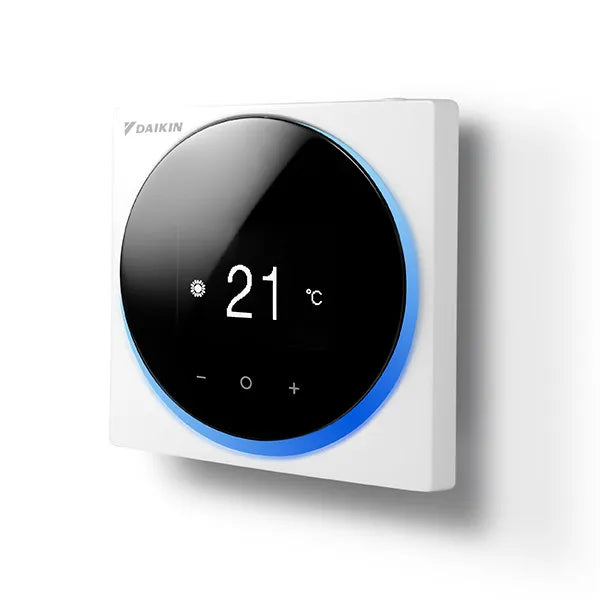

| Remote Controller | Optional wired remote controller |
| Installation Type | Concealed ceiling installation |
| Maximum Operating Range | Up to 52°C CDB cooling operation shown |
Product Features
| Feature | Description |
| Inverter Technology | Adjusts compressor speed according to cooling demand, helping reduce energy consumption and maintain stable comfort. |
| R-32 Refrigerant | Lower environmental impact refrigerant with zero ozone depletion potential. |
| Powerful Cooling | Designed to deliver strong cooling performance even in high ambient temperature conditions. |
| Daikin Swing Compressor | Helps reduce refrigerant leakage, lower noise, reduce wear and tear, and improve efficiency. |
| Flexible Installation | Wide static pressure range and extended piping length allow flexible duct and ceiling installation. |
| Automatic Airflow Adjustment | Simplifies commissioning by automatically adjusting airflow based on duct resistance. |
| Built-in Drain Pump Feature | Supports condensate drainage from the indoor unit for concealed ceiling installation. |
| Reinforced Anti-Corrosion Protection | Protects sensitive parts such as condenser coil, PCB sensors, outdoor bottom frame, and stop valve mounting plate. |
| Refrigerant-Cooled PCB | Helps ensure reliable cooling operation by protecting PCB performance in hot conditions. |
| Auto Restart | Restarts automatically with previous settings after sudden power failure. |
| Self-Diagnosis Function | Detects errors and displays related fault codes for easier servicing. |
| Quiet Operation | Designed for low-noise indoor comfort, suitable for bedrooms, hotel rooms, offices, and premium indoor spaces. |
| High Indoor Air Quality | Includes washable antimicrobial filter and anti-bacterial agent box attached to the drain pan. |

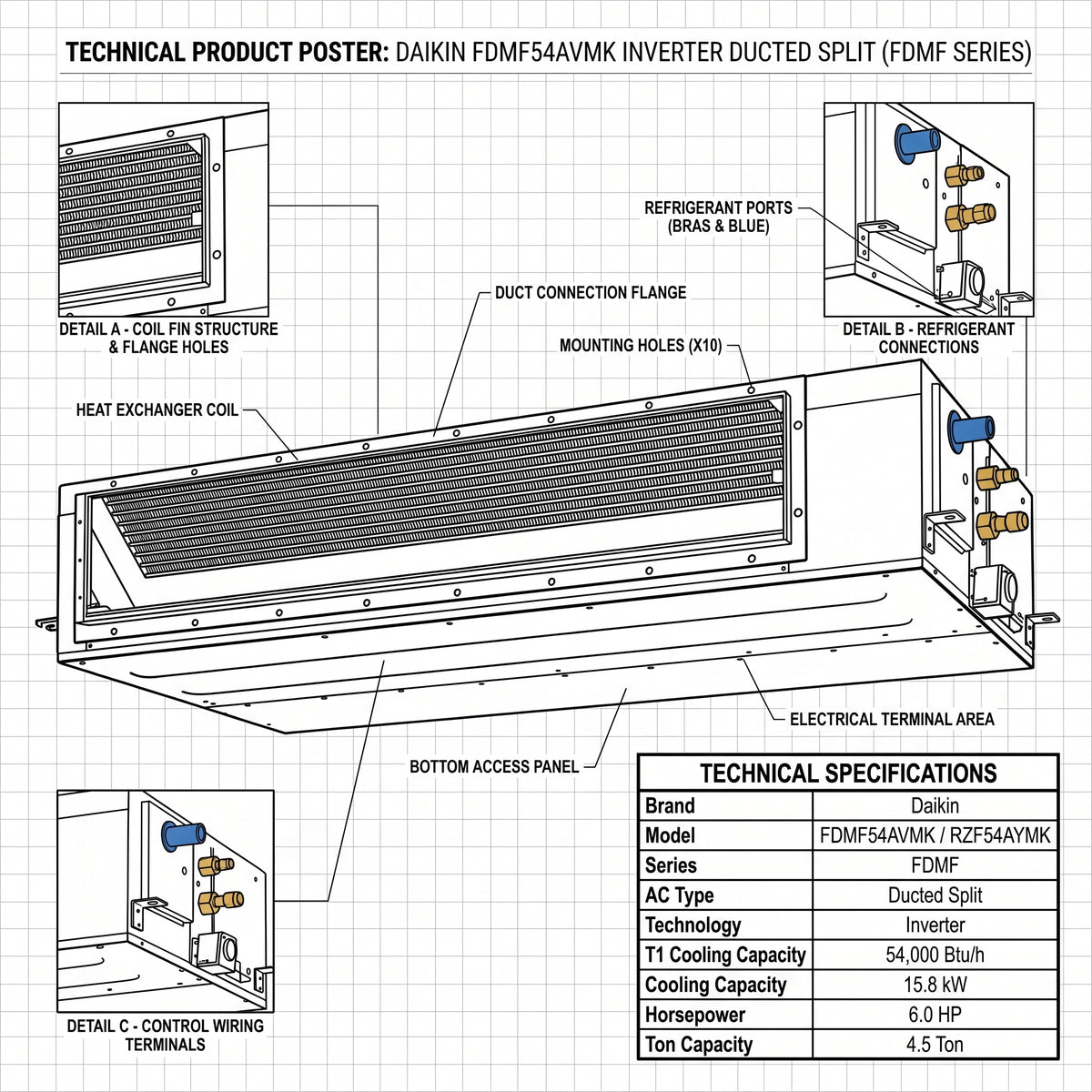

Technical Specifications
| Parameter | Specification |

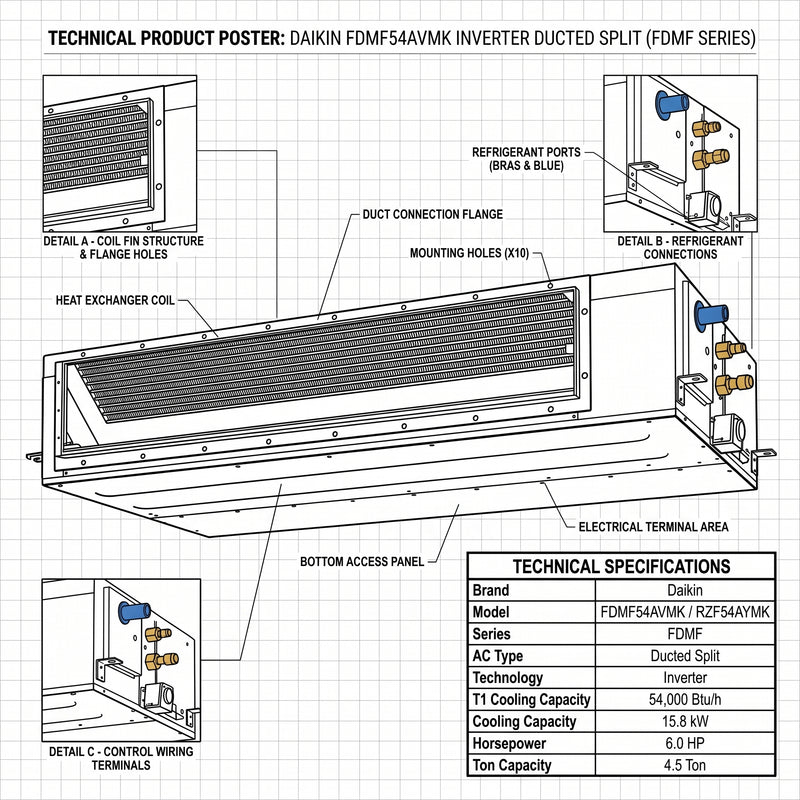

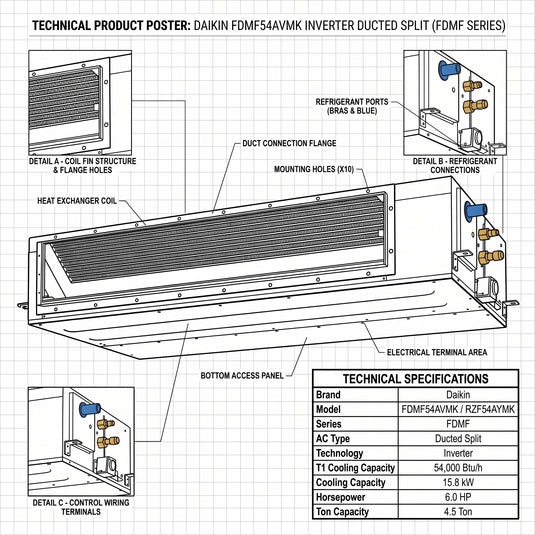

| Indoor Unit | FDMF54AVMK |

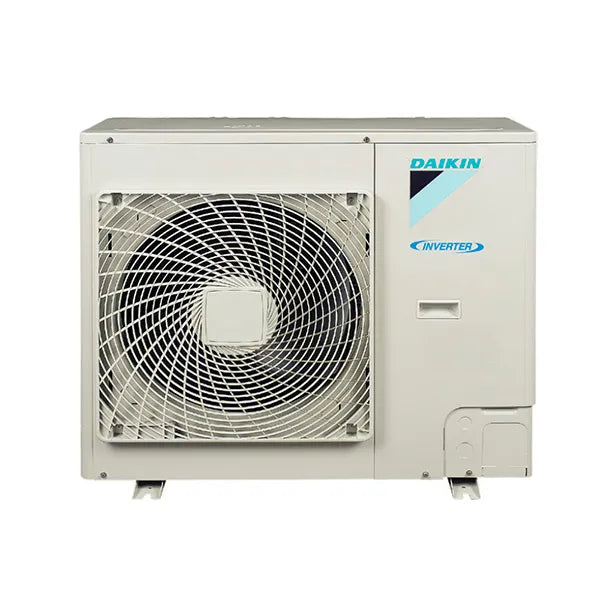

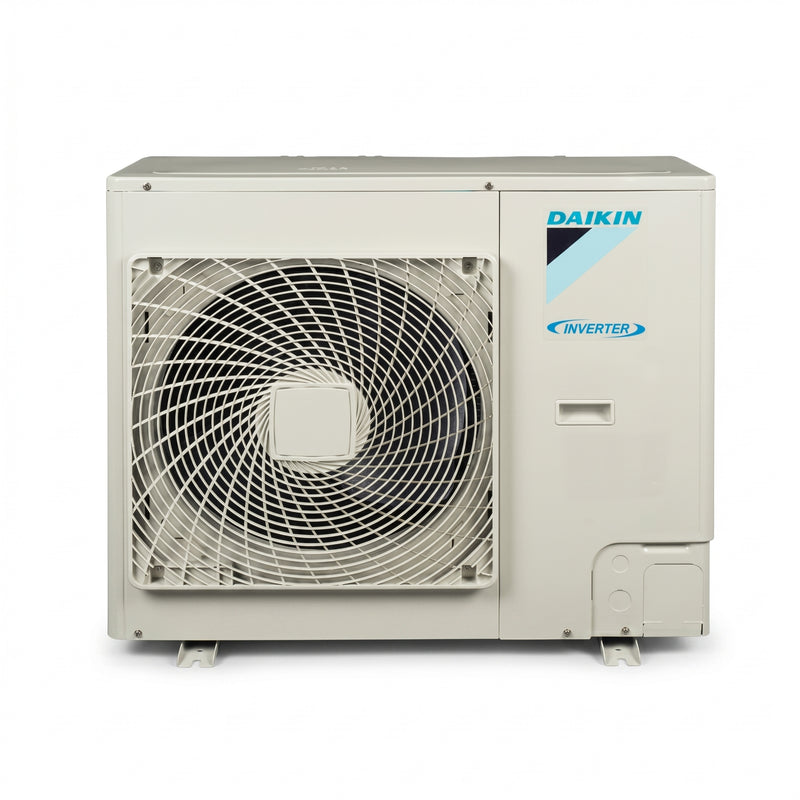

| Outdoor Unit | RZF54AYMK |
| Cooling Capacity T1 35°C 50Hz | 54,000 Btu/h |
| Cooling Capacity T1 35°C 50Hz | 15.83 kW |
| Power Input T1 35°C 50Hz | 4.500 kW |
| EER T1 35°C 50Hz | 12.0 Btu/h/W |
| Cooling Capacity T1 35°C 60Hz | 54,000 Btu/h |
| Cooling Capacity T1 35°C 60Hz | 15.83 kW |
| Power Input T1 35°C 60Hz | 4.500 kW |
| EER T1 35°C 60Hz | 12.0 Btu/h/W |
| Cooling Capacity T3 46°C 50Hz | 47,000 Btu/h |
| Cooling Capacity T3 46°C 50Hz | 13.78 kW |
| Power Input T3 46°C 50Hz | 5.400 kW |
| EER T3 46°C 50Hz | 8.70 Btu/h/W |
| Cooling Capacity T3 46°C 60Hz | 47,000 Btu/h |
| Cooling Capacity T3 46°C 60Hz | 13.78 kW |
| Power Input T3 46°C 60Hz | 5.400 kW |
| EER T3 46°C 60Hz | 8.70 Btu/h/W |
| Power Supply | 380–415V / 3Ph / 50–60Hz |
| Indoor Unit Dimensions | 400 × 1500 × 800 mm |
| Indoor Unit Weight | 59 kg |
| Outdoor Unit Dimensions | 870 × 1100 × 520 mm |
| Outdoor Unit Weight | 61 kg |
| Compressor Type | Hermetically sealed swing inverter type |
| Liquid Pipe Connection | 9.5 mm / 3/8 inch |
| Gas Pipe Connection | 15.9 mm / 5/8 inch |
| Maximum Piping Length | 50 m |
| Maximum Elevation | 30 m |
| Chargeless Length | 15 m |
| Maximum Operating Range Cooling | 52°C CDB |
Application Scope
| Application Area | Details |
| Homes | Concealed cooling for premium residential spaces |
| Villas | Suitable for larger rooms and hidden ceiling installation |
| Hotel Rooms | Quiet and concealed comfort cooling |
| Apartments | Space-saving ducted cooling solution |
| Offices | Professional ceiling-concealed air conditioning |
| Retail Spaces | Clean interior look with powerful cooling |
| Hospitality Areas | Suitable for bedrooms, suites, lounges, and guest areas |
Main Benefits
- Powerful 54,000 Btu/h cooling capacity
- Inverter technology helps reduce electricity consumption
- R-32 refrigerant supports lower environmental impact
- Concealed ceiling design keeps interiors clean and elegant
- Flexible duct installation with available static pressure options
- Automatic airflow adjustment simplifies commissioning
- Swing inverter compressor improves efficiency and reliability
- Reinforced anti-corrosion protection for harsh climates
- Refrigerant-cooled PCB improves durability
- Auto restart and self-diagnosis for easier operation and maintenance
- Quiet operation for comfort-focused spaces
- Suitable for UAE and Middle East climate conditions
