Description

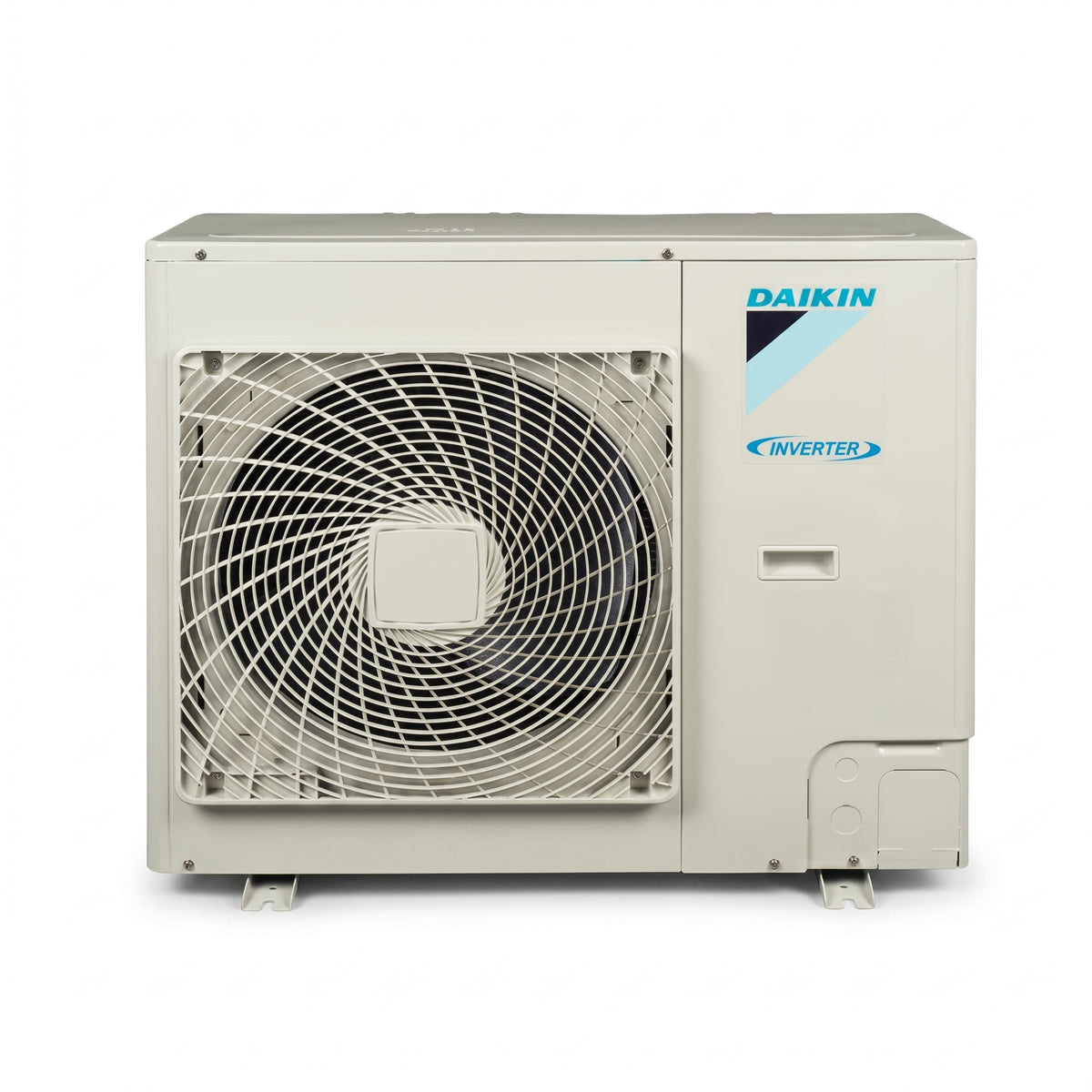

The Daikin FDMF24AVMK / RZF24AVMK is a concealed ceiling air conditioning system designed to deliver powerful, efficient, and reliable cooling while keeping the indoor unit hidden above the ceiling. It is suitable for bedrooms, hotel rooms, villas, apartments, offices, and commercial interiors where clean design and strong cooling performance are required.
Key Features
| Feature | Details |
|---|---|
| Brand | Daikin |
| Series | FDMF Series |

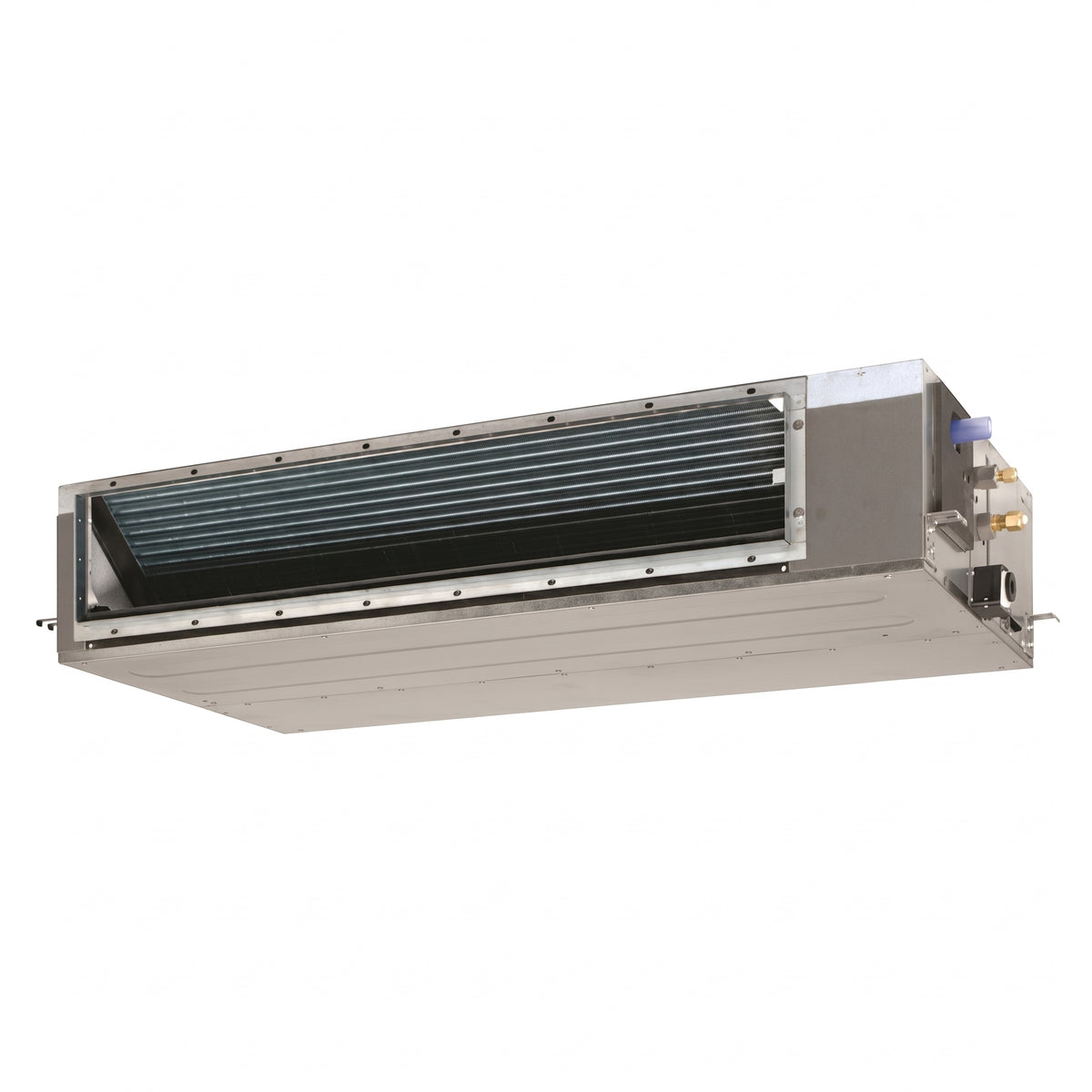

| Indoor Model | FDMF24AVMK |

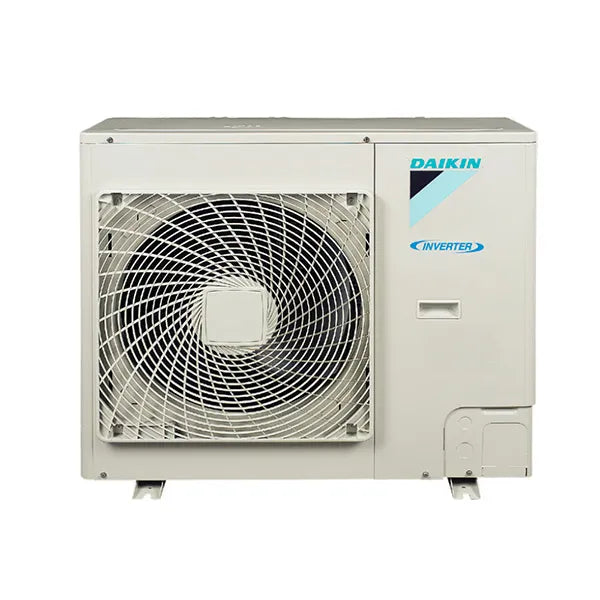

| Outdoor Model | RZF24AVMK |
| Product Type | Concealed ceiling / ducted AC |
| Technology | Inverter technology |
| Refrigerant | R-32 |
| Cooling Type | Cooling only |
| Installation Type | Concealed ceiling installation |
| Compressor Type | Hermetically sealed swing inverter type |
| Control Option | Optional wired remote controller |
| Main Benefit | Energy-saving, powerful, quiet, and reliable cooling |

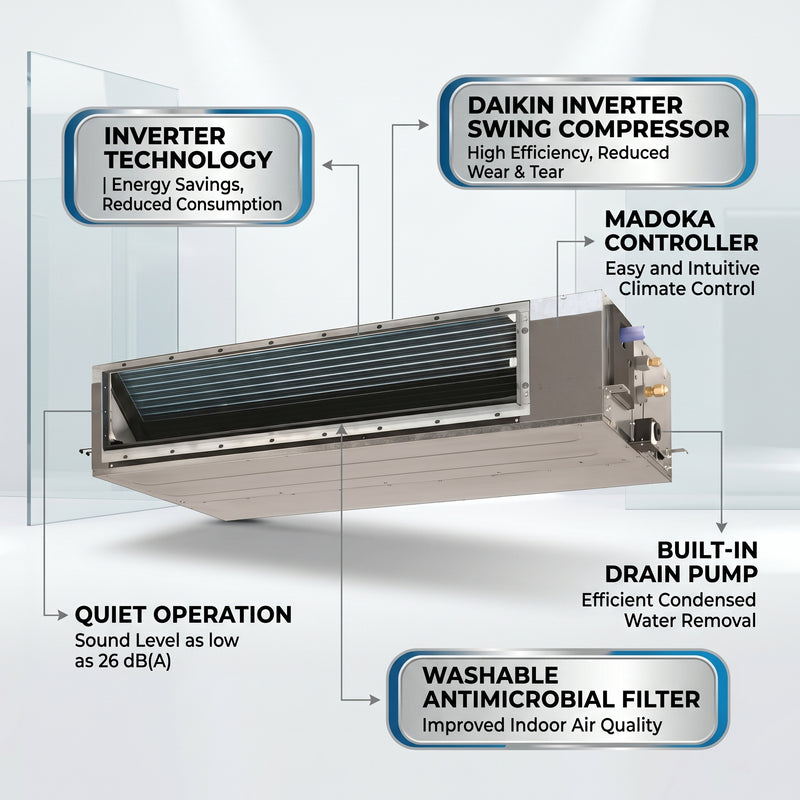

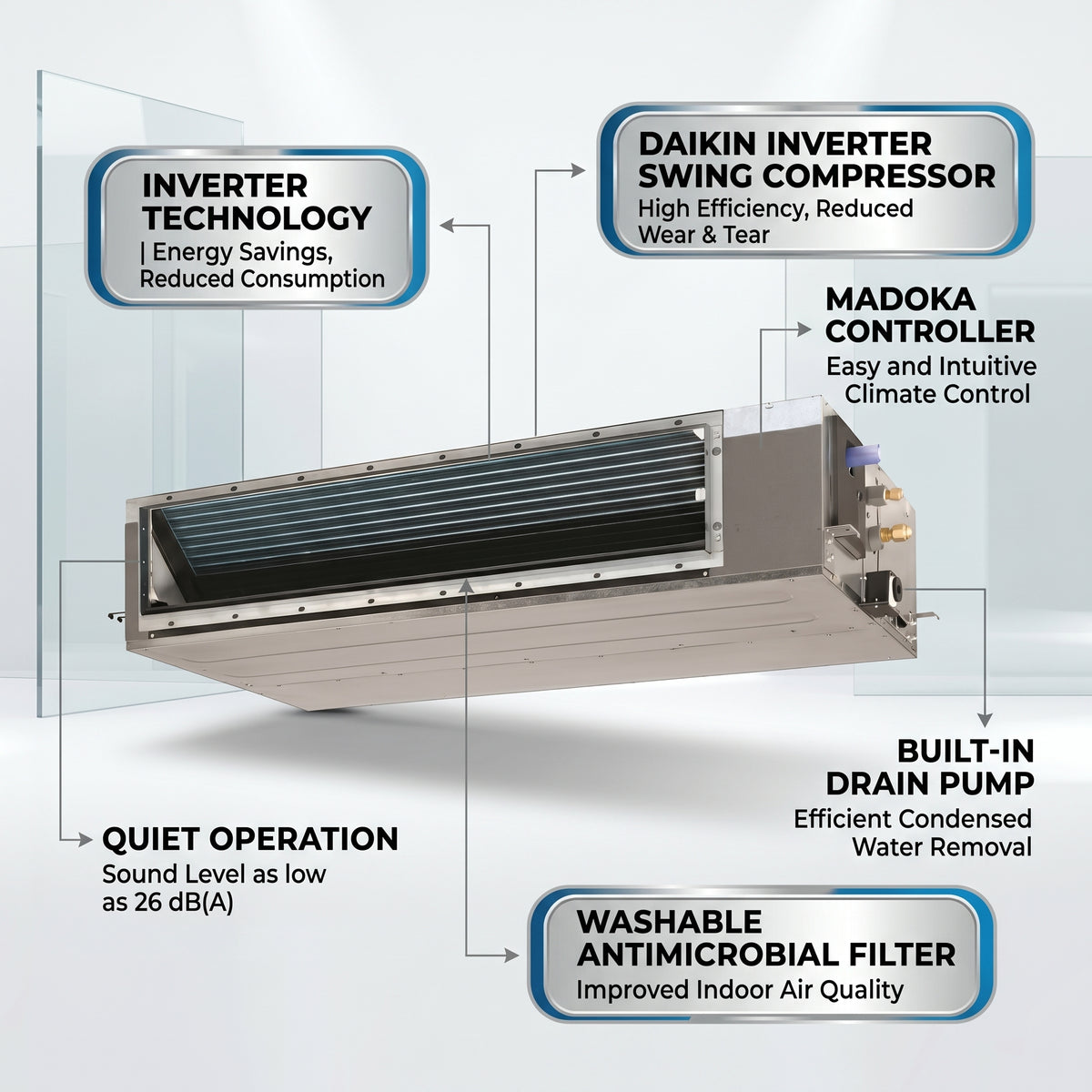

Product Features
| Feature | Description |
|---|---|
| R-32 Refrigerant | Uses R-32 refrigerant with zero ozone depletion potential, helping reduce environmental impact. |
| Inverter Technology | Continuously adjusts compressor speed to match cooling demand, helping reduce electricity consumption. |
| Powerful Cooling | Provides strong cooling performance suitable for demanding indoor spaces. |
| Certified Performance | Designed to deliver reliable nominal and peak efficiency under high ambient conditions. |
| Daikin Swing Compressor | Helps reduce refrigerant leakage, noise, wear and tear, while improving efficiency. |
| Concealed Ceiling Design | Indoor unit remains hidden above the ceiling for a clean and premium interior appearance. |
| Flexible Installation | Supports ducted installation with static pressure options for different layout needs. |
| Automatic Airflow Adjustment | Helps simplify commissioning by adjusting airflow according to duct conditions. |

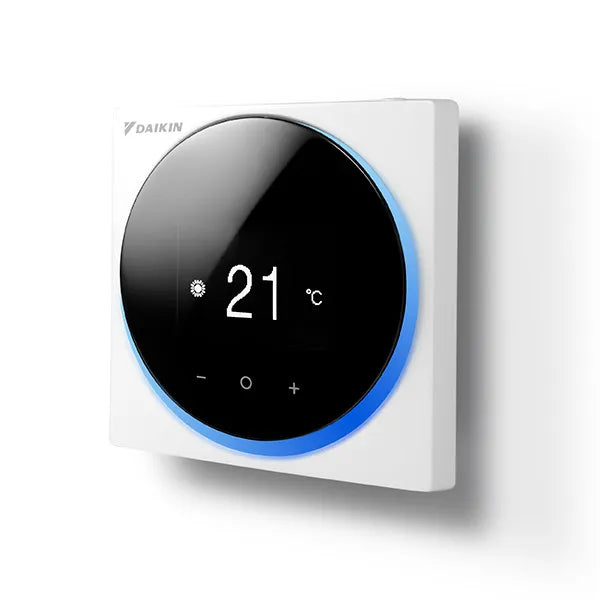

| Madoka Controller Compatibility | Can support elegant wired control options for easy operation and climate control. |
| Built-in Drain Pump | Helps manage condensate drainage from the indoor unit. |
| Reinforced Anti-Corrosion Protection | Protects key components against corrosion for longer service life. |
| Auto Restart | Automatically resumes operation with previous settings after power failure. |
| Self-Diagnosis Function | Helps detect errors and display fault codes for easier troubleshooting. |
| Quiet Operation | Suitable for bedrooms, hotel rooms, offices, and comfort-focused environments. |
| High Indoor Air Quality | Supports cleaner indoor comfort with washable antimicrobial filter and anti-bacterial drain pan feature. |

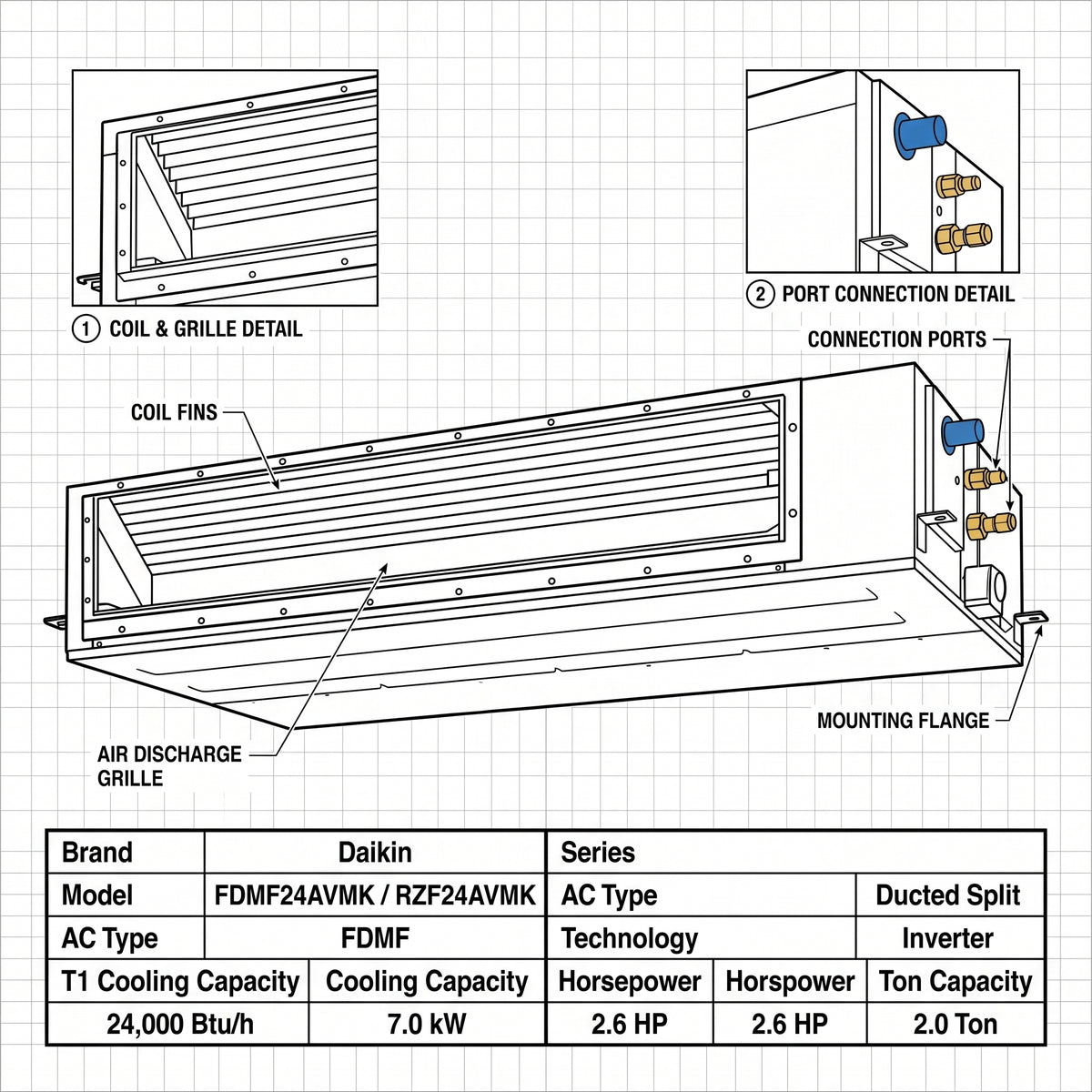

Technical Parameters
| Specification | Details |
|---|---|
| Indoor Model | FDMF24AVMK |
| Outdoor Model | RZF24AVMK |
| Technology | Inverter |
| Refrigerant | R-32 |
| Power Supply | 220–240V / 1Ph / 50–60Hz |
| Cooling Capacity T1 35°C – 50Hz | 24,000 Btu/h / 7.03 kW |
| Cooling Capacity T1 35°C – 60Hz | 24,000 Btu/h / 7.02 kW |
| Cooling Capacity T3 46°C – 50Hz | 17,500 Btu/h / 5.13 kW |
| Cooling Capacity T3 46°C – 60Hz | 17,500 Btu/h / 5.13 kW |
| Indoor Dimensions | 300 × 1,100 × 700 mm |
| Indoor Airflow | 812 / 689 / 565 CFM |
| Indoor Sound Pressure Level | 38 / 36 / 34 dB(A) |
| Indoor Weight | 35 kg |
| Outdoor Dimensions | 990 × 940 × 320 mm |
| Outdoor Sound Pressure Level | 50 dB(A) |
| Outdoor Weight | 60 kg |
| Pipe Connection – Liquid | 9.5 mm / 3/8 inch |
| Pipe Connection – Gas | 15.9 mm / 5/8 inch |
| Piping Length – Total | 50 m |
| Piping Elevation | 30 m |
| Operating Range Max Cooling | 52°C CDB |
| Max ESP | 80 Pa |

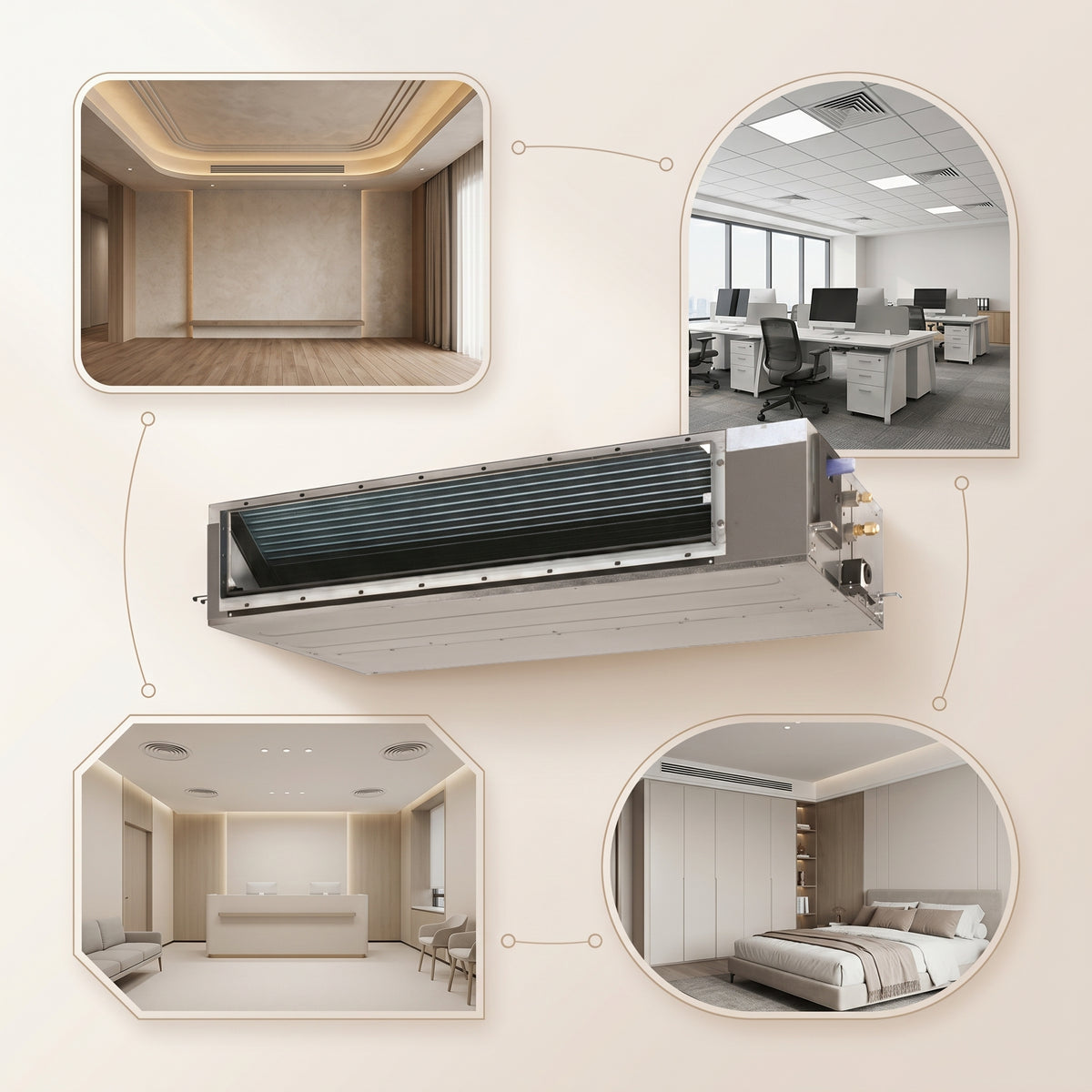

Application Scope
| Application Area | Details |
|---|---|
| Bedrooms | Quiet concealed cooling for comfortable sleep |
| Hotel Rooms | Premium hidden AC solution for hospitality spaces |
| Villas | Suitable for luxury rooms and large indoor areas |
| Apartments | Clean ducted cooling without visible indoor unit |
| Offices | Professional ceiling-concealed climate control |
| Commercial Interiors | Ideal for spaces requiring strong cooling and neat design |
| Residential Living Areas | Stable and efficient cooling for daily comfort |
Main Benefits
- Powerful concealed ceiling cooling
- Energy-saving inverter operation
- R-32 refrigerant with lower environmental impact
- Clean hidden indoor installation
- Quiet comfort for bedrooms and hotels
- Suitable for UAE and Middle East climate needs
- Built-in drain pump for reliable condensate management
- Flexible ducted installation
- Auto restart and self-diagnosis function
- Reinforced anti-corrosion protection for durability
- Stable temperature control with lower electricity consumption
