Description

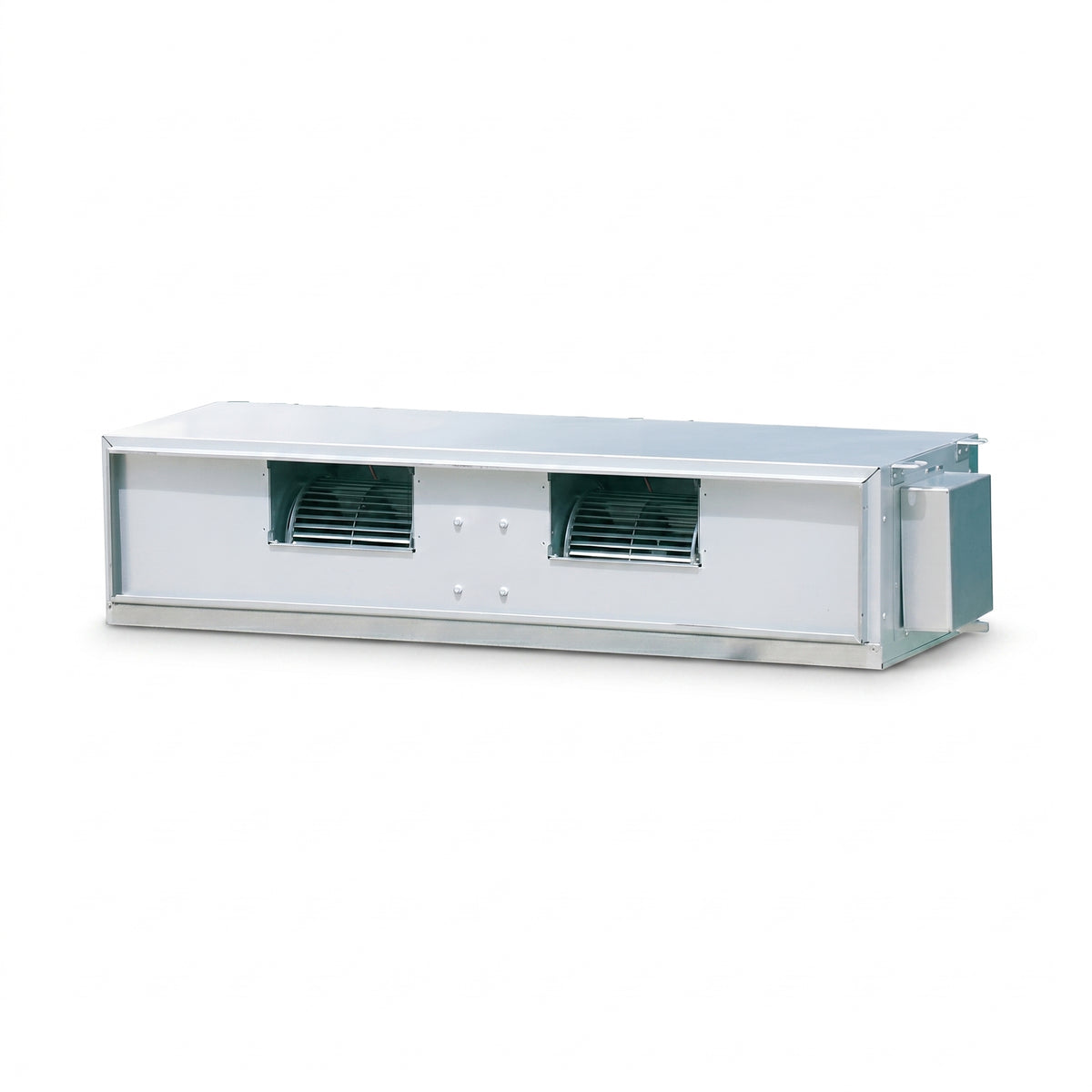

The Daikin FDMRN25AV1KU / RR25AV1KU is designed to provide powerful, quiet, and hidden cooling through a concealed ceiling installation. It is suitable for homes, offices, hotels, and commercial spaces where a clean interior look and reliable cooling comfort are required.
Key Features
| Feature | Details |
|---|---|
| Brand | Daikin |
| Series | FDMRN Series |
| Indoor Model | FDMRN25AV1KU |
| Outdoor Model | RR25AV1KU |
| Product Type | Concealed ceiling / ducted AC |
| Cooling Type | Cooling only |
| Refrigerant | R-410A |
| Installation Type | Concealed ceiling installation |
| Design Style | Hidden / invisible indoor unit design |
| Main Application | Villas, apartments, offices, hotels, and commercial interiors |
Product Features
| Feature | Description |
|---|---|
| Concealed Ceiling Design | Designed to be installed inside the ceiling, giving the room a clean and modern look without a visible indoor unit. |
| R-410A Refrigerant | Uses R-410A refrigerant with zero ozone depletion potential. |
| Powerful Cooling | Built to cool rooms quickly and efficiently, even when outdoor temperatures are high. |
| Energy Saving Operation | Efficient system performance helps reduce electricity consumption. |

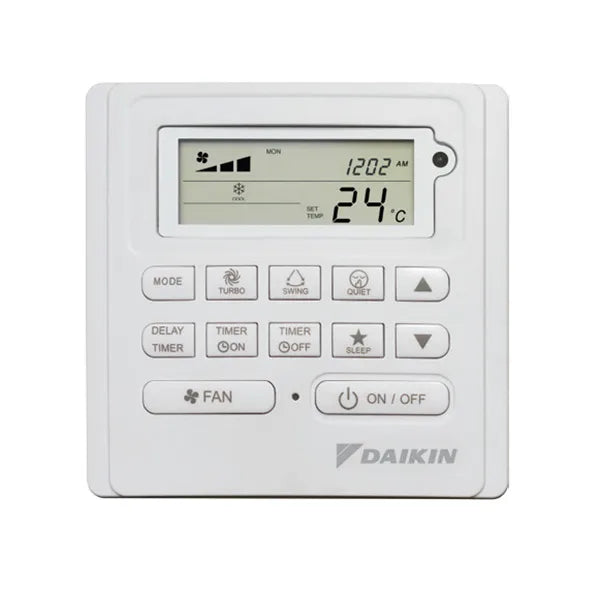

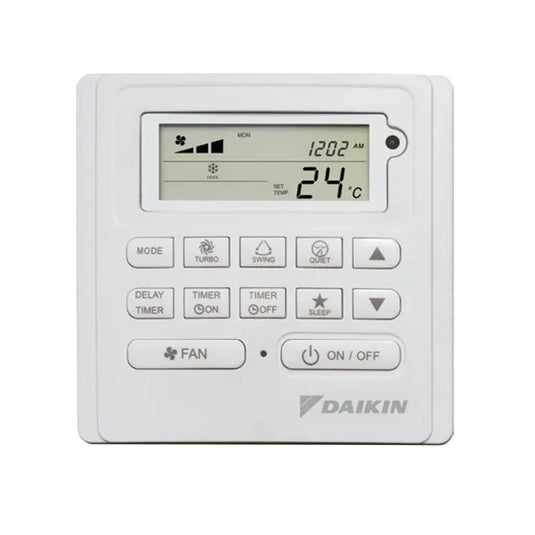

| Optimal Cooling Comfort | Supports Turbo Mode, Sleep Mode, and Dry Mode for improved comfort. |
| Whisper Quiet Operation | Indoor unit operates quietly for a more peaceful room environment. |
| Long Airflow | Helps distribute cool air across wider and larger indoor spaces. |
| High Design Flexibility | Compact design with adjustable ESP allows flexible duct installation. |
| Easy Installation | Outdoor unit can be roof mounted or placed against an outside wall. |
| Double Protection Drainage System | Reinforced drain pan helps protect against water leakage. |
| Anti-Corrosion Protection | Outdoor components are protected for improved durability. |
| Auto Random Restart | Restarts automatically after power failure and helps reduce power surge risk. |
Technical Parameters
| Specification | Details |
|---|---|
| Indoor Model | FDMRN25AV1KU |
| Outdoor Model | RR25AV1KU |
| Power Supply | 230V / 1Ph / 50Hz |
| Cooling Capacity T1 | 23,500 Btu/h / 6.89 kW |
| Cooling Capacity T3 | 20,500 Btu/h / 6.00 kW |
| EER T1 | 11.73 Btu/h/W |
| EER T3 | 8.73 Btu/h/W |
| ESP Range High Fan | 40 / 50 Pa |
| Indoor Airflow | 800 / 641 / 516 CFM |
| Indoor Sound Level | 38 / 35 / 32 dB(A) |
| Indoor Dimensions | 378 × 1,030 × 541 mm |
| Refrigerant Type | R-410A |
| Compressor Type | Rotary |
| Total Piping Length | 50 m |
| Vertical Piping Length | 30 m |
| Operating Temperature Range | 19°C – 54°C |
Application Scope
| Application Area | Details |
|---|---|
| Villas & Apartments | Ideal for concealed cooling in bedrooms, living rooms, and lounges. |
| Hotels | Suitable for guest rooms and suites where quiet hidden cooling is preferred. |
| Offices | Provides clean interior design with ducted air distribution. |
| Retail Shops | Helps maintain comfortable cooling without affecting store aesthetics. |
| Commercial Interiors | Suitable for spaces requiring flexible ducted AC installation. |
Main Benefits
- Hidden ceiling-mounted cooling design
- Strong 23,500 Btu/h cooling capacity
- R-410A refrigerant with zero ozone depletion potential
- Quiet indoor operation
- Long airflow for better room coverage
- Energy-saving cooling performance
- Flexible duct installation with adjustable ESP
- Double drain pan protection
- Anti-corrosion protection for longer life
- Auto random restart after power failure
