Description

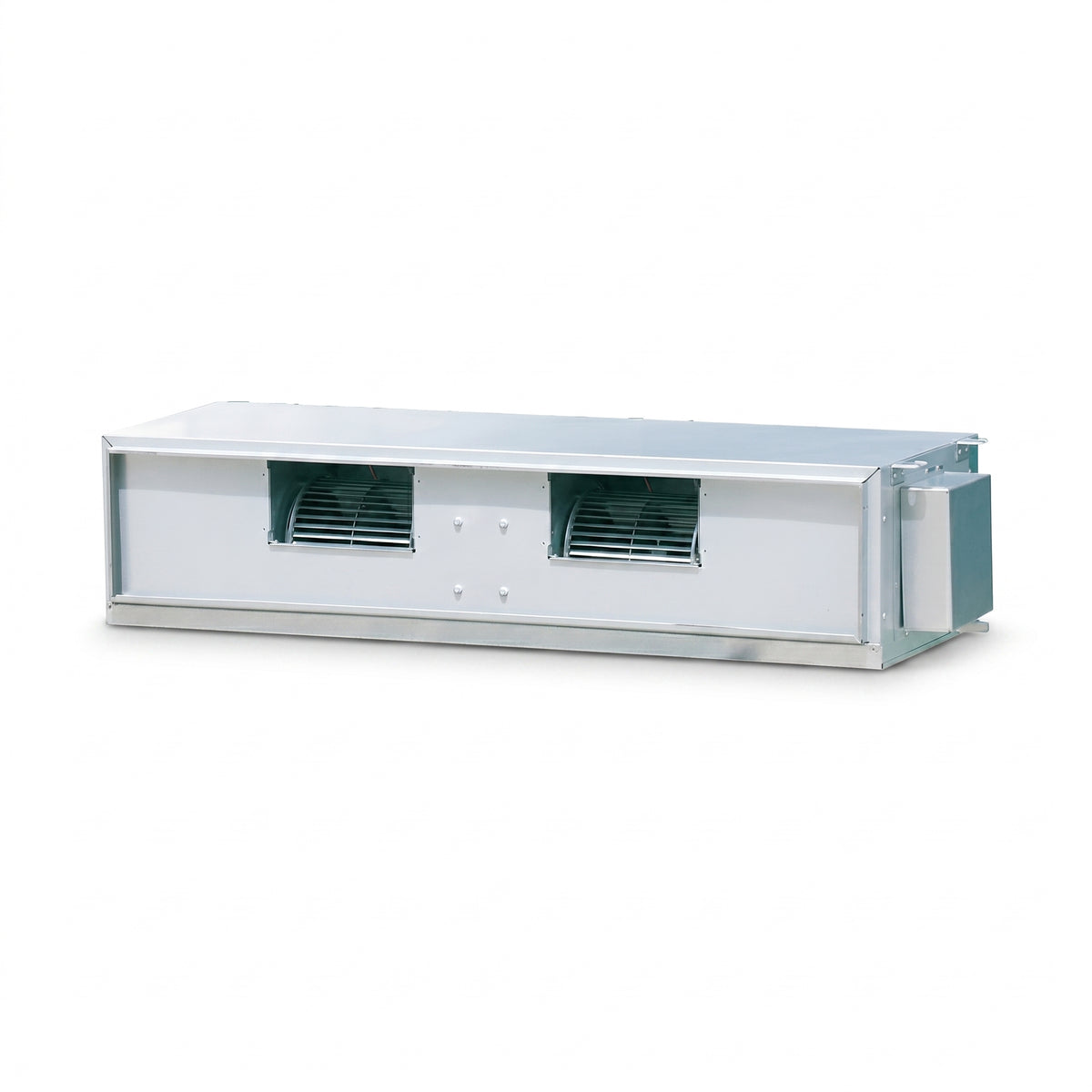

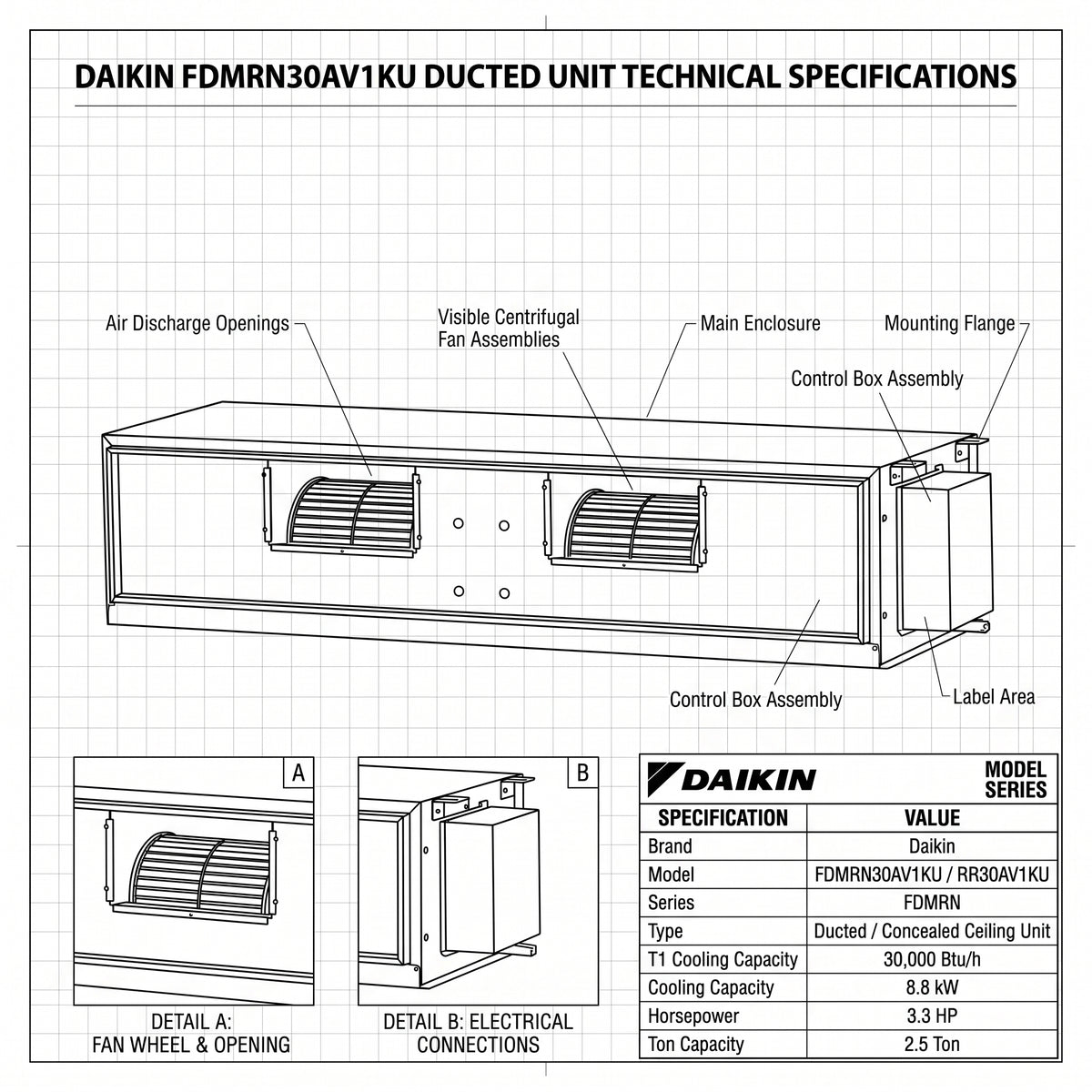

The Daikin FDMRN30AV1KU / RR30AV1KU is designed to deliver powerful, quiet, and discreet cooling through a concealed ceiling installation. It is ideal for spaces where users want strong air conditioning performance without a visible wall-mounted indoor unit.
Key Features
| Feature | Details |
|---|---|
| Brand | Daikin |
| Series | FDMRN Series |
| Indoor Model | FDMRN30AV1KU |
| Outdoor Model | RR30AV1KU |
| Product Type | Concealed ceiling / ducted AC |
| Cooling Type | Cooling only |
| Refrigerant | R-410A |
| Compressor Type | Rotary compressor |
| Installation Type | Concealed ceiling installation |
| Main Application | Villas, apartments, offices, hotels, and commercial interiors |
| Main Benefit | Hidden cooling with strong performance and flexible duct design |

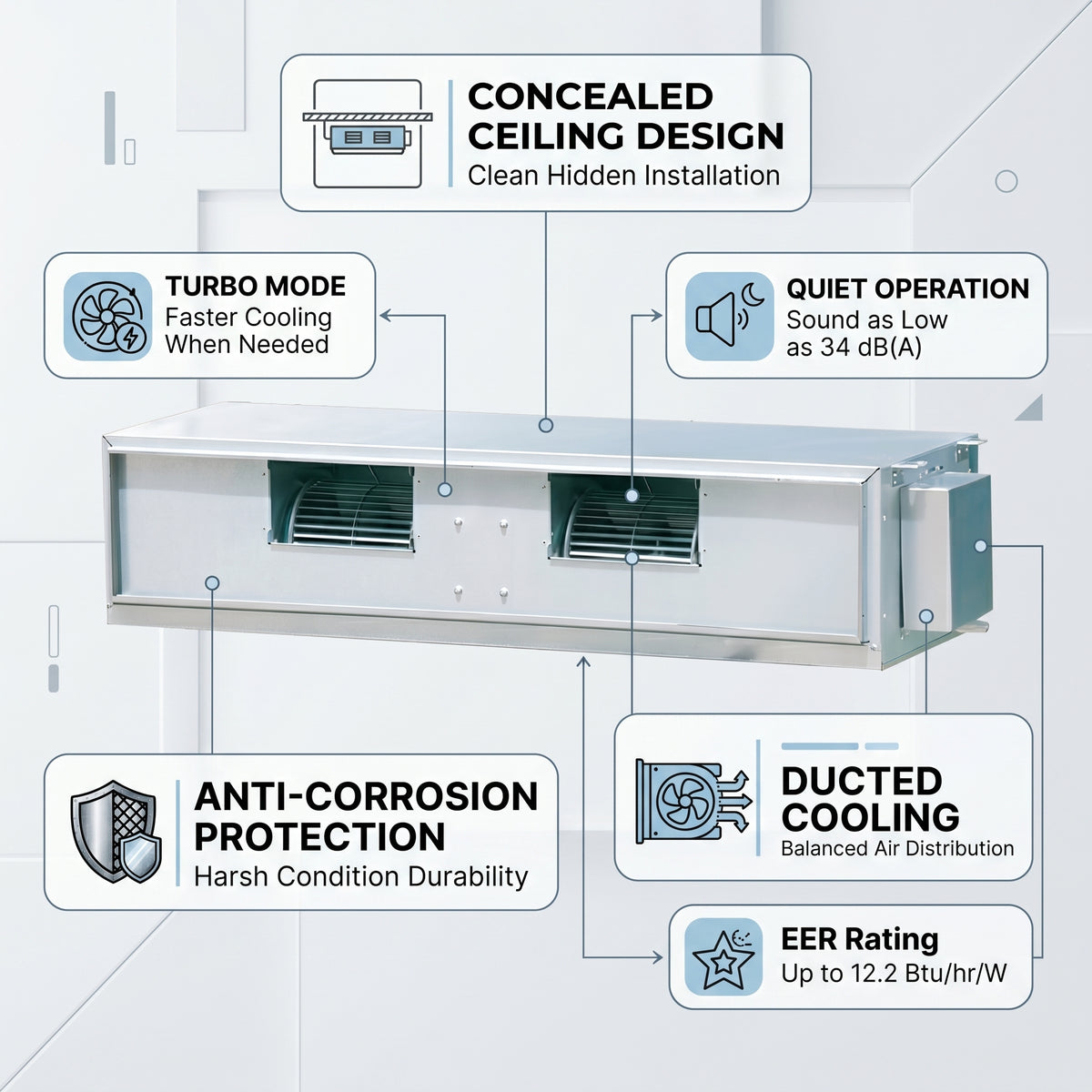

Product Features
| Feature | Description |
|---|---|
| Concealed Ceiling Design | Designed to be hidden inside the ceiling for a clean and elegant indoor appearance. |
| R-410A Refrigerant | Uses R-410A refrigerant with zero ozone depletion potential. |
| Powerful Cooling | Provides reliable cooling performance even when outdoor temperature is very high. |
| Energy Saving Operation | Efficient cooling performance helps lower electricity consumption. |

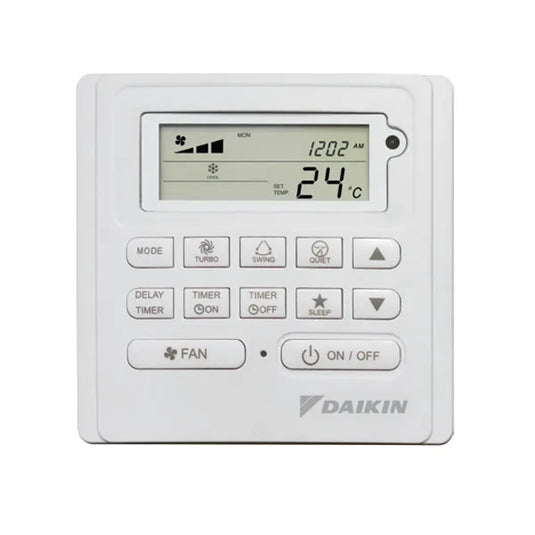

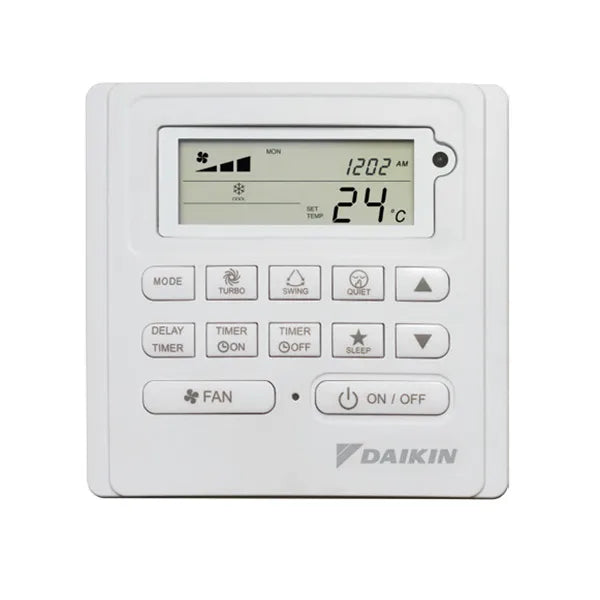

| Optimal Cooling Comfort | Includes Turbo Mode, Sleep Mode, and Dry Mode for better comfort control. |
| Whisper Quiet Operation | Indoor sound level can be reduced for quiet and comfortable operation. |
| Long Airflow | Helps distribute cool air across larger rooms and wider spaces. |
| High Design Flexibility | Wide external static pressure range supports flexible duct layout. |

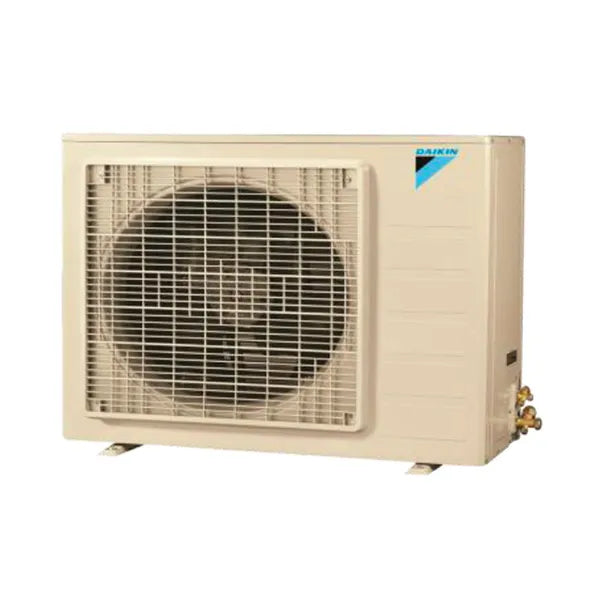

| Easy Installation | Outdoor unit can be roof mounted or placed against an outside wall. |
| Double Protection Drainage System | Reinforced drain pan protection helps reduce water leakage risk. |
| Standard Anti-Corrosion Protection | Protects key outdoor components for longer service life. |
| Auto Random Restart | Automatically restarts after a power failure while helping prevent power surge. |

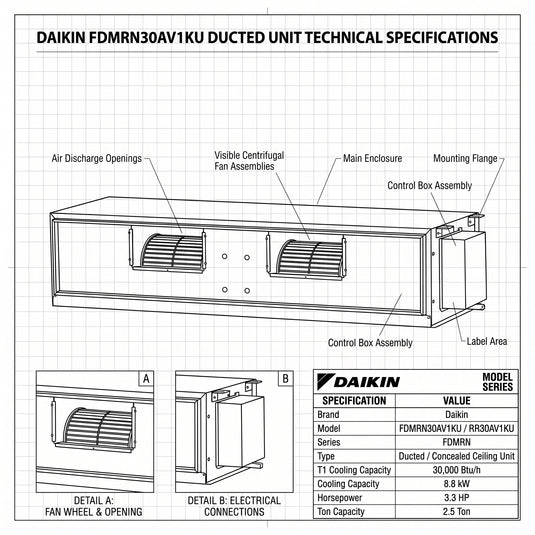

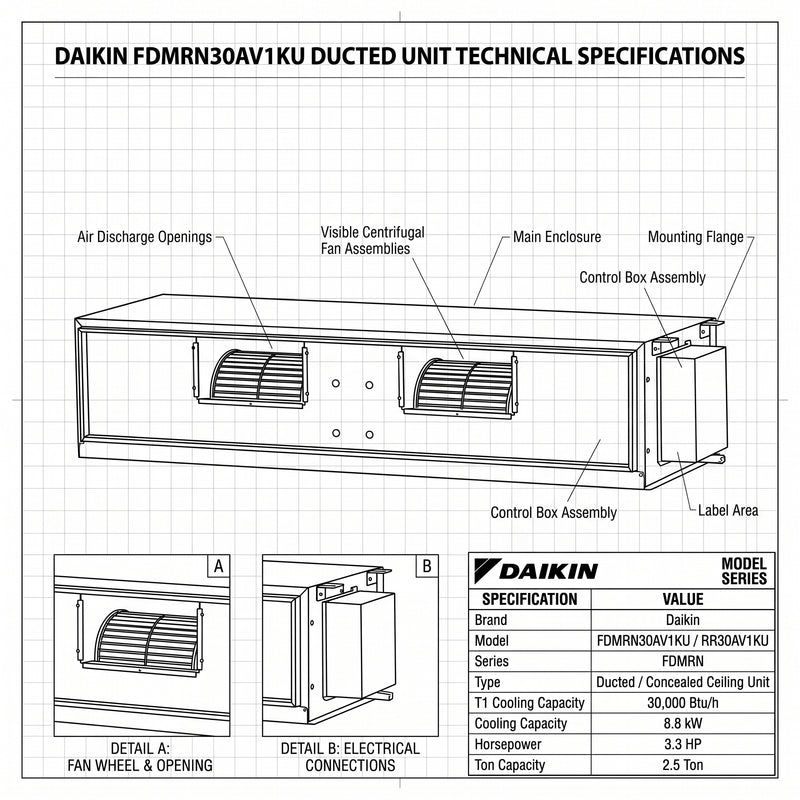

Technical Parameters
| Specification | Details |
|---|---|
| Indoor Model | FDMRN30AV1KU |
| Outdoor Model | RR30AV1KU |
| Power Supply | 230V / 1Ph / 50Hz |
| Cooling Capacity T1 | 30,000 Btu/h / 8.79 kW |
| Cooling Capacity T3 | 27,000 Btu/h / 7.91 kW |
| EER T1 | 11.91 Btu/h/W |
| EER T3 | 8.83 Btu/h/W |
| ESP Range High Fan | 40 / 50 Pa |
| Indoor Airflow | 1,496 / 1,378 / 1,260 CFM |
| Indoor Sound Level | 38 / 35 / 32 dB(A) |
| Indoor Dimensions | 378 × 1,030 × 541 mm |
| Refrigerant Type | R-410A |
| Compressor Type | Rotary |
| Total Piping Length | 50 m |
| Vertical Piping Length | 30 m |
| Operating Temperature Range | 19°C – 54°C |
Application Scope
| Application Area | Details |
|---|---|
| Villas | Suitable for hidden ducted cooling in bedrooms, lounges, and living areas |
| Apartments | Ideal for modern interiors where visible AC units are not preferred |
| Hotels | Provides discreet comfort cooling for guest rooms and suites |
| Offices | Supports professional interiors with concealed air distribution |
| Retail Spaces | Helps maintain comfortable cooling without disturbing the interior design |
| Commercial Interiors | Suitable for flexible ducted air conditioning layouts |
Main Benefits
- Discreet concealed ceiling design
- Strong 30,000 Btu/h cooling capacity
- R-410A refrigerant with zero ozone depletion potential
- Quiet indoor operation for comfortable spaces
- Long airflow for better cooling distribution
- Energy-efficient performance
- Flexible duct design with adjustable ESP
- Double drain pan protection against leakage
- Anti-corrosion protection for durability
- Auto random restart after power failure
