Description

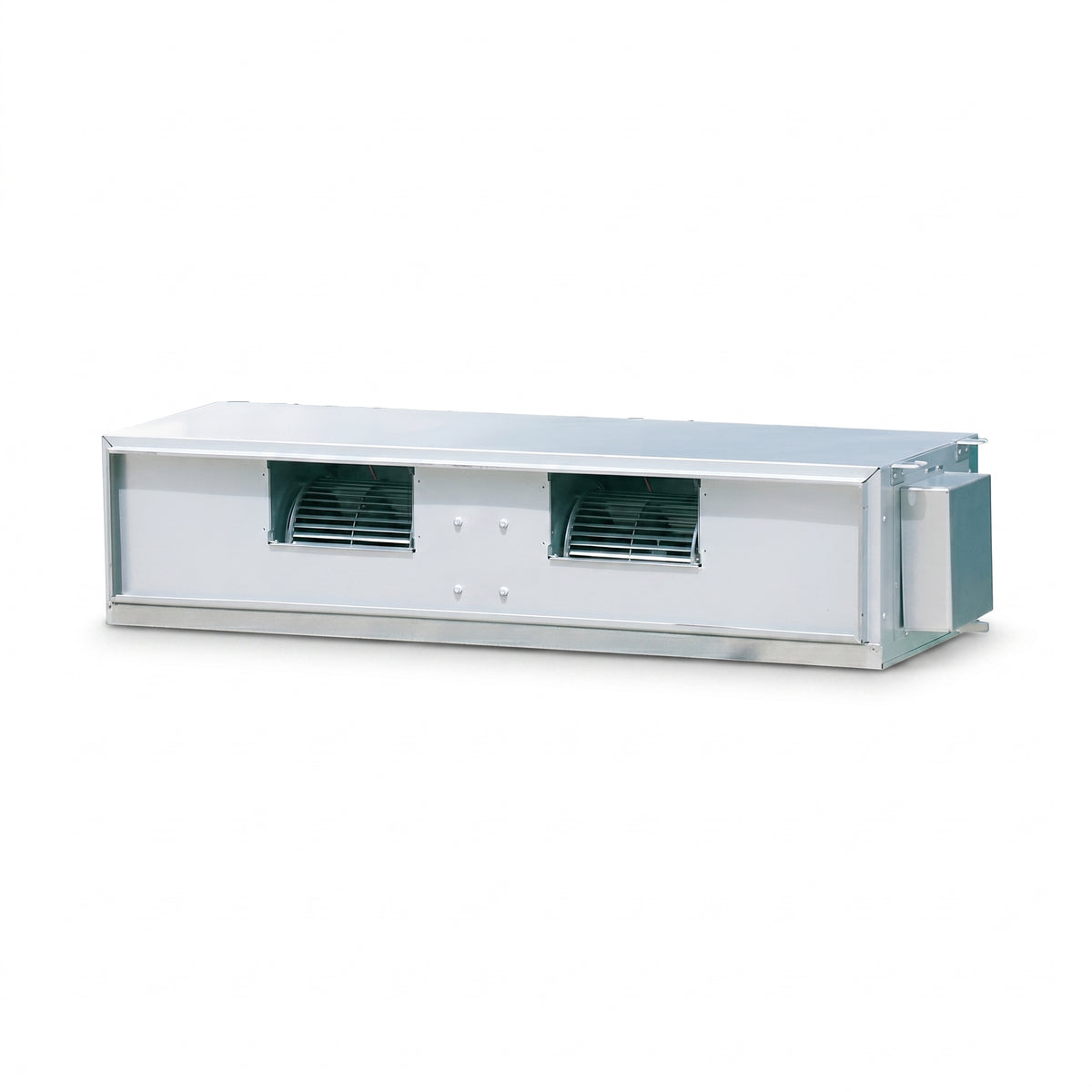

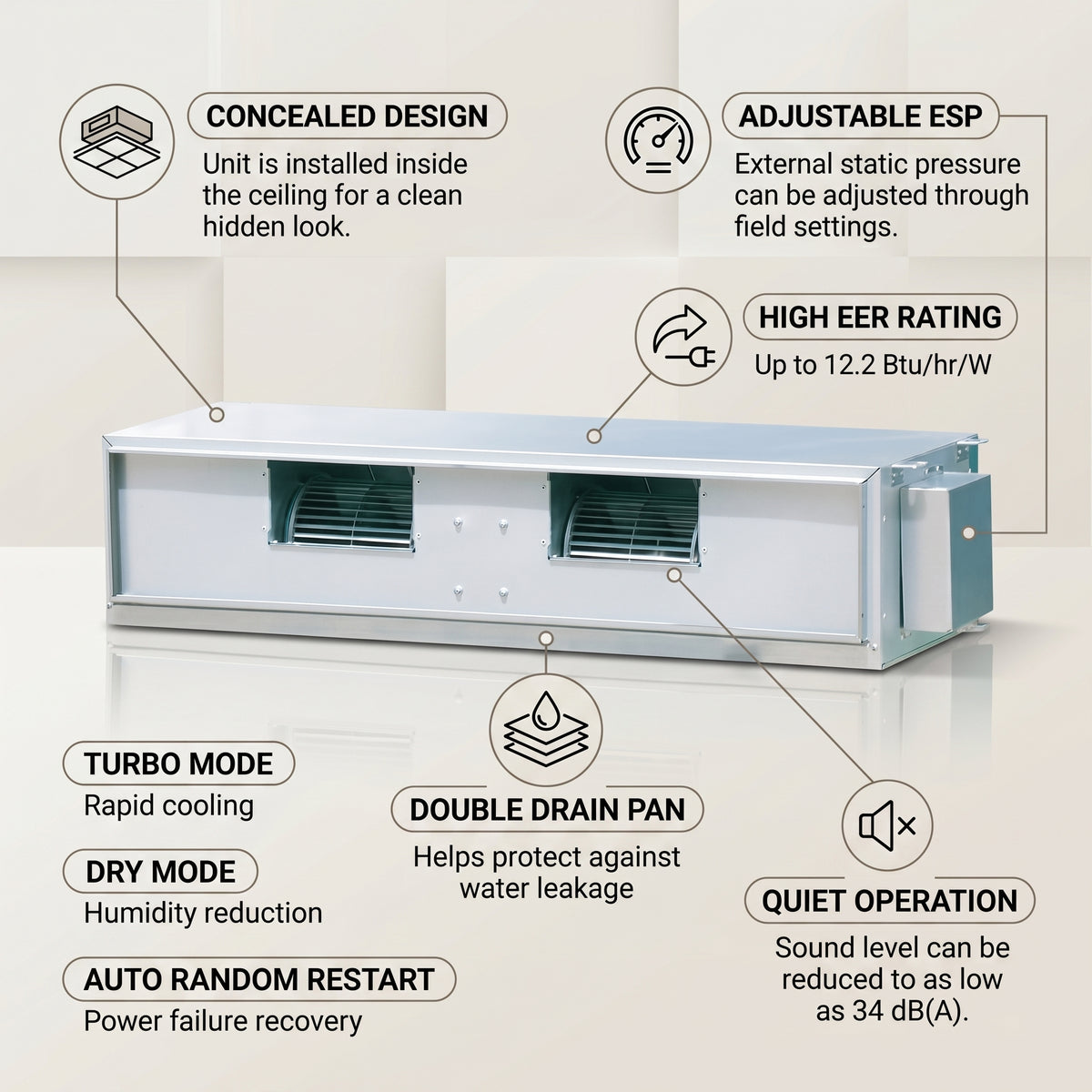

The Daikin FDMRN36AV1KU / RR36AV1KU is designed to provide powerful, efficient, and discreet cooling for homes, offices, hotels, villas, and commercial spaces. The indoor unit is concealed inside the ceiling, giving the space a clean interior look while delivering comfortable ducted airflow.
Key Features
| Feature | Details |
|---|---|
| Brand | Daikin |
| Series | FDMRN Series |
| Indoor Model | FDMRN36AV1KU |
| Outdoor Model | RR36AV1KU |
| Product Type | Concealed ceiling / ducted AC |
| Cooling Type | Cooling only |
| Refrigerant | R-410A |
| Installation Type | Concealed ceiling installation |
| Compressor Type | Rotary compressor |
| Main Application | Villas, offices, hotels, apartments, and commercial interiors |
| Main Benefit | Invisible cooling with powerful and reliable performance |

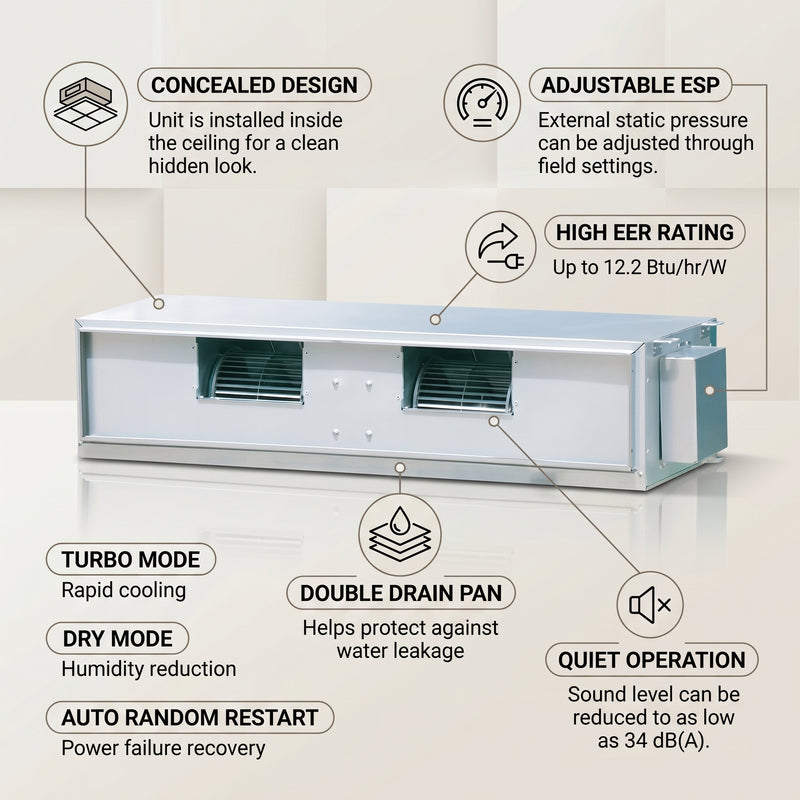

Product Features
| Feature | Description |
|---|---|
| Concealed Ceiling Design | Hidden inside the ceiling for a clean and elegant interior appearance. |
| R-410A Refrigerant | Uses R-410A refrigerant with zero ozone depletion potential. |
| Powerful Cooling | Designed to cool rooms quickly, even when outdoor temperature is high. |
| Energy Saving Operation | Efficient cooling performance helps reduce electricity consumption. |

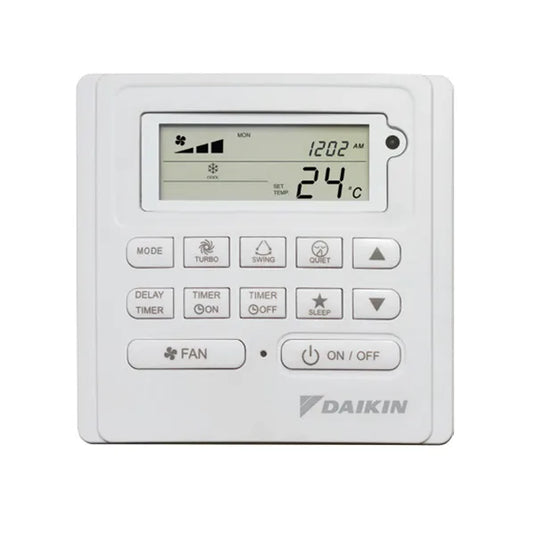

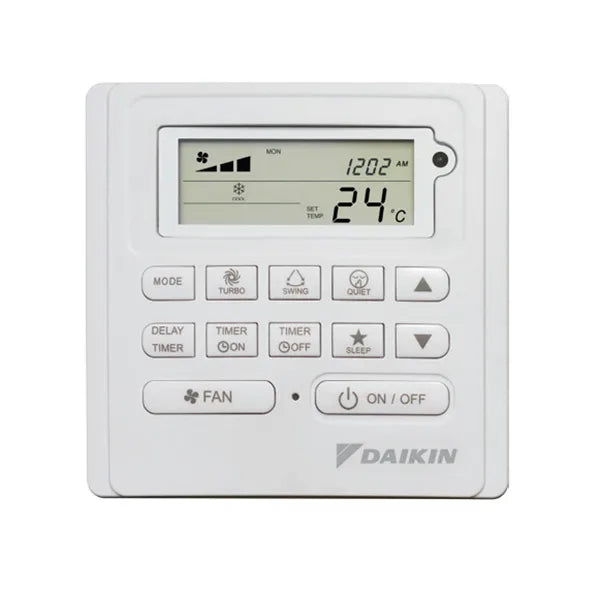

| Optimal Cooling Comfort | Includes Turbo Mode, Sleep Mode, and Dry Mode for better comfort control. |
| Whisper Quiet Operation | Indoor operation is quiet, supporting peaceful comfort in bedrooms and offices. |
| High Design Flexibility | Wide external static pressure range supports flexible duct design. |

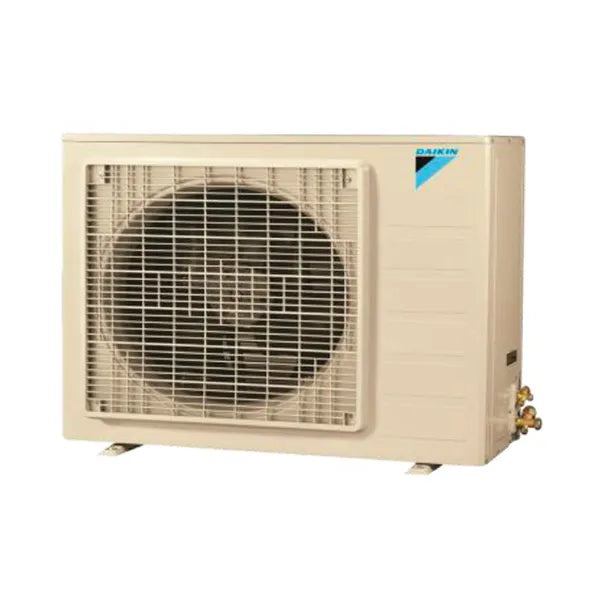

| Easy Installation | Outdoor unit can be roof mounted or installed against an outside wall. |
| Double Protection Drainage System | Reinforced drain pan protection helps reduce water leakage risk. |
| Standard Anti-Corrosion Protection | Protects key components from corrosion for longer product life. |
| Auto Random Restart | Automatically restarts after power failure while helping prevent power surge. |
| Long Airflow | Helps provide cooling comfort across wider and larger spaces. |

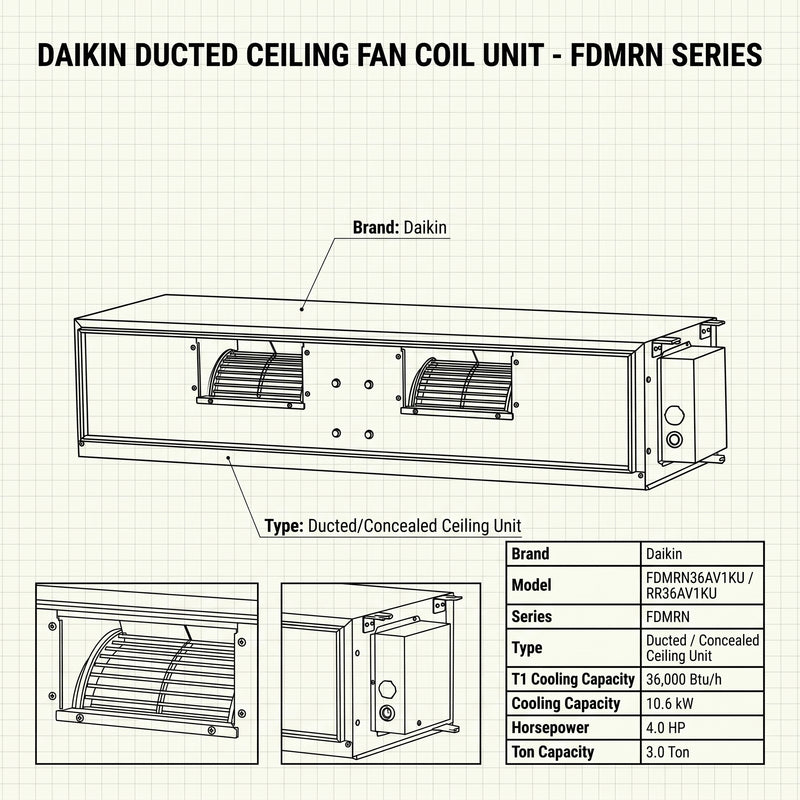

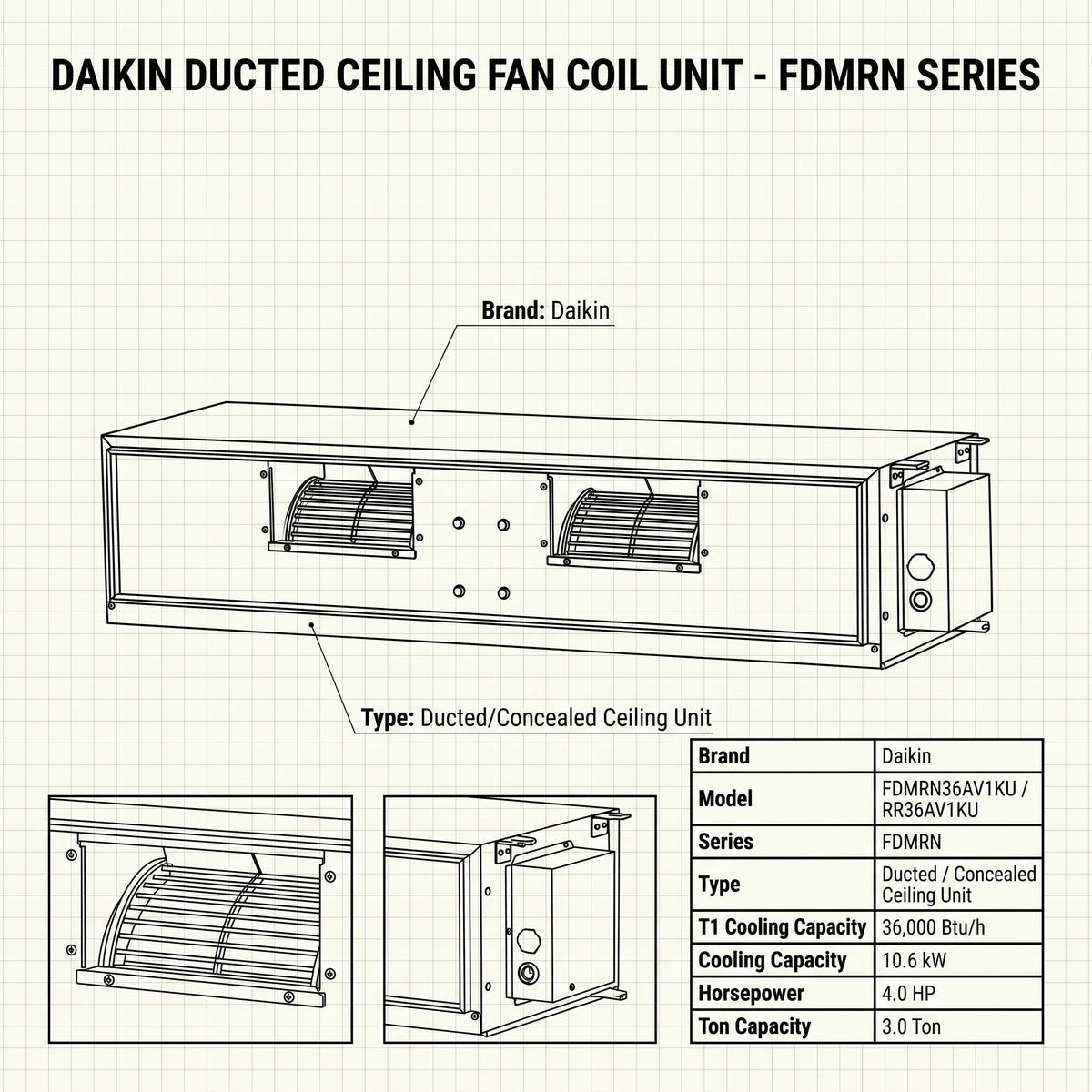

Technical Parameters
| Specification | Details |
|---|---|
| Indoor Model | FDMRN36AV1KU |
| Outdoor Model | RR36AV1KU |
| Power Supply | 230V / 1Ph / 50Hz |
| Cooling Capacity T1 | 36,000 Btu/h / 10.55 kW |
| Cooling Capacity T3 | 32,000 Btu/h / 9.38 kW |
| EER T1 | 12.15 Btu/h/W |
| EER T3 | 9.01 Btu/h/W |
| ESP Range High Fan | 50 / 75 Pa |
| Indoor Airflow | 1,496 / 1,387 / 1,260 CFM |
| Indoor Noise Level | 44 / 42 / 41 dB(A) |
| Indoor Dimensions | 378 × 1,287 × 541 mm |
| Refrigerant Type | R-410A |
| Compressor Type | Rotary |
| Total Piping Length | 50 m |
| Vertical Piping Length | 30 m |
| Operating Temperature Range | 19°C – 54°C |

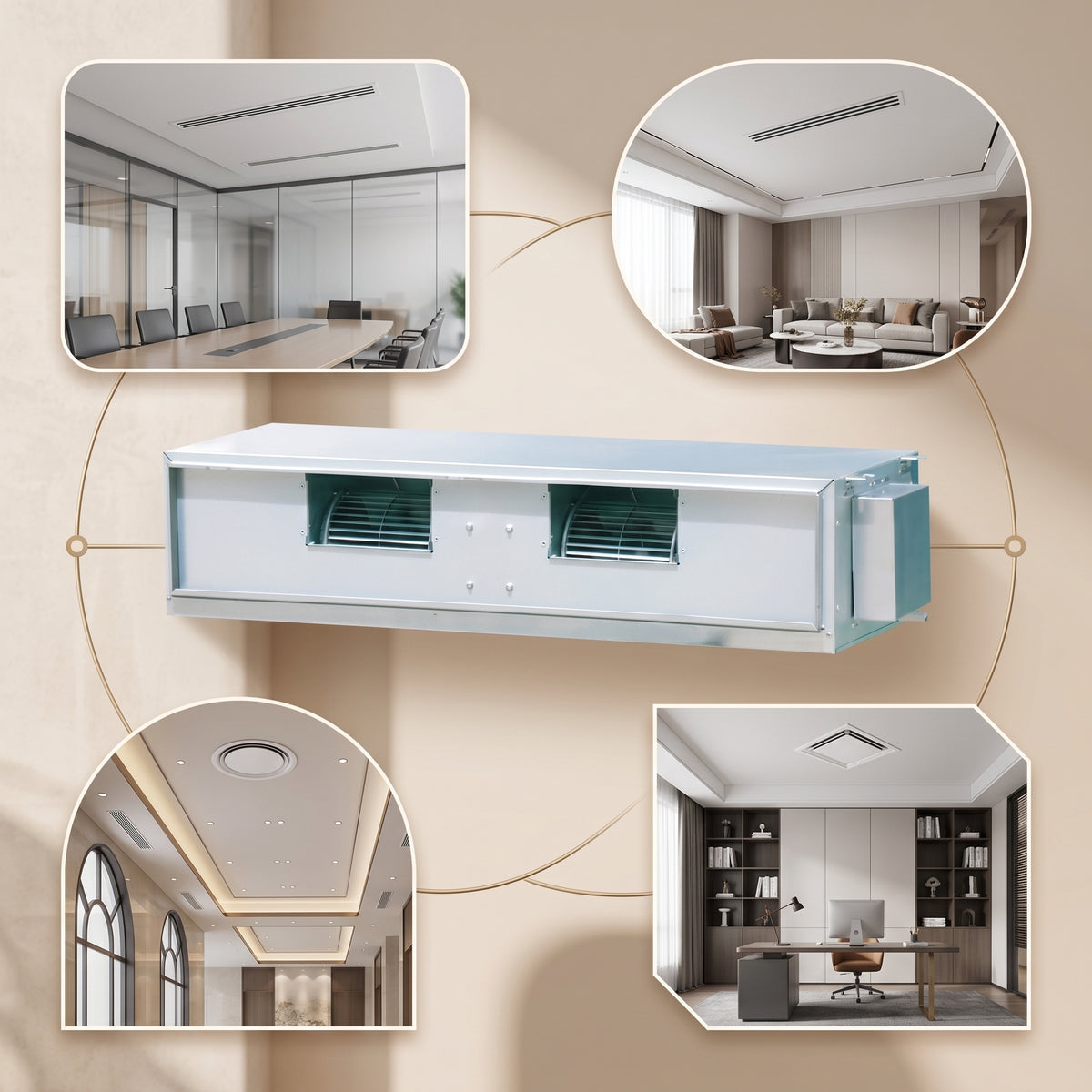

Application Scope
| Application Area | Details |
|---|---|
| Villas | Ideal for concealed ducted cooling in large rooms |
| Bedrooms | Quiet operation with hidden ceiling installation |
| Hotels | Suitable for premium room comfort and clean interior design |
| Offices | Provides ducted cooling without visible wall units |
| Apartments | Good choice for modern interiors requiring hidden AC systems |
| Commercial Spaces | Flexible duct design for larger indoor cooling requirements |
Main Benefits
- Hidden ceiling installation for a clean interior look
- Strong 36,000 Btu/h cooling capacity
- R-410A refrigerant with zero ozone depletion potential
- Efficient operation for lower electricity consumption
- Quiet indoor performance for comfort
- Flexible duct design with adjustable ESP
- Long airflow for wider cooling coverage
- Double drain pan protection against leakage
- Anti-corrosion protection for durability
- Auto random restart after power failure
