Description

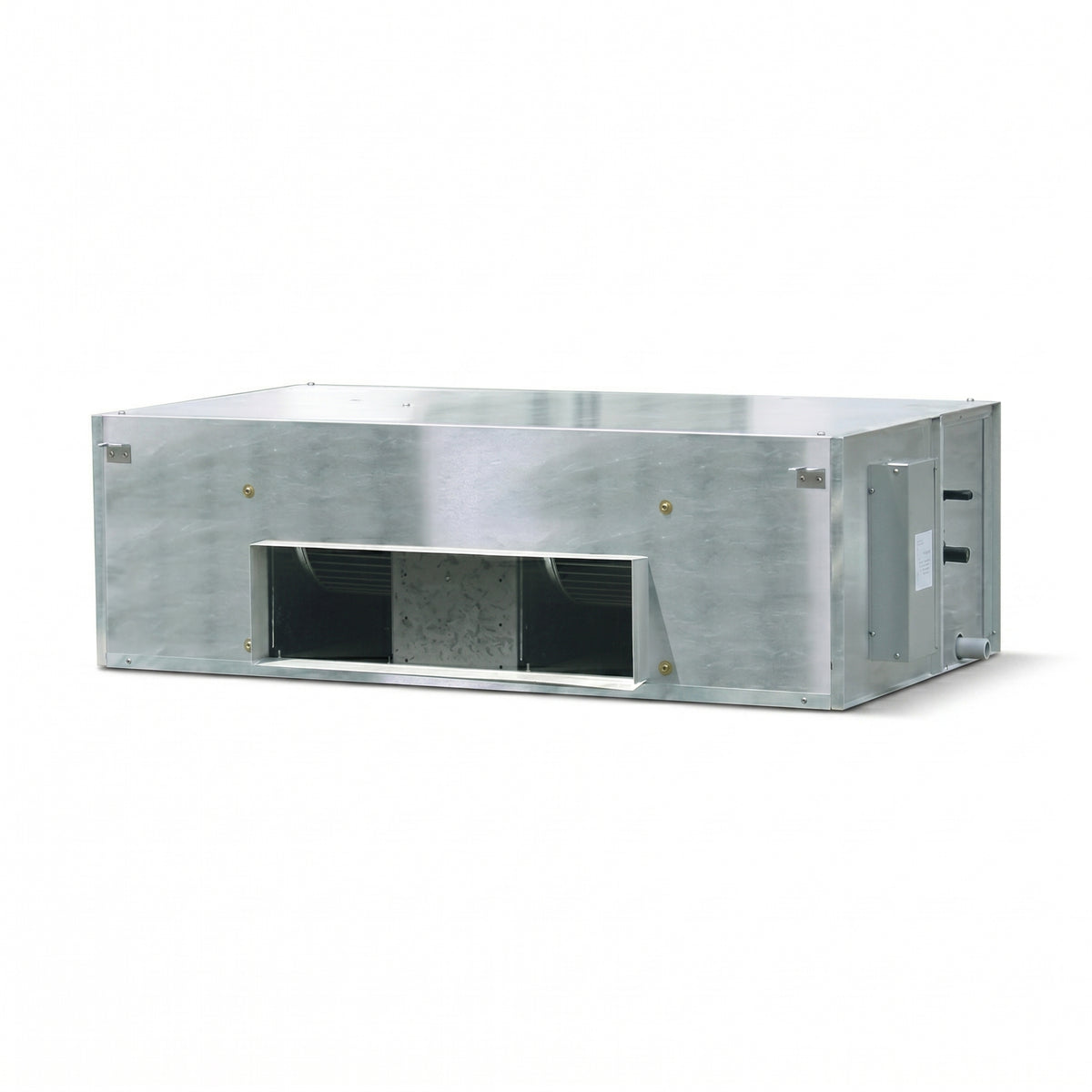

The Daikin FDMRN60AV1KU / RR60AY1KU is a concealed ceiling cooling system designed to provide powerful, efficient, and discreet air conditioning for large indoor spaces. The indoor unit is hidden above the ceiling, giving the room a clean and elegant look while delivering strong airflow and reliable cooling performance.
Key Features
| Feature | Details |
|---|---|
| Brand | Daikin |
| Series | FDMRN Series |

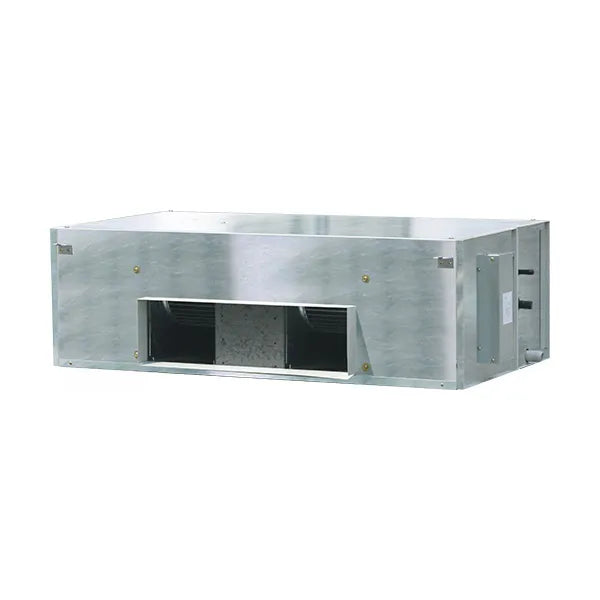

| Indoor Model | FDMRN60AV1KU |

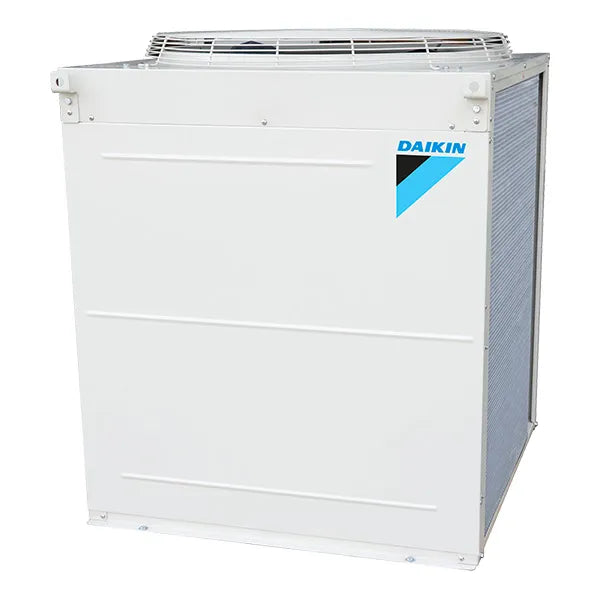

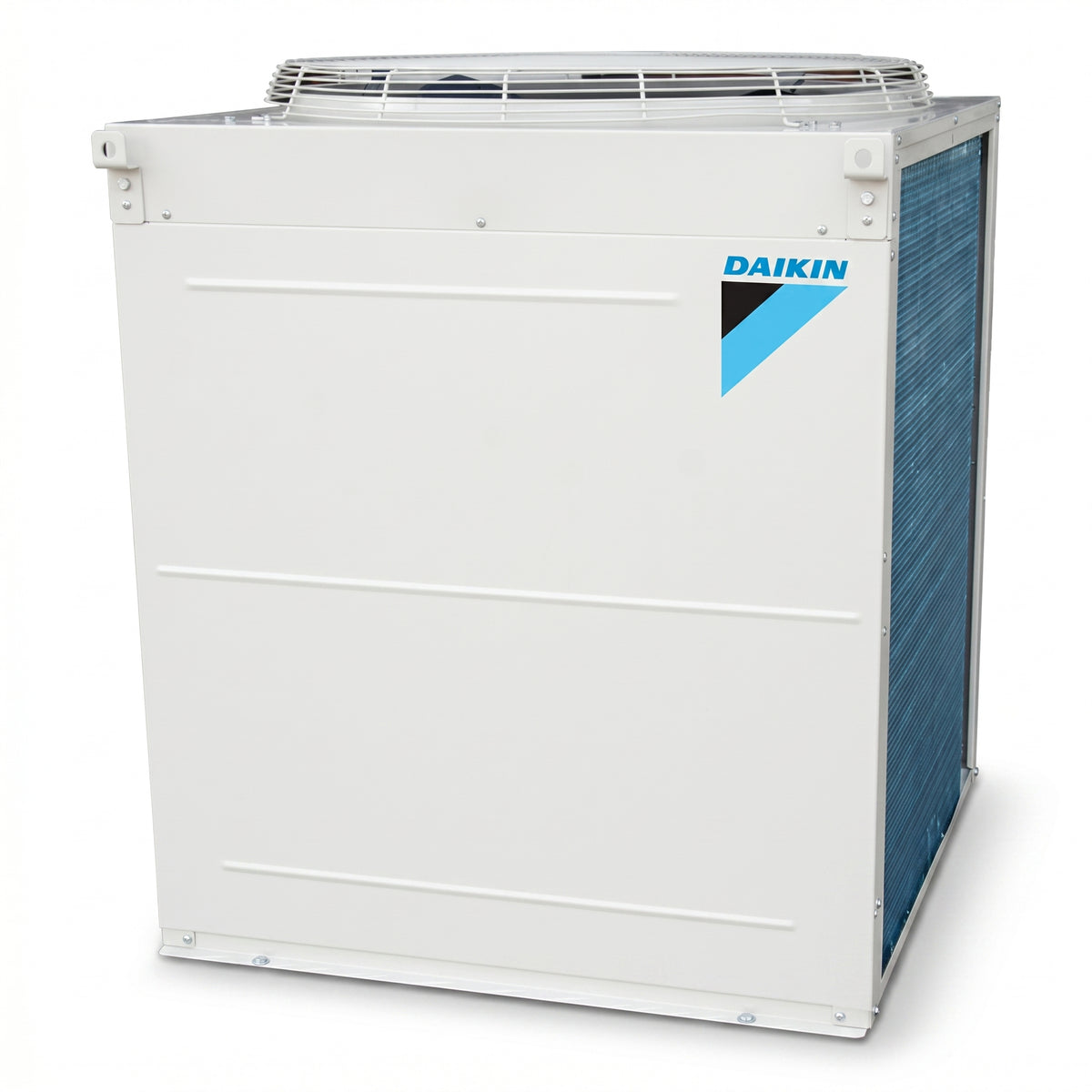

| Outdoor Model | RR60AY1KU |
| Product Type | Concealed ceiling / ducted AC |
| Cooling Type | Cooling only |
| Refrigerant | R-410A |
| Compressor Type | Scroll compressor |
| Installation Type | Concealed ceiling installation |
| Application | Villas, offices, hotels, commercial spaces, large rooms |
| Main Benefit | Invisible cooling with powerful performance |

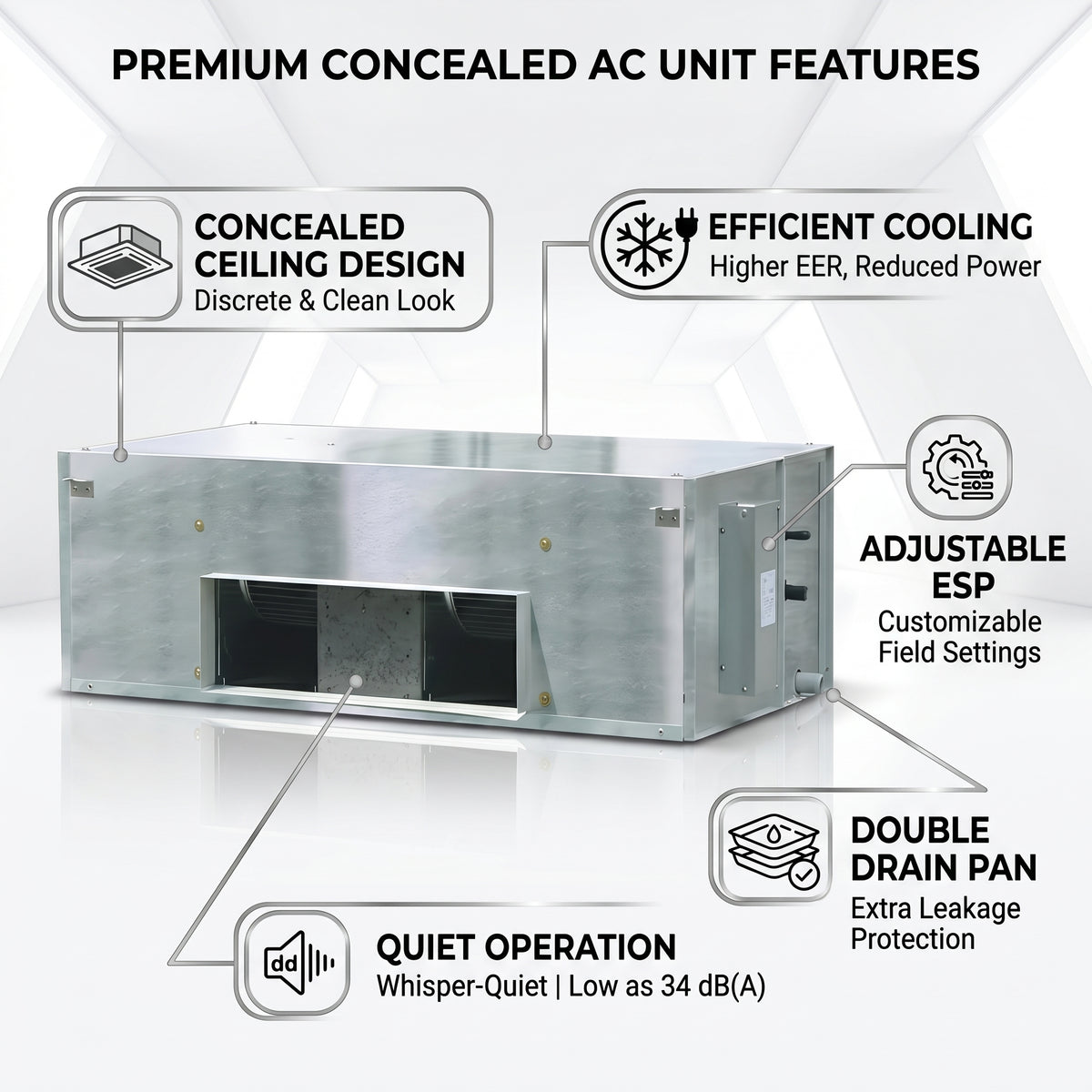

Product Features
| Feature | Description |
|---|---|
| Concealed Ceiling Design | The indoor unit is installed above the ceiling, keeping the room design clean and unobtrusive. |
| R-410A Refrigerant | Uses R-410A refrigerant with zero ozone depletion potential. |
| Powerful Cooling | Designed to cool large spaces quickly and efficiently, even in high outdoor temperatures. |

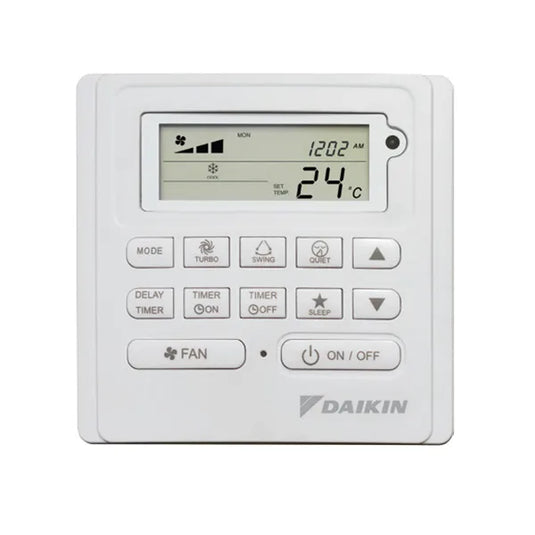

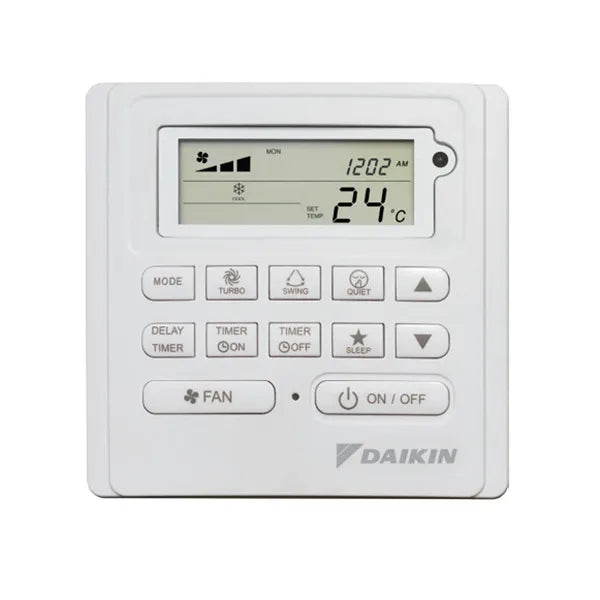

| Optimal Cooling Comfort | Supports comfort features such as Turbo Mode, Sleep Mode, and Dry Mode. |
| Whisper Quiet Operation | Indoor sound level can be reduced for quieter comfort. |
| High Design Flexibility | Supports ducted installation with adjustable external static pressure. |
| Flexible Installation | Outdoor unit can be placed on a roof or against an outside wall. |
| Double Protection Drainage System | Reinforced protection against water leakage through double drain pan design. |
| Standard Anti-Corrosion Protection | Helps protect the condenser coil and important components against corrosion. |
| Auto Random Restart | Restarts automatically after power failure and helps prevent sudden power surge by restarting randomly. |
| Long Airflow | Provides air distribution over longer distances for larger spaces. |
| Energy Saving | Efficient operation helps reduce electricity consumption. |

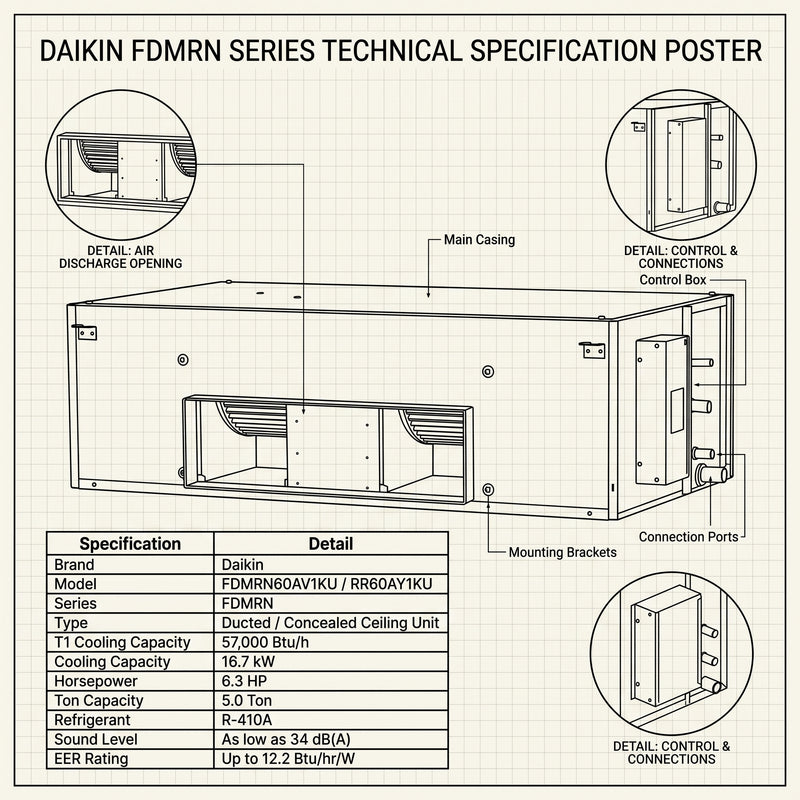

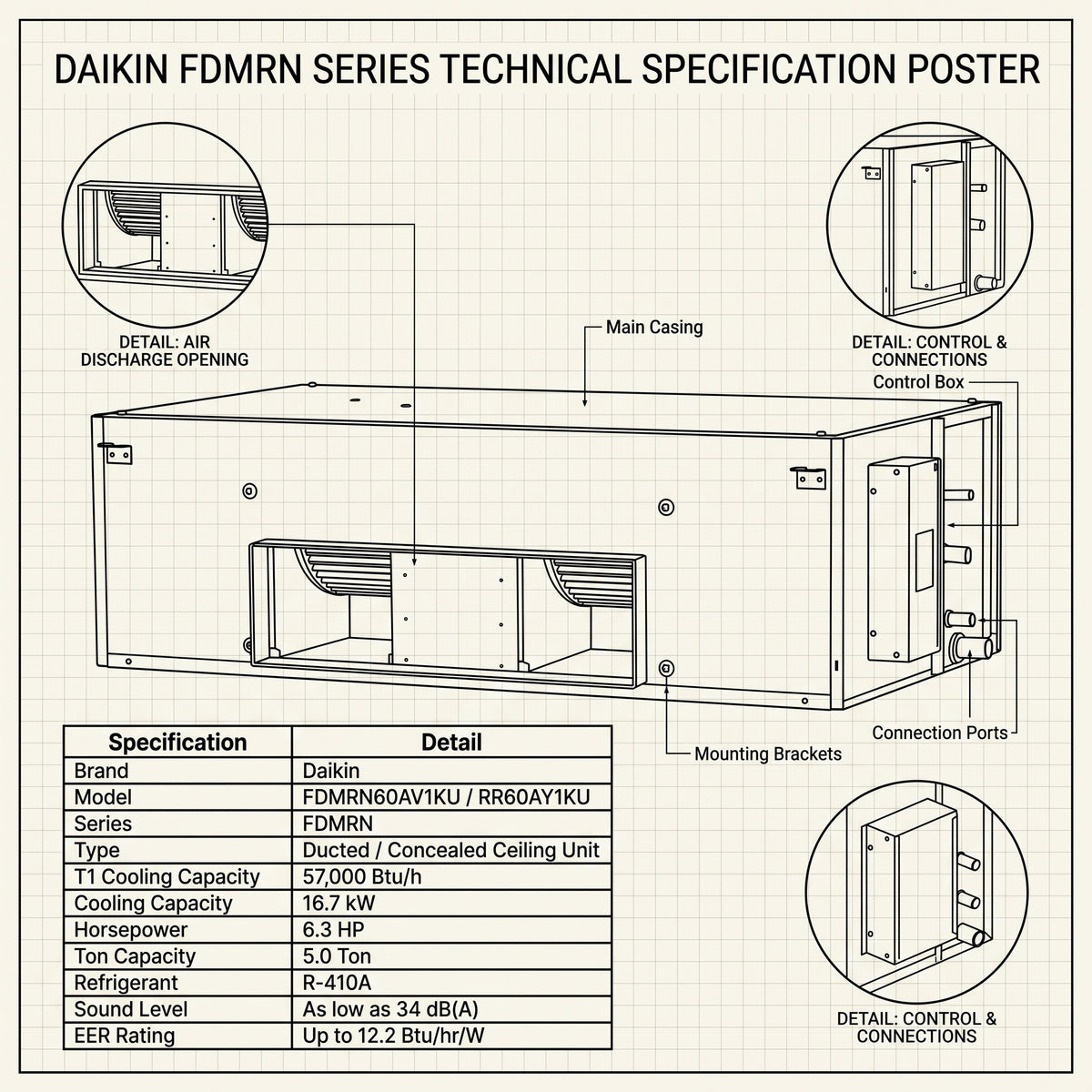

Technical Parameters
| Specification | Details |
|---|---|
| Indoor Model | FDMRN60AV1KU |
| Outdoor Model | RR60AY1KU |
| Power Supply | 400V / 3Ph / 50Hz |
| Cooling Capacity T1 | 57,000 Btu/h / 16.71 kW |
| Cooling Capacity T3 | 52,000 Btu/h / 15.24 kW |
| EER T1 | 12.00 Btu/h/W |
| EER T3 | 9.25 Btu/h/W |
| ESP Range High Fan | 50 / 100 Pa |
| Indoor Airflow | 1,990 / 1,700 / 1,410 CFM |
| Indoor Noise Level | 47 / 45 / 41 dB(A) |
| Indoor Dimensions | 430 × 1,432 × 784 mm |
| Refrigerant Type | R-410A |
| Compressor Type | Scroll |
| Outdoor Dimensions | 1,067 × 880 × 380 mm |
| Liquid Pipe Connection | 9.52 mm / 3/8 inch |
| Gas Pipe Connection | 19.05 mm / 3/4 inch |
| Total Piping Length | 50 m |
| Vertical Piping Length | 30 m |
| Operating Temperature Range | 19°C – 52°C |
Application Scope
| Application Area | Details |
|---|---|
| Large Bedrooms | Hidden cooling with quiet comfort |
| Hotel Rooms & Suites | Discreet ducted cooling for premium interiors |
| Villas | Suitable for large residential spaces |
| Offices | Clean ceiling design with strong airflow |
| Commercial Spaces | Efficient cooling for larger indoor areas |
| Retail Areas | Concealed installation without disturbing interior design |
| Meeting Rooms | Quiet and comfortable air distribution |
Main Benefits
- Hidden ceiling installation for a clean room appearance
- Powerful cooling capacity for large indoor spaces
- R-410A refrigerant with zero ozone depletion potential
- Scroll compressor for dependable performance
- Adjustable ESP for flexible duct design
- Double drain pan protection against leakage
- Auto random restart after power failure
- Quiet indoor operation
- Long airflow for better air distribution
- Suitable for villas, hotels, offices, and commercial interiors
