Description

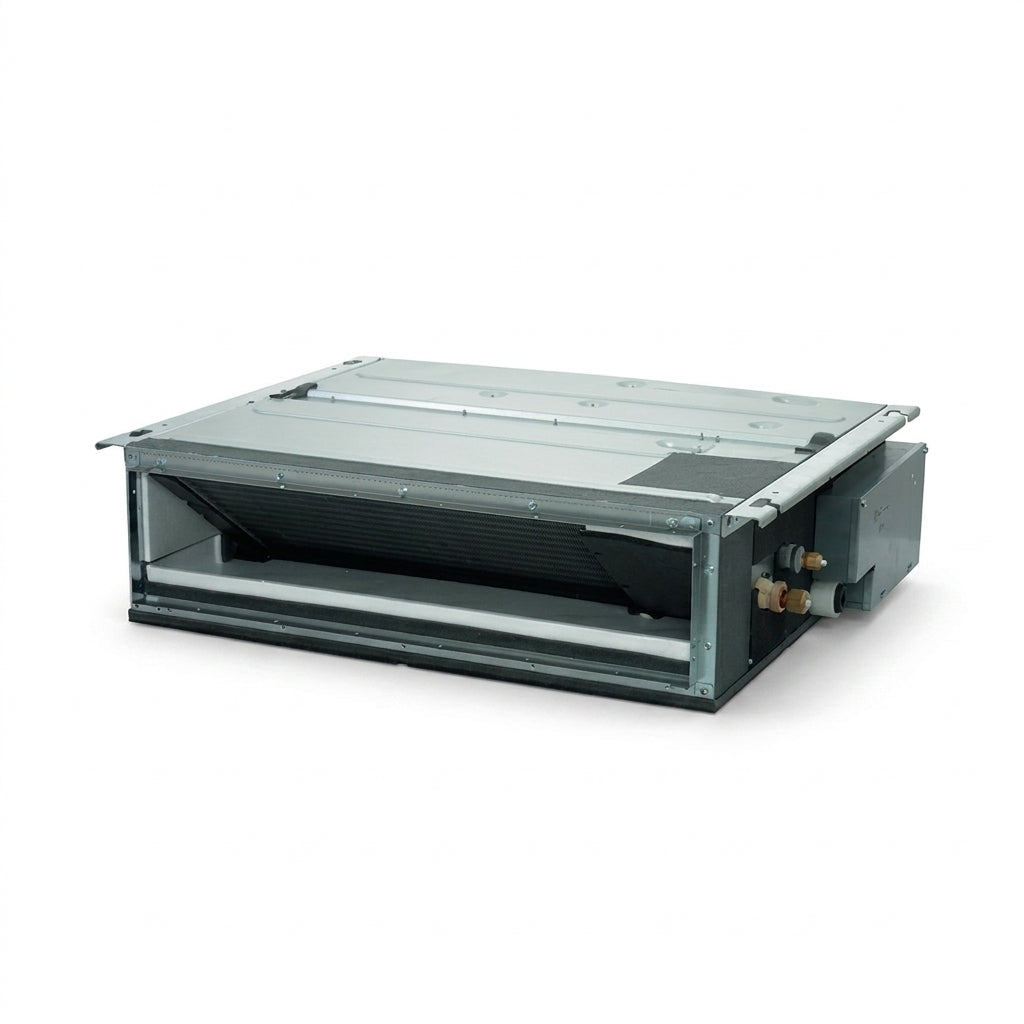

The Daikin FXDQ20A3 is a slim concealed ducted indoor unit designed for small or well-insulated rooms that require quiet, efficient, and discreet air conditioning. With 2.2 kW cooling capacity, 2.5 kW heating capacity, medium external static pressure up to 44 Pa, and a standard drain pump with 600 mm lift, it is suitable for hotel bedrooms, small offices, apartments, villas, and compact rooms where a clean concealed AC installation is required. ❄️
Key Features
| Feature | Description |
|---|---|
| Brand | Daikin |
| Model | FXDQ20A3 |
| Series | FXDQ-A3 |
| Product Type | VRV concealed ducted indoor unit |
| Installation Type | Slim concealed ceiling duct |
| Cooling Capacity | 2.2 kW |
| Heating Capacity | 2.5 kW |
| External Static Pressure | Up to 44 Pa |
| Drain Pump | Standard drain pump with 600 mm lift |
| Design Type | Slim and compact concealed ducted design |
| Application | Hotel rooms, small offices, apartments, villas, and well-insulated spaces |

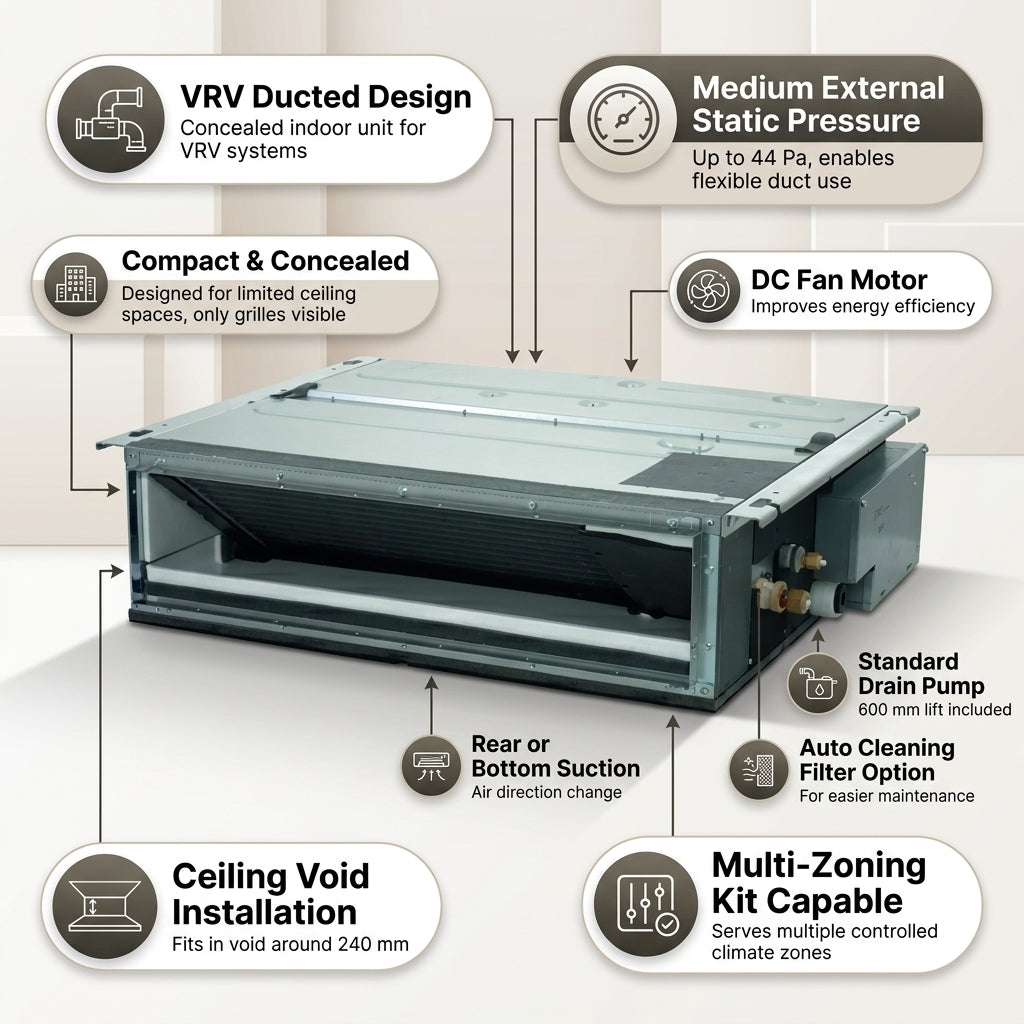

Product Features
| Feature | Details |
|---|---|
| Slim Compact Design | Designed for compact ceiling spaces where a discreet ducted AC solution is required. |
| Ceiling Void Installation | Can be mounted in a ceiling void of only 240 mm, making it suitable for rooms with limited ceiling depth. |
| Concealed Appearance | Only the suction and discharge grilles remain visible, giving the room a clean and modern interior finish. |
| Medium Static Pressure | External static pressure up to 44 Pa allows connection with flexible ducts of different lengths. |
| Flexible Duct Installation | Supports versatile duct layouts for bedrooms, hotel rooms, offices, apartments, and villas. |
| Auto Cleaning Filter Option | Optional auto cleaning filter helps maintain efficiency, comfort, and reliability through regular filter cleaning. |
| Energy Efficient DC Fan Motor | Specially developed DC fan motor helps improve energy efficiency and quiet operation. |
| Multi-Zoning Kit Support | Compatible with a multi-zoning kit, allowing multiple individually controlled climate zones to be served by one indoor unit. |
| Selectable Air Suction Direction | Air suction direction can be changed from rear suction to bottom suction depending on installation requirements. |
| Standard Drain Pump | Built-in drain pump with 600 mm lift increases installation speed and condensate drainage flexibility. |
| Quiet Operation | Suitable for noise-sensitive spaces such as bedrooms, hotel rooms, apartments, and private offices. |
| Comfortable Climate Control | Provides stable and efficient cooling and heating for small or well-insulated rooms. |
Technical Parameters
| Specification | Details |
|---|---|
| Model | FXDQ20A3 |
| Series | FXDQ-A3 |
| Product Type | Slim concealed ducted VRV indoor unit |
| Cooling Capacity | 2.2 kW |
| Heating Capacity | 2.5 kW |
| External Static Pressure | Up to 44 Pa |
| Minimum Ceiling Void Requirement | 240 mm |
| Drain Pump Lift | 600 mm |
| Fan Motor Type | DC fan motor |
| Installation Type | Concealed ceiling duct |
| Air Suction Direction | Rear suction or bottom suction |
| Filter Option | Auto cleaning filter option |
| Multi-Zoning Option | Compatible with multi-zoning kit |
| Visible Parts After Installation | Suction grille and discharge grille |
| Application Type | Small rooms, hotel bedrooms, offices, apartments, and well-insulated spaces |
Application Scope
| Application Area | Details |
|---|---|
| Hotel Bedrooms | Ideal for quiet, discreet, and compact concealed air conditioning. |
| Small Offices | Suitable for offices that require clean interior design and flexible ducted airflow. |
| Apartments | Works well in bedrooms, living rooms, and compact ceiling spaces. |
| Villas | Suitable for premium residential interiors requiring concealed ducted cooling and heating. |
| Well-Insulated Rooms | Designed for rooms with stable cooling load and efficient climate control requirements. |
| Multi-Zone Spaces | Multi-zoning kit support allows one indoor unit to serve multiple individually controlled zones. |
Main Benefits
- Slim VRV concealed ducted indoor unit
- Cooling capacity of 2.2 kW
- Heating capacity of 2.5 kW
- Suitable for ceiling voids of only 240 mm
- Medium external static pressure up to 44 Pa
- Standard drain pump with 600 mm lift
- Discreet concealed design with only grilles visible
- Optional auto cleaning filter for improved efficiency
- DC fan motor for energy-efficient operation
- Rear or bottom suction installation flexibility
- Multi-zoning kit support for individually controlled rooms ⚙️
