Description

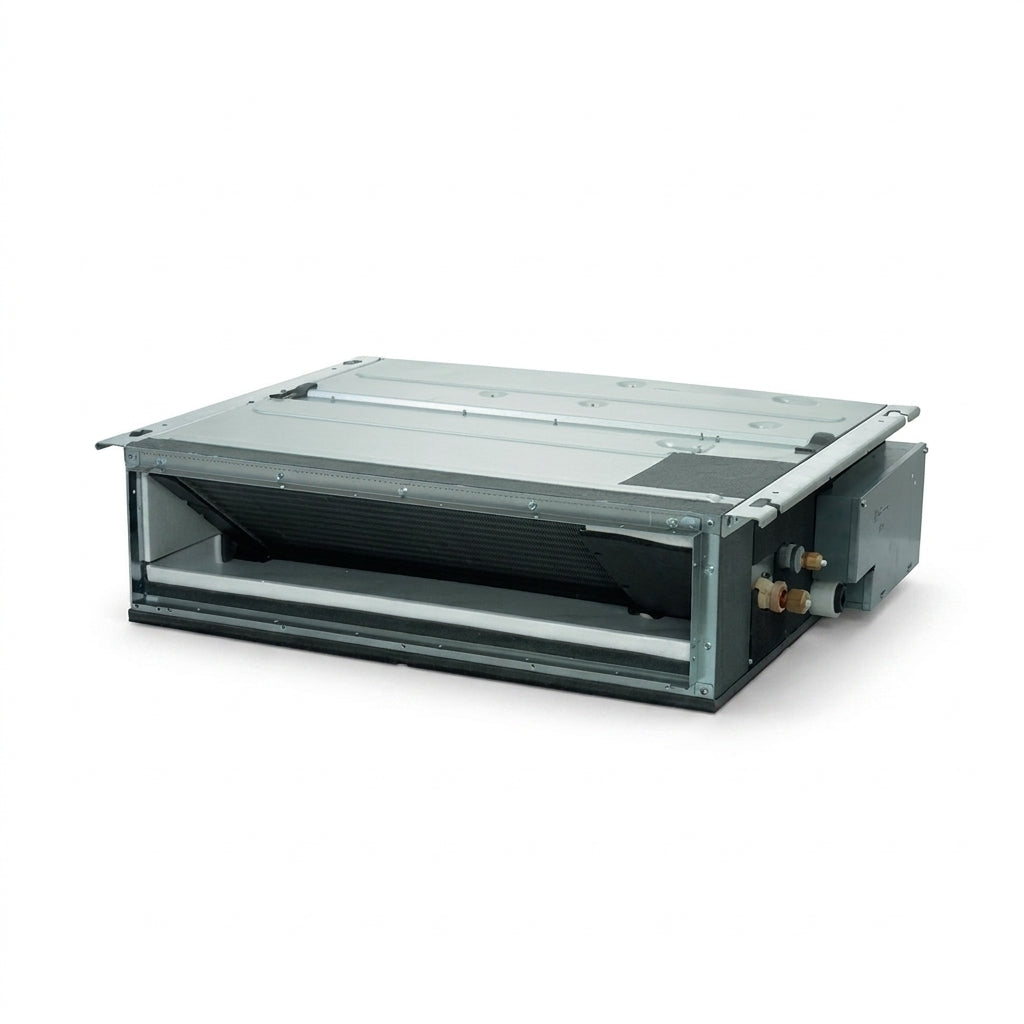

The Daikin FXDQ25PDVM is a slim ceiling mounted ducted indoor unit designed for compact concealed installation, quiet operation, and flexible static pressure switching. With 2.8 kW cooling capacity, 3.2 kW heating capacity, slim 200 mm height, and compact 700 mm width, it is ideal for hotel rooms, apartments, bedrooms, villas, offices, and other spaces with limited ceiling depth. ❄️
Key Features
| Feature | Description |
|---|---|
| Brand | Daikin |
| Model | FXDQ25PDVM |
| Series | FXDQ-PDVM |
| Product Type | VRV slim concealed ducted indoor unit |
| Installation Type | Slim ceiling mounted duct |
| Cooling Capacity | 2.8 kW / 9,600 Btu/h |
| Heating Capacity | 3.2 kW / 10,900 Btu/h |
| Power Supply | 1-phase, 220–240V, 50/60 Hz |
| External Static Pressure | 30 / 10 Pa |
| Drain Pump | Standard drain pump with 750 mm lift |
| Casing | Galvanised steel plate |
| Application | Hotels, apartments, bedrooms, offices, villas, and limited ceiling spaces |

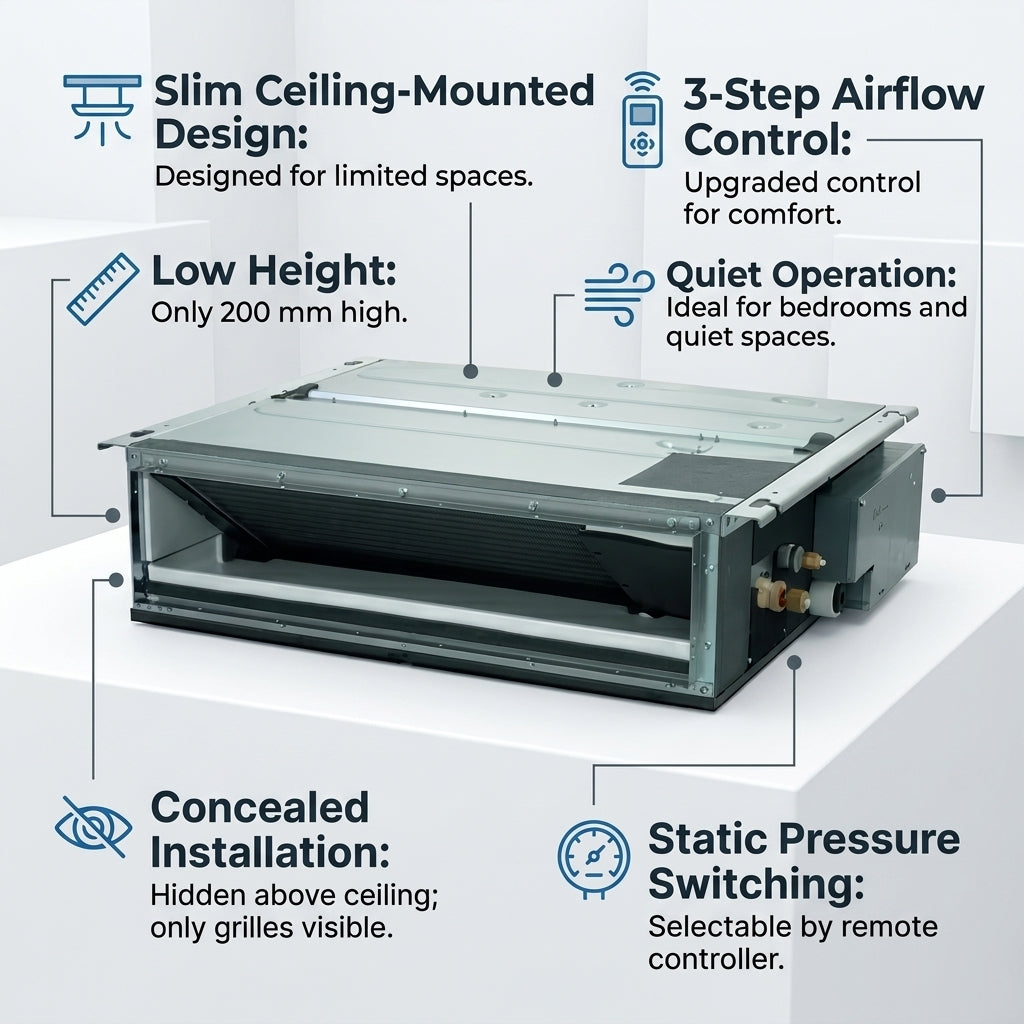

Product Features
| Feature | Details |
|---|---|
| Slim Ceiling Mounted Design | The compact 200 mm height allows installation in rooms with limited ceiling space. |
| Ideal for Drop Ceilings | Suitable for installation in limited spaces such as hotel drop ceilings and compact residential ceiling voids. |
| Compact Width | The FXDQ25PDVM model is only 700 mm wide, making it suitable for narrow ceiling spaces. |
| Quiet Operation | Low operation sound level makes it suitable for bedrooms, hotel rooms, apartments, offices, and quiet indoor areas. |
| Static Pressure Switching | External static pressure can be selected by remote controller switching for flexible duct design. |
| Improved Airflow Control | Airflow rate control has been improved from 2-step to 3-step control. |
| Flexible Installation | Slim body and selectable static pressure allow the unit to fit different duct layouts and ceiling conditions. |
| Standard Drain Pump | FXDQ-PDVM models come with a drain pump as standard, providing 750 mm lift. |
| Concealed Ducted Appearance | The indoor unit is hidden above the ceiling, keeping the interior clean and elegant. |
| Comfortable Air Distribution | Designed to provide steady airflow through duct outlets for comfortable cooling and heating. |
| Galvanised Steel Casing | Durable casing supports reliable concealed ceiling installation. |
| Residential & Commercial Use | Suitable for villas, apartments, hotel rooms, offices, and compact commercial interiors. |

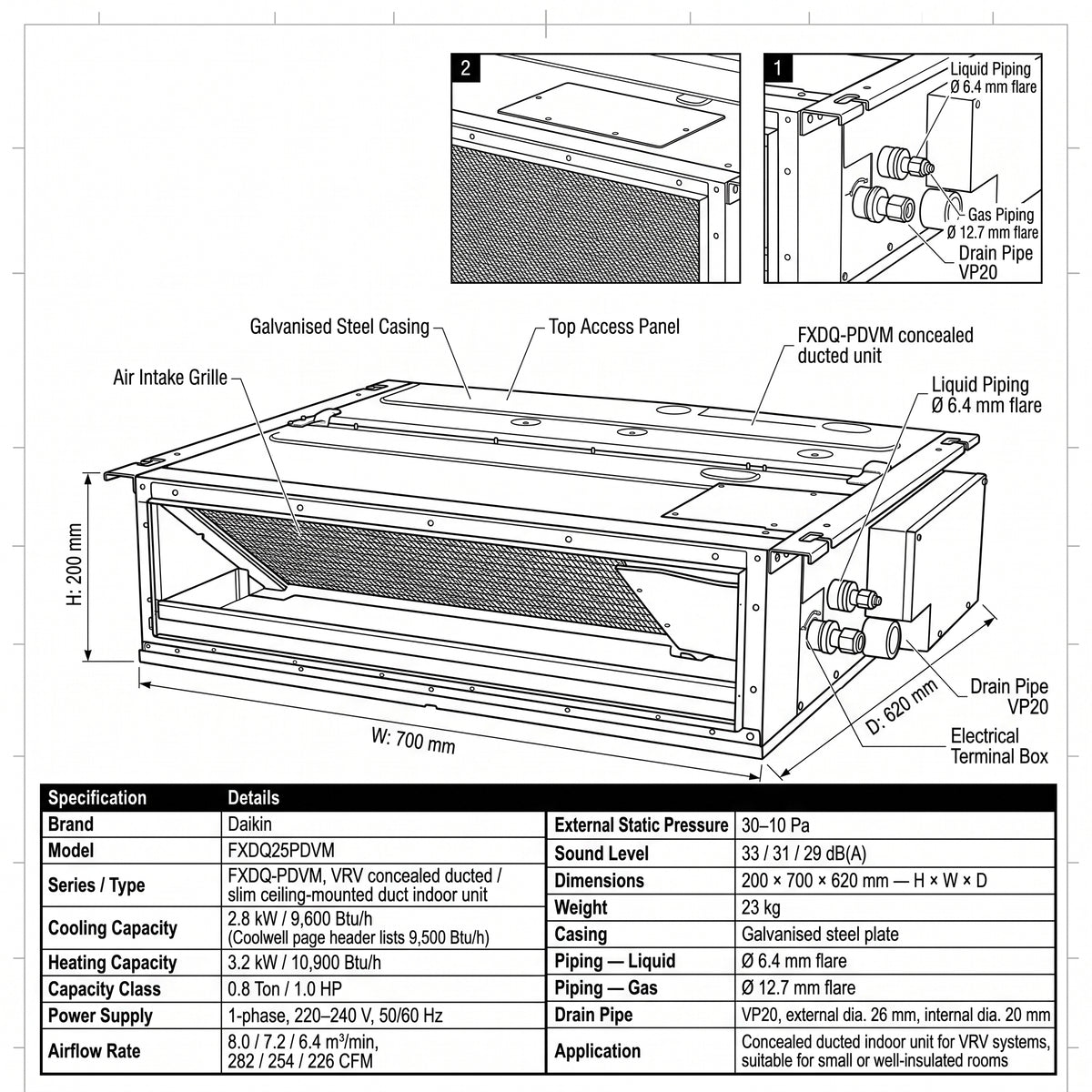

Technical Parameters
| Specification | Details |
|---|---|
| Model | FXDQ25PDVM |
| Power Supply | 1-phase, 220–240V, 50/60 Hz |
| Cooling Capacity | 9,600 Btu/h |
| Cooling Capacity | 2.8 kW |
| Heating Capacity | 10,900 Btu/h |
| Heating Capacity | 3.2 kW |
| Casing | Galvanised steel plate |
| Airflow Rate High / Medium / Low | 8.0 / 7.2 / 6.4 m³/min |
| Airflow Rate High / Medium / Low | 282 / 254 / 226 cfm |
| External Static Pressure | 30 / 10 Pa |
| Sound Level High / Medium / Low | 33 / 31 / 29 dB(A) |
| Dimensions H × W × D | 200 × 700 × 620 mm |
| Machine Weight | 23.0 kg |
| Liquid Pipe Connection | Ø 6.4 mm flare |
| Gas Pipe Connection | Ø 12.7 mm flare |
| Drain Connection | VP20, External Dia. 26 mm / Internal Dia. 20 mm |
| Drain Pump Lift | 750 mm |
| Installation Type | Slim ceiling mounted duct |
| Airflow Control | 3-step control |
Application Scope
| Application Area | Details |
|---|---|
| Hotel Rooms | Suitable for concealed ceiling installation where quiet operation and compact size are required. |
| Apartments | Ideal for bedrooms, living rooms, and rooms with restricted ceiling depth. |
| Villas | Works well in premium residential interiors requiring concealed ducted AC. |
| Offices | Suitable for private offices, meeting rooms, cabins, and quiet workspaces. |
| Retail Spaces | Can be used in boutiques, small shops, and customer-facing interiors. |
| Limited Ceiling Spaces | Designed for areas where ceiling depth and installation width are restricted. |
Main Benefits
- Slim VRV concealed ducted indoor unit
- Cooling capacity of 2.8 kW / 9,600 Btu/h
- Heating capacity of 3.2 kW / 10,900 Btu/h
- Compact 200 mm unit height
- Compact 700 mm unit width
- Standard drain pump with 750 mm lift
- Selectable external static pressure for flexible duct design
- Improved 3-step airflow control
- Low operation sound level
- Concealed installation for clean interior design
- Ideal for hotels, apartments, villas, offices, and compact commercial interiors ⚙️
