Description

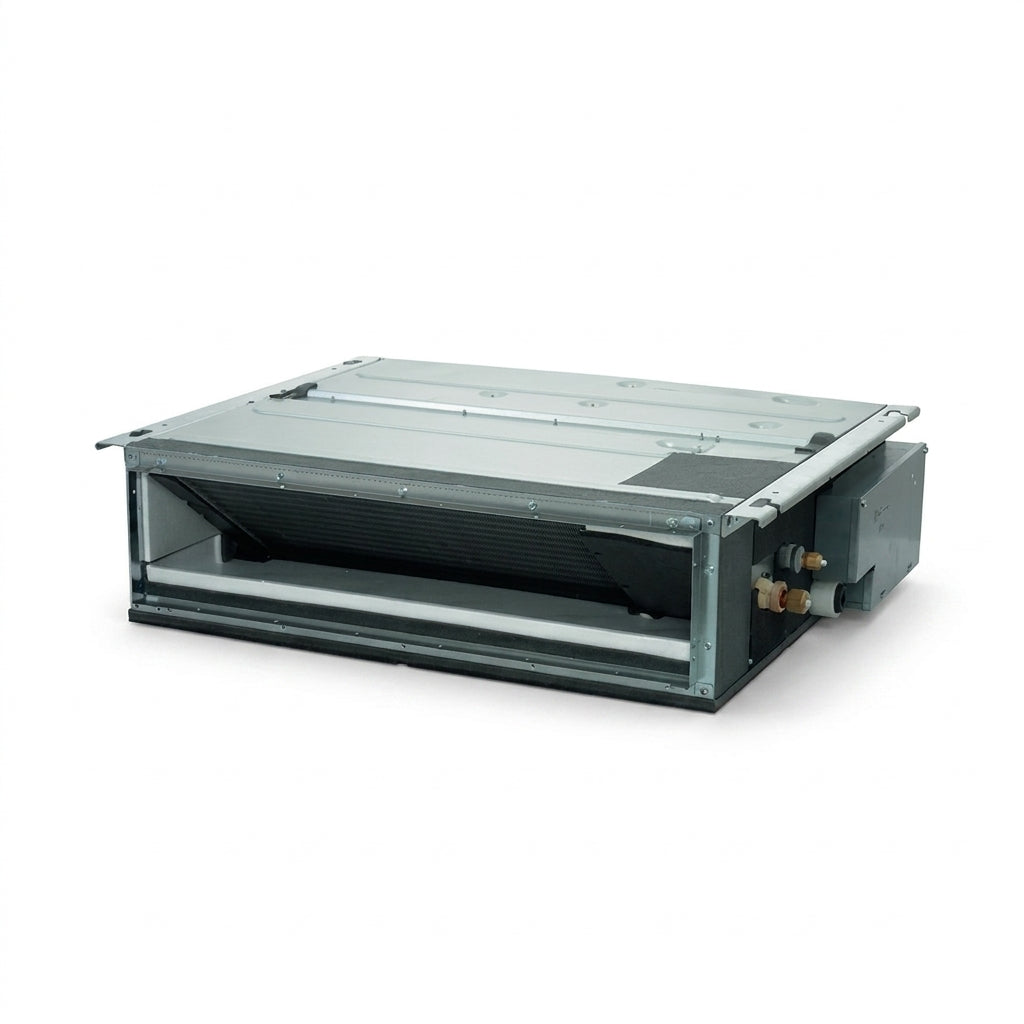

The Daikin FXDQ50A3 is a slim concealed ducted indoor unit designed for compact spaces that need quiet, efficient, and discreet air conditioning. With 5.6 kW cooling capacity, 6.3 kW heating capacity, medium external static pressure up to 44 Pa, and a standard drain pump with 600 mm lift, it is suitable for hotel bedrooms, small offices, apartments, villas, and well-insulated rooms where a clean concealed AC installation is required. ❄️
Key Features
| Feature | Description |
|---|---|
| Brand | Daikin |
| Model | FXDQ50A3 |
| Series | FXDQ-A3 |
| Product Type | VRV concealed ducted indoor unit |
| Installation Type | Slim concealed ceiling duct |
| Cooling Capacity | 5.6 kW |
| Heating Capacity | 6.3 kW |
| External Static Pressure | Up to 44 Pa |
| Drain Pump | Standard drain pump with 600 mm lift |
| Design Type | Slim and compact concealed ducted design |
| Application | Hotel rooms, small offices, apartments, villas, and well-insulated spaces |

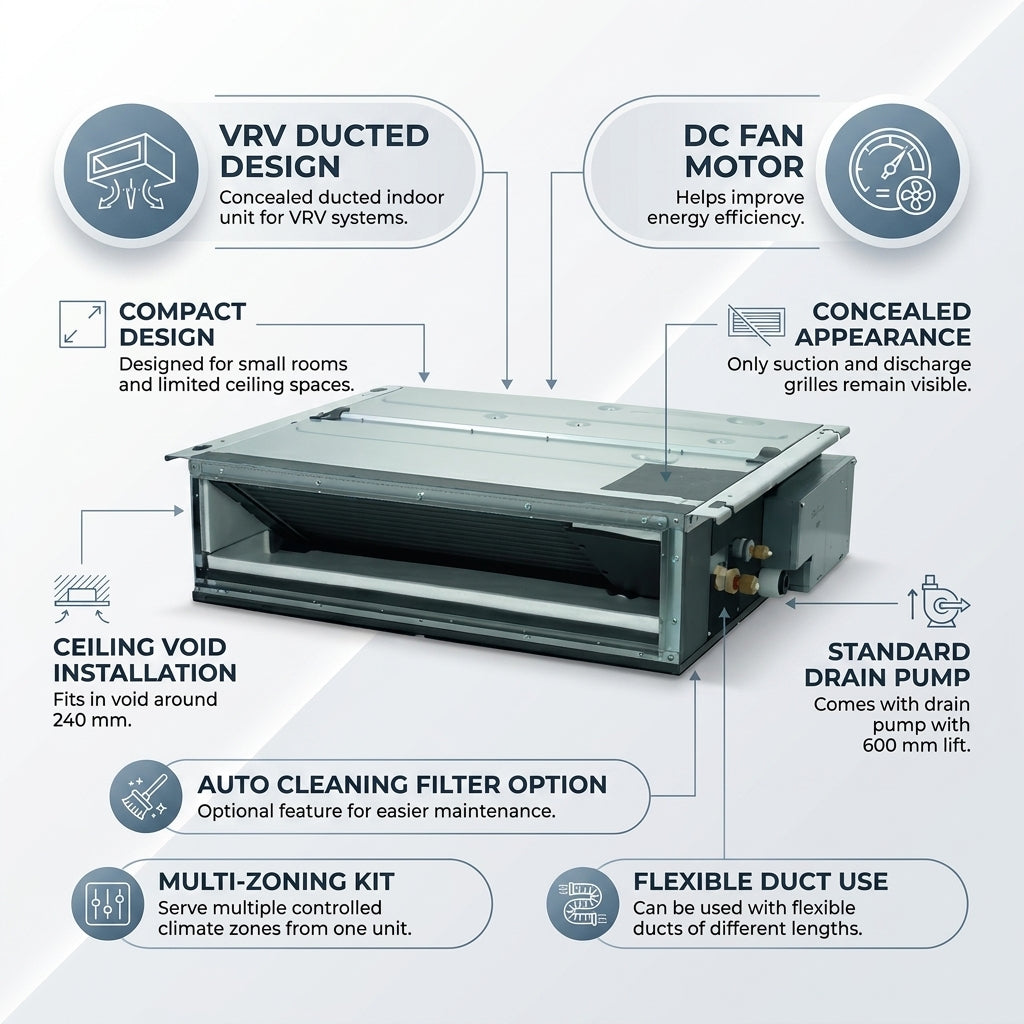

Product Features
| Feature | Details |
|---|---|
| Slim Compact Design | Designed for installation in compact ceiling spaces where a discreet ducted AC solution is required. |
| Ceiling Void Installation | Can be mounted in a ceiling void of only 240 mm, making it suitable for rooms with limited ceiling depth. |
| Concealed Appearance | Only the suction and discharge grilles remain visible, giving the room a clean and modern interior finish. |
| Medium Static Pressure | External static pressure up to 44 Pa allows connection with flexible ducts of different lengths. |
| Flexible Duct Installation | Supports versatile duct layouts for bedrooms, hotel rooms, offices, apartments, and villas. |
| Auto Cleaning Filter Option | Optional auto cleaning filter helps maintain efficiency, comfort, and reliability through regular filter cleaning. |
| Energy Efficient DC Fan Motor | Specially developed DC fan motor helps improve energy efficiency and quiet operation. |
| Multi-Zoning Kit Support | Compatible with a multi-zoning kit, allowing multiple individually controlled climate zones to be served by one indoor unit. |
| Selectable Air Suction Direction | Air suction direction can be changed from rear suction to bottom suction depending on installation requirements. |
| Standard Drain Pump | Built-in drain pump with 600 mm lift increases installation speed and condensate drainage flexibility. |
| Quiet Operation | Suitable for noise-sensitive spaces such as bedrooms, hotel rooms, apartments, and private offices. |
| Comfortable Climate Control | Provides stable and efficient cooling and heating for small or well-insulated rooms. |
Technical Parameters
| Specification | Details |
|---|---|
| Model | FXDQ50A3 |
| Series | FXDQ-A3 |
| Product Type | Slim concealed ducted VRV indoor unit |
| Cooling Capacity | 5.6 kW |
| Heating Capacity | 6.3 kW |
| External Static Pressure | Up to 44 Pa |
| Minimum Ceiling Void Requirement | 240 mm |
| Drain Pump Lift | 600 mm |
| Fan Motor Type | DC fan motor |
| Installation Type | Concealed ceiling duct |
| Air Suction Direction | Rear suction or bottom suction |
| Filter Option | Auto cleaning filter option |
| Multi-Zoning Option | Compatible with multi-zoning kit |
| Visible Parts After Installation | Suction grille and discharge grille |
| Application Type | Small rooms, hotel bedrooms, offices, apartments, and well-insulated spaces |
Application Scope
| Application Area | Details |
|---|---|
| Hotel Bedrooms | Ideal for quiet, discreet, and compact concealed air conditioning. |
| Small Offices | Suitable for offices that require clean interior design and flexible ducted airflow. |
| Apartments | Works well in bedrooms, living rooms, and compact ceiling spaces. |
| Villas | Suitable for premium residential interiors requiring concealed ducted cooling and heating. |
| Well-Insulated Rooms | Designed for rooms with stable cooling load and efficient climate control requirements. |
| Multi-Zone Spaces | Multi-zoning kit support allows one indoor unit to serve multiple individually controlled zones. |
Main Benefits
- Slim VRV concealed ducted indoor unit
- Cooling capacity of 5.6 kW
- Heating capacity of 6.3 kW
- Suitable for ceiling voids of only 240 mm
- Medium external static pressure up to 44 Pa
- Standard drain pump with 600 mm lift
- Discreet concealed design with only grilles visible
- Optional auto cleaning filter for improved efficiency
- DC fan motor for energy-efficient operation
- Rear or bottom suction installation flexibility
- Multi-zoning kit support for individually controlled rooms ⚙️
