Description

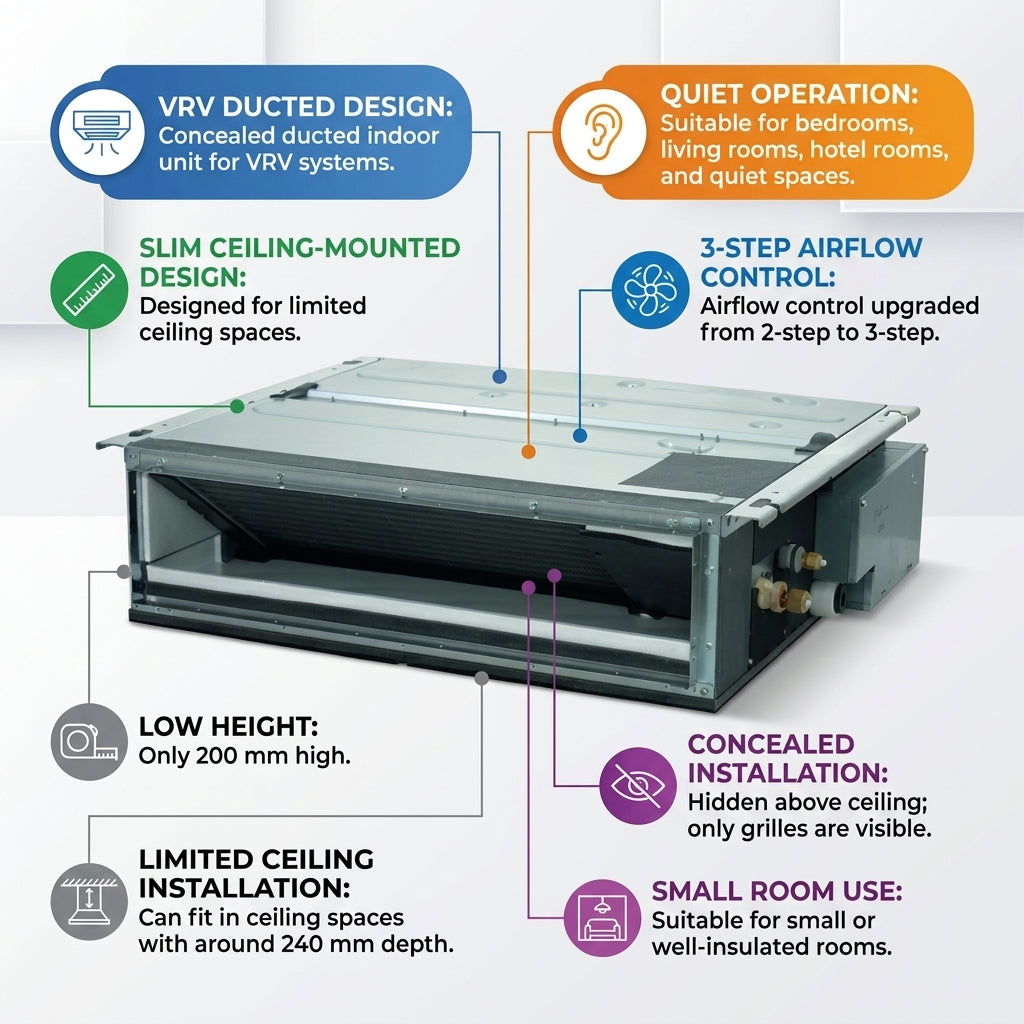

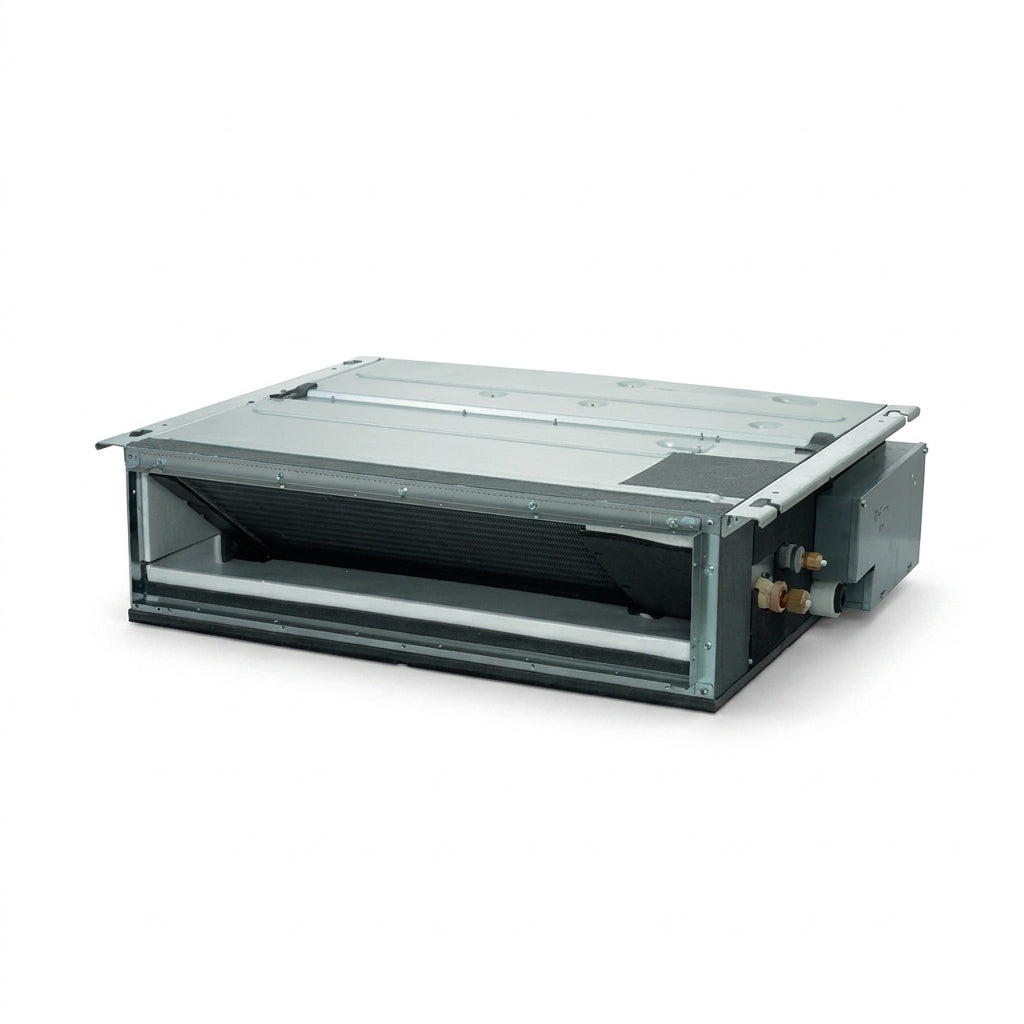

The Daikin FXDQ63NDVM is a slim ceiling mounted ducted indoor unit designed for quiet, compact, and flexible concealed air conditioning. With 7.1 kW cooling capacity, 8.0 kW heating capacity, slim 200 mm height, and selectable external static pressure, it is ideal for bedrooms, hotel rooms, apartments, offices, small commercial areas, and spaces with limited ceiling depth. ❄️
Key Features
| Feature | Description |
|---|---|
| Brand | Daikin |
| Model | FXDQ63NDVM |
| Series | FXDQ-NDVM |
| Product Type | VRV slim concealed ducted indoor unit |
| Installation Type | Slim ceiling mounted duct |
| Cooling Capacity | 7.1 kW / 24,200 Btu/h |
| Heating Capacity | 8.0 kW / 27,300 Btu/h |
| Power Supply | 1-phase, 220–240V, 50/60 Hz |
| External Static Pressure | 44 / 15 Pa |
| Drain Pump | Standard drain pump with 750 mm lift |
| Casing | Galvanised steel plate |
| Application | Hotels, apartments, bedrooms, offices, villas, and limited ceiling spaces |
Product Features
| Feature | Details |
|---|---|
| Slim Ceiling Mounted Design | The compact 200 mm height allows installation in rooms with limited ceiling space. |
| Ideal for Drop Ceilings | Can be installed in spaces with as little as 240 mm depth between the drop ceiling and ceiling slab. |
| Compact Width | The FXDQ63NDVM model has a width of 1,100 mm, suitable for concealed ceiling applications. |
| Quiet Operation | Low sound operation makes it suitable for bedrooms, hotel rooms, offices, and quiet indoor environments. |
| Static Pressure Switching | External static pressure can be selected by remote controller switching for flexible duct design. |
| Improved Airflow Control | Airflow rate control has been improved from 2-step to 3-step control. |
| Flexible Installation | Slim body and selectable static pressure allow installation in different ceiling and duct layouts. |
| Standard Drain Pump | FXDQ-NDVM models come with a drain pump as standard, providing 750 mm lift. |
| Concealed Ducted Appearance | The indoor unit is hidden above the ceiling, keeping interiors clean and elegant. |
| Comfortable Air Distribution | Designed to provide steady airflow through duct outlets for comfortable indoor cooling and heating. |
| Galvanised Steel Casing | Durable casing supports reliable concealed installation. |
| Suitable for Residential & Commercial Use | Works well in villas, apartments, hotel rooms, offices, and compact commercial interiors. |
Technical Parameters
| Specification | Details |
|---|---|
| Model | FXDQ63NDVM |
| Power Supply | 1-phase, 220–240V, 50/60 Hz |
| Cooling Capacity | 24,200 Btu/h |
| Cooling Capacity | 7.1 kW |
| Heating Capacity | 27,300 Btu/h |
| Heating Capacity | 8.0 kW |
| Casing | Galvanised steel plate |
| Airflow Rate High / Medium / Low | 16.5 / 14.5 / 13.0 m³/min |
| Airflow Rate High / Medium / Low | 582 / 512 / 459 cfm |
| External Static Pressure | 44 / 15 Pa |
| Sound Level High / Medium / Low | 36 / 34 / 32 dB(A) |
| Dimensions H × W × D | 200 × 1,100 × 620 mm |
| Machine Weight | 31.0 kg |
| Liquid Pipe Connection | Ø 9.5 mm flare |
| Gas Pipe Connection | Ø 15.9 mm flare |
| Drain Connection | VP20, External Dia. 26 mm / Internal Dia. 20 mm |
| Drain Pump Lift | 750 mm |
| Installation Type | Slim ceiling mounted duct |
| Airflow Control | 3-step control |
Application Scope
| Application Area | Details |
|---|---|
| Hotel Rooms | Suitable for concealed ceiling installation where quiet operation and slim design are important. |
| Apartments | Ideal for bedrooms, living rooms, and compact ceiling spaces. |
| Villas | Works well in premium residential interiors requiring concealed ducted AC. |
| Offices | Suitable for private offices, meeting rooms, cabins, and quiet work areas. |
| Retail Spaces | Can be used in boutiques, small shops, and customer-facing interiors. |
| Limited Ceiling Spaces | Designed for areas where ceiling depth is restricted and a slim ducted unit is required. |
Main Benefits
- Slim VRV concealed ducted indoor unit
- Cooling capacity of 7.1 kW / 24,200 Btu/h
- Heating capacity of 8.0 kW / 27,300 Btu/h
- Compact 200 mm unit height
- Suitable for ceiling spaces with only 240 mm depth
- Standard drain pump with 750 mm lift
- Selectable external static pressure for flexible duct design
- Improved 3-step airflow control
- Low operation sound level
- Concealed installation for clean interior design
- Ideal for hotels, apartments, villas, offices, and compact commercial interiors ⚙️
