Description

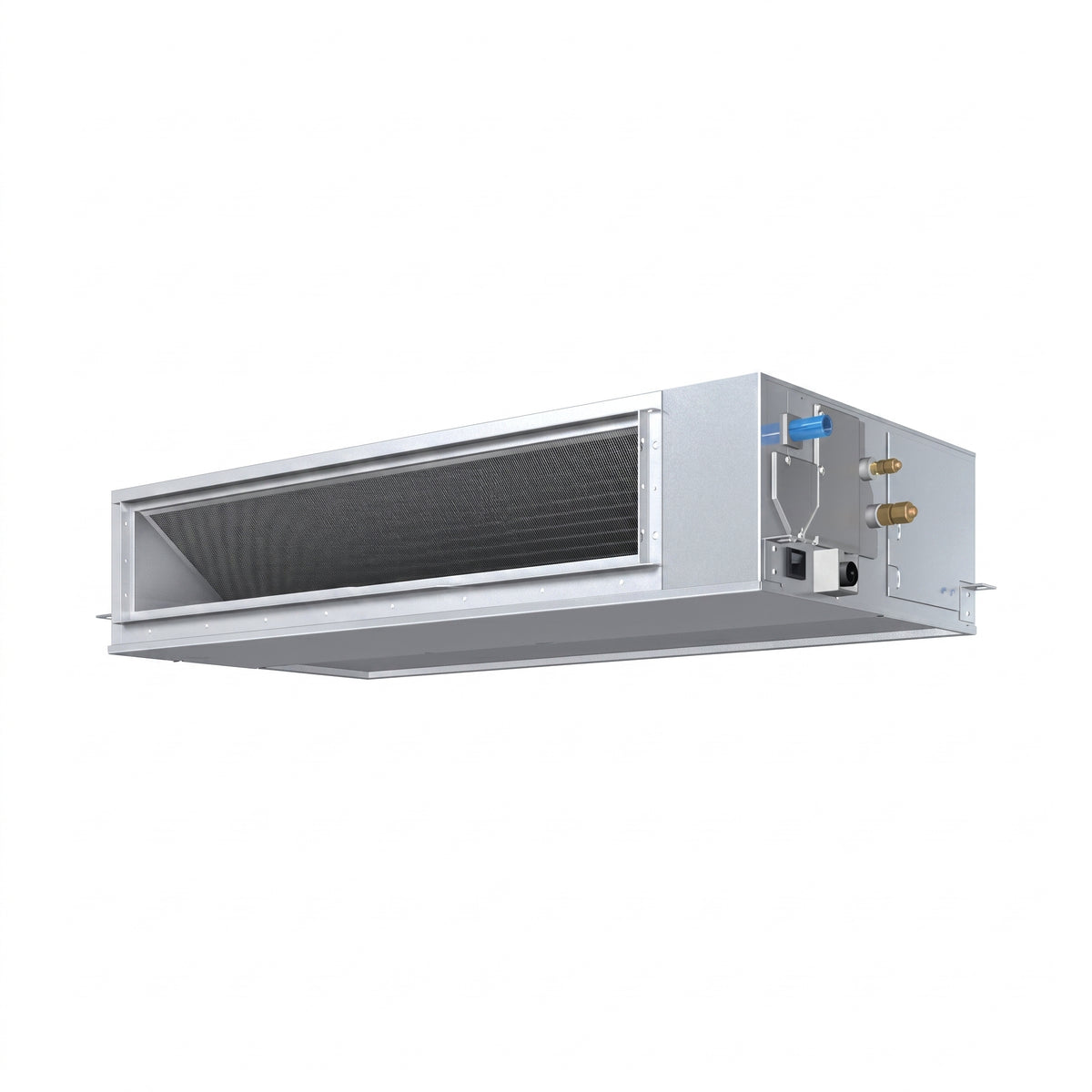

The Daikin FXMQ140PBV1 is a high static concealed ceiling ducted indoor unit designed to provide powerful, flexible, and efficient air conditioning for residential and commercial spaces. With 16.0 kW cooling capacity, 18.0 kW heating capacity, and a flexible external static pressure range, it is ideal for offices, villas, restaurants, retail spaces, showrooms, and commercial interiors requiring concealed ducted AC installation. ❄️
Key Features
| Feature | Description |
|---|---|
| Brand | Daikin |
| Model | FXMQ140PBV1 |
| Series | FXMQ-PBV1 |
| Product Type | VRV concealed ceiling duct indoor unit |
| Installation Type | High static concealed ceiling duct |
| Cooling Capacity | 16.0 kW / 54,600 Btu/h |
| Heating Capacity | 18.0 kW / 61,400 Btu/h |
| Power Supply | 1 phase, 220–240V, 50/60 Hz |
| External Static Pressure | 50–140 Pa |
| Drain Pump | Standard drain pump with 700 mm lift |
| Casing | Galvanised steel plate |
| Application | Villas, offices, restaurants, showrooms, retail spaces, and commercial interiors |

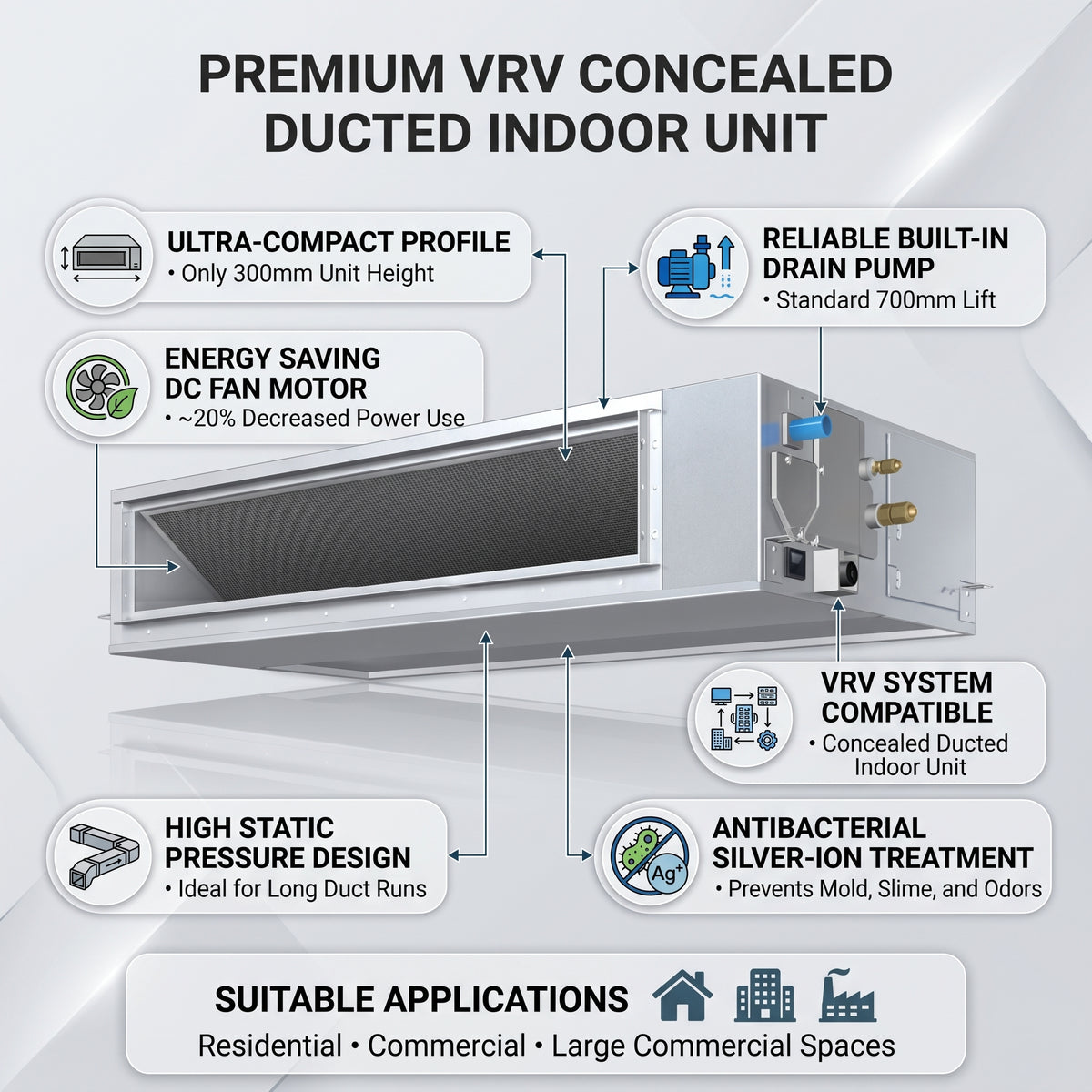

Product Features
| Feature | Details |
|---|---|
| High Static Pressure Design | Middle and high static pressure capability allows flexible duct design for different room layouts. |
| DC Fan Motor | The adopted DC fan motor improves efficiency and helps reduce energy consumption compared with conventional AC motors. |
| Flexible Duct Design | External static pressure range supports duct layouts for residential and commercial applications. |
| Concealed Ceiling Installation | The unit is hidden above the ceiling, keeping interiors clean and modern while supplying air through ducts. |
| Compact Height | Unit height is only 300 mm, making it easier to install in limited ceiling spaces. |
| Standard Drain Pump | Built-in drain pump with 700 mm lift improves installation flexibility and condensate drainage. |
| Improved Airflow Control | Airflow rate control has been improved from 2-step to 3-step control for better comfort adjustment. |
| Automatic Airflow Adjustment | Automatically selects the most suitable fan curve to achieve nominal airflow within approximately ±10%. |
| Remote Controller Adjustment | Airflow rate can be controlled using a remote controller during test operation. |
| Low Operation Sound | Designed for quiet ducted operation, suitable for offices, villas, hotels, and commercial spaces. |
| Easy Maintenance | Drain pan can be detached for easier cleaning and service access. |
| Antibacterial Drain Treatment | Silver ion antibacterial treatment helps prevent slime, mould, and bacteria that can cause blockages and odours. |
| Energy Efficient Operation | DC fan motor design helps reduce energy consumption while maintaining strong airflow performance. |
Technical Parameters
| Specification | Details |
|---|---|
| Model | FXMQ140PBV1 |
| Power Supply | 1 phase, 220–240V, 50/60 Hz |
| Cooling Capacity | 54,600 Btu/h |
| Cooling Capacity | 16.0 kW |
| Heating Capacity | 61,400 Btu/h |
| Heating Capacity | 18.0 kW |
| Casing | Galvanised steel plate |
| Airflow Rate High / Medium / Low | 46 / 39 / 32 m³/min |
| Airflow Rate High / Medium / Low | 1,624 / 1,377 / 1,130 cfm |
| External Static Pressure | 50–140 Pa |
| Sound Level High / Medium / Low | 46 / 45 / 43 dB(A) |
| Dimensions H × W × D | 300 × 1,400 × 700 mm |
| Machine Weight | 46 kg |
| Liquid Pipe Connection | Ø 9.5 mm flare |
| Gas Pipe Connection | Ø 15.9 mm flare |
| Drain Connection | VP25, External Dia. 32 mm / Internal Dia. 25 mm |
| Drain Pump Lift | 700 mm |
| Installation Type | High static concealed ceiling duct |
| Airflow Control | 3-step control |
Application Scope
| Application Area | Details |
|---|---|
| Villas & Apartments | Suitable for concealed ducted cooling in living rooms, bedrooms, and premium interiors. |
| Offices | Ideal for open offices, private cabins, meeting rooms, and commercial workspaces. |
| Restaurants | Supports ducted air distribution across dining areas and seating zones. |
| Retail Spaces | Suitable for boutiques, shops, showrooms, and customer-facing spaces. |
| Hotels | Works well for guest rooms, corridors, lounges, and hospitality interiors. |
| Commercial Buildings | Suitable for spaces requiring flexible duct design and concealed indoor units. |
Main Benefits
- Powerful VRV concealed ceiling duct indoor unit
- Cooling capacity of 16.0 kW / 54,600 Btu/h
- Heating capacity of 18.0 kW / 61,400 Btu/h
- Flexible external static pressure range up to 140 Pa
- Compact 300 mm unit height for easier ceiling installation
- Built-in drain pump with 700 mm lift
- DC fan motor for improved energy efficiency
- 3-step airflow control for better comfort
- Automatic airflow adjustment function
- Antibacterial drain pan treatment for easier maintenance
- Suitable for villas, offices, restaurants, showrooms, and commercial interiors ⚙️
