Description

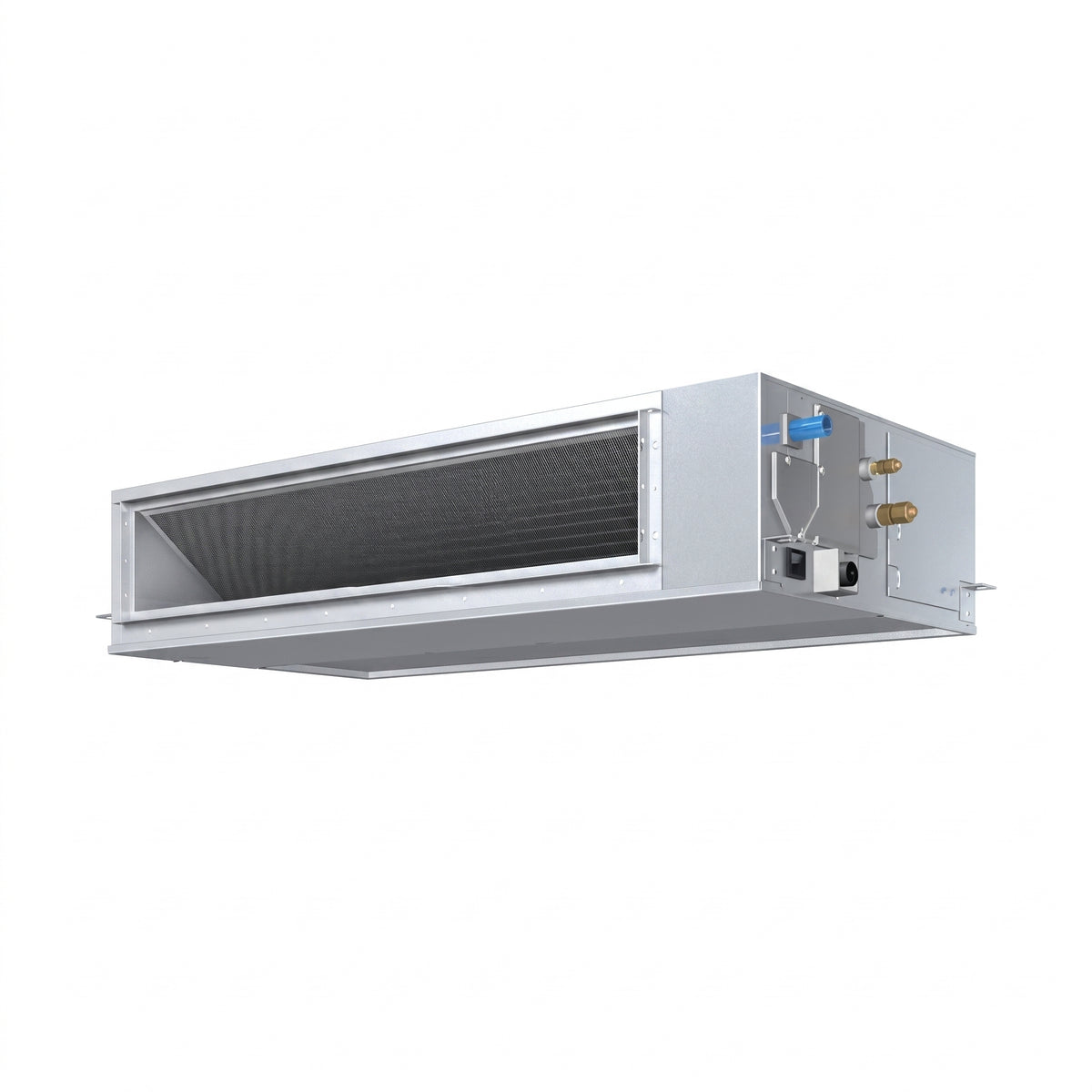

The Daikin FXSQ140A is a powerful medium static pressure concealed ducted indoor unit designed for flexible ceiling installation, quiet operation, and efficient climate control. With 14.0 kW cooling capacity, 16.0 kW heating capacity, external static pressure up to 150 Pa, and a slim concealed design, it is suitable for hotel rooms, offices, apartments, villas, commercial interiors, and spaces requiring discreet ducted air conditioning. ❄️
Key Features
| Feature | Description |
|---|---|
| Brand | Daikin |
| Model | FXSQ140A |
| Series | FXSQ-A |
| Product Type | VRV concealed ducted indoor unit |
| Installation Type | Concealed ceiling duct |
| Cooling Capacity | 14.0 kW |
| Heating Capacity | 16.0 kW |
| External Static Pressure | Up to 150 Pa |
| Drain Pump | Standard built-in drain pump |
| Design Type | Slim concealed ducted design |
| Application | Offices, hotels, apartments, villas, retail spaces, and commercial interiors |

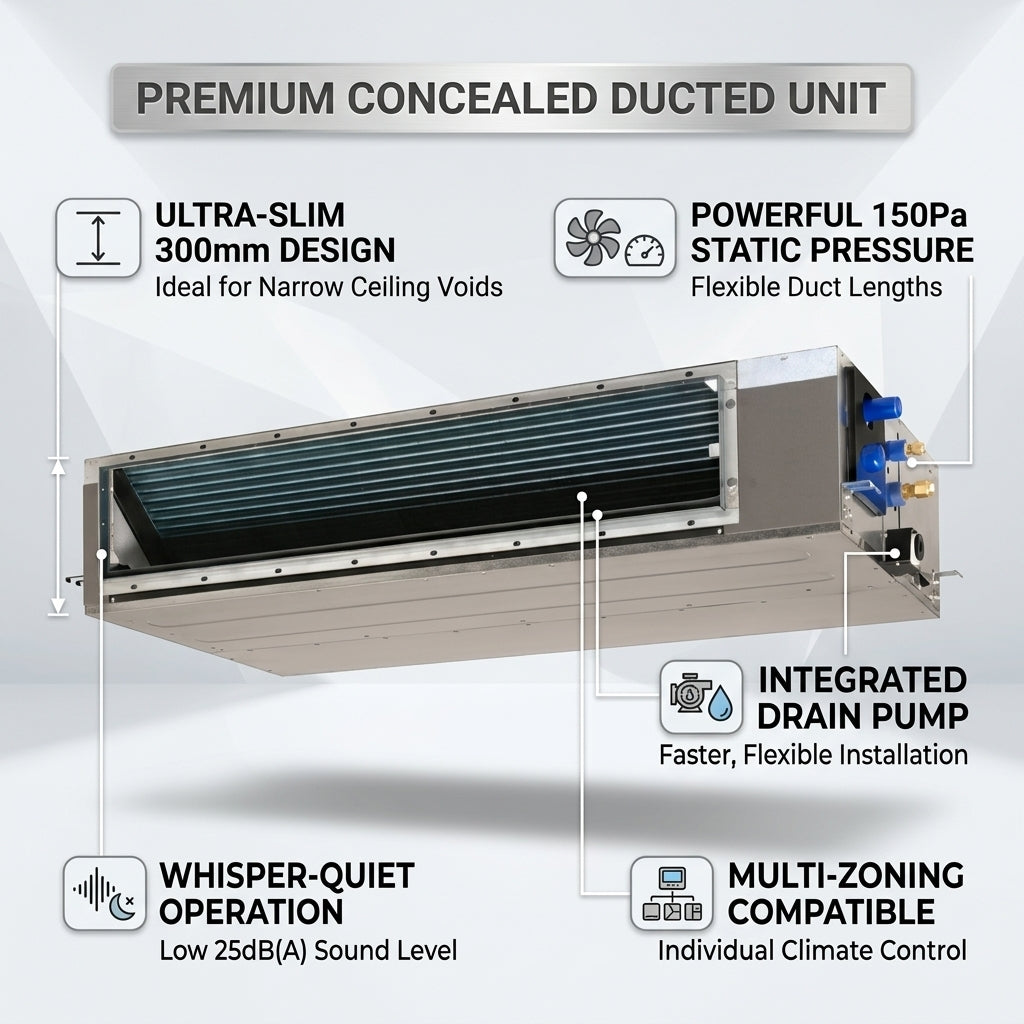

Product Features
| Feature | Details |
|---|---|
| Slim Concealed Design | Designed to fit neatly inside the ceiling, keeping the indoor space clean and modern. |
| Medium Static Pressure | External static pressure up to 150 Pa supports flexible duct lengths and different grille layouts. |
| Quiet Operation | Low sound operation makes it suitable for noise-sensitive areas such as offices, hotel rooms, and bedrooms. |
| Discreet Installation | Only the suction and discharge grilles remain visible after installation. |
| Flexible Duct Connection | Suitable for varying duct lengths, helping installers adapt the unit to different ceiling layouts. |
| ESP Adjustment by Wired Remote | External static pressure can be adjusted through the wired remote controller to optimize supply airflow. |
| Automatic Airflow Adjustment | Measures air volume and static pressure, then adjusts toward nominal airflow for easier installation and improved comfort. |
| Multi-Zoning Kit Support | Allows multiple individually controlled climate zones to be served by one indoor unit. |
| Optional Fresh Air Intake | Fresh air intake option provides additional ventilation flexibility. |
| Rear or Bottom Suction | Air suction direction can be changed from rear suction to bottom suction depending on site requirements. |
| Standard Built-In Drain Pump | Built-in drain pump improves condensate drainage flexibility and speeds up installation. |
| Energy Efficient Operation | Designed to provide efficient cooling and heating while maintaining indoor comfort. |
Technical Parameters
| Specification | Details |
|---|---|
| Model | FXSQ140A |
| Series | FXSQ-A |
| Product Type | Concealed ducted VRV indoor unit |
| Cooling Capacity | 14.0 kW |
| Heating Capacity | 16.0 kW |
| External Static Pressure | Up to 150 Pa |
| Built-In Height | 300 mm |
| Sound Pressure Level | As low as 25 dB(A), depending on operating condition and model class |
| Drain Pump | Standard built-in drain pump |
| Air Suction Direction | Rear suction or bottom suction |
| Fresh Air Intake | Optional |
| Multi-Zoning Option | Compatible with multi-zoning kit |
| Airflow Adjustment | Automatic airflow adjustment function |
| ESP Control | Adjustable through wired remote controller |
| Visible Parts After Installation | Suction grille and discharge grille |
| Installation Type | Concealed ceiling duct |
Application Scope
| Application Area | Details |
|---|---|
| Hotel Rooms | Suitable for discreet, quiet, and comfortable ducted air conditioning. |
| Small & Medium Offices | Ideal for offices that need concealed airflow with flexible duct routing. |
| Apartments | Works well in bedrooms, living rooms, and premium residential interiors. |
| Villas | Suitable for concealed ceiling installation where clean interior design is important. |
| Retail Spaces | Can be used in boutiques, showrooms, and customer-facing interiors. |
| Commercial Interiors | Suitable for spaces requiring medium static pressure and flexible duct design. |
| Multi-Zone Areas | Multi-zoning kit support helps serve multiple individually controlled zones from one indoor unit. |
Main Benefits
- Powerful VRV concealed ducted indoor unit
- Cooling capacity of 14.0 kW
- Heating capacity of 16.0 kW
- Medium external static pressure up to 150 Pa
- Slim concealed ceiling installation
- Quiet operation for comfort-sensitive spaces
- ESP adjustment through wired remote controller
- Automatic airflow adjustment for easier commissioning
- Standard built-in drain pump
- Rear or bottom suction flexibility
- Optional fresh air intake
- Multi-zoning kit support for individually controlled areas ⚙️
