Description

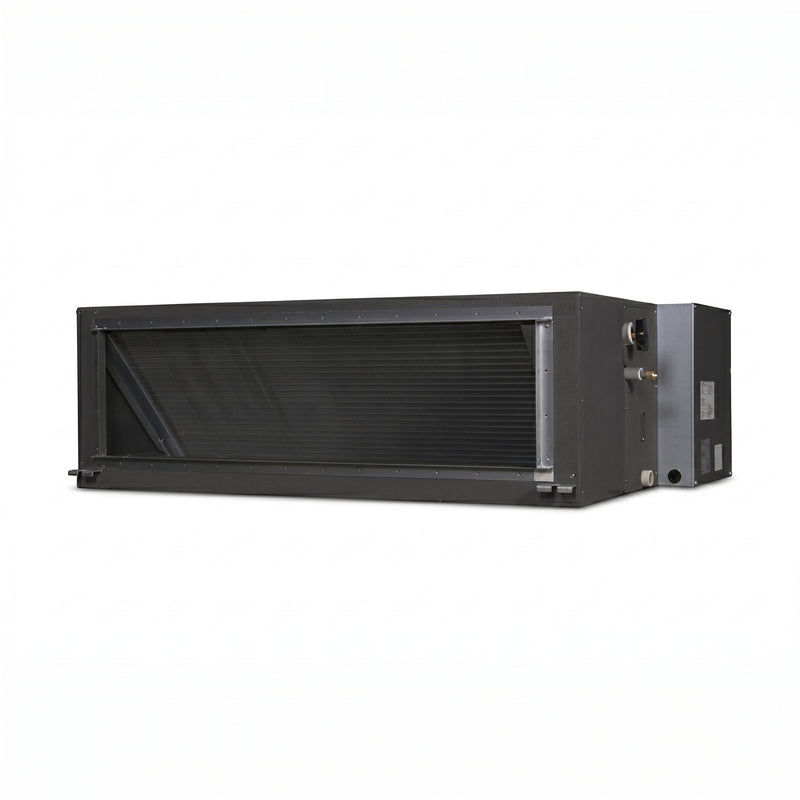

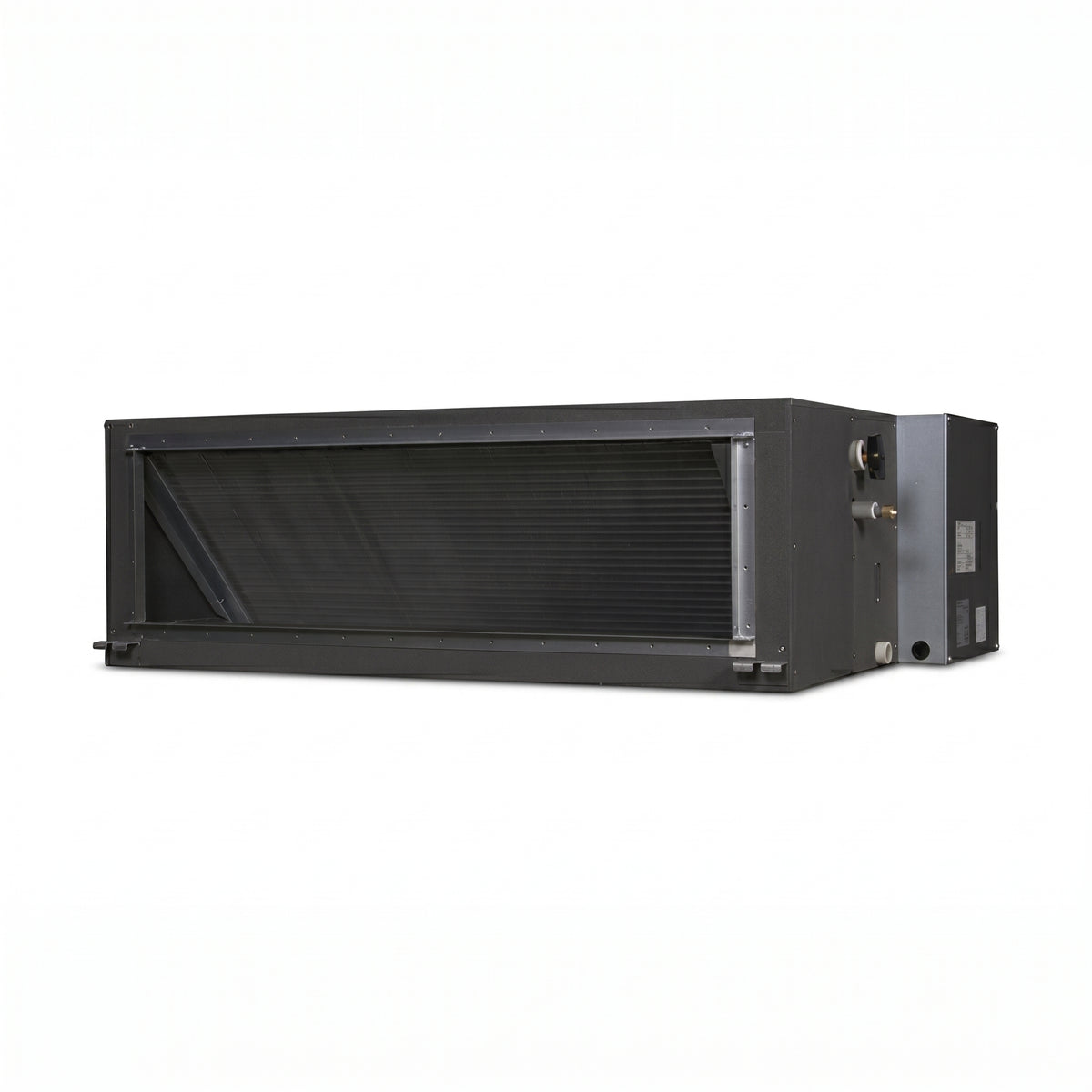

The Daikin FXMQ250NVE6 is a high-capacity VRV ceiling mounted ducted indoor unit designed for extra-large spaces that require powerful and reliable air conditioning. With a cooling capacity of 28.0 kW, heating capacity of 31.5 kW, and external static pressure up to 270 Pa, it is suitable for large commercial areas, factories, warehouses, offices, showrooms, and other demanding indoor environments. ❄️
Key Features

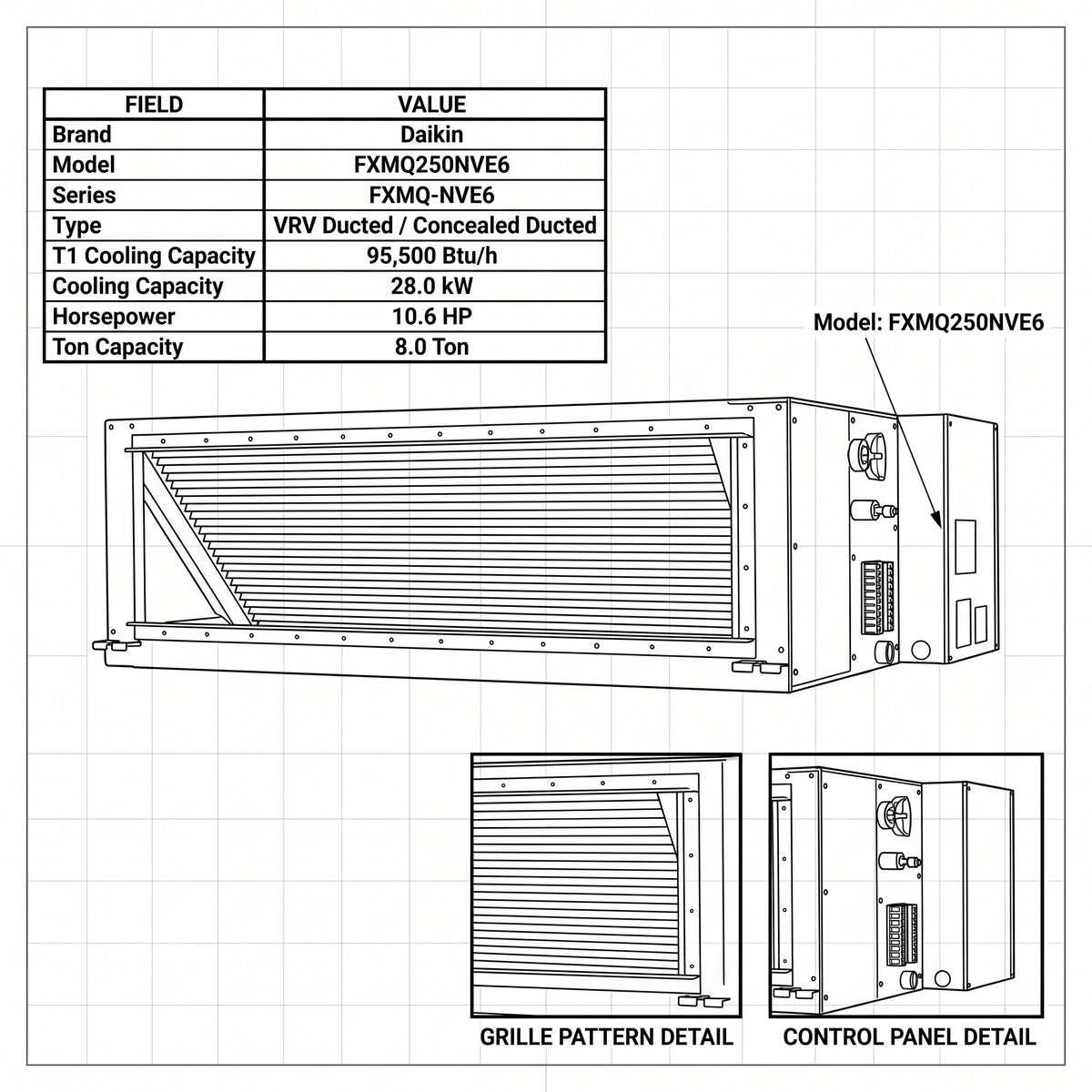

| Feature | Description |
|---|---|
| Brand | Daikin |
| Model | FXMQ250NVE6 |
| Series | FXMQ-NVE6 |
| Product Type | VRV ducted indoor unit |
| Installation Type | High static ceiling mounted duct |
| Cooling Capacity | 28.0 kW / 95,500 Btu/h |
| Heating Capacity | 31.5 kW / 107,000 Btu/h |
| Power Supply | 1 phase, 230V, 50 Hz |
| External Static Pressure | 190–270 Pa |
| Casing | Galvanised steel plate |
| Application | Extra-large rooms, commercial spaces, factories, warehouses, and large offices |

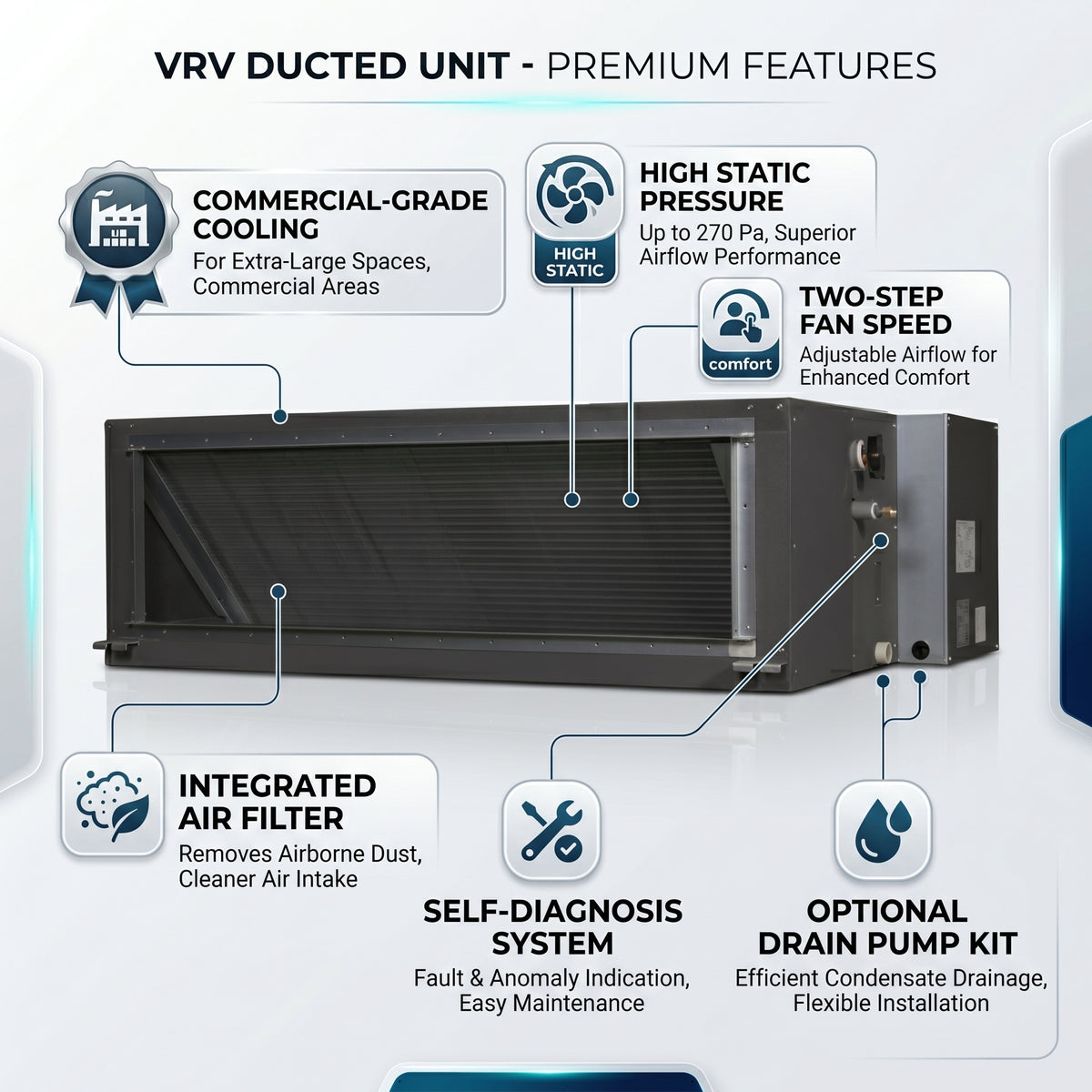

Product Features
| Feature | Details |
|---|---|
| High Static Pressure Design | External static pressure up to 270 Pa supports long duct runs and large air distribution systems. |
| High Cooling Capacity | Provides 28.0 kW cooling capacity for extra-large spaces and demanding commercial applications. |
| Powerful Heating Capacity | Offers 31.5 kW heating capacity for year-round indoor comfort. |
| Large Airflow Volume | High airflow rate helps distribute conditioned air across large rooms and ducted layouts. |
| Two-Step Fan Speed | High and low fan speed operation allows airflow adjustment according to comfort needs. |
| Ducted Installation | Ceiling mounted ducted design keeps the indoor unit concealed while supplying air through ducts and diffusers. |
| Clean Air Support | Air filter helps remove airborne dust particles and supports cleaner indoor air circulation. |
| Dry Programme | Helps reduce humidity levels without major changes in room temperature. |
| Self-Diagnosis Function | Simplifies maintenance by indicating system faults or operating abnormalities. |
| Optional Drain Pump Kit | Optional drain pump kit supports easier condensation drainage from the indoor unit. |
| Durable Casing | Galvanised steel plate casing supports durability in commercial installation environments. |
| Large Space Application | Suitable for factories, warehouses, showrooms, large offices, and other high-load spaces. |
Technical Parameters
| Specification | Details |
|---|---|
| Model | FXMQ250NVE6 |
| Power Supply | 1 phase, 230V, 50 Hz |
| Cooling Capacity | 95,500 Btu/h |
| Cooling Capacity | 28.0 kW |
| Heating Capacity | 107,000 Btu/h |
| Heating Capacity | 31.5 kW |
| Casing | Galvanised steel plate |
| Airflow Rate High / Low | 80 / 73 m³/min |
| Airflow Rate High / Low | 2,825 / 2,578 cfm |
| External Static Pressure | 190–270 Pa |
| Sound Level High / Low | 49 / 47 dB(A) |
| Dimensions H × W × D | 440 × 1,490 × 1,090 mm |
| Machine Weight | 130 kg |
| Liquid Pipe Connection | Ø 9.5 mm flare |
| Gas Pipe Connection | Ø 22.2 mm brazing |
| Drain Connection | External Dia. 32 mm |
| Installation Type | High static ceiling mounted duct |
| Fan Speed | High / Low |
Application Scope
| Application Area | Details |
|---|---|
| Factories | Suitable for large production areas requiring high-capacity ducted air conditioning. |
| Warehouses | Provides powerful airflow for wide indoor spaces and storage areas. |
| Large Offices | Ideal for open-plan offices and commercial workspaces requiring ducted cooling. |
| Showrooms | Helps maintain comfortable temperatures across large customer-facing spaces. |
| Retail Spaces | Suitable for large retail areas where concealed ducted AC installation is preferred. |
| Commercial Buildings | Works well in buildings requiring high static pressure and large duct distribution. |
Main Benefits
- High-capacity VRV ducted indoor unit
- Cooling capacity of 28.0 kW / 95,500 Btu/h
- Heating capacity of 31.5 kW / 107,000 Btu/h
- External static pressure up to 270 Pa
- Suitable for long duct runs and large air distribution systems
- Concealed ceiling mounted duct installation
- High airflow rate of 80 / 73 m³/min
- Durable galvanised steel plate casing
- Self-diagnosis function for easier maintenance
- Optional drain pump kit support
- Ideal for factories, warehouses, large offices, and commercial interiors ⚙️
