Description

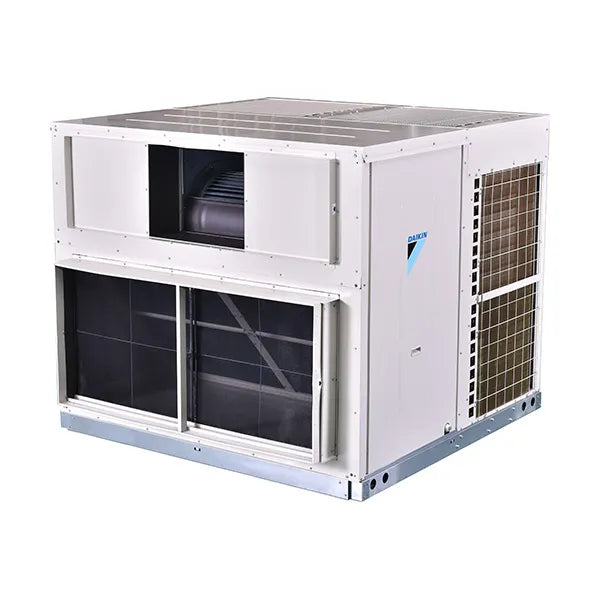

The Daikin UATQ160CGXY1U Rooftop Package Unit is designed to provide powerful commercial HVAC cooling for large spaces. It delivers reliable cooling performance in both standard and high ambient temperature conditions, making it suitable for demanding UAE and Middle East climates.
Key Features
| Feature | Details |
|---|---|
| Brand | Daikin |
| Model | UATQ160CGXY1U |
| Series | UATQ-C Series |
| Product Type | Rooftop Package Unit |
| Cooling Type | Cooling Only |
| Refrigerant | R-410A |
| Application | Commercial, industrial, rooftop HVAC cooling |
| Design | Compact flat-top rooftop package design |
| Operating Condition | Designed for high ambient outdoor conditions up to 52°C |
Product Features
| Feature | Description |
|---|---|
| High Ambient Design | Designed to deliver strong cooling performance in standard and high ambient temperature conditions. |
| Wide Operating Range | UATQ-C series rooftop units are suitable for high ambient applications and can operate up to 52°C outdoor ambient. |
| High Efficiency Scroll Compressors | Equipped with efficient scroll compressors for stable and reliable cooling performance. |
| Optimized Heat Exchangers | Heat exchangers are designed for improved capacity and efficiency. |
| High-Performing Fans | Supports effective airflow for commercial and industrial spaces. |
| External Third-Party Testing | Tested by INTERTEK to verify designed performance data. |
| Auto Random Restart | Automatically restarts after power failure based on the previous operating setting. |
| Phase Protection | Protects unit components against phase loss, phase reversal, and phase imbalance. |
| Independent Staged Cooling | Uses two independent refrigerant circuits, each controlled separately for better part-load efficiency and durability. |
| Compact and Light Design | Flat-top design helps maximize warehouse/container space and supports easy handling and installation. |
| External Service Access | Pressure can be checked without opening the unit. |
| Indoor Air Quality Support | Washable filter is easily accessible, and an additional field-supplied filter can be installed on the 2-inch rail. |
| Flexible Air Supply | Belt-driven fan allows air volume and static pressure adjustment according to project requirements. |
| Anti-Corrosion Heat Exchanger | Hydrophilic gold fin coated coil helps prolong unit life in harsh environments. |
| Coil Guard | Protects condenser coil during transportation, handling, and installation. |
| Dust-Proof Sealed Bearings | Enhances outdoor motor reliability and smooth operation throughout the year. |
Technical Parameters
| Specification | Details |
|---|---|
| Model | UATQ160CGXY1U |
| Cooling Capacity T1 35°C | 160,000 Btu/h / 46.89 kW |
| Cooling Capacity T3 46°C | 137,000 Btu/h / 40.15 kW |
| Power Input T1 | 13.65 kW |
| Power Input T3 | 15.80 kW |
| EER T1 | 11.72 Btu/h/W |
| EER T3 | 8.67 Btu/h/W |
| Evaporator External Static Pressure | 50–500 Pa |
| Airflow | 7,000 CFM |
| Outdoor Sound Pressure | 68 dBA |
| Outdoor Sound Power | 87 dBA |
| Dimensions | 1,690 × 1,965 × 1,905 mm |
| Net Weight | 810 kg |
| Weight with Packing | 860 kg |
| Operating Range Cooling | 19°C – 52°C |
| Refrigerant | R-410A |
Component Features
| Component | Details |
|---|---|
| Unit Casing | Made from zinc-coated galvanized steel sheets with electrostatic powder coating and oven-baked finish for durability. |
| Blower System | Double Width Double Inlet centrifugal forward-curved blower, dynamically balanced and mounted on a rigid shaft. |
| Filter Section | Comes with saranet pre-filter as standard and 2-inch rail for return air filters. |
| Drain Pan | Sloped filter case installation with powder-coated metal condensate drain pan to help prevent corrosion. |
| Coils | Evaporator and condenser coils use seamless inner-grooved copper tubes bonded with aluminium fins. |
| Independent Refrigerant Circuit | Designed with two independent refrigerant circuits for optimum part-load performance. |
| Compressor | High-efficiency, low-noise, hermetically sealed scroll compressor with overload protection and crankcase heater. |
| Condenser Fan Motor | IP55 protection index with Class B and Class F insulation. |
| Rooftop Foundation | Rigid foundation with dedicated holes for forklifting and rigging. |
Controller Features
| Feature | Details |
|---|---|
| Controller Model | BRC51D65 |
| Display | Clear wide display, approx. 45 mm × 70 mm |
| Backlight Display | Yes |
| Room Temperature Display | Yes |
| Set Temperature Display | Yes |
| Clock Display | Yes |
| LED ON/OFF Indicator | Yes |
| Programmable Timer | 7-day programmable timer |
| Error Code Display | Yes |
| Key Lock Function | Yes |
| Wireless Controller Support | IR receiver interaction with wireless controller |
| Compliance | ESMA compliant |
Application Scope
| Application Area | Details |
|---|---|
| Restaurants | Suitable for large dining and kitchen cooling requirements. |
| Factories / Warehouses | Designed for commercial and industrial cooling loads. |
| Hypermarkets | Supports large retail and supermarket HVAC applications. |
| Mosques | Suitable for large prayer halls and high-occupancy areas. |
| Aerobridges | Can support airport and transport-related HVAC applications. |
| Commercial Buildings | Ideal for rooftop HVAC installations where packaged cooling is required. |
Main Benefits
- Powerful rooftop cooling for large commercial spaces
- High ambient operation up to 52°C
- Reliable R-410A refrigerant system
- High-efficiency scroll compressor operation
- Independent staged cooling for improved part-load efficiency
- Strong airflow capacity for demanding HVAC applications
- Anti-corrosion heat exchanger for longer life
- Washable filter with additional filtration support
- Auto random restart and phase protection
- Compact rooftop design for easier handling and installation
