Description

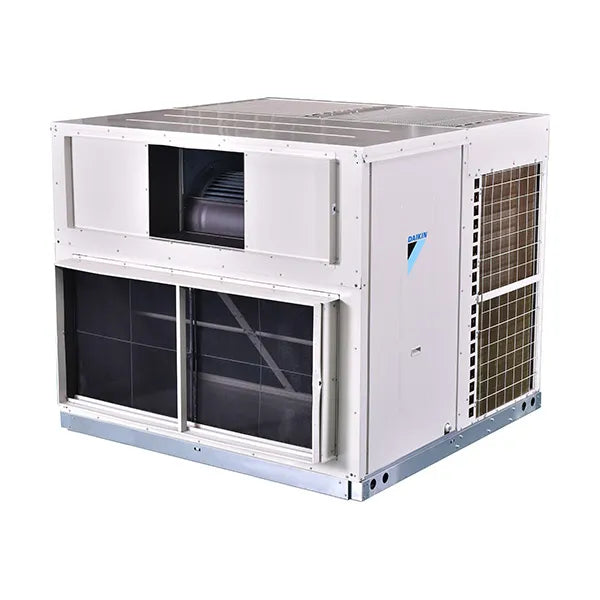

The Daikin UATQ180CGXY1U Rooftop Package Unit is designed for commercial and industrial HVAC cooling applications. It delivers powerful rooftop cooling performance with high-efficiency compressors, optimized heat exchangers, and reliable operation in hot climate conditions up to 52°C. 🌬️
Key Features
| Feature | Details |
|---|---|
| Brand | Daikin |
| Model | UATQ180CGXY1U |
| Series | UATQ-C Series |
| Product Type | Rooftop Package Unit |
| Cooling Type | Cooling Only |
| Refrigerant | R-410A |
| Application | Commercial, industrial, rooftop HVAC cooling |
| Design | Compact rooftop package design |
| Operating Condition | Suitable for high ambient operation up to 52°C |
Product Features
| Feature | Description |
|---|---|
| High Ambient Design | Specially designed to deliver top performance in both standard and high ambient temperature conditions. |
| Wide Operating Range | Capable of operating at outdoor ambient temperatures up to 52°C. |
| High-Efficiency Scroll Compressors | Ensures reliable cooling with efficient compressor performance. |
| Optimized Heat Exchangers | Helps improve heat transfer, cooling capacity, and overall efficiency. |
| High-Performing Fans | Provides strong airflow for commercial rooftop cooling applications. |
| External Third-Party Testing | UATQ-C series performance data is tested by INTERTEK. |
| Auto Random Restart | Restarts automatically after power failure using previous settings while reducing simultaneous restart load. |
| Phase Protection | Protects the unit against phase loss, phase reversal, and phase unbalance. |
| Independent Staged Cooling | Uses independent refrigerant circuits for better part-load efficiency and durability. |
| Compact and Light Design | Flat-top design supports easier transport, storage, handling, and installation. |
| External Service Access | Allows pressure checking without opening the unit. |
| Indoor Air Quality Support | Washable filter is easy to access, with option for additional field-supplied filter installation. |
| Flexible Air Supply | Belt-driven fan allows air volume and static pressure adjustment according to site requirements. |
| Anti-Corrosion Heat Exchanger | Hydrophilic gold fin coated coil helps extend unit life in corrosive environments. |
| Coil Guard | Protects the condenser coil from accidental damage during transport, handling, and installation. |
| Dust-Proof Sealed Bearings | Ensures reliable outdoor motor operation throughout the year. |
Technical Parameters
| Specification | Details |
|---|---|
| Model | UATQ180CGXY1U |
| Cooling Capacity T1 35°C | 175,000 Btu/h / 51.30 kW |
| Cooling Capacity T3 46°C | 153,000 Btu/h / 44.80 kW |
| Power Input T1 | 15.40 kW |
| Power Input T3 | 18.50 kW |
| EER T1 | 11.36 Btu/h/W |
| EER T3 | 8.27 Btu/h/W |
| Evaporator External Static Pressure | 50–500 Pa |
| Airflow | 7,000 CFM |
| Outdoor Sound Pressure | 68 dBA |
| Outdoor Sound Power | 87 dBA |
| Dimensions | 1,690 × 1,965 × 1,905 mm |
| Net Weight | 840 kg |
| Weight with Packing | 890 kg |
| Operating Range Cooling | 19°C – 52°C |
| Refrigerant | R-410A |
Component Features
| Component | Details |
|---|---|
| Unit Casing | Zinc-coated galvanized steel sheets with electrostatic powder coating and oven-baked finish for durability. |
| Blower System | Double Width Double Inlet centrifugal forward-curved blower with belt-driven evaporator motor. |
| Filter Section | Standard saranet pre-filter with 2-inch rail for return air filters. |
| Drain Pan | Powder-coated metal condensate drain pan helps protect against corrosion. |
| Coils | Seamless inner-grooved copper tubes bonded with aluminium fins for efficient heat transfer. |
| Independent Refrigerant Circuit | Supports optimum part-load operation with independent cooling control. |
| Compressor | High-efficiency, low-noise hermetically sealed scroll compressor with internal overload protection. |
| Condenser Fan Motor | Designed for durability and smooth outdoor operation. |
| Rooftop Foundation | Rigid base with dedicated holes for forklifting and rigging. |
Controller Features
| Feature | Details |
|---|---|
| Controller Model | BRC51D65 |
| Display | Clear and wide display |
| Backlight Display | Yes |
| Room Temperature Display | Yes |
| Set Temperature Display | Yes |
| Clock Display | Yes |
| LED ON/OFF Indicator | Yes |
| Programmable Timer | 7-day programmable timer |
| Error Code Display | Yes |
| Key Lock Function | Yes |
| Wireless Controller Support | IR receiver interaction with wireless controller |
| Compliance | ESMA compliant |
Application Scope
| Application Area | Details |
|---|---|
| Restaurants | Suitable for commercial dining and kitchen cooling requirements. |
| Factories / Warehouses | Designed for industrial cooling and ventilation applications. |
| Hypermarkets | Supports large retail cooling requirements. |
| Mosques | Suitable for large halls and high-occupancy spaces. |
| Aerobridges | Can be used for airport and transport facility cooling applications. |
| Commercial Buildings | Ideal for rooftop HVAC installations where packaged cooling is required. |
Main Benefits
- High-capacity rooftop cooling for commercial spaces
- 175,000 Btu/h nominal cooling capacity
- Strong 7,000 CFM airflow performance
- Designed for outdoor ambient operation up to 52°C
- R-410A refrigerant with zero ozone depletion potential
- High-efficiency scroll compressor system
- Independent staged cooling for better part-load efficiency
- Flexible air volume and static pressure adjustment
- Durable anti-corrosion heat exchanger
- Auto random restart and phase protection for reliable operation
