Daikin

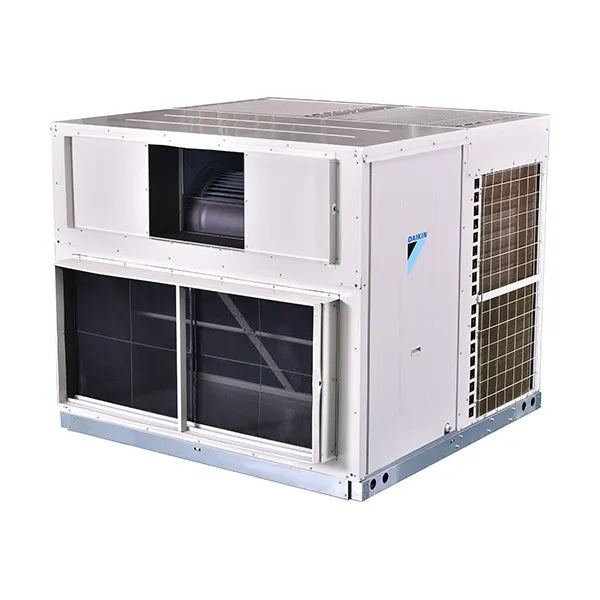

Daikin Rooftop Package Unit 17.5 Ton 62.4 kW 23.6 HP 213,000 Btu/h UATQ210CGXY1U

62,231.00
Inclusive of VAT

Flexible payment options

Key features

  • High Ambient Design: Specially Designed to Deliver Top Performance in Standard and High Ambient Temperature Conditions
  • Wide Operating Range: Capable of Operating at Outdoor Ambient Temperatures up to 52℃
  • High-Efficiency Scroll Compressors: Provides Reliable and Efficient Cooling Operation
  • Optimized Heat Exchangers: Helps Improve Cooling Performance and Energy Efficiency
  • High-Performing Fans: Maintains Strong Airflow for Commercial Rooftop Cooling Applications
  • External Third-Party Testing: UATQ-C Series Is Tested by INTERTEK to Verify Performance Data
  • Auto Random Restart: Automatically Restarts After Power Failure Using the Previous Setting While Reducing Simultaneous Restart Load
  • Phase Protection: Protects Against Phase Loss, Phase Reversal, and Phase Unbalance
  • Independent Staged Cooling: Uses Independent Refrigerant Circuits for Better Part-Load Efficiency and Durability
  • Compact and Light Design: Flat-Top Structure Supports Easier Handling, Storage, Transportation, and Installation
  • External Service Access: Pressure Can Be Checked Without Opening the Unit
  • Indoor Air Quality Support: Washable Filter Is Easy to Access, with Option for Additional Field-Supplied Filter Installation
  • Flexible Air Supply: Belt-Driven Fan Allows Air Volume and Static Pressure Adjustment According to Site Requirements
  • Anti-Corrosion Heat Exchanger: Hydrophilic Gold Fin Coated Coil Helps Extend Unit Life in Harsh Environments
  • Coil Guard: Protects the Condenser Coil During Transportation, Handling, and Installation
  • Dust-Proof Sealed Bearings: Supports Reliable Outdoor Motor Operation Throughout the Year

Shop with confidence

Payment Badge
Fast Delivery
Payment Badge
Buy Now Pay Later
Payment Badge
Secure Payments
Payment Badge
Trusted Quality

The Daikin UATQ210CGXY1U Rooftop Package Unit is designed for commercial and industrial HVAC cooling applications. It delivers high-performance cooling in both standard and high ambient temperature conditions, making it suitable for UAE and Middle East climates. 🌬️

Key Features

Feature Details
Brand Daikin
Model UATQ210CGXY1U
Series UATQ-C Series
Product Type Rooftop Package Unit
Cooling Type Cooling Only
Refrigerant R-410A
Application Commercial, industrial, rooftop HVAC cooling
Design Compact flat-top rooftop package design
Operating Condition Designed for outdoor ambient operation up to 52°C

Product Features

Feature Description
High Ambient Design Specially designed to deliver top performance in standard and high ambient temperature conditions.
Wide Operating Range Capable of operating at outdoor ambient temperatures up to 52°C.
High-Efficiency Scroll Compressors Provides reliable and efficient cooling operation.
Optimized Heat Exchangers Helps improve cooling performance and energy efficiency.
High-Performing Fans Maintains strong airflow for commercial rooftop cooling applications.
External Third-Party Testing UATQ-C series is tested by INTERTEK to verify performance data.
Auto Random Restart Automatically restarts after power failure using the previous setting while reducing simultaneous restart load.
Phase Protection Protects against phase loss, phase reversal, and phase unbalance.
Independent Staged Cooling Uses independent refrigerant circuits for better part-load efficiency and durability.
Compact and Light Design Flat-top structure supports easier handling, storage, transportation, and installation.
External Service Access Pressure can be checked without opening the unit.
Indoor Air Quality Support Washable filter is easy to access, with option for additional field-supplied filter installation.
Flexible Air Supply Belt-driven fan allows air volume and static pressure adjustment according to site requirements.
Anti-Corrosion Heat Exchanger Hydrophilic gold fin coated coil helps extend unit life in harsh environments.
Coil Guard Protects the condenser coil during transportation, handling, and installation.
Dust-Proof Sealed Bearings Supports reliable outdoor motor operation throughout the year.

Technical Parameters

Specification Details
Model UATQ210CGXY1U
Cooling Capacity T1 35°C 209,300 Btu/h / 61.30 kW
Cooling Capacity T3 46°C 181,000 Btu/h / 53.00 kW
Power Input T1 18.50 kW
Power Input T3 21.88 kW
EER T1 11.31 Btu/h/W
EER T3 8.27 Btu/h/W
Evaporator External Static Pressure 50–500 Pa
Airflow 7,600 CFM
Outdoor Sound Pressure 69 dBA
Outdoor Sound Power 89 dBA
Dimensions 1,650 × 2,410 × 2,030 mm
Net Weight 930 kg
Weight with Packing 990 kg
Operating Range Cooling 19°C – 52°C
Refrigerant R-410A

Component Features

Component Details
Unit Casing Made of zinc-coated galvanized steel sheets with electrostatic powder coating and oven-baked finish.
Blower System Double Width Double Inlet centrifugal forward-curved blower with belt-driven evaporator motor.
Filter Section Standard saranet pre-filter with 2-inch rail for return air filters.
Drain Pan Powder-coated metal condensate drain pan helps prevent corrosion.
Coils Seamless inner-grooved copper tubes bonded with aluminium fins for efficient heat transfer.
Independent Refrigerant Circuit Designed with independent refrigerant circuits for optimum part-load operation.
Compressor High-efficiency, low-noise hermetically sealed scroll compressor with internal overload protection and crankcase heater.
Condenser Fan Motor Designed for reliable outdoor operation.
Rooftop Foundation Rigid base with dedicated holes for forklifting and rigging.

Controller Features

Feature Details
Controller Model BRC51D65
Display Clear and wide display
Backlight Display Yes
Room Temperature Display Yes
Set Temperature Display Yes
Clock Display Yes
LED ON/OFF Indicator Yes
Programmable Timer 7-day programmable timer
Error Code Display Yes
Key Lock Function Yes
Wireless Controller Support IR receiver interaction with wireless controller
Compliance ESMA compliant

Application Scope

Application Area Details
Restaurants Suitable for commercial dining and kitchen cooling requirements.
Factories / Warehouses Designed for industrial and warehouse HVAC applications.
Hypermarkets Supports large retail cooling requirements.
Mosques Suitable for large halls and high-occupancy spaces.
Aerobridges Can be used in airport and transport facility cooling applications.
Commercial Buildings Ideal for rooftop HVAC installations where packaged cooling is required.

Main Benefits

  • High-capacity rooftop cooling for commercial spaces
  • Strong 209,300 Btu/h nominal cooling capacity
  • Designed for outdoor ambient operation up to 52°C
  • R-410A refrigerant with zero ozone depletion potential
  • High-efficiency scroll compressor performance
  • Independent staged cooling for improved efficiency
  • Large 7,600 CFM airflow capacity
  • Flexible static pressure and air supply adjustment
  • Anti-corrosion heat exchanger for longer service life
  • Auto random restart and phase protection for reliable operation
