Description

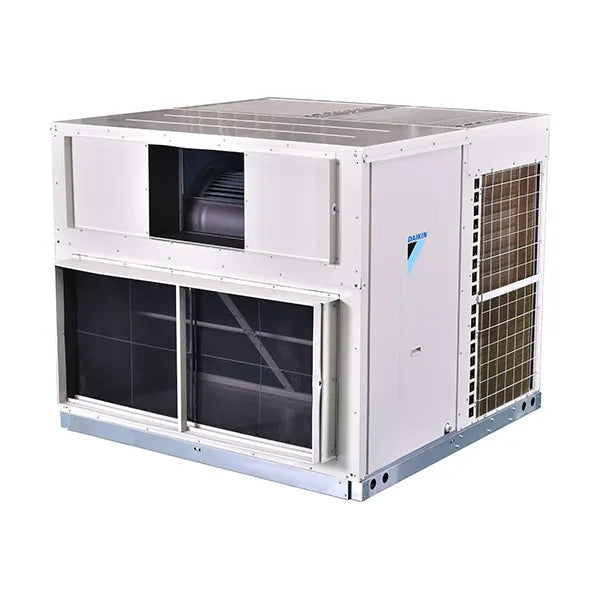

The Daikin UATQ240CGXY1U Rooftop Package Unit is designed for commercial and industrial HVAC cooling applications. It provides powerful cooling performance in standard and high ambient temperature conditions, making it suitable for UAE and Middle East outdoor climate requirements.
Key Features
| Feature | Details |
|---|---|
| Brand | Daikin |
| Model | UATQ240CGXY1U |
| Series | UATQ-C Series |
| Product Type | Rooftop Package Unit |
| Cooling Type | Cooling Only |
| Refrigerant | R-410A |
| Application | Commercial, industrial, rooftop HVAC cooling |
| Design | Compact flat-top rooftop package design |
| Operating Condition | Designed for outdoor ambient operation up to 52°C |
Product Features
| Feature | Description |
|---|---|
| High Ambient Design | Specially designed to deliver top performance in both standard and high ambient temperature conditions. |
| Wide Operating Range | Capable of operating at outdoor ambient temperatures up to 52°C. |
| High-Efficiency Scroll Compressors | Supports reliable cooling operation with efficient compressor performance. |
| Optimized Heat Exchangers | Helps improve cooling capacity and system efficiency. |
| High-Performing Fans | Maintains strong airflow for commercial rooftop cooling applications. |
| External Third-Party Testing | UATQ-C series performance is tested by INTERTEK for verification of design performance data. |
| Auto Random Restart | Automatically restarts after power failure using the previous setting while reducing simultaneous restart load. |
| Phase Protection | Protects the unit against phase loss, phase reversal, and phase unbalance. |
| Independent Staged Cooling | Uses independent refrigerant circuits for better part-load efficiency and durability. |
| Compact and Light Design | Flat-top structure supports easier handling, transportation, storage, and installation. |
| External Service Access | Pressure can be checked without opening the unit. |
| Indoor Air Quality Support | Washable filter is easy to access, with option for additional field-supplied filter installation. |
| Flexible Air Supply | Belt-driven fan allows air volume and static pressure adjustment according to site requirements. |
| Anti-Corrosion Heat Exchanger | Hydrophilic gold fin coated coil helps extend unit life in harsh environments. |
| Coil Guard | Protects the condenser coil during transportation, handling, and installation. |
| Dust-Proof Sealed Bearings | Supports reliable outdoor motor operation throughout the year. |
Technical Parameters
| Specification | Details |
|---|---|
| Model | UATQ240CGXY1U |
| Cooling Capacity T1 35°C | 234,600 Btu/h / 68.80 kW |
| Cooling Capacity T3 46°C | 202,300 Btu/h / 59.30 kW |
| Power Input T1 | 20.74 kW |
| Power Input T3 | 24.30 kW |
| EER T1 | 11.31 Btu/h/W |
| EER T3 | 8.33 Btu/h/W |
| Evaporator External Static Pressure | 50–500 Pa |
| Airflow | 8,000 CFM |
| Outdoor Sound Pressure | 70 dBA |
| Outdoor Sound Power | 89 dBA |
| Dimensions | 1,650 × 2,410 × 2,030 mm |
| Net Weight | 940 kg |
| Weight with Packing | 1,000 kg |
| Operating Range Cooling | 19°C – 52°C |
| Refrigerant | R-410A |
Component Features
| Component | Details |
|---|---|
| Unit Casing | Made of zinc-coated galvanized steel sheets with electrostatic powder coating and oven-baked finish for durability. |
| Blower System | Double Width Double Inlet centrifugal forward-curved blower with belt-driven evaporator motor. |
| Filter Section | Standard saranet pre-filter with 2-inch rail for return air filters. |
| Drain Pan | Powder-coated metal condensate drain pan helps prevent corrosion. |
| Coils | Seamless inner-grooved copper tubes bonded with aluminium fins for efficient heat transfer. |
| Independent Refrigerant Circuit | Designed with two independent refrigerant circuits for optimum part-load operation. |
| Compressor | High-efficiency, low-noise hermetically sealed scroll compressor with internal overload protection and crankcase heater. |
| Condenser Fan Motor | Designed for outdoor durability and smooth operation. |
| Rooftop Foundation | Rigid rooftop foundation with dedicated holes for forklifting and rigging. |
Controller Features
| Feature | Details |
|---|---|
| Controller Model | BRC51D65 |
| Display | Clear and wide display |
| Backlight Display | Yes |
| Room Temperature Display | Yes |
| Set Temperature Display | Yes |
| Clock Display | Yes |
| LED ON/OFF Indicator | Yes |
| Programmable Timer | 7-day programmable timer |
| Error Code Display | Yes |
| Key Lock Function | Yes |
| Wireless Controller Support | IR receiver interaction with wireless controller |
| Compliance | ESMA compliant |
Application Scope
| Application Area | Details |
|---|---|
| Restaurants | Suitable for commercial dining and kitchen cooling requirements. |
| Factories / Warehouses | Designed for large industrial and warehouse HVAC applications. |
| Hypermarkets | Supports high-capacity cooling for large retail spaces. |
| Mosques | Suitable for large halls and high-occupancy spaces. |
| Aerobridges | Can be used in airport and transport facility cooling applications. |
| Commercial Buildings | Ideal for rooftop HVAC installations where packaged cooling is required. |
Main Benefits
- High-capacity rooftop cooling for commercial spaces
- Strong 234,600 Btu/h nominal cooling capacity
- Designed for outdoor ambient operation up to 52°C
- R-410A refrigerant with zero ozone depletion potential
- High-efficiency scroll compressor performance
- Independent staged cooling for improved efficiency
- Large 8,000 CFM airflow capacity
- Flexible static pressure and air supply adjustment
- Anti-corrosion heat exchanger for longer service life
- Auto random restart and phase protection for reliable operation
