Description

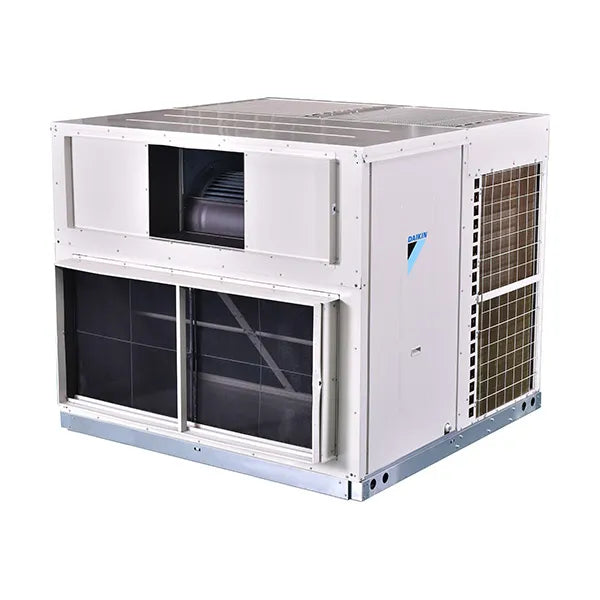

The Daikin UATQ300CGXY1U Rooftop Package Unit is designed for large commercial and industrial HVAC cooling applications. It delivers powerful cooling performance in both standard and high ambient temperature conditions, making it suitable for UAE and Middle East climate requirements.
Key Features
| Feature | Details |
|---|---|
| Brand | Daikin |
| Model | UATQ300CGXY1U |
| Series | UATQ-C Series |
| Product Type | Rooftop Package Unit |
| Cooling Type | Cooling Only |
| Refrigerant | R-410A |
| Application | Commercial, industrial, rooftop HVAC cooling |
| Design | Compact flat-top rooftop package design |
| Operating Condition | Designed for outdoor ambient operation up to 52°C |
Product Features
| Feature | Description |
|---|---|
| High Ambient Design | Specially designed to deliver top performance in standard and high ambient temperature conditions. |
| Wide Operating Range | Capable of operating at outdoor ambient temperatures up to 52°C. |
| High-Efficiency Scroll Compressors | Provides reliable cooling performance with efficient compressor operation. |
| Optimized Heat Exchangers | Supports better cooling capacity and efficiency. |
| High-Performing Fans | Helps maintain strong airflow for large commercial cooling requirements. |
| External Third-Party Testing | UATQ-C series performance is verified through stringent third-party testing by INTERTEK. |
| Auto Random Restart | Restarts automatically after power failure using the previous setting, while reducing simultaneous restart load. |
| Phase Protection | Protects against phase loss, phase reversal, and phase unbalance. |
| Independent Staged Cooling | Designed with independent refrigerant circuits for improved part-load efficiency and durability. |
| Compact and Light Design | Flat-top design supports easier transport, storage, handling, and installation. |
| External Service Access | Pressure can be checked without opening the unit. |
| Indoor Air Quality Support | Washable filter is easy to access; additional field-supplied filter can be installed on the 2-inch rail. |
| Flexible Air Supply | Belt-driven fan allows air volume and static pressure to be adjusted according to application needs. |
| Anti-Corrosion Heat Exchanger | Hydrophilic gold fin coated coil helps extend unit life in harsh conditions. |
| Coil Guard | Protects condenser coil during transportation, handling, and installation. |
| Dust-Proof Sealed Bearings | Supports outdoor motor reliability and smooth operation throughout the year. |
Technical Parameters
| Specification | Details |
|---|---|
| Model | UATQ300CGXY1U |
| Cooling Capacity T1 35°C | 285,000 Btu/h / 83.50 kW |
| Cooling Capacity T3 46°C | 243,000 Btu/h / 71.20 kW |
| Power Input T1 | 25.54 kW |
| Power Input T3 | 30.25 kW |
| EER T1 | 11.16 Btu/h/W |
| EER T3 | 8.03 Btu/h/W |
| Evaporator External Static Pressure | 50–500 Pa |
| Airflow | 9,000 CFM |
| Outdoor Sound Pressure | 72 dBA |
| Outdoor Sound Power | 92 dBA |
| Dimensions | 1,950 × 2,410 × 2,030 mm |
| Net Weight | 1,090 kg |
| Weight with Packing | 1,150 kg |
| Operating Range Cooling | 19°C – 52°C |
| Refrigerant | R-410A |
Component Features
| Component | Details |
|---|---|
| Unit Casing | Zinc-coated galvanized steel sheets with electrostatic powder coating and oven-baked finish for strength and durability. |
| Blower System | Double Width Double Inlet centrifugal forward-curved blower with belt-driven evaporator motor. |
| Filter Section | Standard saranet pre-filter with 2-inch rail for return air filters. |
| Drain Pan | Powder-coated metal condensate drain pan helps reduce corrosion risk. |
| Coils | Seamless inner-grooved copper tubes bonded with aluminium fins for efficient heat transfer. |
| Independent Refrigerant Circuit | Two independent refrigerant circuits support optimum part-load operation. |
| Compressor | High-efficiency, low-noise hermetically sealed scroll compressor with internal overload protection and crankcase heater. |
| Condenser Fan Motor | Designed for outdoor durability with smooth operation. |
| Rooftop Foundation | Rigid rooftop foundation with dedicated holes for forklifting and rigging. |
Controller Features
| Feature | Details |
|---|---|
| Controller Model | BRC51D65 |
| Display | Clear and wide display |
| Backlight Display | Yes |
| Room Temperature Display | Yes |
| Set Temperature Display | Yes |
| Clock Display | Yes |
| LED ON/OFF Indicator | Yes |
| Programmable Timer | 7-day programmable timer |
| Error Code Display | Yes |
| Key Lock Function | Yes |
| Wireless Controller Support | IR receiver interaction with wireless controller |
| Compliance | ESMA compliant |
Application Scope
| Application Area | Details |
|---|---|
| Restaurants | Suitable for commercial dining and kitchen cooling requirements. |
| Factories / Warehouses | Designed for large industrial and warehouse HVAC applications. |
| Hypermarkets | Supports high-capacity cooling for large retail spaces. |
| Mosques | Suitable for large prayer halls and high-occupancy spaces. |
| Aerobridges | Can be used in airport and transport facility cooling applications. |
| Commercial Buildings | Ideal for rooftop HVAC installations where packaged cooling is required. |
Main Benefits
- High-capacity rooftop cooling for large commercial spaces
- Strong 285,000 Btu/h nominal cooling capacity
- Designed for high ambient operation up to 52°C
- R-410A refrigerant with zero ozone depletion potential
- High-efficiency scroll compressor operation
- Independent staged cooling for better part-load efficiency
- Large 9,000 CFM airflow capacity
- Flexible air supply and adjustable static pressure
- Anti-corrosion heat exchanger for longer service life
- Auto random restart and phase protection for reliable operatio
