Description

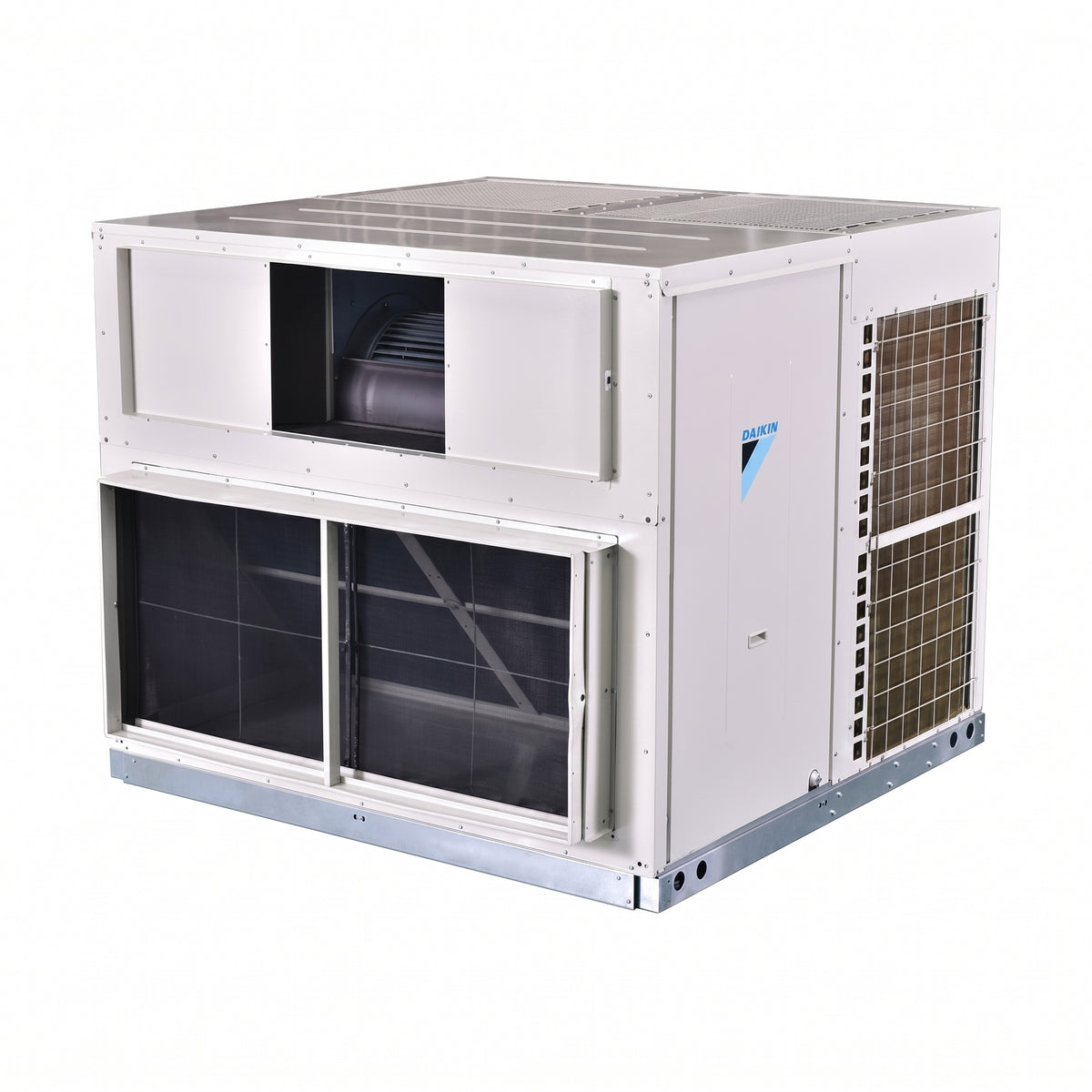

The Daikin UATQ80CGXY1U Rooftop Package Unit is designed to provide high-performance cooling for commercial and industrial spaces. It delivers reliable air conditioning in standard and high ambient temperature conditions, making it suitable for demanding Middle East climates.
Key Features
| Feature | Details |
|---|---|
| Brand | Daikin |
| Model | UATQ80CGXY1U |
| Series | UATQ-C Series |
| Product Type | Rooftop Package Unit |
| Cooling Type | Cooling Only |
| Refrigerant | R-410A |
| Application | Commercial and industrial HVAC cooling |
| Design | Compact flat-top rooftop unit |
| Control Compatibility | Supports BMS integration through NetPro Dual Modbus Gateway |
Product Features
| Feature | Description |
|---|---|
| High Ambient Design | Specially designed to deliver strong cooling performance in high outdoor temperature conditions. |
| Wide Operating Range | Capable of operating in outdoor ambient temperatures up to 52°C. |
| High Efficiency Performance | Equipped with optimized heat exchangers, high-performing fans, and efficient scroll compressors. |
| External Third-Party Testing | Tested by INTERTEK to verify designed performance data. |
| Auto Random Restart | Automatically restarts after power failure based on the last operating condition. |
| Phase Protection | Protects the unit against phase loss, phase reversal, and phase imbalance. |
| Independent Staged Cooling | Uses two independent refrigerant circuits controlled separately for better part-load efficiency and durability. |
| Compact and Light Design | Flat-top design supports easier handling, transport, installation, and space utilization. |
| External Service Access | Pressure can be checked without opening the unit. |
| Indoor Air Quality Support | Includes washable filter access and supports additional field-supplied filtration. |
| Flexible Air Supply | Belt-driven fan allows air volume and static pressure adjustment according to application requirements. |
| Anti-Corrosion Heat Exchanger | Hydrophilic gold fin coated coil helps extend unit life in harsh environments. |
| Coil Guard Protection | Helps prevent accidental condenser coil damage during transport, handling, and installation. |
| Dust-Proof Sealed Bearings | Supports reliable outdoor motor operation throughout the year. |
| BMS Integration Support | NetPro Dual Modbus Gateway allows the AC system to interact with building management systems. |
Technical Parameters
| Specification | Details |
|---|---|
| Model | UATQ80CGXY1U |
| Cooling Capacity T1 35°C | 177,000 Btu/h / 51.9 kW |
| Cooling Capacity T3 46°C | 153,000 Btu/h / 44.8 kW |
| Power Input T1 | 15.40 kW |
| Power Input T3 | 18.50 kW |
| EER T1 | 11.36 Btu/h/W |
| EER T3 | 8.27 Btu/h/W |
| Evaporator External Static Pressure | 50–500 Pa |
| Airflow | 7,000 CFM |
| Outdoor Sound Pressure | 68 dBA |
| Outdoor Sound Power | 87 dBA |
| Dimensions | 1,690 × 1,965 × 1,905 mm |
| Net Weight | 840 kg |
| Weight with Packing | 890 kg |
| Operating Range Cooling | 19°C – 52°C |
| Refrigerant | R-410A |
Component Features
| Component | Details |
|---|---|
| Casing | Zinc-coated galvanized steel sheet with electrostatic powder coating and oven-baked finish. |
| Fan System | Double Width Double Inlet centrifugal forward-curved blower with self-aligned bearing block. |
| Filter Rail | Standard 2-inch rail for return air filters with saranet pre-filter. |
| Coils | Seamless inner-grooved copper tubes mechanically bonded with aluminium fins. |
| Refrigerant Circuits | Two independent refrigerant circuits for part-load operation. |
| Compressor | High-efficiency, low-noise hermetically sealed scroll compressor. |
| Condenser Coil Protection | Nitrogen leakage tested and protected with hydrophilic gold fin coating. |
| Outdoor Fan Motor | IP55 protection rating with Class B and Class F insulation. |
| Rooftop Foundation | Rigid structure with dedicated holes for forklifting and rigging. |
Controller Features
| Feature | Details |
|---|---|
| Controller Model | BRC51D65 |
| Display | Clear wide display, approx. 45 mm × 70 mm |
| Backlight | Yes |
| Room Temperature Display | Yes |
| Set Temperature Display | Yes |
| Clock Display | Yes |
| LED ON/OFF Indicator | Yes |
| Programmable Timer | 7-day timer |
| Error Code Display | Yes |
| Key Lock Function | Yes |
| Wireless Controller Interaction | IR receiver support |
| Compliance | ESMA compliant |
Application Scope
| Application Area | Details |
|---|---|
| Restaurants | Suitable for large dining and kitchen ventilation cooling requirements. |
| Factories / Warehouses | Designed for large commercial and industrial cooling loads. |
| Hypermarkets | Supports reliable cooling for retail and supermarket spaces. |
| Mosques | Suitable for large prayer halls and high-occupancy spaces. |
| Aerobridges | Can support airport HVAC applications. |
| Commercial Buildings | Suitable for rooftop HVAC installations where centralized cooling is required. |
Main Benefits
- High ambient cooling operation up to 52°C
- Suitable for demanding UAE and Middle East climates
- High-efficiency scroll compressor performance
- R-410A refrigerant with zero ozone depletion potential
- Strong airflow capacity for large commercial spaces
- Flexible air supply and static pressure adjustment
- Washable filter and additional filtration support
- Anti-corrosion heat exchanger for longer service life
- BMS integration through NetPro Dual Modbus Gateway
- Compact rooftop design for easy installation and maintenance
