Description

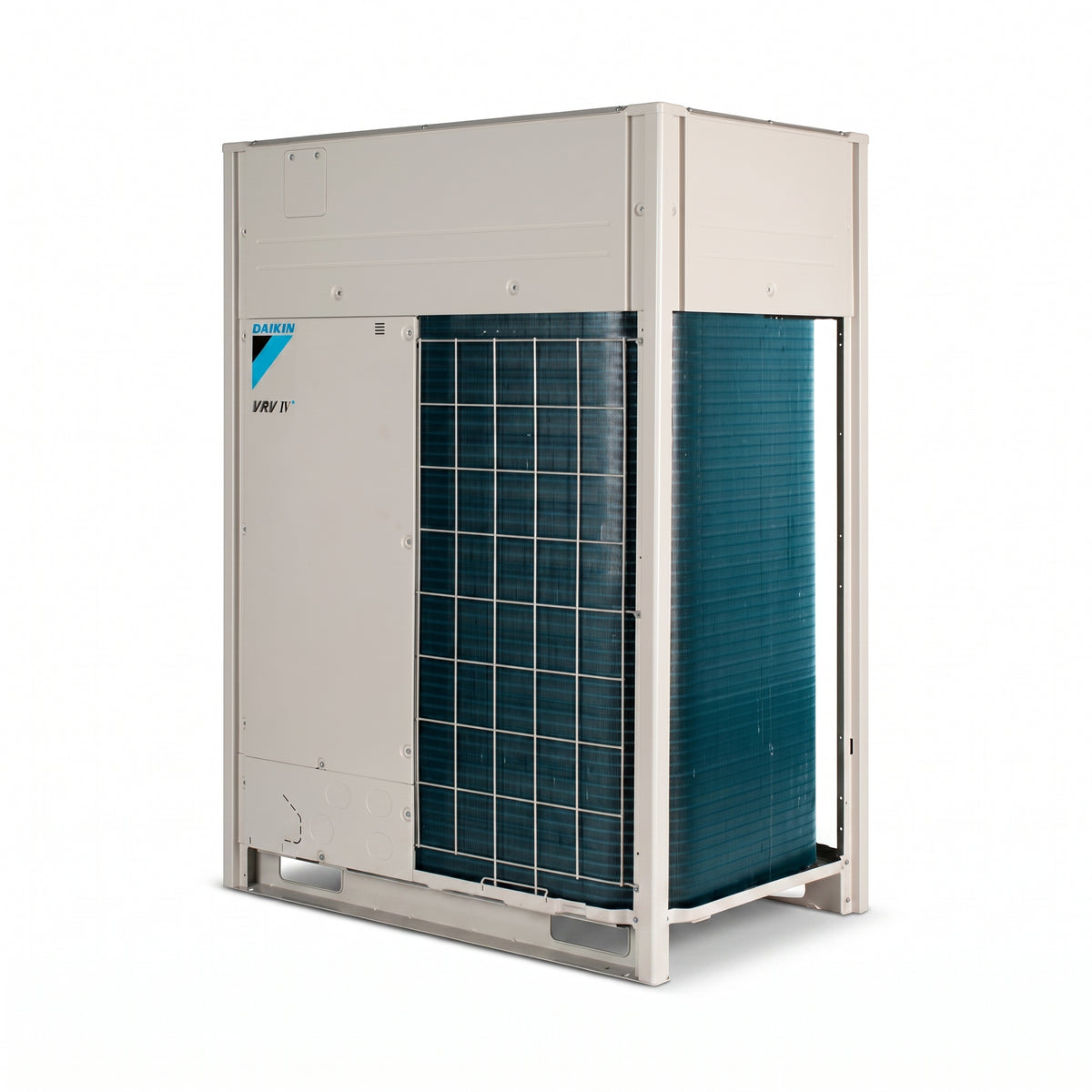

The Daikin RXYTQ14U5YF VRV IV+ is a high-performance VRV outdoor air conditioning unit designed to deliver customized comfort, intelligent control, and high seasonal efficiency. It is suitable for commercial buildings, offices, hotels, retail spaces, villas, and premium residential projects where flexible indoor unit connection and reliable climate control are required. ❄️
Key Features
| Feature | Description |
|---|---|
| Brand | Daikin |
| Model | RXYTQ14U5YF |
| Series | VRV IV+ |
| System Type | VRV outdoor unit |
| Capacity Class | 14 HP |
| Main Technology | Variable Refrigerant Temperature / VRT |
| Refrigerant | R-410A |
| Compressor Type | Hermetically sealed scroll compressor |
| Control Support | VRV configurator software and 7-segment display |
| Application | Commercial, residential, hospitality, office, and retail projects |

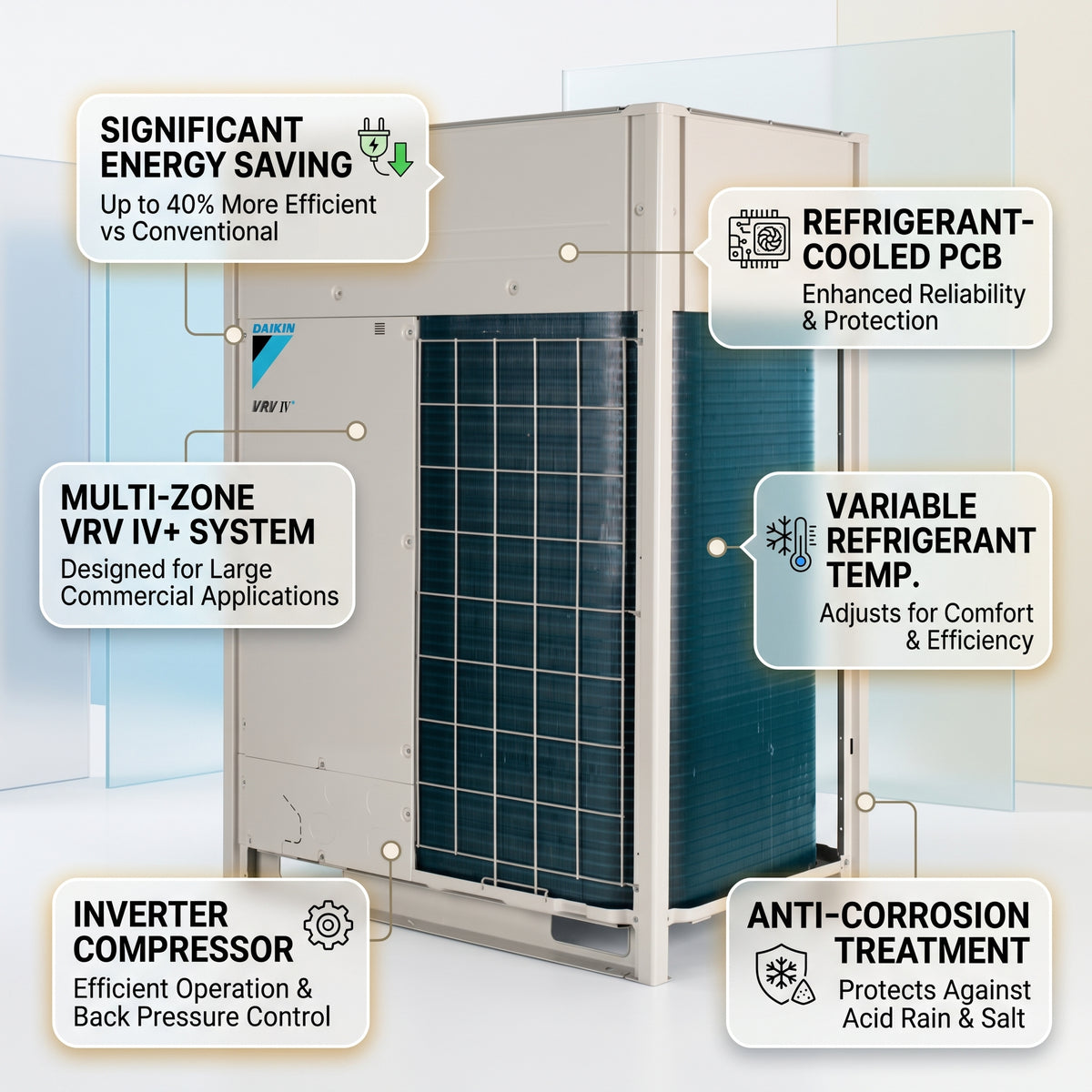

Product Features
| Feature | Details |
|---|---|
| Variable Refrigerant Temperature | Adjusts refrigerant temperature according to cooling demand for improved seasonal efficiency and comfort. |
| Predictive Control Function | Helps reach target capacity and refrigerant temperature faster with reduced overshooting and improved efficiency. |
| VRV Configurator Software | Simplifies commissioning, configuration, customization, and retrieval of initial system settings. |
| 7-Segment Display | Provides quick and accurate error diagnosis, service settings, and basic system status checking. |
| Scroll Compressor Technology | Uses back pressure control to help prevent refrigerant leakage and increase part-load efficiency. |
| Refrigerant-Cooled PCB | Improves reliability because PCB cooling is less affected by high ambient air temperature. |
| 4-Sided Heat Exchanger | Larger heat exchanger surface helps improve operating efficiency. |
| DC Fan Motor | Outer rotor DC motor improves efficiency, especially during low-speed operation. |
| E-Pass Heat Exchanger | Optimized heat exchanger path layout helps reduce heat transfer losses. |
| I-Demand Function | Limits maximum power consumption according to predefined demand settings. |
| Low Noise Operation | Smooth air inlet bell mouth and aero spiral fan help reduce airflow turbulence. |

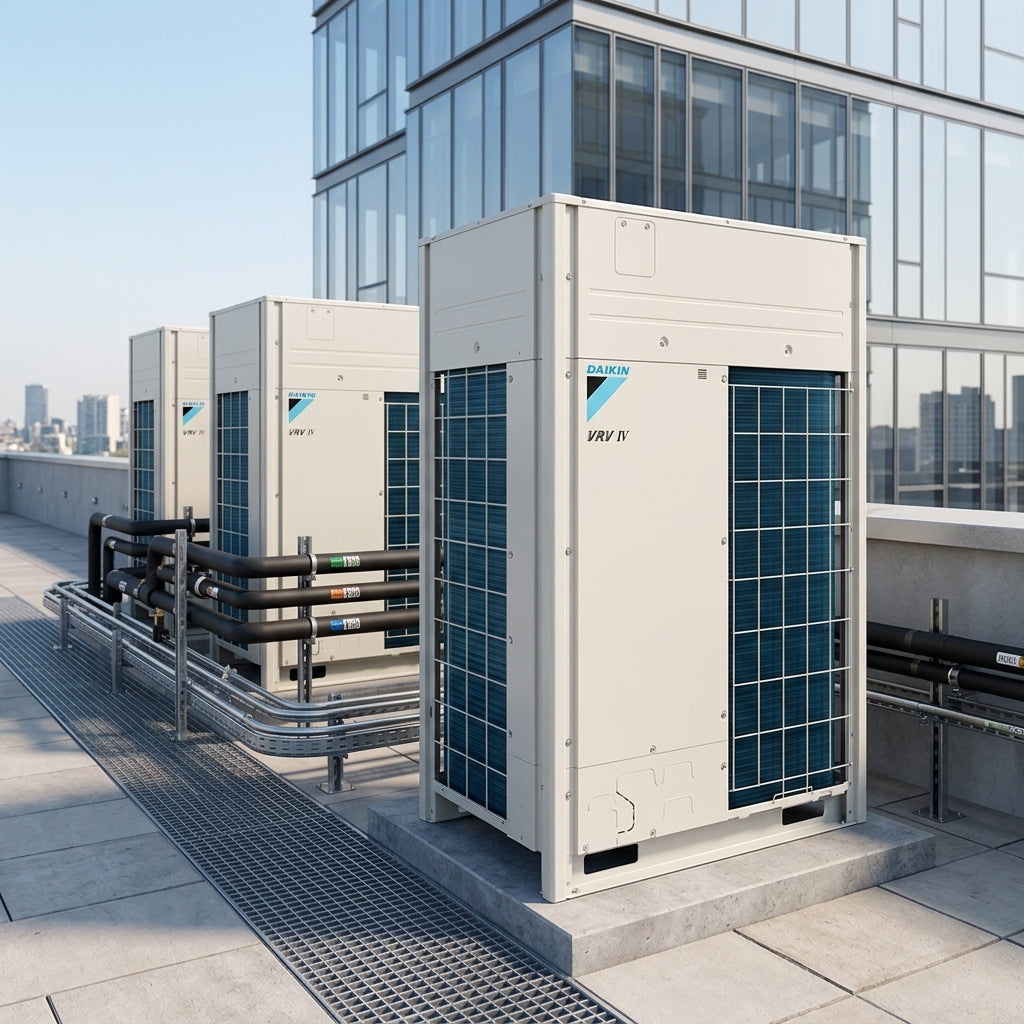

| Installation Flexibility | Outdoor units can be used as single units or combined in multiple units for larger-capacity applications. |

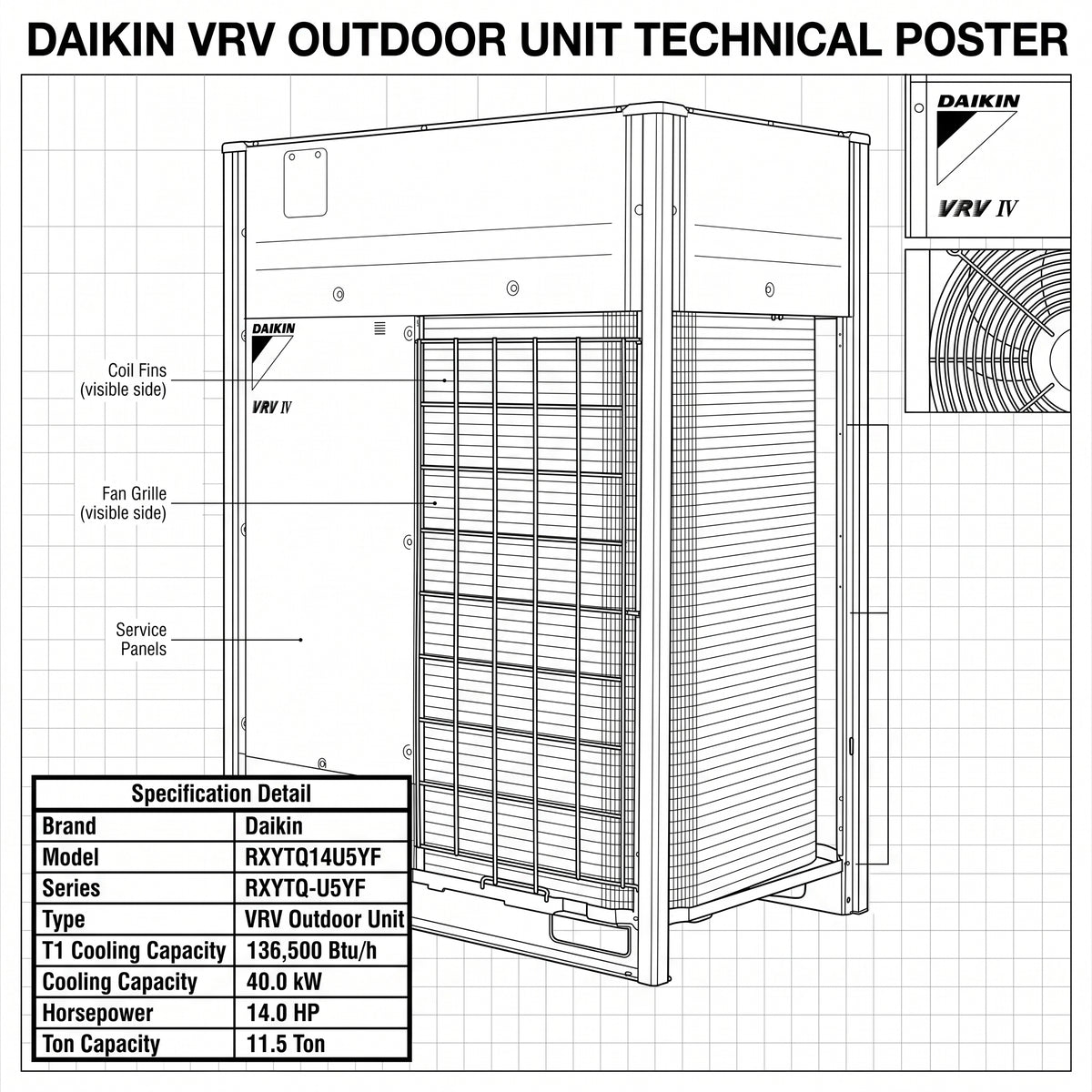

Technical Parameters
| Specification | Details |
|---|---|
| Model | RXYTQ14U5YF |
| Capacity Class | 14 HP |
| Cooling Capacity T1 | 40.0 kW / 136,500 Btu/h |
| Cooling Capacity T3 | 32.0 kW / 109,200 Btu/h |
| Heating Capacity | 45.0 kW / 153,500 Btu/h |
| Cooling EER T1 | 3.29 W/W / 11.24 Btu/h/W |
| Cooling EER T3 | 2.83 W/W / 9.65 Btu/h/W |
| Capacity Range | 14 HP |
| Maximum Connectable Indoor Units | Up to 64 indoor units |
| Indoor Index Connection | Nominal 175 / Min 87.5 / Max 350 |
| Cooling Operation Range | Up to 52°C outdoor ambient |
| Unit Dimensions | 1,685 × 1,240 × 765 mm |
| Packed Dimensions | 1,820 × 1,305 × 860 mm |
| Unit Weight | 299 kg |
| Packed Weight | 320 kg |
| Compressor Type | Hermetically sealed scroll compressor |
| Compressor Quantity | 1 |
| Sound Pressure Cooling | 58 dBA |
| Refrigerant | R-410A |
| Refrigerant Charge | 5.4 kg |
| Liquid Pipe Connection | 9.5 mm |
| Gas Pipe Connection | 19.1 mm |
| Power Supply Phase | 3N~ |
| Frequency | 50/60 Hz |
| Voltage | 380–415V / 400V |
Application Scope
| Application Area | Details |
|---|---|
| Hotels | Suitable for multi-zone comfort cooling and heating with centralized control. |
| Offices | Ideal for efficient climate control across different office areas. |
| Retail Shops | Supports reliable cooling for showrooms, shops, and commercial spaces. |
| Commercial Buildings | Designed for medium to large HVAC projects requiring flexible indoor connections. |
| Residential Projects | Suitable for villas and premium apartments with multiple indoor units. |
| Mixed-Use Buildings | Works with different indoor unit types for flexible system design. |
Main Benefits
- Advanced 14 HP VRV IV+ outdoor system
- High seasonal efficiency with Variable Refrigerant Temperature technology
- Supports up to 64 indoor units
- Designed for high ambient climate conditions
- Refrigerant-cooled PCB for improved reliability
- Scroll compressor with back pressure control
- Predictive Control Function for faster and more efficient operation
- 7-segment display for quick service and diagnosis
- VRV configurator software for easier commissioning
- Suitable for hotels, offices, villas, retail spaces, and commercial buildings
