Description

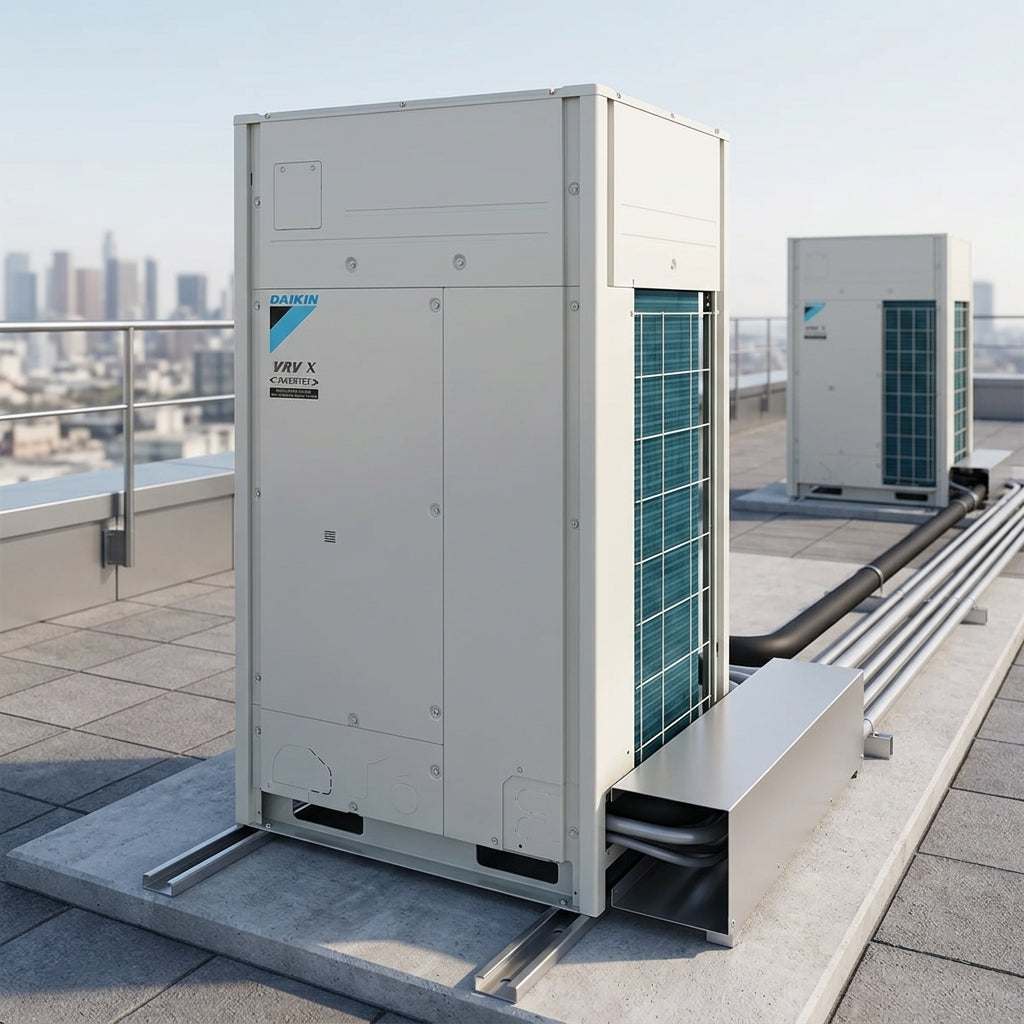

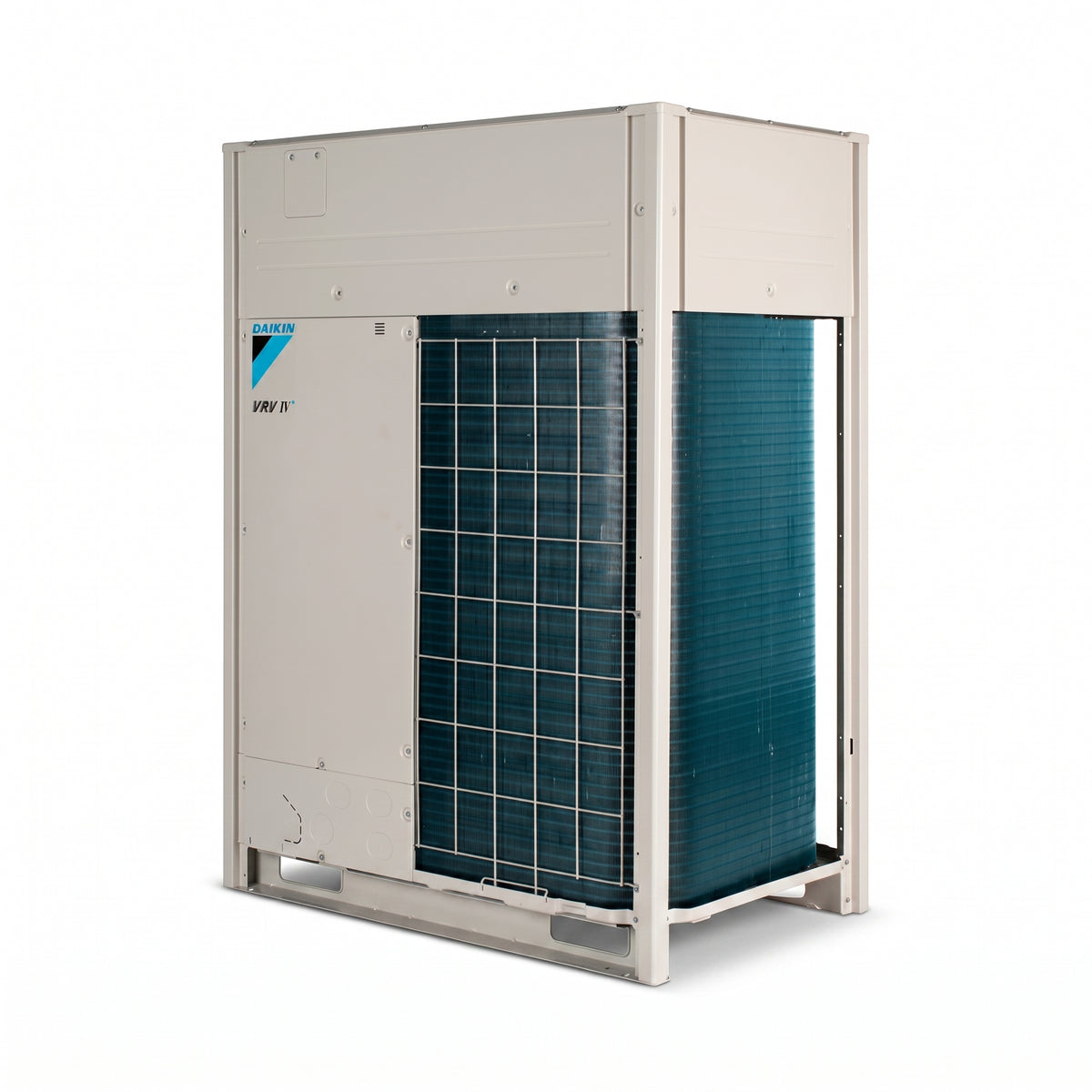

The Daikin RXYTQ16U5YF VRV IV+ is a high-performance VRV air conditioning outdoor unit designed for customized comfort, intelligent control, and high seasonal efficiency. It uses advanced Daikin VRV IV+ technologies to provide reliable cooling and heating for commercial buildings, hotels, offices, retail spaces, villas, and large residential projects. ❄️
Key Features
| Feature | Description |
|---|---|
| Brand | Daikin |
| Model | RXYTQ16U5YF |
| Series | VRV IV+ |
| System Type | VRV outdoor unit |
| Capacity Class | 16 HP |
| Main Technology | Variable Refrigerant Temperature / VRT |
| Refrigerant | R-410A |
| Application | Commercial, residential, hospitality, office, and retail projects |
| Compressor Type | Hermetically sealed scroll compressor |
| Control Support | VRV configurator software, 7-segment display, Madoka controller compatibility |
| Operation Range | Designed for high ambient climate conditions |
Product Features
| Feature | Details |
|---|---|
| Variable Refrigerant Temperature | Automatically adjusts refrigerant temperature according to building load for improved seasonal efficiency and comfort. |
| Seasonal Efficiency Improvement | Seasonal efficiency can be increased by up to 28% compared to conventional VRF systems. |
| VRV Configurator Software | Simplifies commissioning, configuration, customization, and retrieval of initial settings. |
| 7-Segment Display | Helps with quick and accurate error diagnosis, service settings, and system status checking. |
| Scroll Compressor Technology | Designed with back pressure control to help prevent refrigerant leakage and improve part-load efficiency. |
| Predictive Control Function | Reaches target capacity and refrigerant temperature faster with reduced overshooting and improved efficiency. |
| Refrigerant-Cooled PCB | Improves reliability because PCB cooling is not directly affected by high ambient air temperature. |
| 4-Sided Heat Exchanger | Large condenser coil surface helps improve heat exchange efficiency. |
| DC Fan Motor | Outer rotor DC motor supports improved efficiency, especially during low-speed operation. |
| E-Pass Heat Exchanger | Optimized heat exchanger path layout helps reduce heat transfer losses and improve efficiency. |
| I-Demand Function | Helps limit maximum power consumption according to predefined power demand settings. |
| Low Noise Design | Smooth air inlet bell mouth and aero spiral fan help reduce airflow turbulence and noise. |

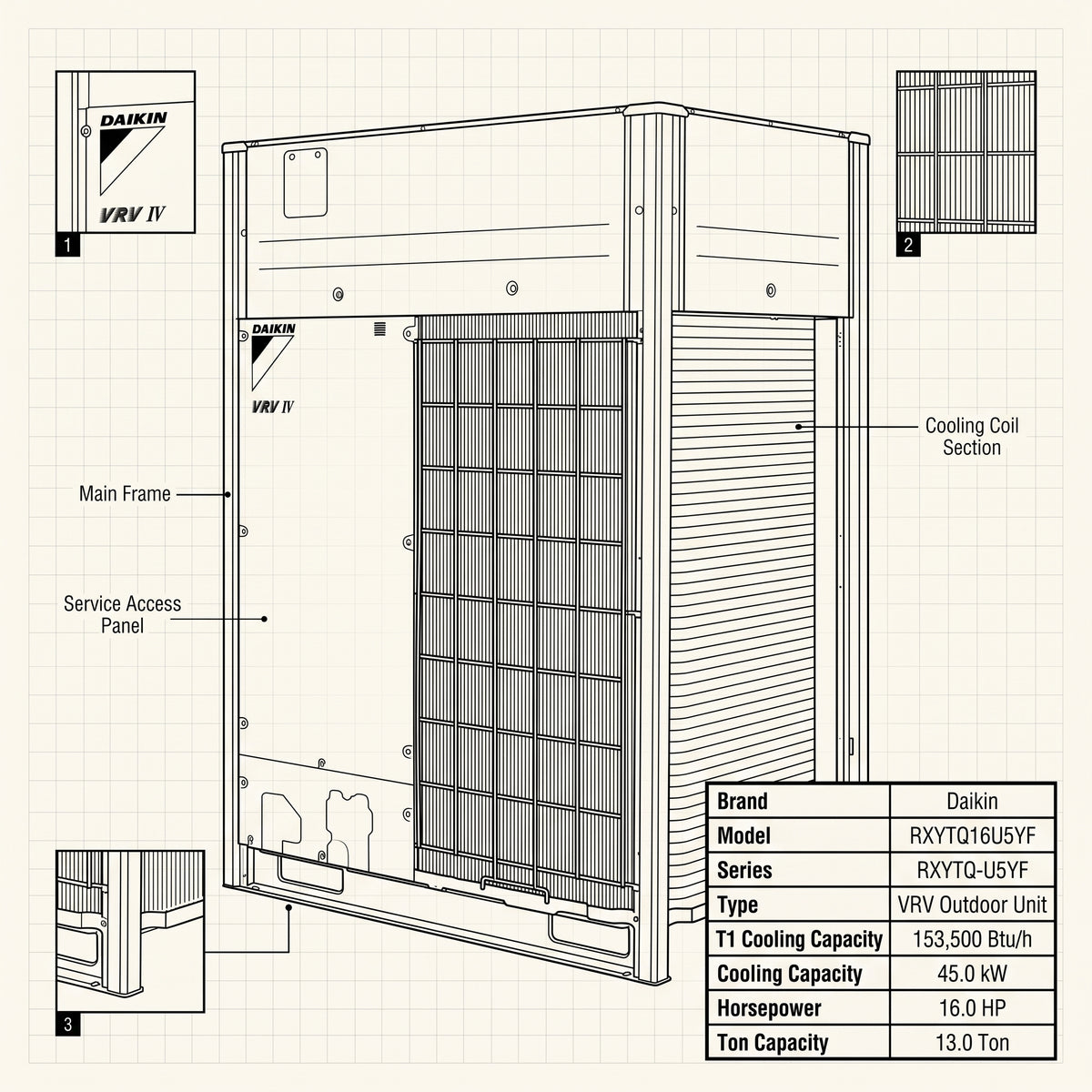

Technical Parameters
| Specification | Details |
|---|---|
| Model | RXYTQ16U5YF |
| Capacity Class | 16 HP |
| Cooling Capacity T1 | 45.0 kW / 153,550 Btu/h |
| Cooling Capacity T3 | 35.1 kW / 119,800 Btu/h |
| Heating Capacity | 50.0 kW / 170,600 Btu/h |
| Cooling EER T1 | 3.96 W/W / 13.50 Btu/h/W |
| Cooling EER T3 | 2.74 W/W / 9.28 Btu/h/W |
| Capacity Range | 16 HP |
| Maximum Connectable Indoor Units | Up to 64 indoor units |
| Indoor Index Connection | Nominal 200 / Min 100 / Max 400 |
| Cooling Operation Range | Up to 52°C outdoor ambient |
| Unit Dimensions | 1,685 × 1,240 × 765 mm |
| Packed Dimensions | 1,820 × 1,305 × 860 mm |
| Unit Weight | 299 kg |
| Packed Weight | 320 kg |
| Compressor Type | Hermetically sealed scroll compressor |
| Compressor Quantity | 1 |
| Sound Pressure Cooling | 60 dBA |
| Refrigerant | R-410A |
| Refrigerant Charge | 8.0 kg |
| Liquid Pipe Connection | 9.5 mm |
| Gas Pipe Connection | 22.2 mm |
| Power Supply Phase | 3N~ |
| Frequency | 50/60 Hz |
| Voltage | 380–415V / 400V |
Application Scope
| Application Area | Details |
|---|---|
| Hotels | Suitable for large-scale comfort cooling and heating with centralized control. |
| Offices | Supports efficient multi-zone air conditioning for office buildings. |
| Retail Shops | Provides reliable comfort for showrooms, stores, and shopping areas. |
| Commercial Buildings | Ideal for medium to large commercial HVAC projects. |
| Residential Projects | Suitable for villas and premium apartments requiring advanced climate control. |
| Mixed-Use Buildings | Works with multiple indoor unit types for flexible system design. |
Main Benefits
- High-performance 16 HP VRV IV+ outdoor unit
- Advanced Variable Refrigerant Temperature technology
- Up to 28% higher seasonal efficiency compared with conventional VRF
- Supports up to 64 indoor units
- Reliable operation in high ambient climate conditions
- Refrigerant-cooled PCB for improved durability
- Scroll compressor with back pressure control
- 4-sided heat exchanger for improved efficiency
- VRV configurator software for easier commissioning
- 7-segment display for fast error diagnosis
- Suitable for hotels, offices, commercial buildings, villas, and retail spaces
