Description

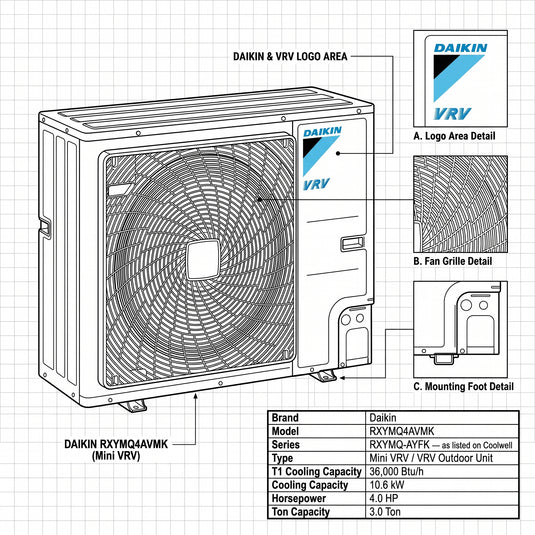

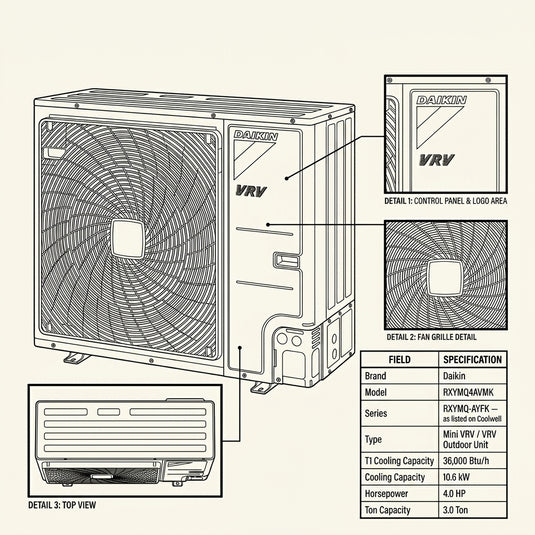

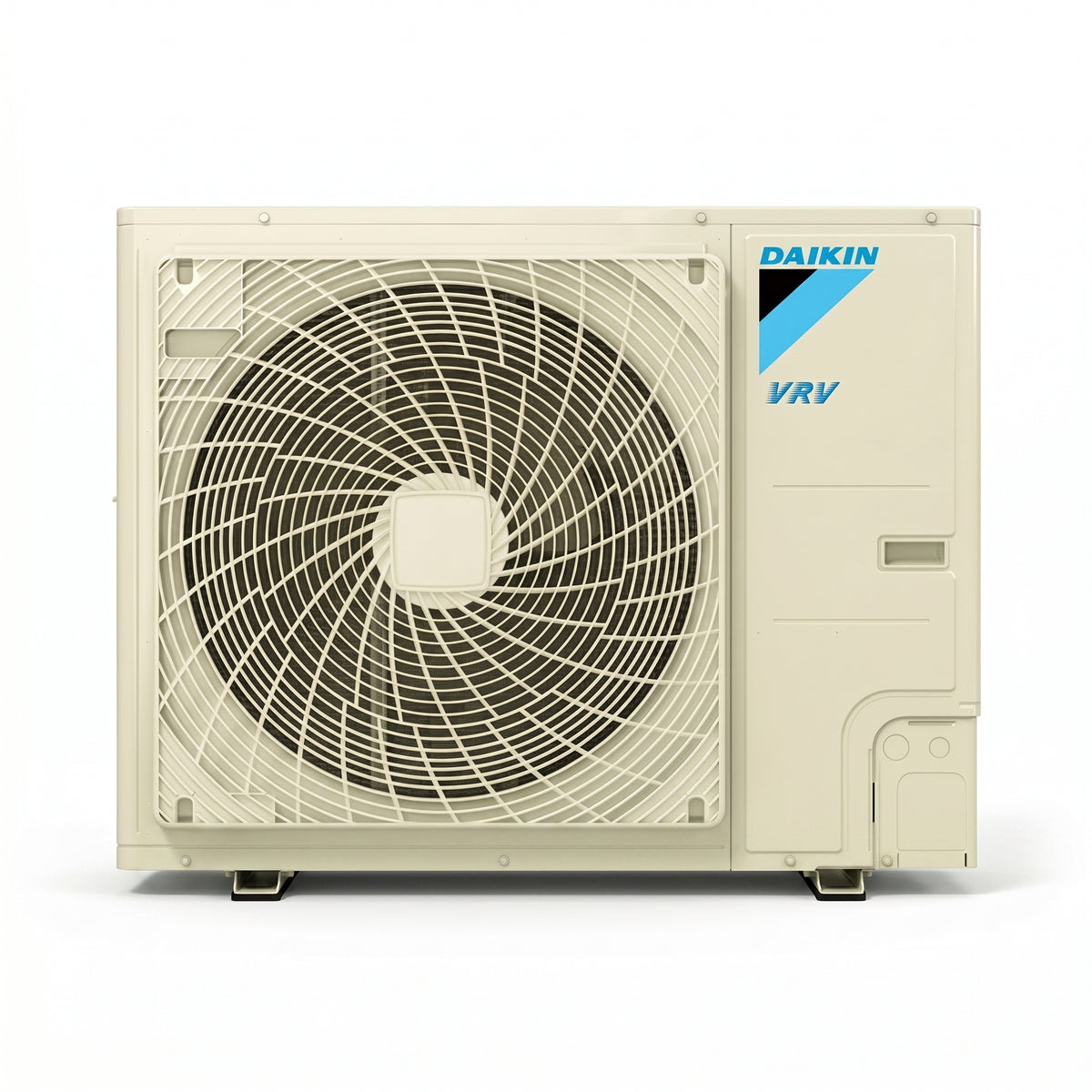

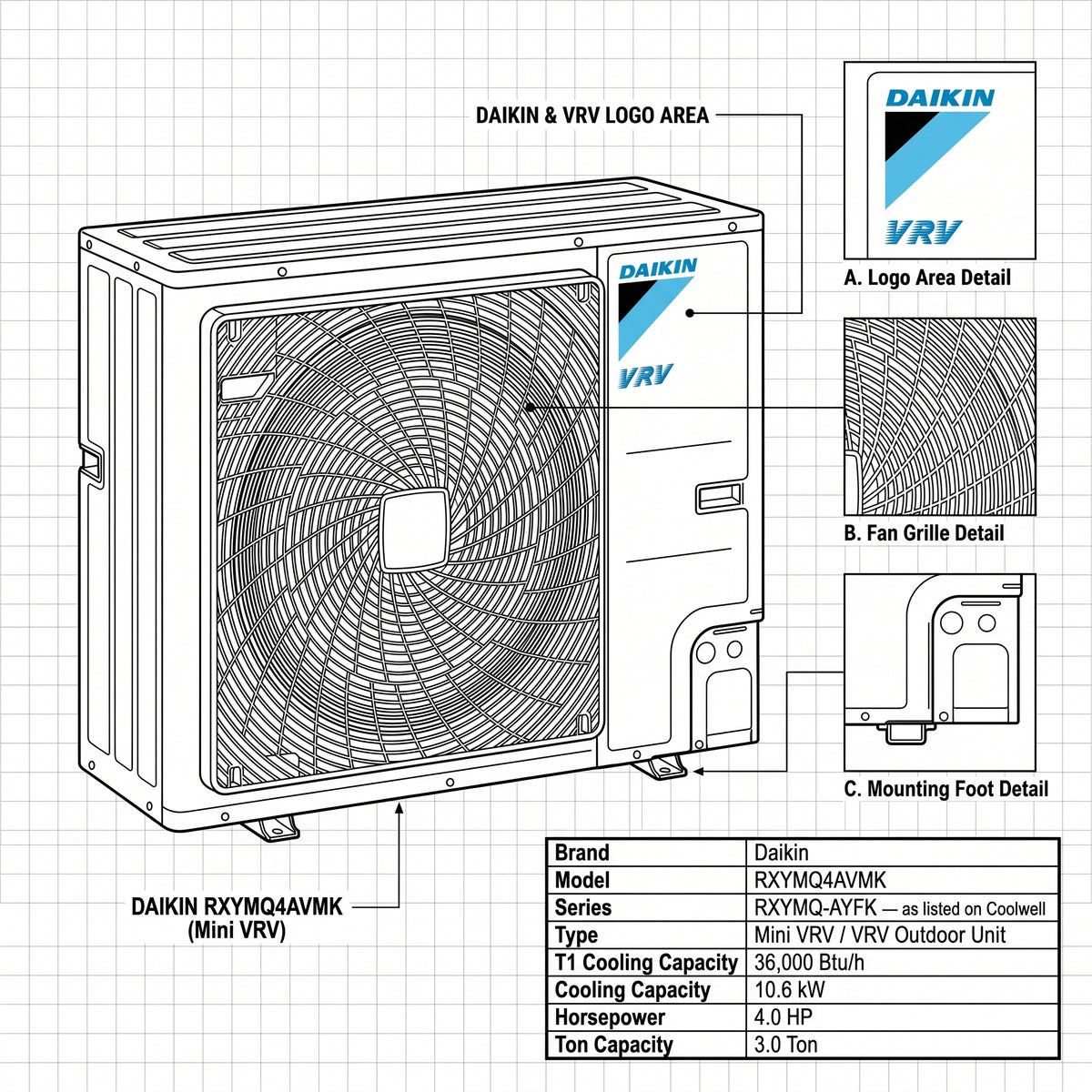

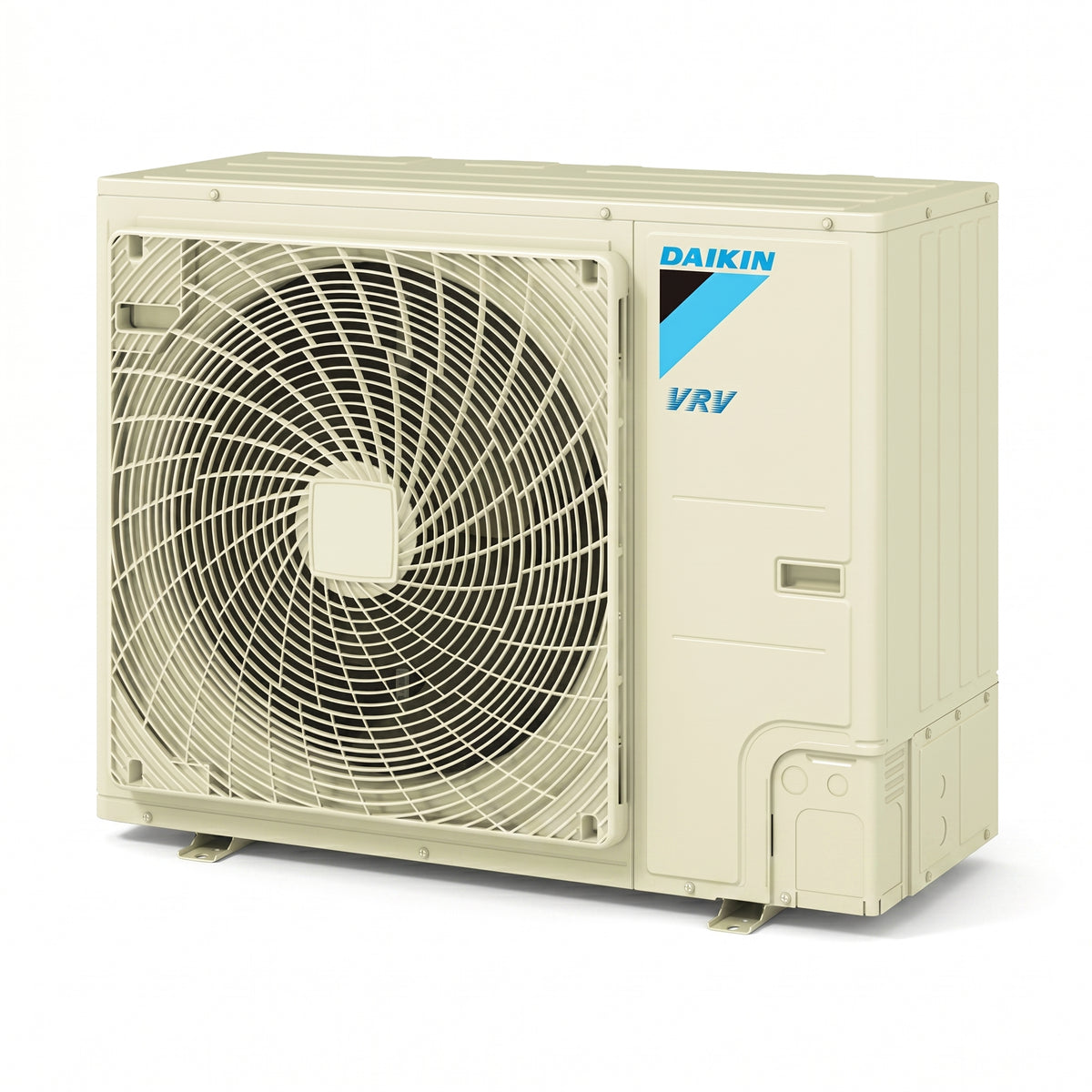

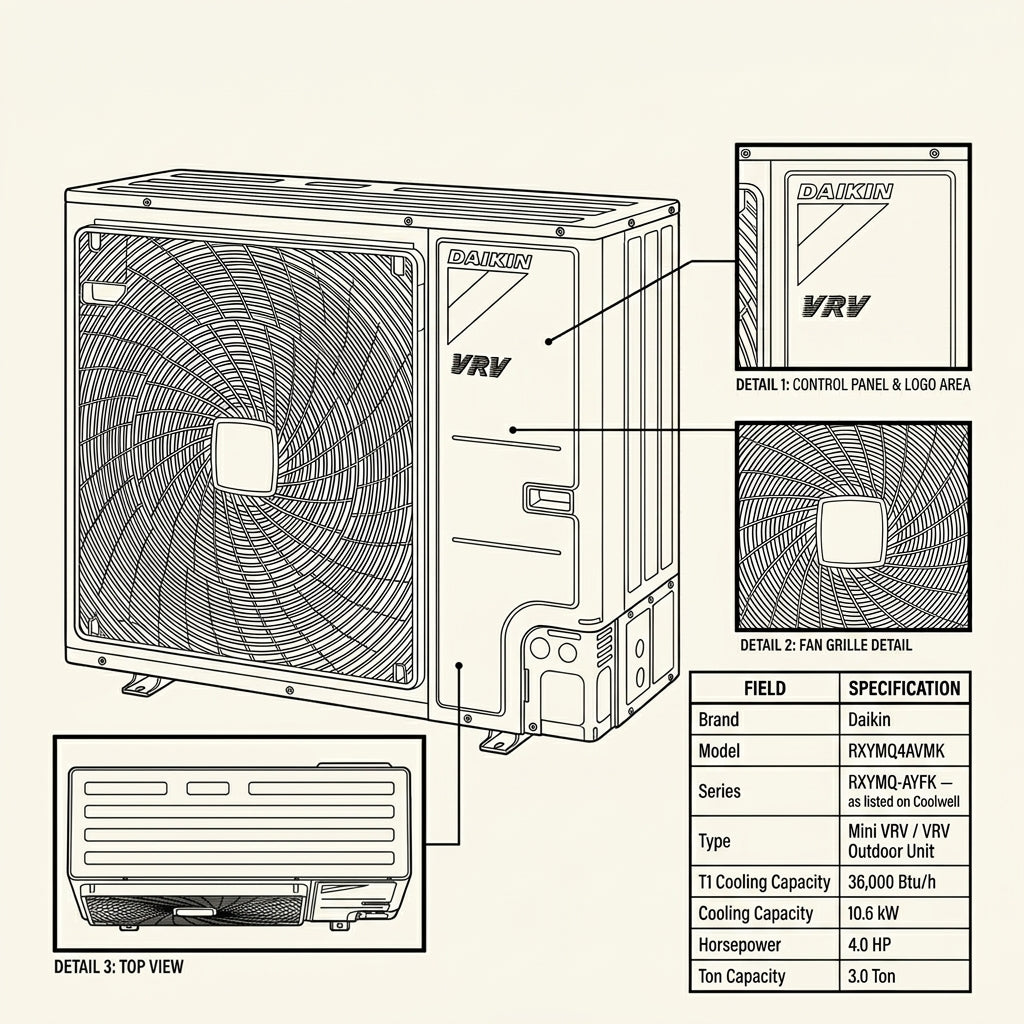

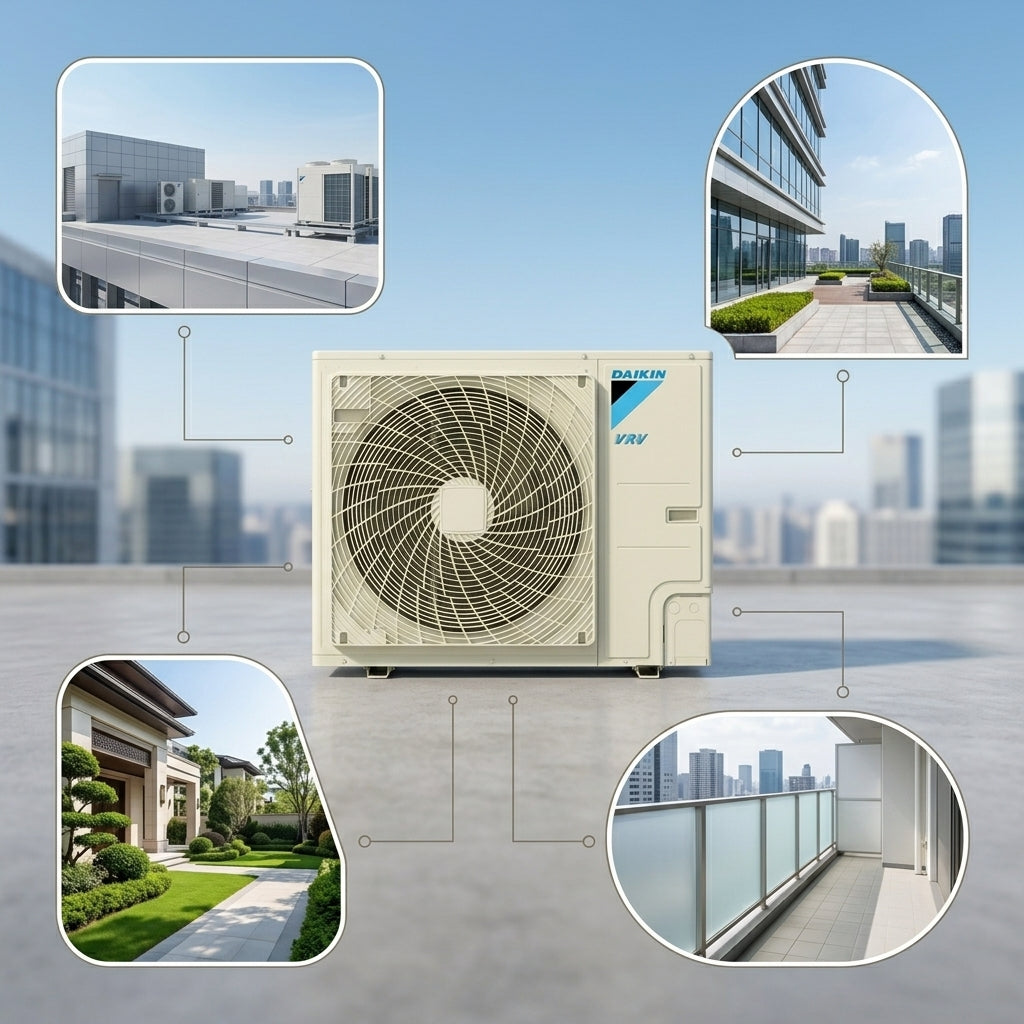

The Daikin RXYMQ4AVMK Mini VRV APT is a compact centralized air conditioning system designed for apartments, villas, and small premises. It replaces multiple outdoor units with one outdoor unit, helping maintain a clean building appearance while providing Cooling/Heating, Comfort, Control, and Convenience in one system. ❄️

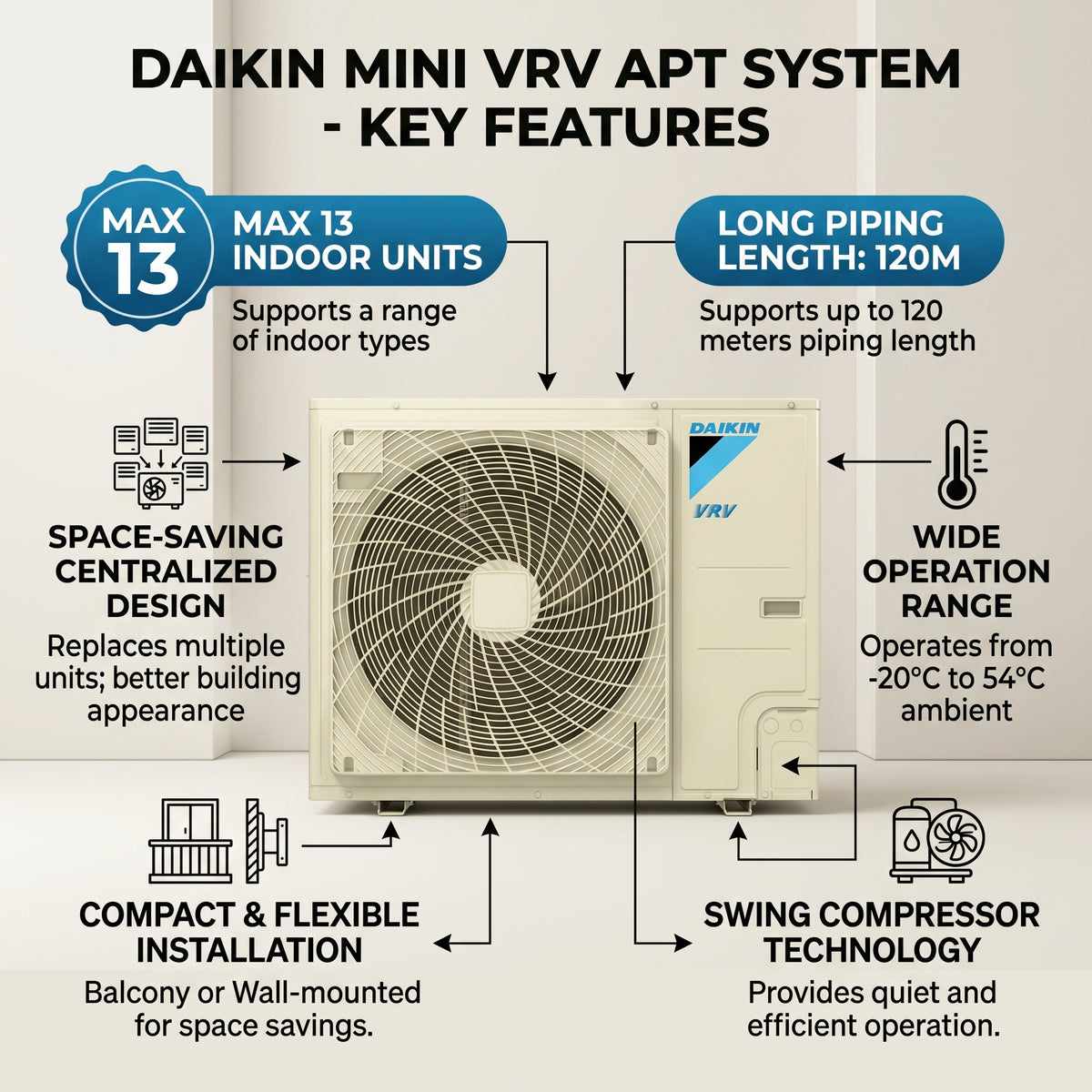

Key Features
| Feature | Description |
|---|---|
| Brand | Daikin |
| Model | RXYMQ4AVMK |
| Series | VRV Apt |
| System Type | Mini VRV air conditioning system |
| Application | Apartments, villas, homes, and small premises |
| Cooling & Heating | Complete cooling/heating solution |
| Outdoor Unit Design | Compact centralized outdoor unit |
| Indoor Unit Connection | Supports multiple indoor units from one outdoor unit |
| Maximum Indoor Units | Up to 13 indoor units |
| Maximum Piping Length | Up to 120 meters |
| Installation Style | Balcony, rooftop, wall-mounted, duct/louver installation |
| Refrigerant | R-410A |
| Compressor Type | Hermetically sealed swing compressor |
Product Features
| Feature | Details |
|---|---|
| Centralized Home Air Conditioning | Replaces several outdoor units with one compact outdoor unit, keeping the building exterior neat and organized. |
| Ideal for Apartments & Small Premises | Designed for residences and compact spaces where outdoor unit space is limited. |
| Compact Outdoor Unit | Can be installed on a balcony, rooftop, or wall-mounted location to save valuable floor space. |
| High External Static Pressure | Supports up to 40 Pa, helping efficient heat dissipation and stable operation with ducts or louver installation. |
| Seasonal Efficiency | Uses Cooling Seasonal Performance Factor to reflect real-life energy efficiency in hot climate conditions. |
| Energy Saving | Helps reduce energy consumption, CO₂ emissions, and electricity bills. |
| Reliable High Ambient Operation | Cooling operation range supports high outdoor temperatures up to 54°C. |
| Swing Compressor | Helps reduce friction, vibration, and refrigerant leakage for quiet and efficient operation. |
| Low Noise Design | Smooth air inlet bell mouth and aero spiral fan help reduce airflow turbulence and noise. |
| Flexible Indoor Unit Selection | Allows different indoor unit styles to match room design and comfort requirements. |
Technical Parameters
| Specification | Details |
|---|---|
| Model | RXYMQ4AVMK |
| Cooling Capacity T1 | 11.3 kW / 38,500 Btu/h |
| Cooling EER T1 | 4.10 W/W / 14.00 Btu/h/W |
| Power Input T1 | 2.75 kW |
| Cooling Capacity T3 | 10.4 kW / 35,400 Btu/h |
| Cooling EER T3 | 3.14 W/W / 10.70 Btu/h/W |
| Power Input T3 | 3.31 kW |
| Cooling Seasonal Performance Factor T3 | 5.80 W/W / 19.79 Btu/h/W |
| Heating Capacity | 12.6 kW / 43,000 Btu/h |
| Heating COP | 4.70 W/W |
| Heating Power Input | 2.68 kW |
| Allowed Indoor Capacity Index | Nominal 100 / Min 50 / Max 130 |
| Cooling Operation Range | -20°C to 54°C |
| Heating Operation Range | 0°C to 15.5°C |
| Unit Dimensions | 870 × 1,100 × 460 mm |
| Packing Dimensions | 1,010 × 1,190 × 560 mm |
| Unit Weight | 100 kg |
| Packed Weight | 114 kg |
| Compressor Type | Hermetically sealed swing compressor |
| Compressor Quantity | 1 |
| Sound Pressure Cooling | 51 dBA |
| Refrigerant | R-410A |
| Refrigerant Charge | 4.2 kg |
| Piping Connection – Liquid | 9.5 mm flare connection |
| Piping Connection – Gas | 15.9 mm flare connection |
| Power Supply Phase | 1~ |
| Frequency | 50/60 Hz |
| Voltage | 220–240V |
Application Scope
| Application Area | Details |
|---|---|
| Apartments | Suitable for buildings where multiple outdoor units are not preferred. |
| Villas & Homes | Provides centralized air conditioning while maintaining exterior aesthetics. |
| Small Premises | Ideal for compact commercial or residential spaces. |
| Balcony Installation | Compact outdoor unit can be placed on a balcony to save space. |
| Rooftop Installation | Helps reduce clutter and improves space utilization on rooftops. |
| Multi-Room Cooling | One outdoor unit can connect with multiple indoor units for different rooms. |
Main Benefits
- Compact VRV solution for apartments and small premises
- Replaces multiple outdoor units with one centralized outdoor unit
- Supports up to 13 indoor units
- Up to 120 meters piping length
- Cooling and heating comfort in one system
- High seasonal efficiency for reduced electricity bills
- High external static pressure up to 40 Pa
- Cooling operation up to 54°C outdoor ambient temperature
- Quiet and efficient swing compressor
- Space-saving balcony, rooftop, or wall-mounted installation
