Description

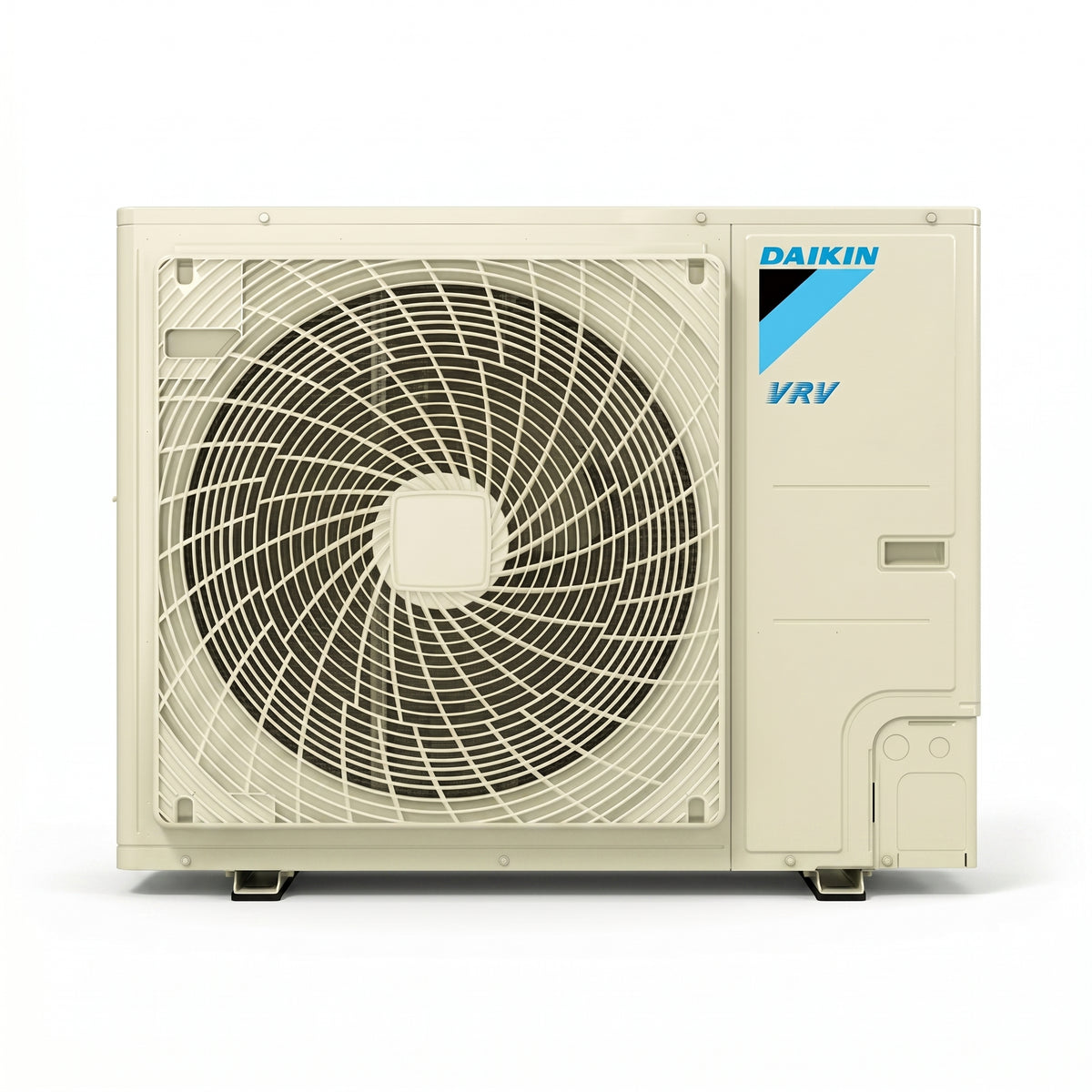

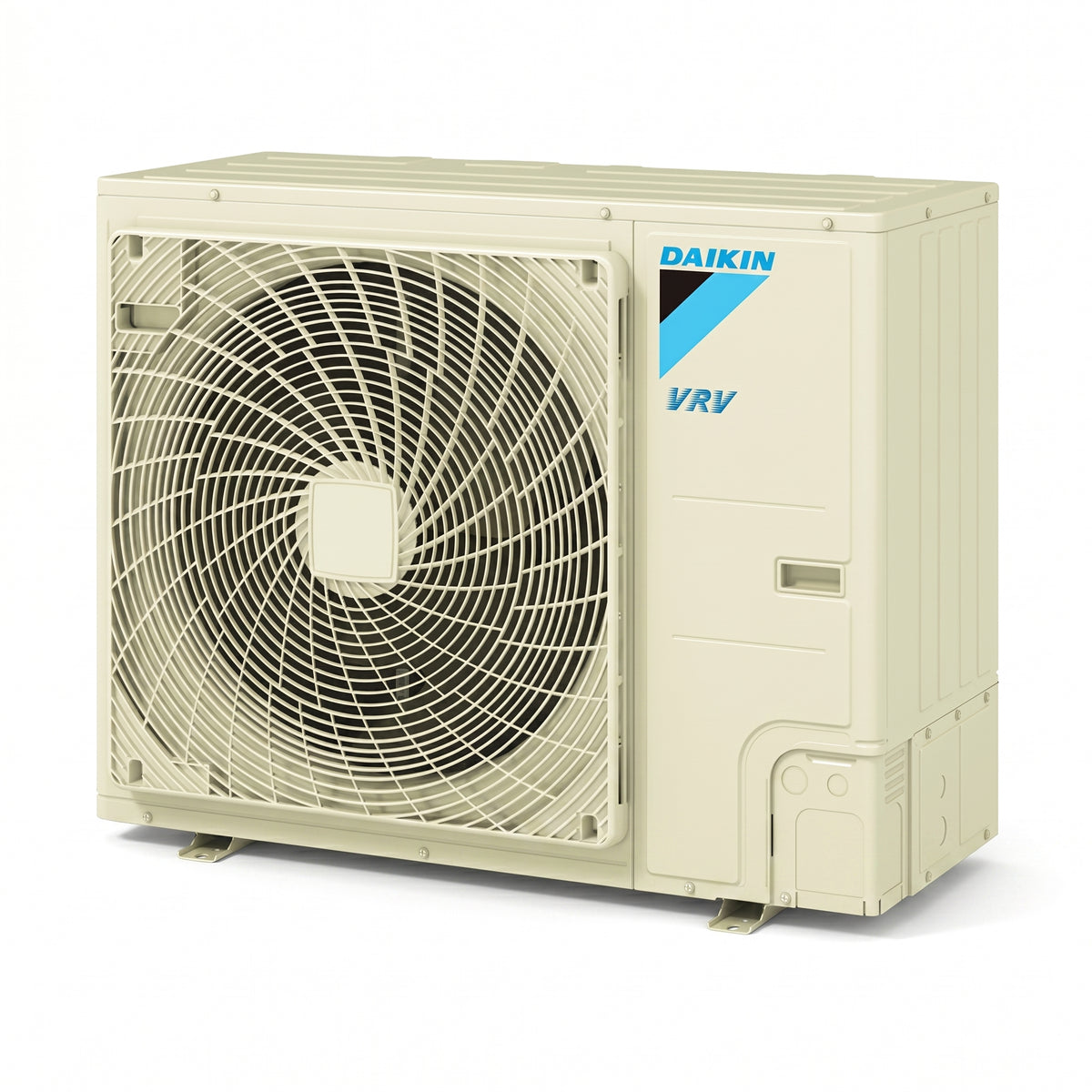

The Daikin RXYMQ4AYFK Mini VRV APT is a compact centralized air conditioning system designed for apartments, villas, and small premises. It replaces multiple outdoor units with one outdoor unit, helping maintain a clean building appearance while delivering cooling, heating, comfort, control, and convenience in one system. ❄️
Key Features
| Feature | Description |
|---|---|
| Brand | Daikin |
| Model | RXYMQ4AYFK |
| Series | VRV Apt |
| System Type | Mini VRV air conditioning system |
| Application | Apartments, villas, homes, and small premises |
| Cooling & Heating | Complete cooling/heating solution |
| Outdoor Unit Design | Compact centralized outdoor unit |
| Indoor Unit Connection | Supports multiple indoor units from one outdoor unit |
| Installation Style | Balcony, rooftop, wall-mounted, or concealed installation |
| Refrigerant | R-410A |
| Compressor Type | Hermetically sealed swing compressor |
Product Features
| Feature | Details |
|---|---|
| Centralized Home Air Conditioning | Replaces multiple outdoor units with one outdoor unit, helping reduce outdoor unit clutter. |
| Space-Saving Installation | Compact outdoor unit can be installed on a balcony, rooftop, or wall-mounted setup. |
| Seasonal Efficiency | Designed with Cooling Seasonal Performance Factor for realistic year-round energy efficiency. |
| Energy Saving | Helps reduce electricity consumption, CO₂ emissions, and operating costs. |
| High External Static Pressure | Outdoor unit can achieve up to 40 Pa, supporting stable operation with ducts or louver installation. |
| Reliable High Ambient Operation | Designed to operate in hot climate conditions with cooling operation up to 54°C. |
| Swing Compressor | Smooth compressor operation helps reduce friction, vibration, and refrigerant leakage. |
| Low Noise Operation | Smooth air inlet bell mouth and aero spiral fan help reduce airflow turbulence and noise. |
| Night-Time Quiet Operation | Selectable quiet operation modes help reduce outdoor unit sound levels. |
| Flexible Indoor Unit Options | Allows connection with a range of indoor units for different room layouts and interior designs. |
Technical Parameters
| Specification | Details |
|---|---|
| Model | RXYMQ4AYFK |
| Cooling Capacity T1 | 11.3 kW / 38,500 Btu/h |
| Cooling EER T1 | 4.07 W/W / 13.90 Btu/h/W |
| Power Input T1 | 2.77 kW |
| Cooling Capacity T3 | 10.6 kW / 36,200 Btu/h |
| Cooling EER T3 | 3.14 W/W / 10.70 Btu/h/W |
| Power Input T3 | 3.38 kW |
| Cooling Seasonal Performance Factor | 5.70 W/W / 19.45 Btu/h/W |
| Heating Capacity | 12.6 kW / 43,000 Btu/h |
| Heating COP | 4.50 W/W |
| Heating Power Input | 2.80 kW |
| Allowed Indoor Capacity Index | Nominal 100 / Min 50 / Max 130 |
| Cooling Operation Range | -20°C to 54°C |
| Heating Operation Range | 0°C to 15.5°C |
| Unit Dimensions | 870 × 1,100 × 460 mm |
| Packing Dimensions | 1,010 × 1,190 × 560 mm |
| Unit Weight | 100 kg |
| Packed Weight | 114 kg |
| Compressor Type | Hermetically sealed swing compressor |
| Sound Pressure Cooling | 51 dBA |
| Refrigerant | R-410A |
| Refrigerant Charge | 4.95 kg |
| Liquid Pipe Diameter | 9.5 mm |
| Gas Pipe Diameter | 15.9 mm |
| Power Supply | 1~, 50/60Hz |
| Voltage | 220–240V |
Application Scope
| Application Area | Details |
|---|---|
| Apartments | Suitable for homes where multiple outdoor units are not preferred. |
| Villas | Provides centralized comfort while keeping the exterior neat. |
| Small Premises | Ideal for small residential or light commercial spaces. |
| Balcony Installation | Compact outdoor unit can be installed on a balcony to save space. |
| Rooftop Installation | Helps reduce outdoor unit clutter on rooftops. |
| Multi-Room Cooling | Supports multiple indoor units from one centralized outdoor unit. |
Main Benefits
- Centralized cooling and heating from one outdoor unit
- Ideal for apartments, villas, and small premises
- Reduces outdoor unit clutter
- Compact design for balcony or rooftop installation
- Up to 11.3 kW cooling capacity at T1
- Seasonal efficiency for reduced electricity bills
- Reliable operation in hot climates up to 54°C
- Swing compressor for stable and quiet performance
- Low noise design for comfortable indoor living
- Supports flexible indoor unit connections
