Description

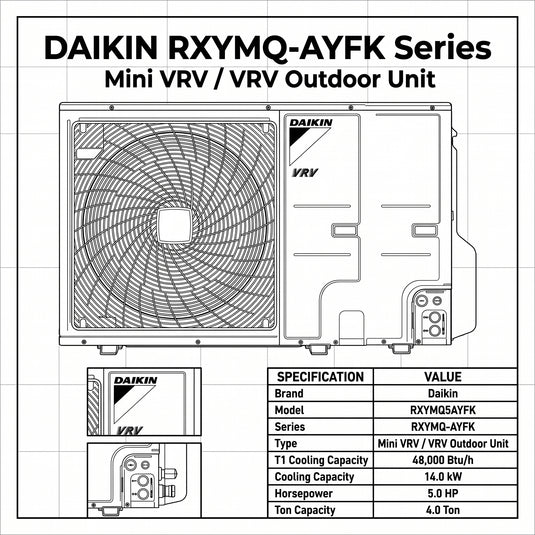

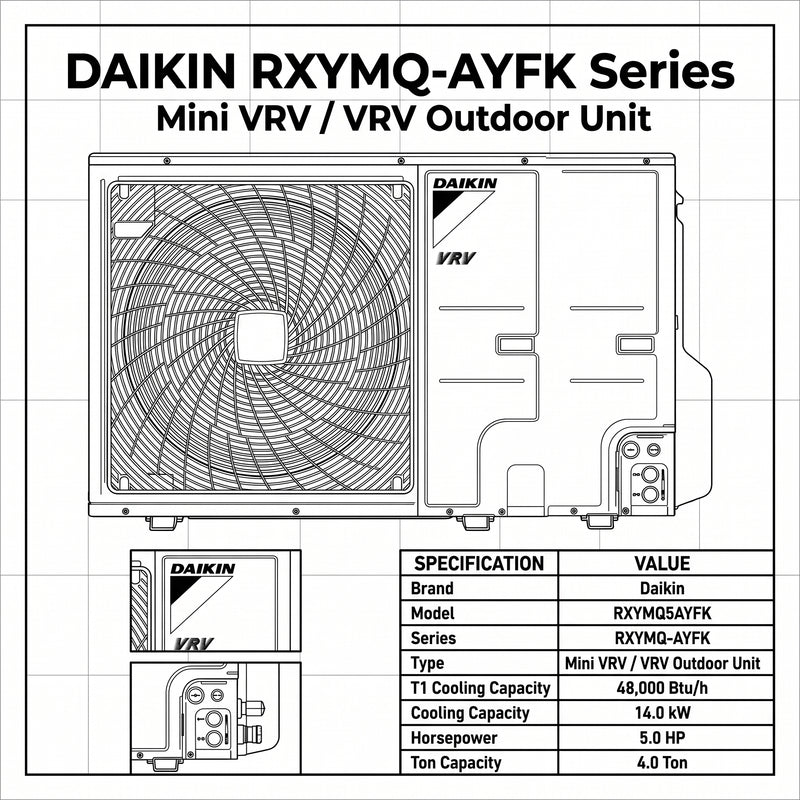

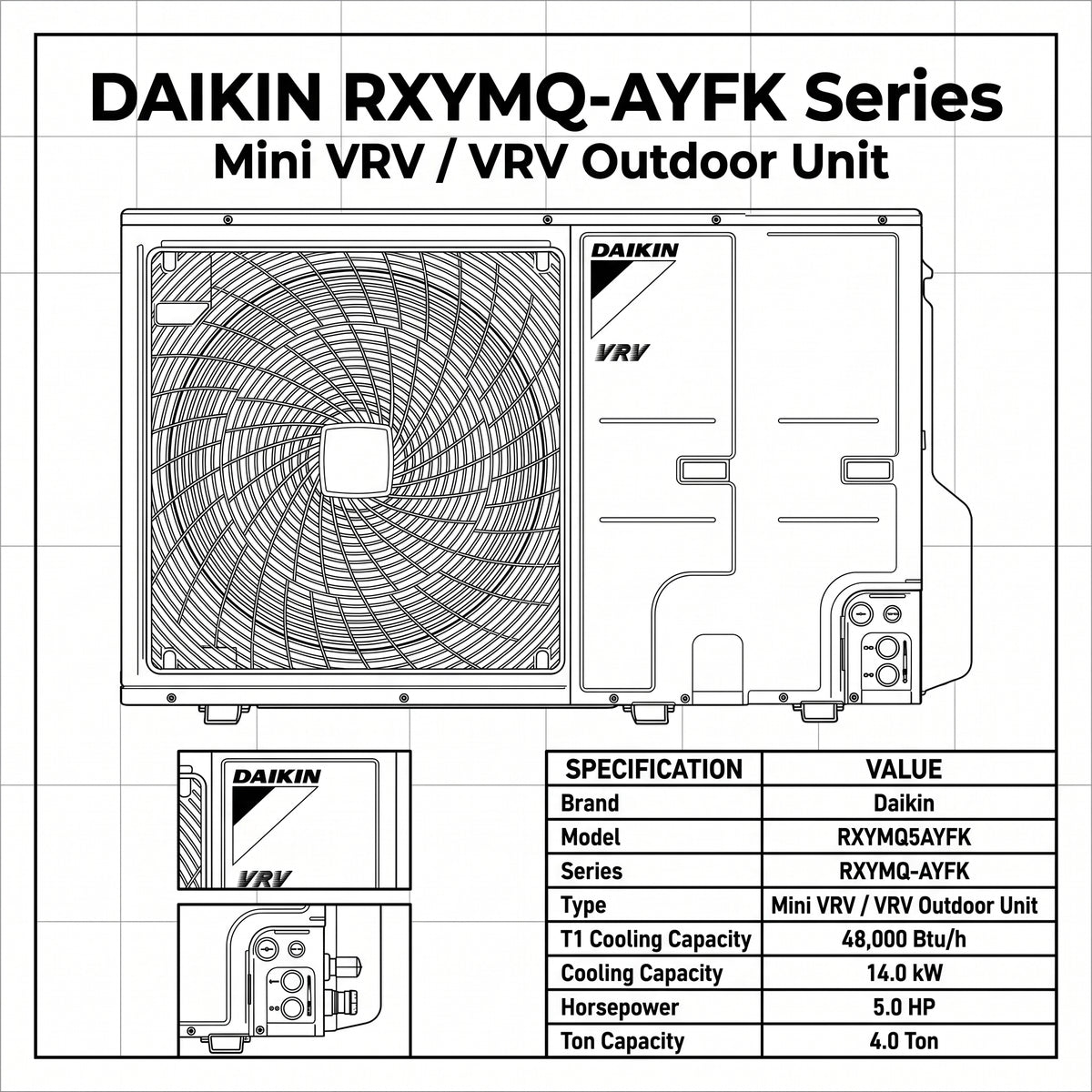

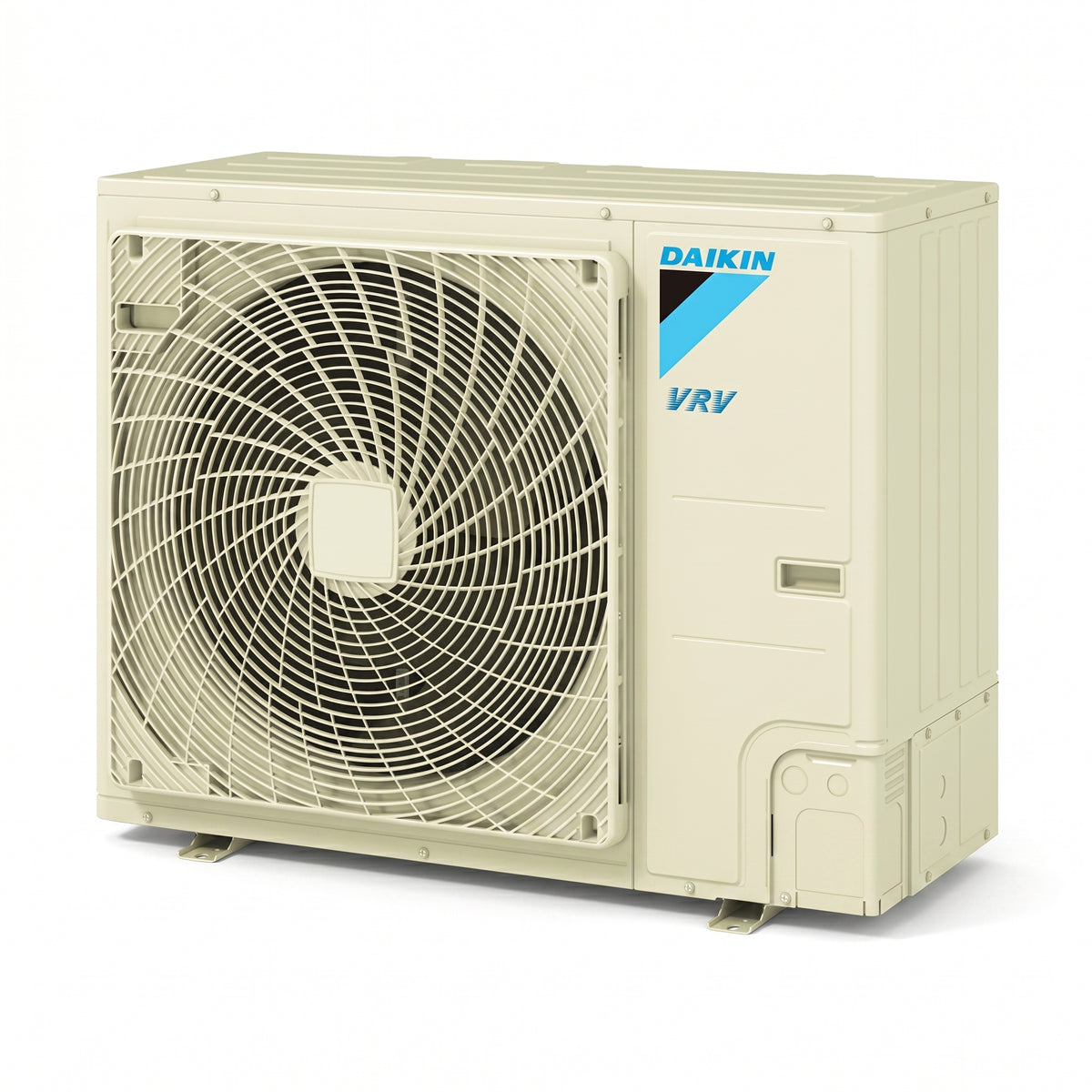

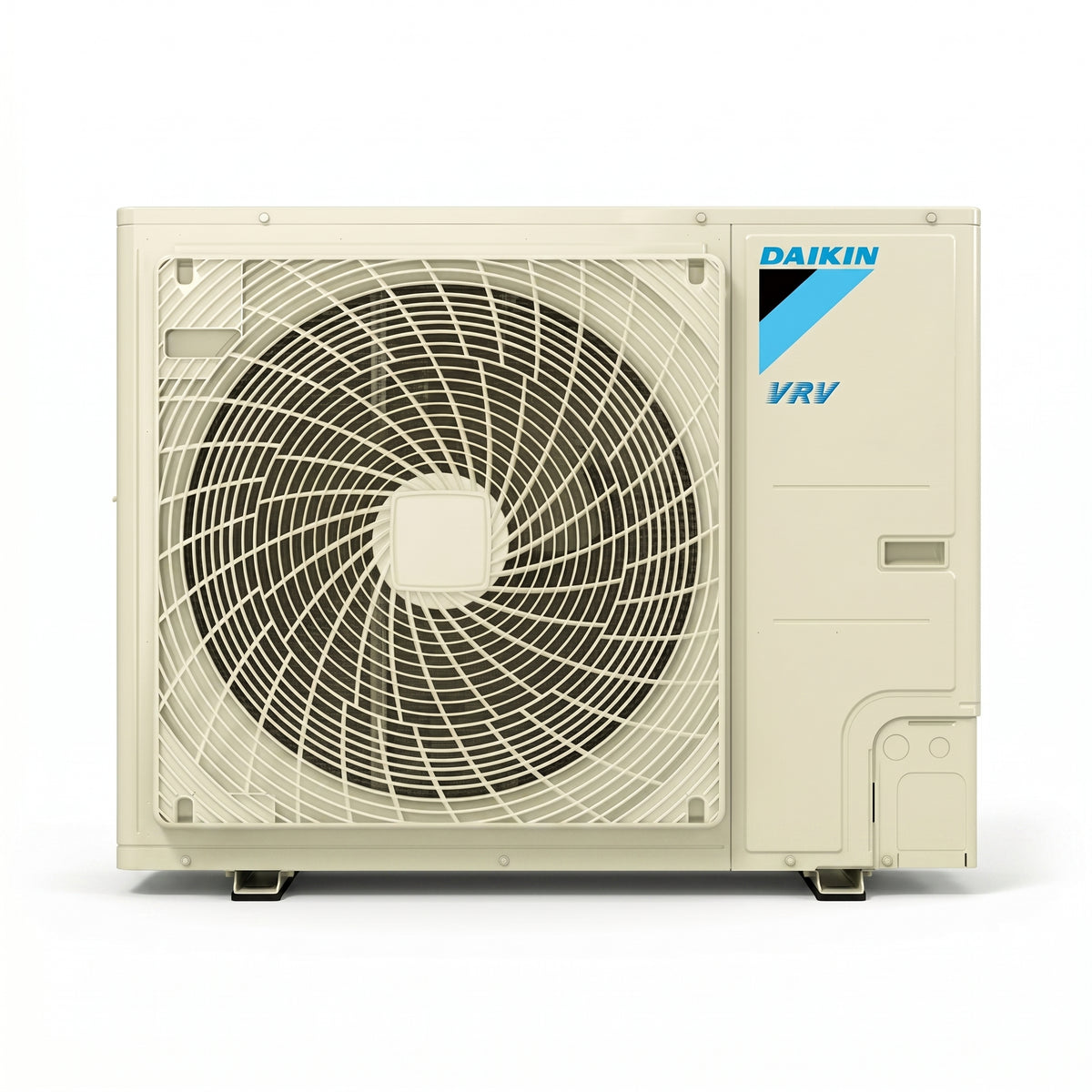

The Daikin RXYMQ5AYFK Mini VRV APT is a centralized air conditioning system designed for apartments, villas, and small premises. It allows multiple indoor units to connect with one outdoor unit, helping reduce outdoor unit clutter while delivering cooling, heating, comfort, control, and convenience in one system. ❄️
Key Features
| Feature | Description |
|---|---|
| Brand | Daikin |
| Model | RXYMQ5AYFK |
| Series | VRV Apt |
| System Type | Mini VRV air conditioning system |
| Application | Apartments, villas, homes, and small premises |
| Cooling & Heating | Complete cooling/heating solution |
| Outdoor Unit Design | Compact centralized outdoor unit |
| Indoor Unit Connection | Supports multiple indoor units from one outdoor unit |
| Installation Style | Balcony, rooftop, wall-mounted, or concealed installation |
| Refrigerant | R-410A |
| Compressor Type | Hermetically sealed swing compressor |
Product Features
| Feature | Details |
|---|---|
| Centralized Home Air Conditioning | Replaces multiple outdoor units with one outdoor unit, helping keep the building exterior clean and organized. |
| Concealed Installation Benefit | Helps maintain the architectural appearance of apartments, villas, and residential buildings. |
| Seasonal Efficiency | Designed with Cooling Seasonal Performance Factor to provide realistic year-round energy efficiency. |
| Energy Saving | Helps reduce energy consumption, CO₂ emissions, and electricity bills. |
| Compact Outdoor Unit | Can be installed on balconies, rooftops, or mounted on walls to save valuable space. |
| High External Static Pressure | Outdoor unit can achieve up to 40 Pa, supporting efficient heat dissipation when installed with ducts or louvers. |
| Improved Reliability | Refrigerant cooling technology helps improve PCB stability in high ambient temperature conditions. |
| Wide Operation Range | Cooling operation range reaches up to 54°C, suitable for hot climate conditions. |
| Swing Compressor | Smooth compressor rotation helps reduce friction, vibration, refrigerant leakage, and operating noise. |
| Low Noise Operation | Smooth air inlet bell mouth and aero spiral fan help reduce airflow turbulence. |
| Night-Time Quiet Operation | Selectable night quiet modes help reduce outdoor sound levels. |
Technical Parameters
| Specification | Details |
|---|---|
| Model | RXYMQ5AYFK |
| Cooling Capacity T1 | 14.1 kW / 48,000 Btu/h |
| Cooling EER T1 | 3.91 W/W / 13.35 Btu/h/W |
| Power Input T1 | 3.60 kW |
| Cooling Capacity T3 | 12.7 kW / 43,500 Btu/h |
| Cooling EER T3 | 2.95 W/W / 10.15 Btu/h/W |
| Power Input T3 | 4.29 kW |
| Cooling Seasonal Performance Factor | 5.40 W/W / 18.42 Btu/h/W |
| Heating Capacity | 16.0 kW / 54,500 Btu/h |
| Heating COP | 4.35 W/W |
| Heating Power Input | 3.67 kW |
| Allowed Indoor Capacity Index | Nominal 125 / Min 62.5 / Max 162.5 |
| Cooling Operation Range | -20°C to 54°C |
| Heating Operation Range | 0°C to 15.5°C |
| Unit Dimensions | 870 × 1,100 × 460 mm |
| Packing Dimensions | 1,010 × 1,190 × 560 mm |
| Unit Weight | 120 kg |
| Packed Weight | 134 kg |
| Compressor Type | Hermetically sealed swing compressor |
| Sound Pressure Cooling | 58 dBA |
| Refrigerant | R-410A |
| Refrigerant Charge | 5.4 kg |
| Liquid Pipe Diameter | 9.5 mm |
| Gas Pipe Diameter | 15.9 mm |
| Power Supply | 3N~, 50/60Hz |
| Voltage | 380–415V / 400V |
Application Scope
| Application Area | Details |
|---|---|
| Apartments | Ideal for homes where multiple outdoor units are not preferred. |
| Villas | Suitable for centralized cooling and heating with a clean exterior appearance. |
| Small Premises | Works well for small residential or light commercial spaces. |
| Balcony Installation | Compact outdoor unit can be installed on balconies to save space. |
| Rooftop Installation | Helps reduce equipment clutter on building rooftops. |
| Multi-Room Comfort | Connects multiple indoor units to one centralized outdoor unit. |
Main Benefits
- Centralized cooling and heating from one outdoor unit
- Reduces outdoor unit clutter on buildings
- Suitable for apartments, villas, and small premises
- Compact design for balcony or rooftop installation
- Up to 14.1 kW cooling capacity at T1
- High seasonal efficiency for realistic energy saving
- Reliable performance in high ambient temperatures
- Cooling operation up to 54°C
- Quiet operation with smooth airflow design
- Swing compressor for efficient and stable performance
- Helps reduce electricity bills and CO₂ emissions
