Description

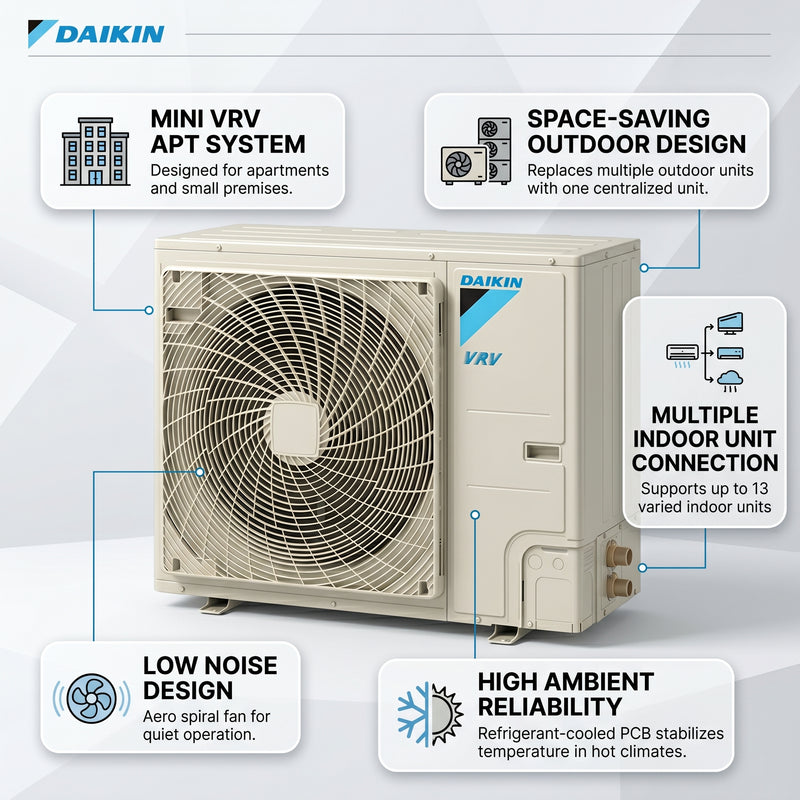

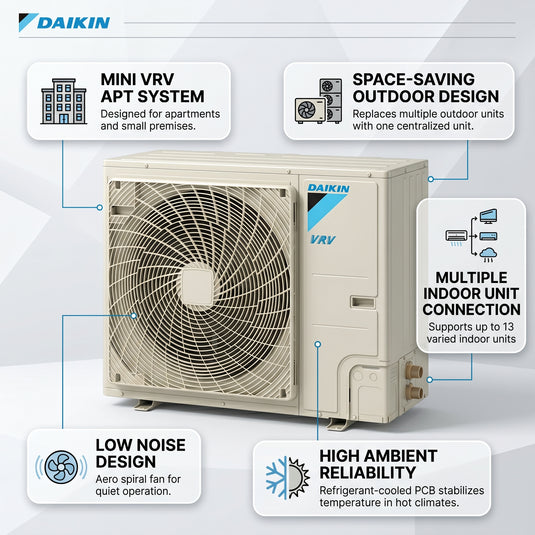

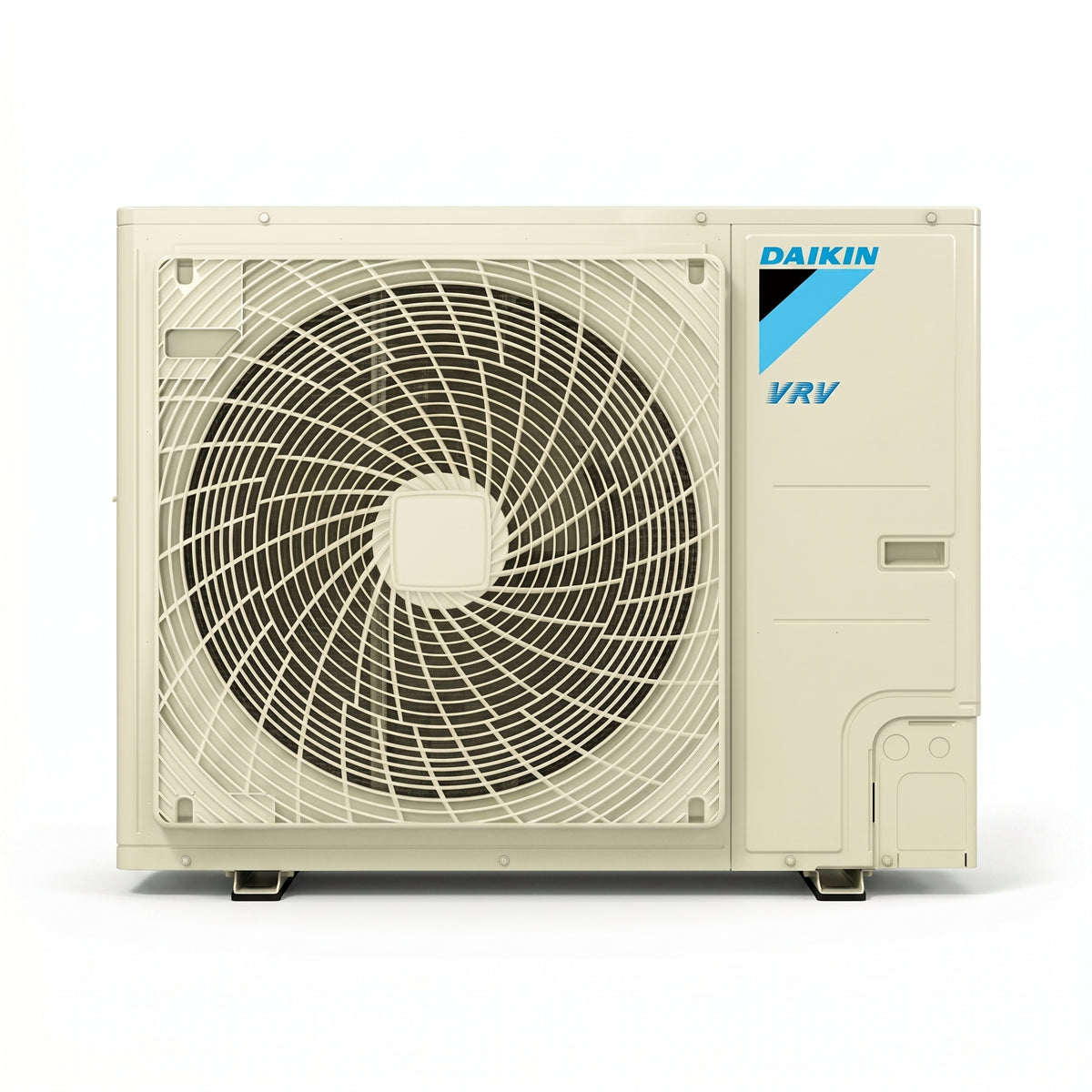

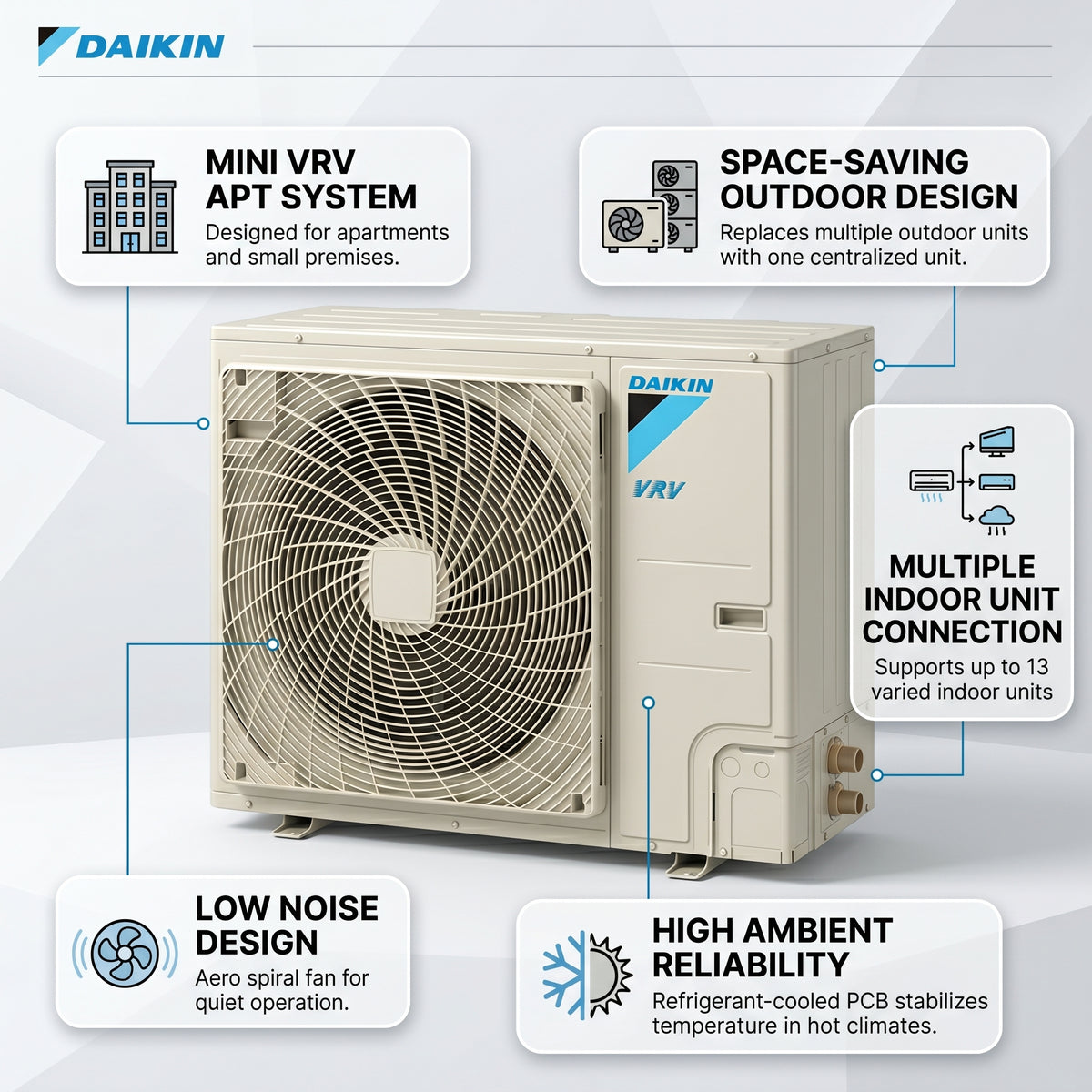

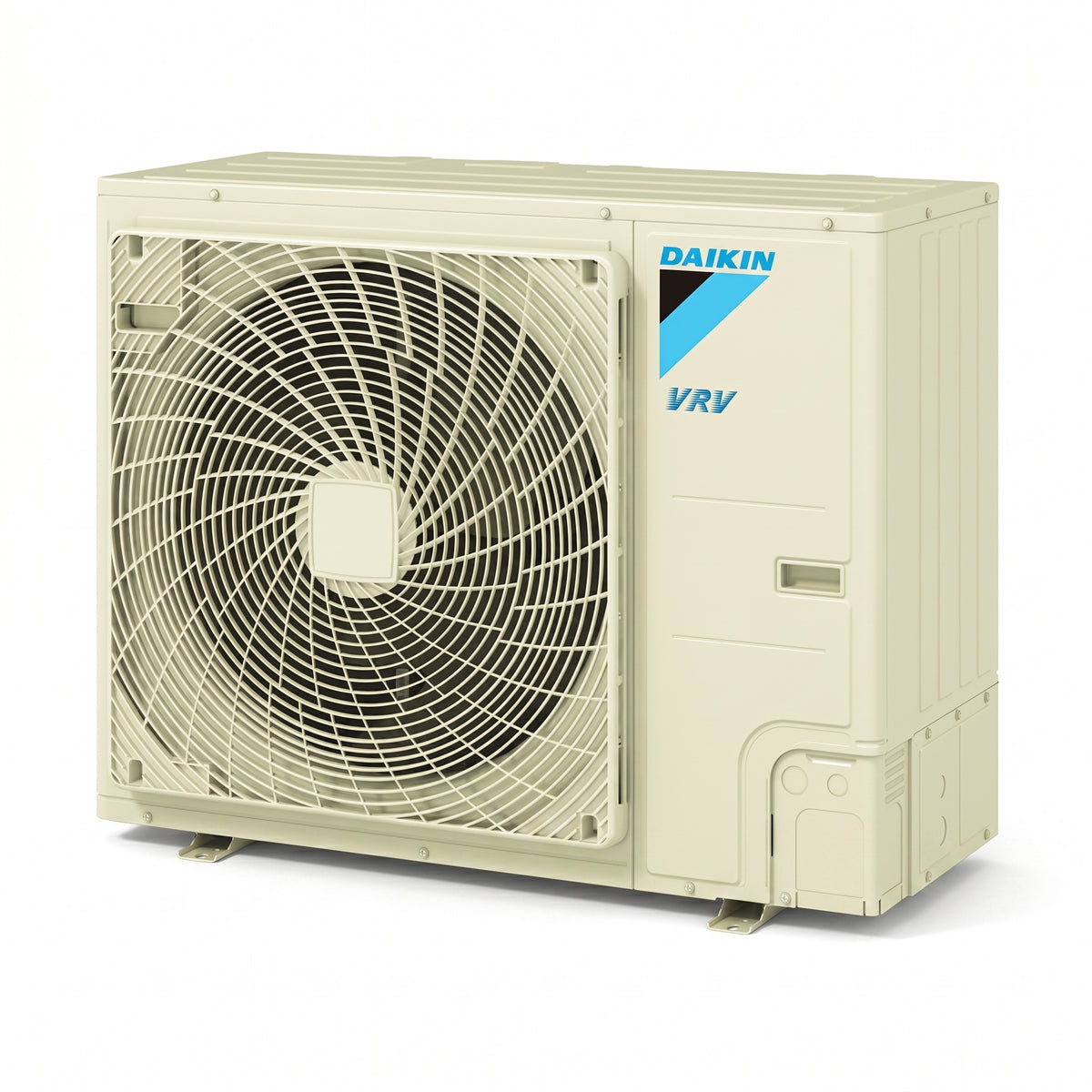

The Daikin RXYMQ6AYFK Mini VRV APT is designed to provide centralized cooling and heating for apartments, villas, and small premises using one outdoor unit connected to multiple indoor units. It helps reduce outdoor unit clutter while delivering comfort, control, convenience, and efficient seasonal performance. ❄️
Key Features
| Feature | Description |
|---|---|
| Brand | Daikin |
| Model | RXYMQ6AYFK |
| Series | VRV Apt |
| System Type | Mini VRV air conditioning system |
| Application | Apartments, villas, residences, and small premises |
| Cooling & Heating | Complete solution for cooling/heating comfort |
| Indoor Unit Connection | Supports multiple indoor units from one outdoor unit |
| Installation Style | Balcony, wall-mounted, rooftop, or concealed outdoor placement |
| Refrigerant | R-410A |
| Controller Support | Compatible with individual controllers and Madoka wired remote options |
Product Features
| Feature | Details |
|---|---|
| Centralized Home Air Conditioning | Replaces multiple outdoor units with one centralized outdoor unit for a cleaner building appearance. |
| Concealed Design Advantage | Maintains the aesthetic look of villas, apartments, and buildings by reducing visible outdoor equipment. |
| Seasonal Efficiency | Designed around Cooling Seasonal Performance Factor for realistic year-round energy efficiency. |
| Energy Saving | Helps reduce energy consumption, CO₂ emissions, and electricity bills. |
| Balcony Installation | Compact outdoor unit can be installed on a balcony or wall-mounted to save floor and rooftop space. |
| High External Static Pressure | Outdoor unit can achieve up to 40 Pa, supporting efficient heat dissipation when ducts or louvers are used. |
| Improved Reliability | Refrigerant cooling technology helps stabilize PCB temperature in high ambient conditions. |
| Wide Operation Range | Cooling operation range can reach up to 54°C depending on model and condition. |
| Low Noise Design | Smooth air inlet bell mouth and aero spiral fan reduce airflow turbulence and noise. |
| Night-Time Quiet Operation | Selectable night operation modes help reduce outdoor operating sound level. |
| Madoka Controller Support | Sleek wired remote controller options with modern design and advanced smartphone-assisted settings. |
Technical Parameters
| Specification | Details |
|---|---|
| Model | RXYMQ6AYFK |
| Cooling Capacity T1 | 16.0 kW / 54,500 Btu/h |
| Cooling EER T1 | 3.90 W/W / 13.30 Btu/h/W |
| Power Input T1 | 4.10 kW |
| Cooling Capacity T3 | 14.5 kW / 49,500 Btu/h |
| Cooling EER T3 | 2.96 W/W / 10.10 Btu/h/W |
| Power Input T3 | 4.90 kW |
| Cooling Seasonal Performance Factor | 5.35 W/W |
| Heating Capacity | 18.0 kW / 61,000 Btu/h |
| Heating COP | 4.25 W/W |
| Allowed Indoor Capacity Index | Nominal 150 / Min 75 / Max 195 |
| Cooling Operation Range | -20°C to 54°C |
| Heating Operation Range | 0°C to 15.5°C |
| Unit Dimensions | 870 × 1,100 × 460 mm |
| Packing Dimensions | 1,010 × 1,190 × 560 mm |
| Unit Weight | 120 kg |
| Packed Weight | 134 kg |
| Compressor Type | Hermetically sealed swing compressor |
| Sound Pressure Cooling | 58 dBA |
| Refrigerant | R-410A |
| Refrigerant Charge | 5.4 kg |
| Liquid Pipe Diameter | 9.5 mm |
| Gas Pipe Diameter | 19.1 mm |
| Power Supply | 3N~, 50/60Hz |
| Voltage | 380–415V / 400V |
Controller Features
| Feature | Details |
|---|---|
| Controller Type | Madoka wired remote controller for Sky Air and VRV |
| Compatible Models | BRC1H82W / BRC1H82S / BRC1H82K / BRC1H52W / BRC1H52S / BRC1H52K |
| Design | Sleek, elegant, compact controller |
| Size | 85 × 85 mm |
| Display Options | Standard and detailed display |
| Control Access | Direct access to on/off, set point, mode, fan speed, louvers, filter icon reset, and error code |
| Hotel Features | Key card and window contact integration support |
| Smartphone Support | Madoka Assistant app for advanced settings |
| Colour Options | White, silver, and black |

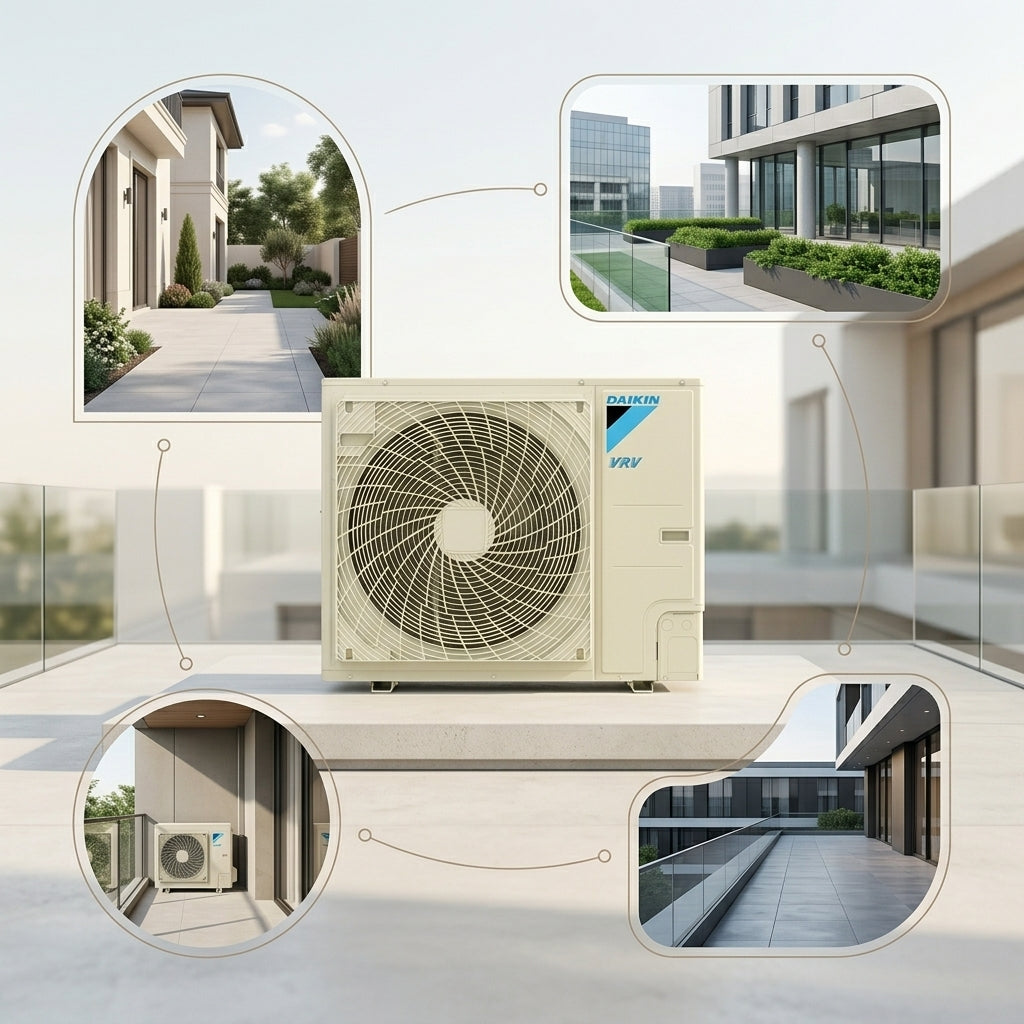

Application Scope
| Application Area | Details |
|---|---|
| Apartments | Ideal for apartment buildings where multiple outdoor units are not preferred. |
| Villas | Suitable for centralized home air conditioning with cleaner exterior design. |
| Small Premises | Works well for small commercial or residential spaces. |
| Balcony Installations | Compact outdoor unit can be placed on balconies to save space. |
| Concealed Outdoor Areas | Can be hidden behind balcony fences or roof walls for improved aesthetics. |
| Multi-Room Cooling | Supports several indoor units connected to one outdoor unit. |
Main Benefits
- One outdoor unit can replace multiple outdoor units
- Helps maintain building exterior appearance
- Suitable for apartments, villas, and small premises
- Cooling and heating comfort in one system
- Seasonal efficiency supports lower energy use
- Reduced CO₂ emissions and electricity bills
- Compact outdoor unit supports balcony installation
- High external static pressure up to 40 Pa
- Reliable performance in high ambient temperatures
- Low-noise operation with night quiet mode
- Compatible with stylish Madoka wired controllers
