Description

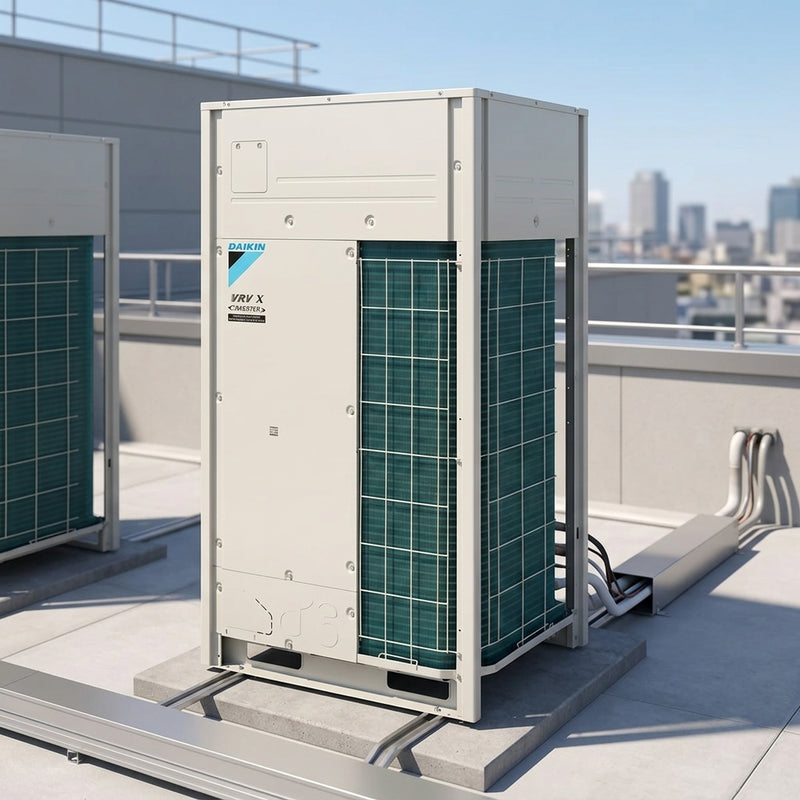

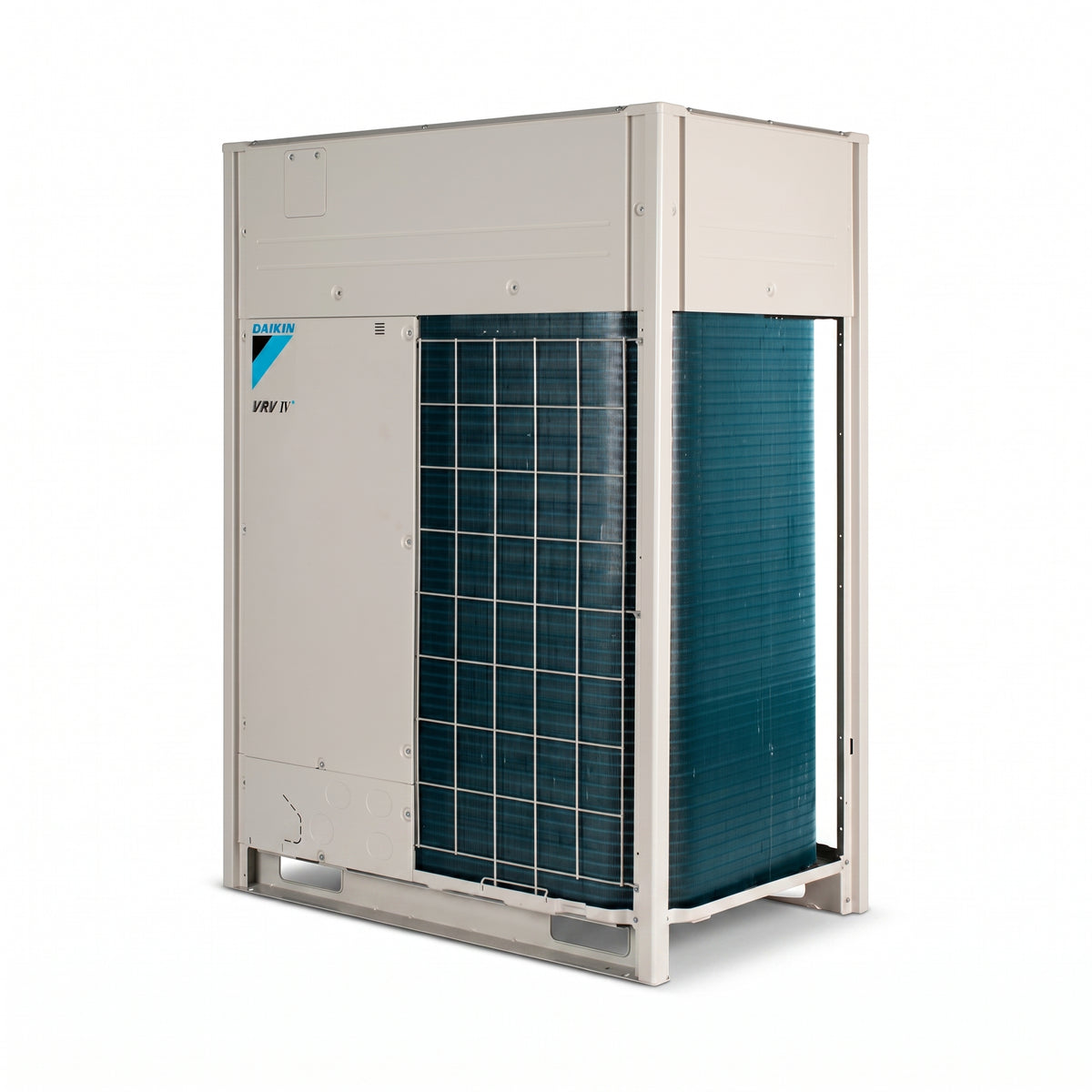

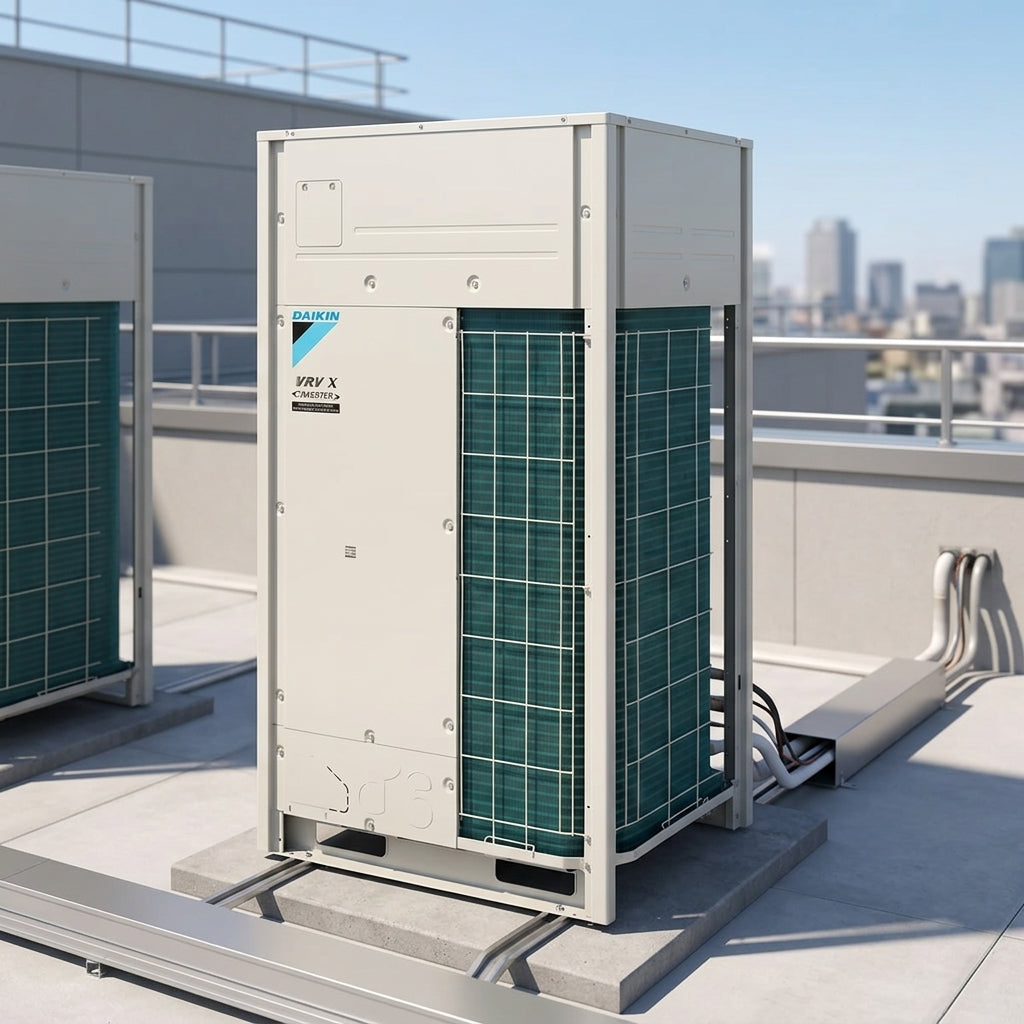

The Daikin RXYTQ8U5YF VRV IV+ is a high-performance outdoor VRV air conditioning unit designed to provide customised comfort, intelligent climate control, and high seasonal efficiency. It is suitable for villas, offices, hotels, retail spaces, and commercial buildings that require reliable multi-zone cooling and heating. ❄️
Key Features
| Feature | Description |
|---|---|
| Brand | Daikin |
| Model | RXYTQ8U5YF |
| Series | VRV IV+ |
| System Type | Outdoor VRV air conditioning unit |
| Capacity Class | 8 HP |
| Main Technology | Variable Refrigerant Temperature / VRT |
| Refrigerant | R-410A |
| Compressor Type | Hermetically sealed scroll compressor |
| Control Support | VRV configurator software and 7-segment service display |
| Application | Villas, offices, hotels, retail shops, and commercial buildings |

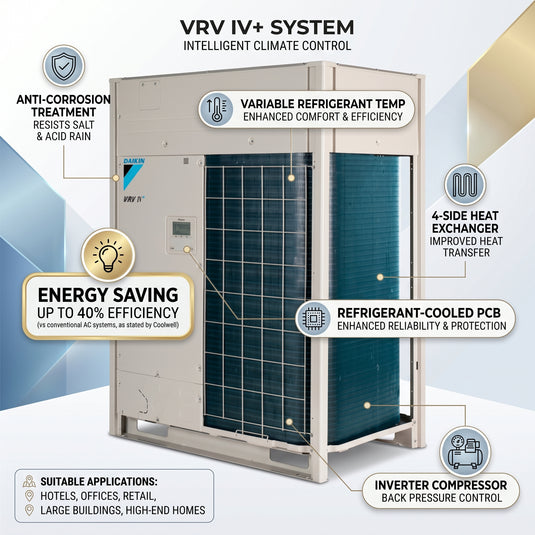

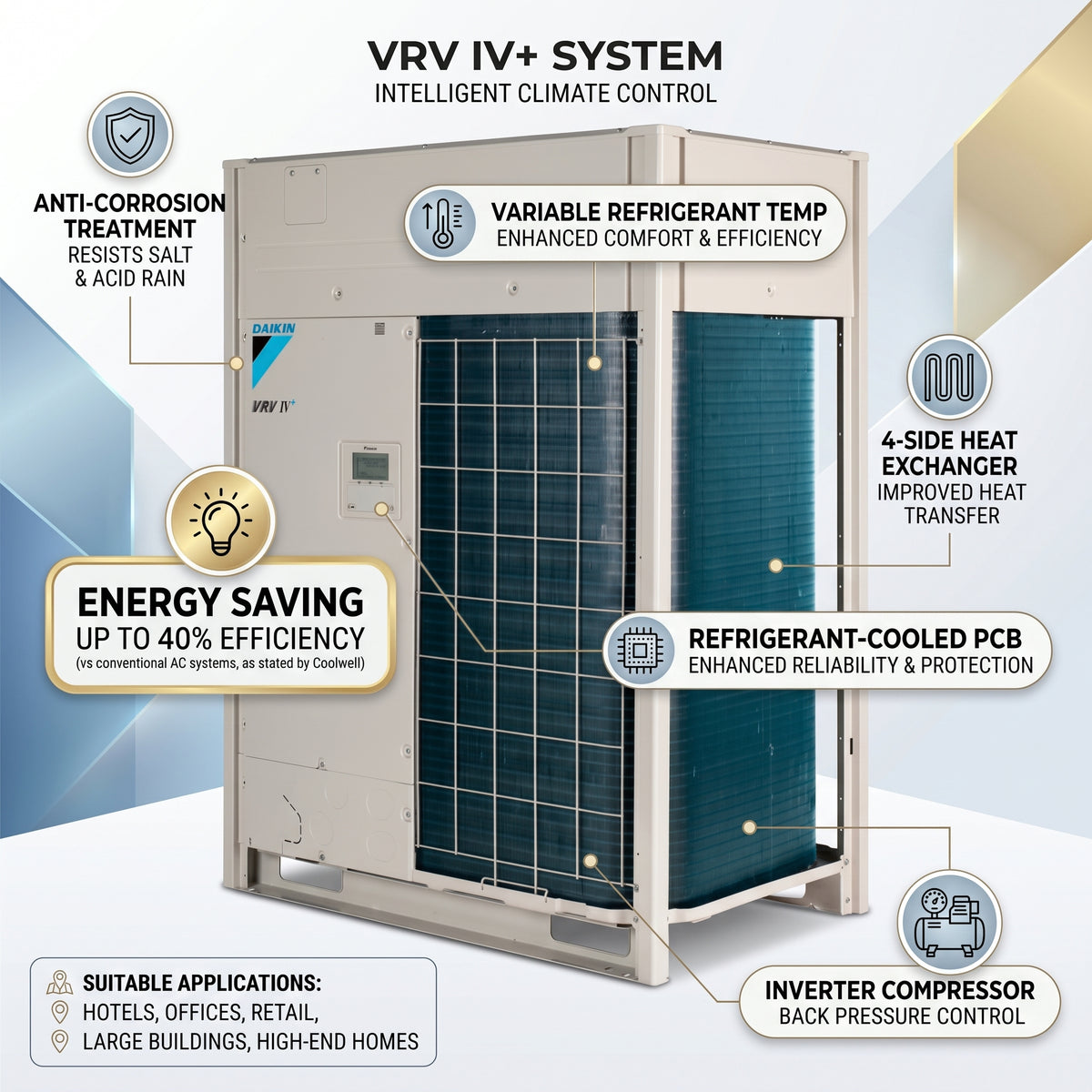

Product Features
| Feature | Details |
|---|---|
| Variable Refrigerant Temperature | Adjusts refrigerant temperature according to building load for improved seasonal efficiency and comfort. |
| Predictive Control Function | Helps the system reach target capacity and refrigerant temperature quickly without overshooting. |
| Inverter Compressor Technology | Controls compressor operation according to cooling or heating demand for efficient performance. |
| Refrigerant-Cooled PCB | Improves reliability in high ambient temperature conditions. |
| 4-Sided Heat Exchanger | Supports stable heat transfer and efficient operation. |
| Outer Rotor DC Fan Motor | Helps improve fan efficiency, especially during low-speed operation. |
| E-Pass Heat Exchanger | Optimises heat exchanger path layout for better energy use. |
| I-Demand Function | Limits maximum power consumption according to predefined requirements. |
| Low Noise Design | Smooth air inlet bell mouth and aero spiral fan help reduce operating noise. |
| VRV Configurator Software | Supports simplified commissioning, configuration, and customisation. |
| 7-Segment Display | Provides quick and accurate error diagnosis during maintenance. |
| Anti-Corrosion Protection | Helps improve durability against harsh outdoor conditions, acid rain, and salt corrosion. |

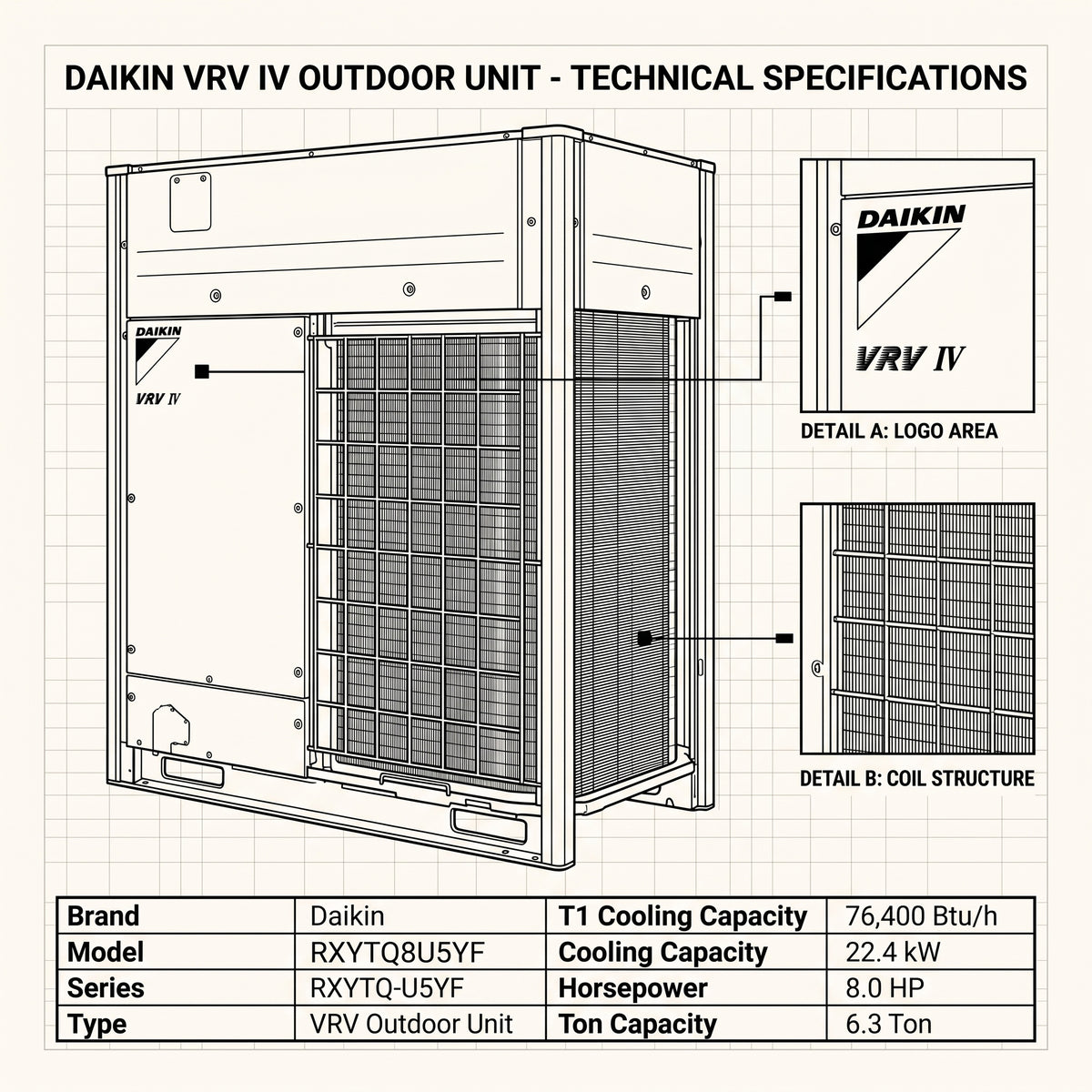

Technical Parameters
| Specification | Details |
|---|---|
| Model | RXYTQ8U5YF |
| Capacity Class | 8 HP |
| Cooling Capacity T1 | 22.4 kW / 76,450 Btu/h |
| Cooling Capacity T3 | 16.8 kW / 57,350 Btu/h |
| Heating Capacity | 25.0 kW / 85,350 Btu/h |
| Cooling EER T1 | 3.90 W/W / 13.29 Btu/h/W |
| Cooling EER T3 | 2.83 W/W / 9.67 Btu/h/W |
| Indoor Index Connection | Nominal 100 / Min 50 / Max 200 |
| Cooling Operation Range | Up to 54°C outdoor ambient |
| Unit Dimensions | 1,685 × 930 × 765 mm |
| Packed Dimensions | 1,820 × 995 × 860 mm |
| Unit Weight | 201 kg |
| Packed Weight | 218 kg |
| Compressor Type | Hermetically sealed scroll compressor |
| Compressor Quantity | 1 |
| Sound Pressure Cooling | 49 dBA |
| Refrigerant | R-410A |
| Refrigerant Charge | 4.2 kg |
| Liquid Pipe Connection | 9.5 mm |
| Gas Pipe Connection | 15.9 mm |
| Power Supply Phase | 3N~ |
| Frequency | 50/60 Hz |
| Voltage | 380–415V / 400V |
Application Scope
| Application Area | Details |
|---|---|
| Hotels | Suitable for guest rooms, common areas, and multi-zone comfort control. |
| Offices | Helps maintain stable cooling and heating across different work areas. |
| Retail Shops | Ideal for customer-facing spaces requiring consistent comfort. |
| Villas | Suitable for premium residential climate control with multiple indoor units. |
| Commercial Buildings | Supports flexible HVAC design for medium to large spaces. |
| Mixed-Use Projects | Can be connected with different indoor unit types for project flexibility. |
Main Benefits
- 8 HP VRV IV+ outdoor air conditioning system
- Advanced Variable Refrigerant Temperature technology
- High seasonal efficiency with intelligent comfort control
- Predictive Control Function for improved response and efficiency
- Refrigerant-cooled PCB for reliable high ambient operation
- 4-sided heat exchanger for efficient heat transfer
- Outer rotor DC fan motor for improved fan performance
- Low-noise operation with smooth airflow design
- Anti-corrosion protection for long-lasting durability
- Suitable for villas, offices, hotels, retail, and commercial spaces ⚙️
