Description

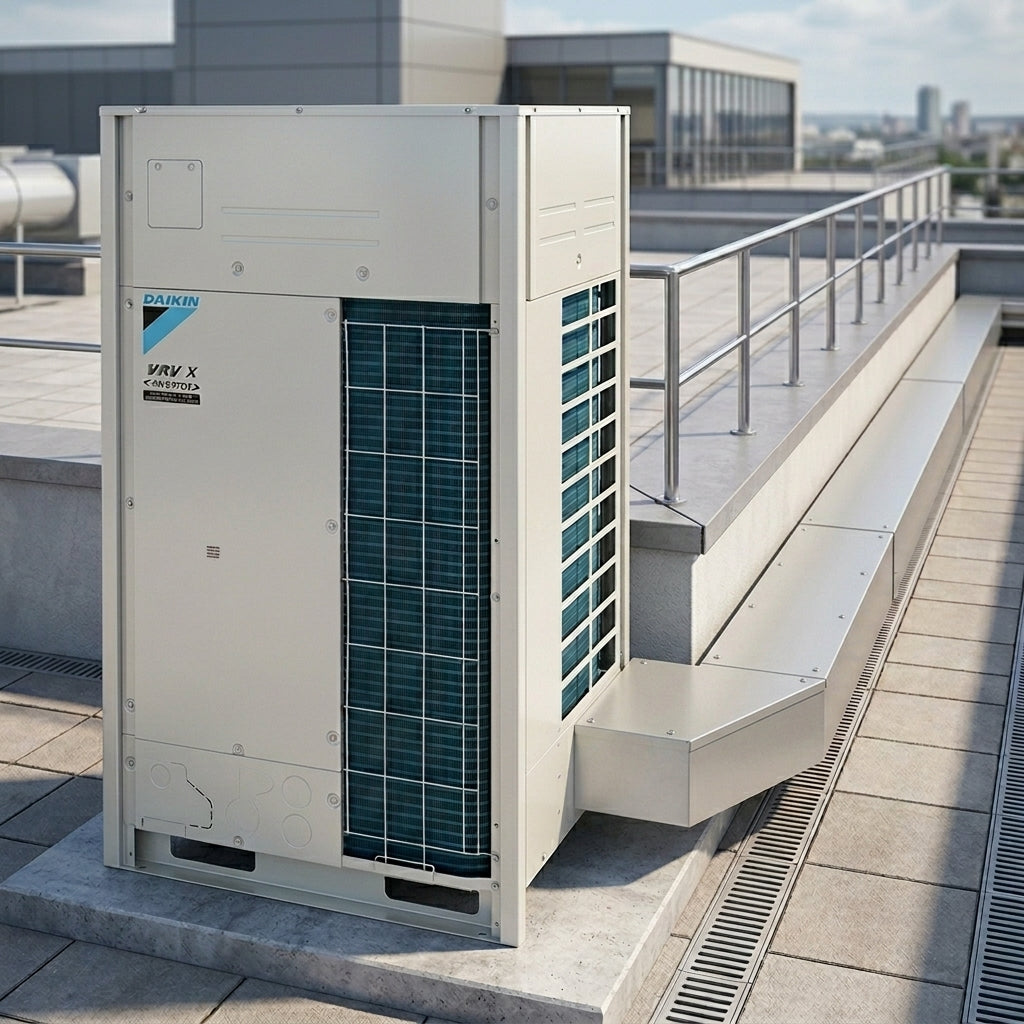

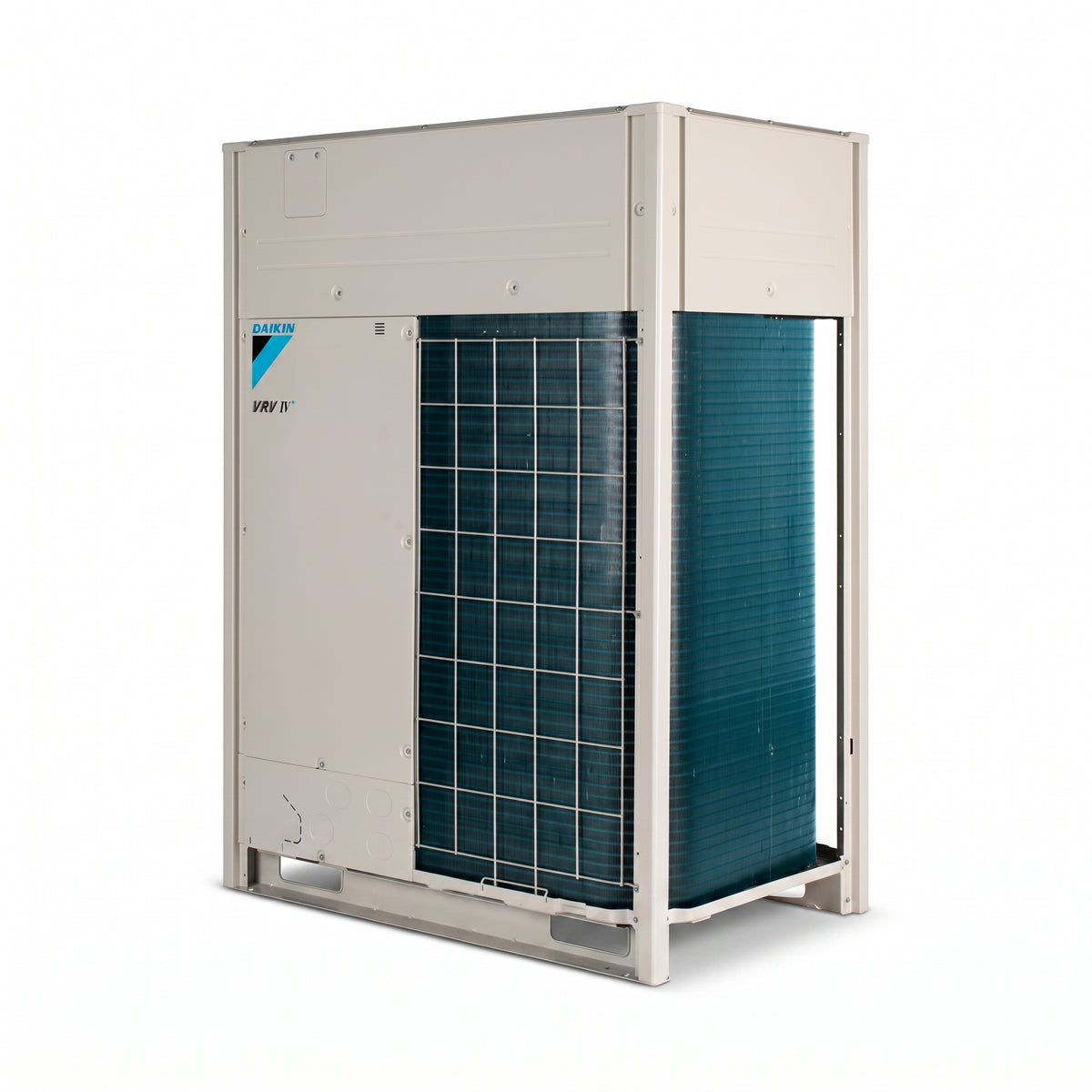

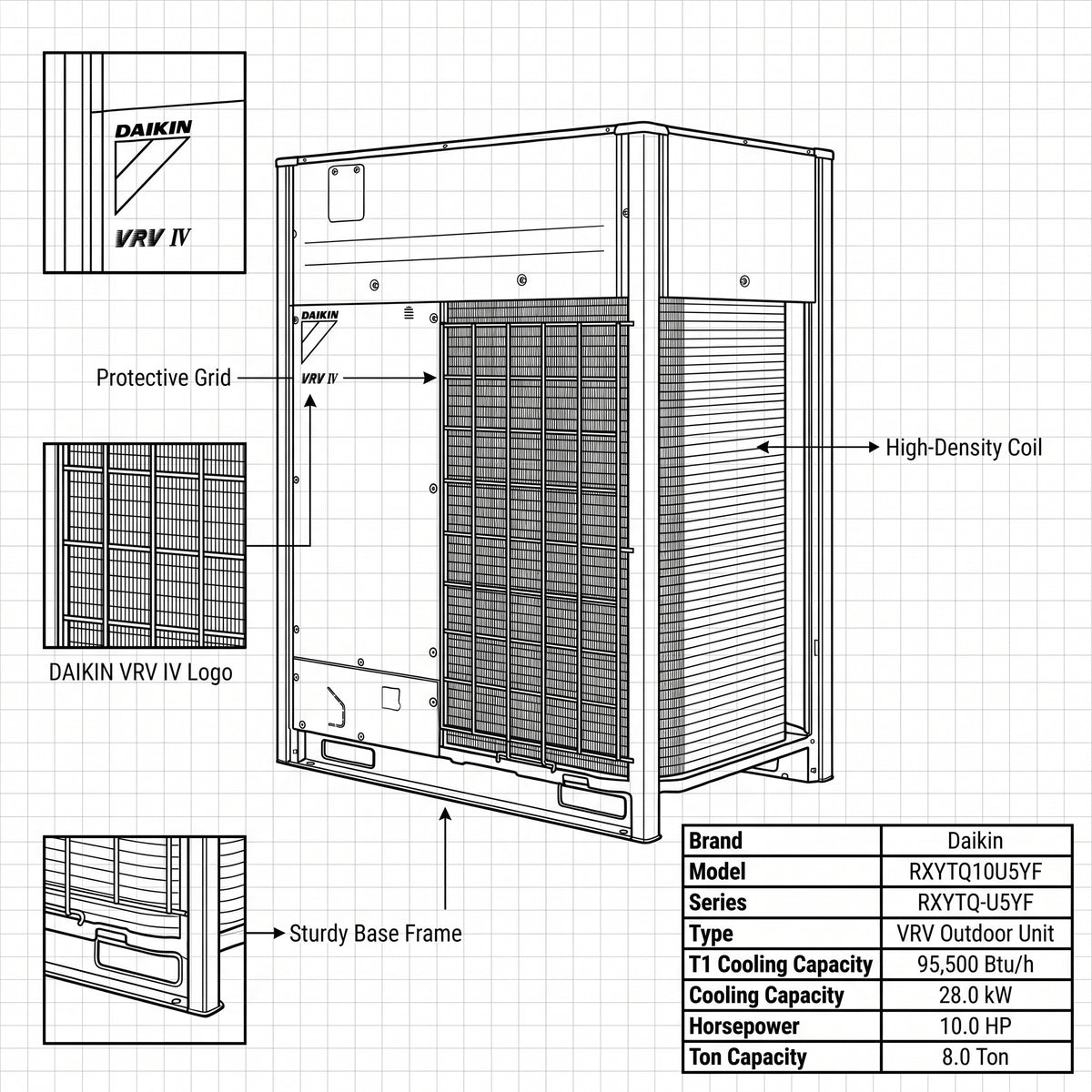

The Daikin RXYTQ10U5YF VRV IV+ is a high-performance outdoor VRV air conditioning unit designed to deliver customized comfort, intelligent control, and high seasonal efficiency. It is suitable for villas, offices, hotels, retail spaces, and commercial buildings that require flexible multi-zone cooling and heating. ❄️
Key Features
| Feature | Description |
|---|---|
| Brand | Daikin |
| Model | RXYTQ10U5YF |
| Series | VRV IV+ |
| System Type | Outdoor VRV air conditioning unit |
| Capacity Class | 10 HP |
| Main Technology | Variable Refrigerant Temperature / VRT |
| Refrigerant | R-410A |
| Compressor Type | Hermetically sealed scroll compressor |
| Control Support | VRV configurator software and service diagnosis display |
| Application | Hotels, offices, villas, retail shops, and commercial buildings |

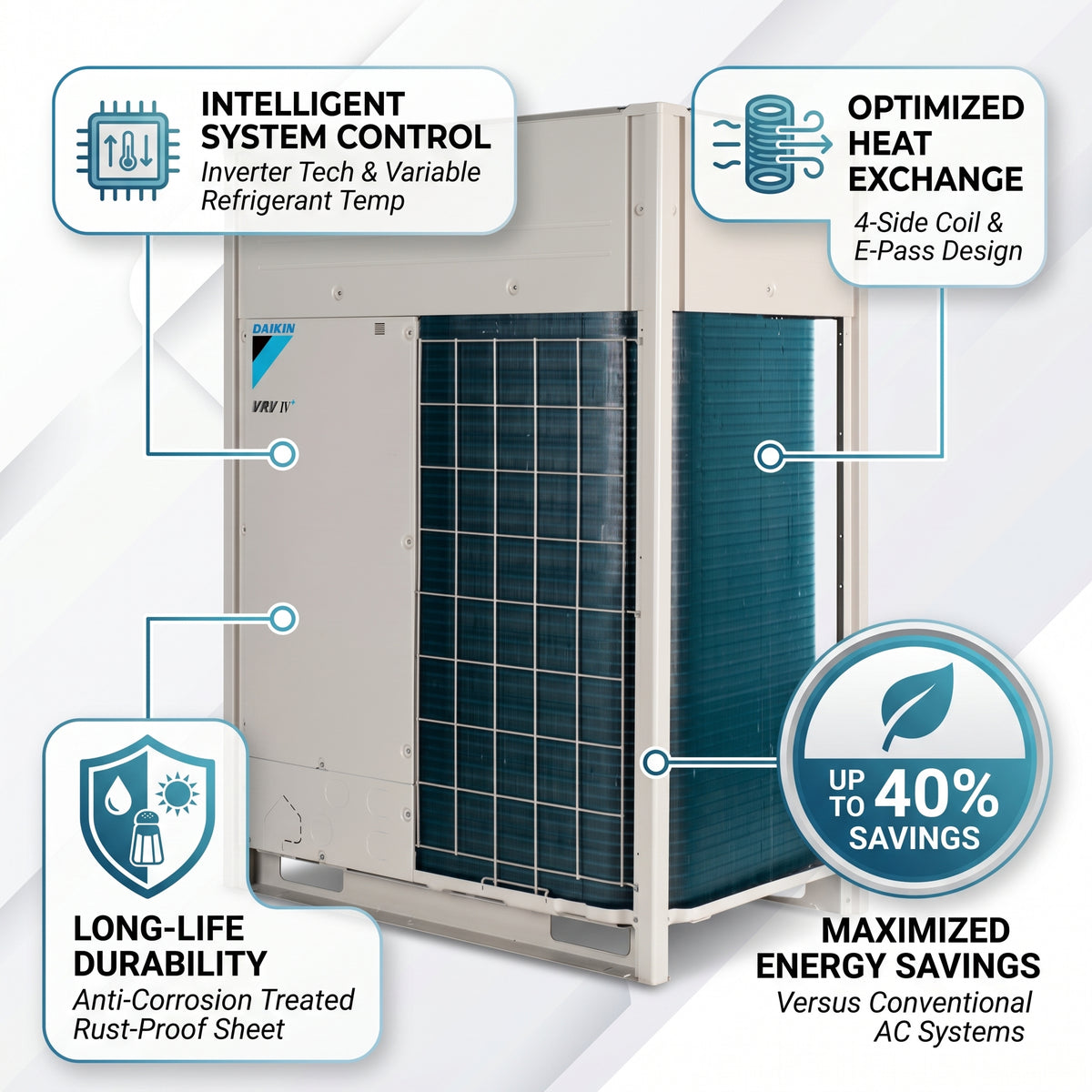

Product Features
| Feature | Details |
|---|---|
| Variable Refrigerant Temperature | Continuously adjusts refrigerant temperature according to system demand for better comfort and seasonal efficiency. |
| Seasonal Efficiency Improvement | VRT technology helps increase seasonal efficiency compared to conventional VRF systems. |
| Predictive Control Function | Helps the system reach target capacity and refrigerant temperature faster without overshooting. |
| Inverter Compressor Control | Adjusts compressor operation according to building load for efficient part-load performance. |
| Refrigerant-Cooled PCB | Helps improve reliability in high ambient temperature conditions. |
| 4-Sided Heat Exchanger | Supports better heat exchange and stable system operation. |
| Outer Rotor DC Fan Motor | Improves fan efficiency, especially during low-speed operation. |
| E-Pass Heat Exchanger | Optimizes heat exchanger path layout for improved energy use. |
| I-Demand Function | Limits maximum power consumption according to predefined settings. |
| Low Noise Design | Smooth air inlet bell mouth and aero spiral fan help reduce operating noise. |
| VRV Configurator Software | Supports simplified commissioning, configuration, and customization. |
| 7-Segment Display | Allows quick and accurate error diagnosis during service and maintenance. |
Technical Parameters
| Specification | Details |
|---|---|
| Model | RXYTQ10U5YF |
| Capacity Class | 10 HP |
| Cooling Capacity T1 | 28.0 kW / 95,550 Btu/h |
| Cooling Capacity T3 | 22.4 kW / 76,450 Btu/h |
| Heating Capacity | 31.5 kW / 107,500 Btu/h |
| Cooling EER T1 | 3.90 W/W / 13.31 Btu/h/W |
| Cooling EER T3 | 2.96 W/W / 10.10 Btu/h/W |
| Maximum Connectable Indoor Units | Up to 50 indoor units |
| Indoor Index Connection | Nominal 125 / Min 62.5 / Max 250 |
| Cooling Operation Range | Up to 54°C outdoor ambient |
| Unit Dimensions | 1,685 × 1,240 × 765 mm |
| Packed Dimensions | 1,820 × 1,305 × 860 mm |
| Unit Weight | 244 kg |
| Packed Weight | 265 kg |
| Compressor Type | Hermetically sealed scroll compressor |
| Compressor Quantity | 1 |
| Sound Pressure Cooling | 51 dBA |
| Refrigerant | R-410A |
| Refrigerant Charge | 4.95 kg |
| Liquid Pipe Connection | 9.5 mm |
| Gas Pipe Connection | 15.9 mm |
| Power Supply Phase | 3N~ |
| Frequency | 50/60 Hz |
| Voltage | 380–415V / 400V |
Application Scope
| Application Area | Details |
|---|---|
| Hotels | Suitable for multi-room comfort control with flexible indoor unit connection. |
| Offices | Ideal for efficient cooling and heating across different working zones. |
| Retail Shops | Helps maintain stable comfort for customer-facing spaces. |
| Villas | Suitable for premium residential climate control with multiple indoor units. |
| Commercial Buildings | Designed for flexible HVAC layouts and reliable long-term operation. |
| Mixed-Use Projects | Can be connected with different indoor unit types for project flexibility. |
Main Benefits
- 10 HP VRV IV+ outdoor air conditioning system
- Advanced Variable Refrigerant Temperature control
- High seasonal efficiency and intelligent comfort control
- Supports up to 50 indoor units
- Suitable for high ambient temperature operation
- Predictive Control Function for faster target performance
- Refrigerant-cooled PCB for improved reliability
- Low-noise operation with efficient fan design
- Flexible installation for villas, offices, hotels, retail, and commercial spaces
- Designed for energy-saving, comfort, and long-term HVAC performance ⚙️
