Description

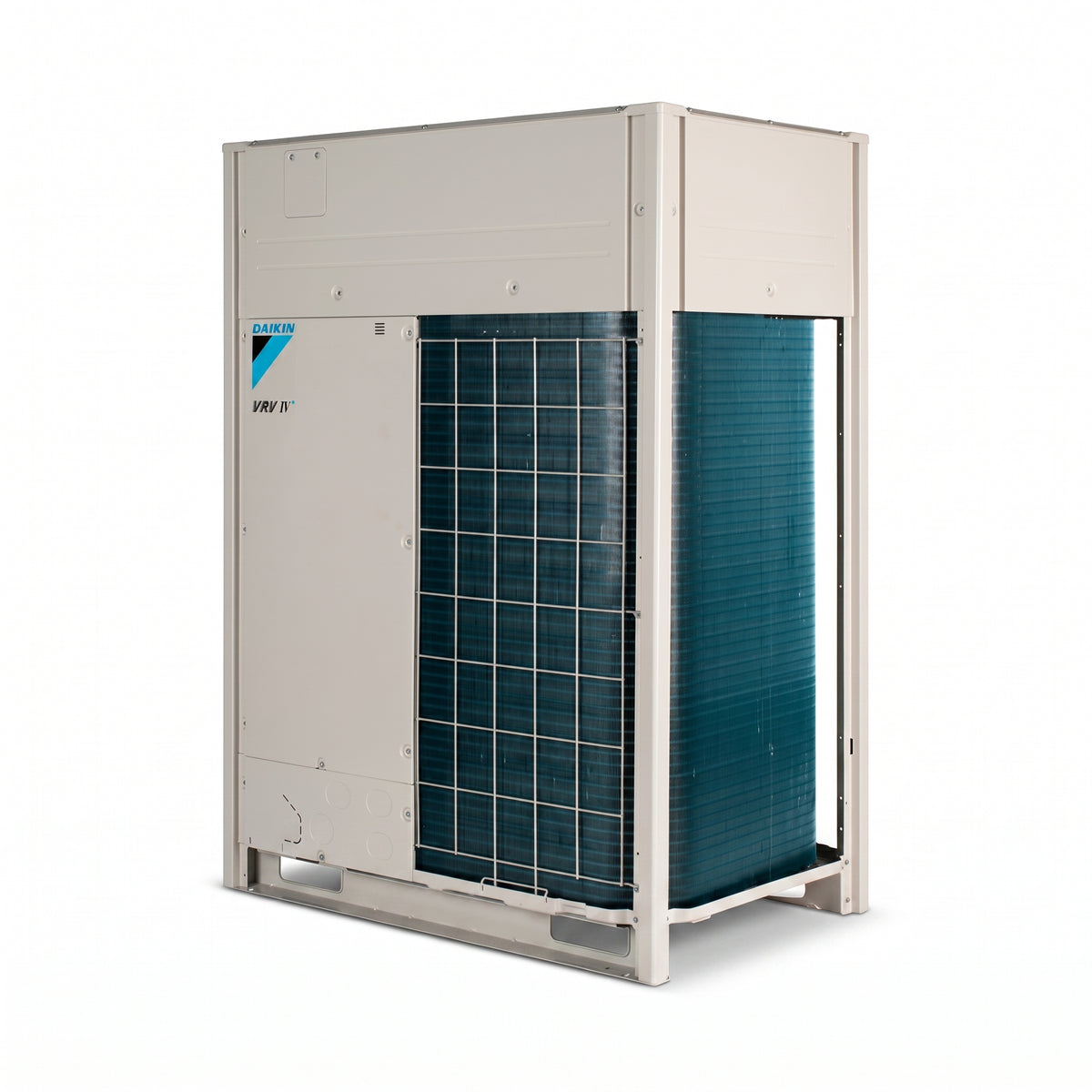

The Daikin RXYTQ12U5YF VRV IV+ is a high-performance outdoor VRV air conditioning unit designed to provide customized comfort, intelligent control, and excellent seasonal efficiency. It is suitable for villas, offices, hotels, retail spaces, and commercial buildings where flexible multi-zone cooling and heating are required. ❄️
Key Features
| Feature | Description |
|---|---|
| Brand | Daikin |
| Model | RXYTQ12U5YF |
| Series | VRV IV+ |
| System Type | Outdoor VRV air conditioning unit |
| Capacity Class | 12 HP |
| Main Technology | Variable Refrigerant Temperature / VRT |
| Refrigerant | R-410A |
| Compressor Type | Hermetically sealed scroll compressor |
| Control Support | VRV configurator software and service diagnosis display |
| Application | Hotels, offices, villas, retail shops, and commercial buildings |

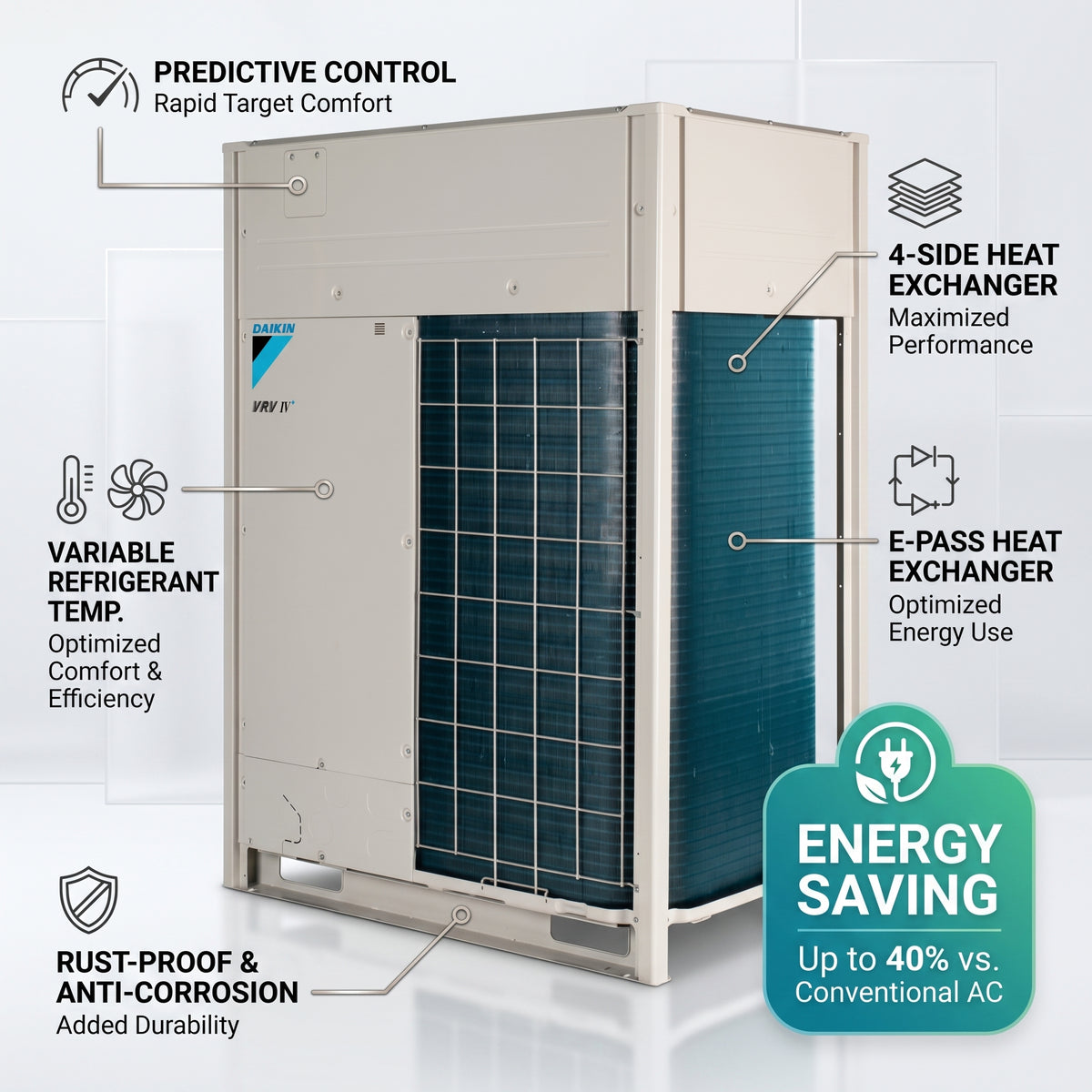

Product Features
| Feature | Details |
|---|---|
| Variable Refrigerant Temperature | Continuously adjusts the refrigerant temperature according to system demand for better seasonal efficiency and comfort. |
| Seasonal Efficiency Improvement | VRT technology can increase seasonal efficiency compared to conventional VRF systems. |
| Weather Compensating Control | Adjusts operation according to outdoor conditions to maintain comfort and reduce unnecessary energy use. |
| Predictive Control Function | Helps the system reach target capacity and refrigerant temperature faster without overshooting. |
| Customized Comfort | Helps maintain comfort by using higher outlet temperatures and reducing cold draughts. |
| Inverter Compressor Control | Controls capacity according to building load for efficient part-load operation. |
| Refrigerant-Cooled PCB | Helps improve reliability in high ambient temperature conditions. |
| 4-Sided Heat Exchanger | Supports improved heat exchange efficiency and stable system operation. |
| DC Fan Motor | Enhances fan motor efficiency, especially during low-speed operation. |
| E-Pass Heat Exchanger | Optimizes heat exchanger flow path for better energy use. |
| I-Demand Function | Limits maximum power consumption according to predefined settings. |
| Low Noise Design | Smooth air inlet bell mouth and aero spiral fan help reduce operating noise. |

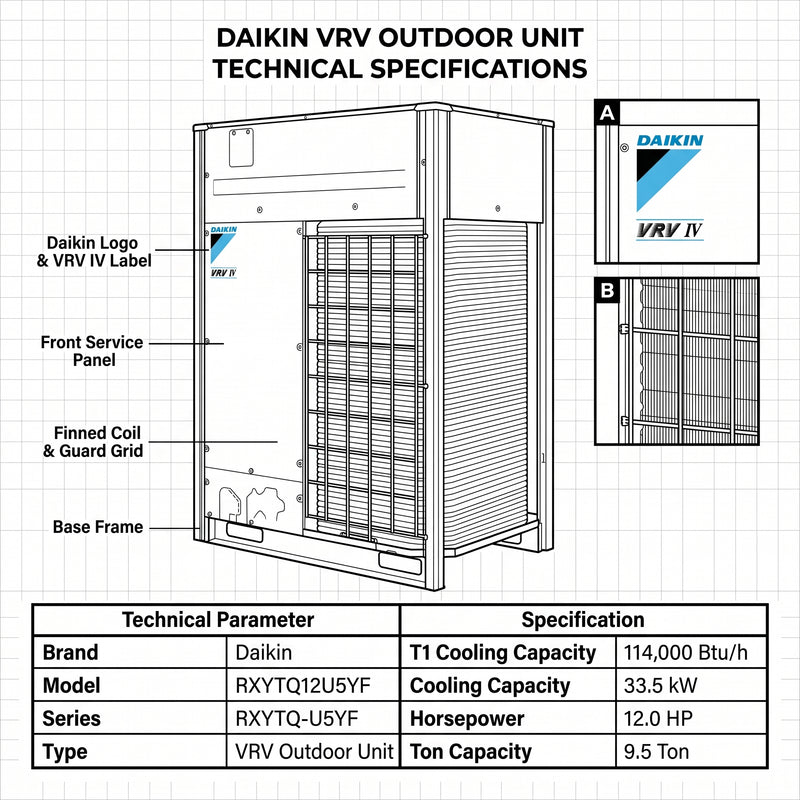

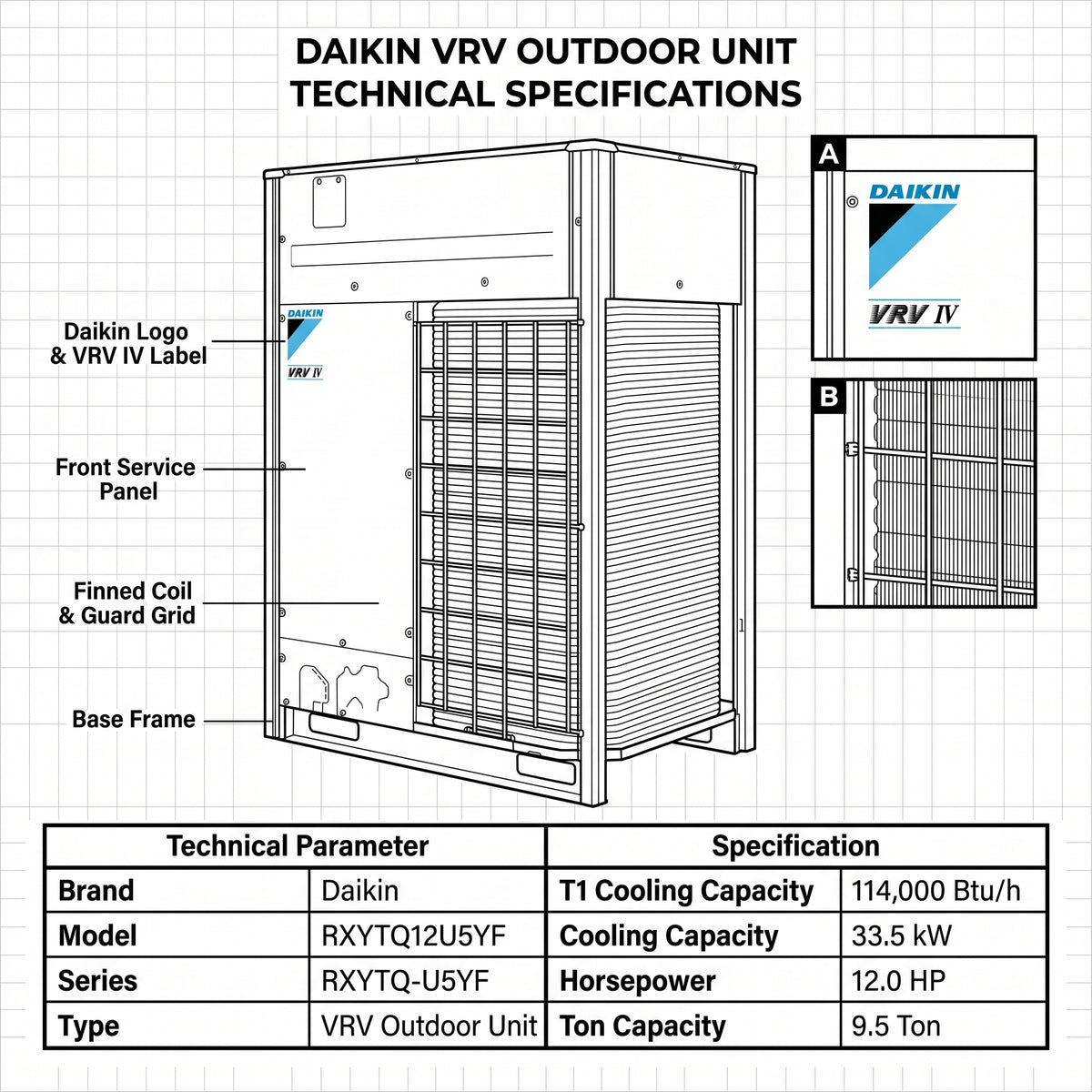

Technical Parameters
| Specification | Details |
|---|---|
| Model | RXYTQ12U5YF |
| Capacity Class | 12 HP |
| Cooling Capacity T1 | 33.5 kW / 114,350 Btu/h |
| Cooling Capacity T3 | 24.0 kW / 81,900 Btu/h |
| Heating Capacity | 37.5 kW / 127,950 Btu/h |
| Cooling EER T1 | 3.52 W/W / 12.01 Btu/h/W |
| Cooling EER T3 | 2.91 W/W / 9.40 Btu/h/W |
| Maximum Connectable Indoor Units | Up to 64 indoor units |
| Indoor Index Connection | Nominal 150 / Min 75 / Max 300 |
| Cooling Operation Range | Up to 52°C outdoor ambient |
| Unit Dimensions | 1,685 × 1,240 × 765 mm |
| Packed Dimensions | 1,820 × 1,305 × 860 mm |
| Unit Weight | 244 kg |
| Packed Weight | 265 kg |
| Compressor Type | Hermetically sealed scroll compressor |
| Compressor Quantity | 1 |
| Sound Pressure Cooling | 58 dBA |
| Refrigerant | R-410A |
| Refrigerant Charge | 5.4 kg |
| Liquid Pipe Connection | 9.5 mm |
| Gas Pipe Connection | 19.1 mm |
| Power Supply Phase | 3N~ |
| Frequency | 50/60 Hz |
| Voltage | 380–415V / 400V |
Application Scope
| Application Area | Details |
|---|---|
| Hotels | Suitable for customized comfort control across multiple rooms and zones. |
| Offices | Ideal for efficient climate control in workspaces and commercial floors. |
| Retail Shops | Supports stable cooling and comfort for customer-facing spaces. |
| Villas | Suitable for premium residential air conditioning with multiple indoor units. |
| Commercial Buildings | Designed for flexible HVAC system layouts and reliable long-term performance. |
| Mixed-Use Projects | Can be used with different indoor unit types for project flexibility. |
Main Benefits
- 12 HP VRV IV+ outdoor air conditioning system
- Advanced Variable Refrigerant Temperature control
- Improved seasonal efficiency and comfort
- Supports up to 64 indoor units
- Suitable for high ambient temperature operation
- Predictive Control Function for faster target performance
- Refrigerant-cooled PCB for better reliability
- Low-noise operation with efficient fan design
- Flexible application for villas, offices, hotels, retail, and commercial spaces
- Designed for intelligent climate control and energy-saving operation ⚙️
