Description

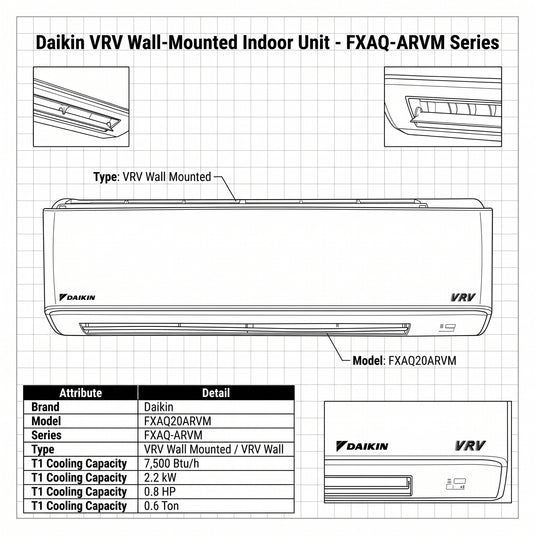

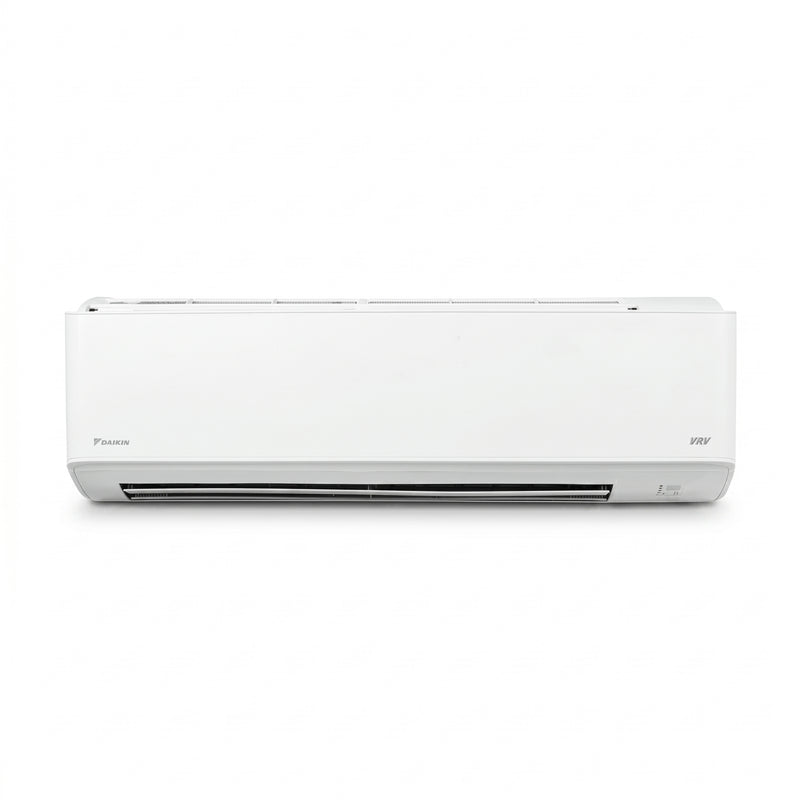

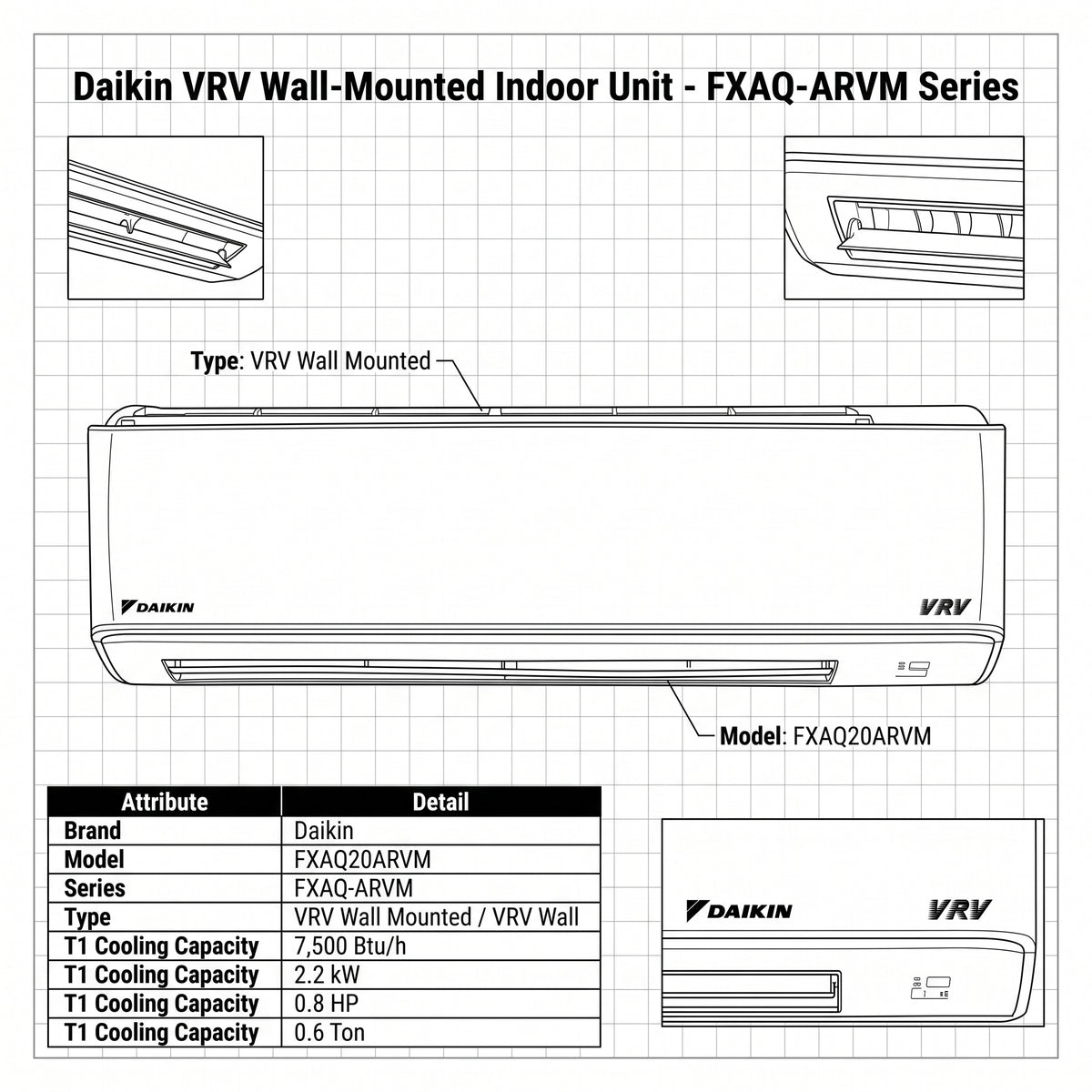

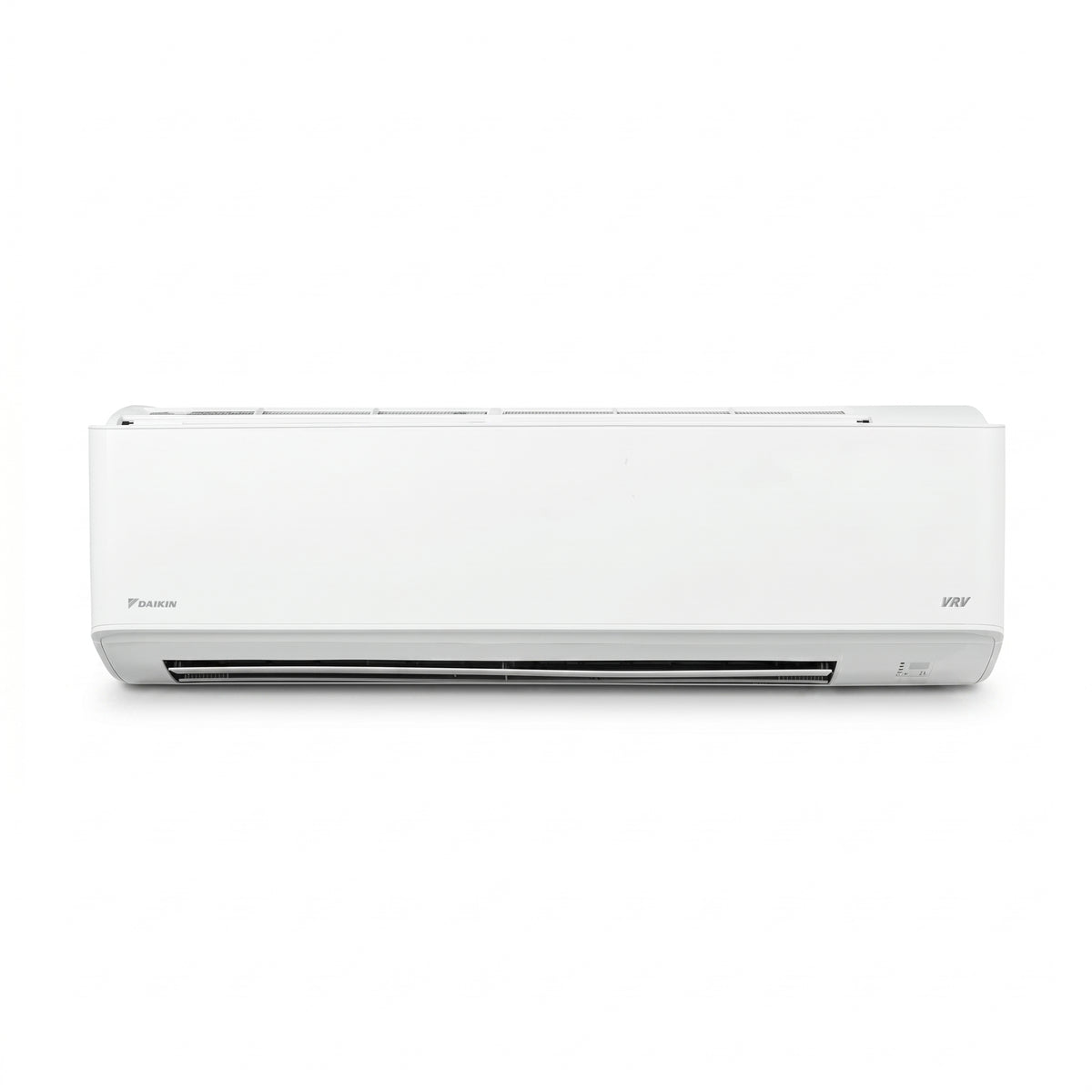

The Daikin FXAQ20ARVM is a compact VRV wall mounted indoor unit designed to provide efficient cooling, quiet operation, and stylish integration into modern interiors. Its clean flat panel design blends smoothly with room décor, making it suitable for homes, villas, apartments, hotel rooms, offices, and commercial interiors. ❄️
Key Features
| Feature | Description |
|---|---|
| Brand | Daikin |
| Model | FXAQ20ARVM |
| Series | FXAQ-ARVM |
| Product Type | VRV wall mounted indoor unit |
| Installation Type | Wall mounted |
| Cooling Capacity | 2.2 kW / 7,500 Btu/h |
| Power Supply | 1-phase, 220V / 240V, 50 Hz |
| Casing Colour | White (N9.5) |
| Sound Level | 35 / 31 dB(A) |
| Application | Homes, villas, apartments, hotel rooms, offices, and commercial interiors |

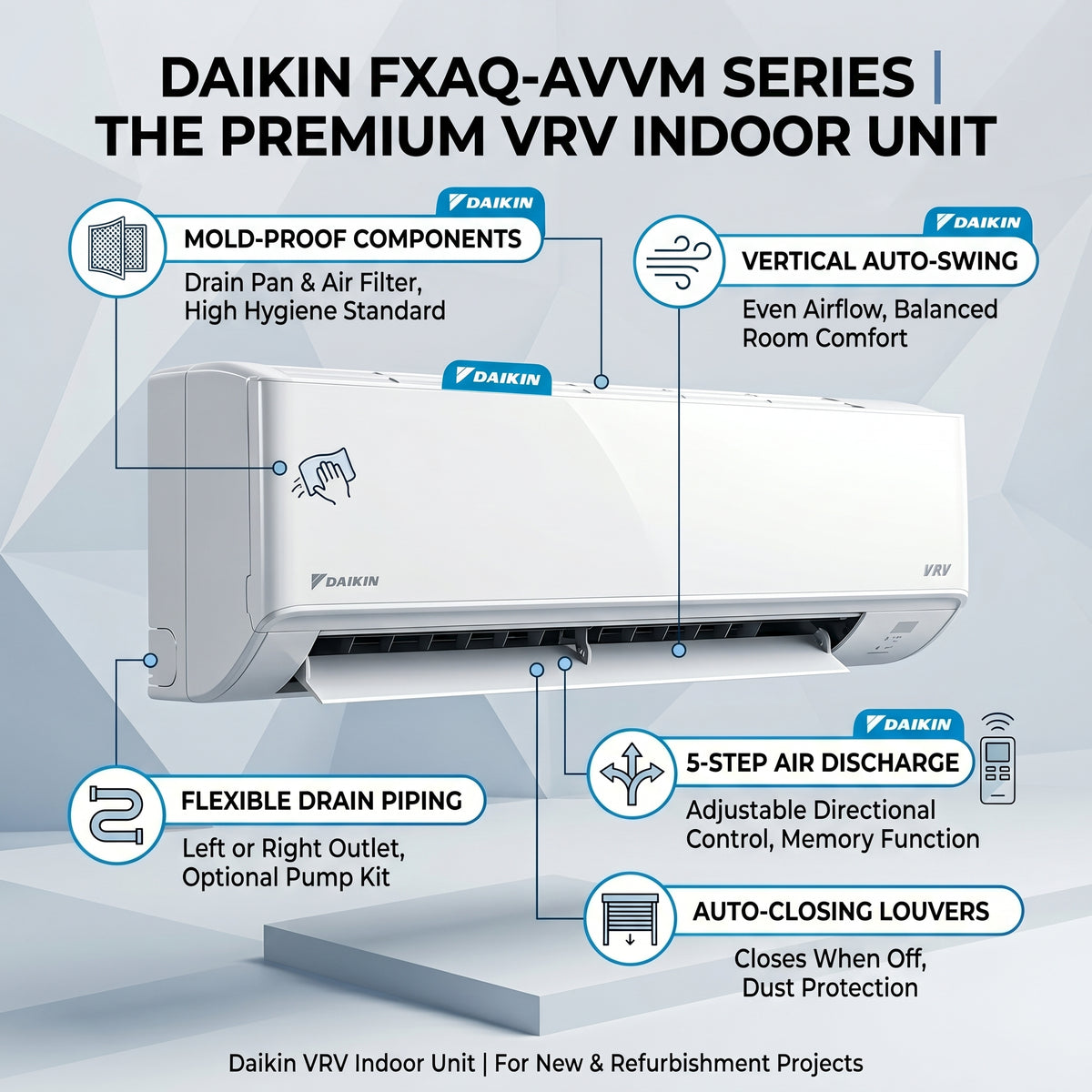

Product Features
| Feature | Details |
|---|---|
| Stylish Flat Panel Design | Creates a clean and graceful appearance that harmonizes with modern interior décor. |
| Easy Cleaning | Smooth flat panels can be cleaned easily with a single pass of cloth. |
| Vertical Auto-Swing | Helps distribute air efficiently throughout the room for improved comfort. |
| Automatic Louver Closing | Louver closes automatically when the unit stops, helping protect the air outlet area. |
| Low Operation Sound | Designed for quiet indoor operation with sound level of 35 / 31 dB(A). |
| Mould-Proof Components | Drain pan and air filter can be kept clean with mould-proof polystyrene. |
| Adjustable Discharge Angle | Five discharge angle steps can be set using the remote controller. |
| Auto Restart Angle Memory | Discharge angle automatically returns to the previous setting when operation restarts. |
| Flexible Drain Pipe Installation | Drain pipe can be fitted from either the left or right side for easier installation. |
| Optional Drain Pump Kit | Optional drain pump kit can lift drain water up to 1,000 mm from the bottom of the unit. |
Technical Parameters
| Specification | Details |
|---|---|
| Model | FXAQ20ARVM |
| Power Supply | 1-phase, 220V / 240V, 50 Hz |
| Cooling Capacity | 7,500 Btu/h / 2.2 kW |
| Casing | White (N9.5) |
| Airflow Rate High / Low | 7.5 / 4.5 m³/min |
| Airflow Rate High / Low | 265 / 159 cfm |
| Sound Level High / Low | 35 / 31 dB(A) |
| Dimensions H × W × D | 298 × 929 × 258 mm |
| Machine Weight | 13.0 kg |
| Liquid Pipe Connection | 6.4 mm flare |
| Gas Pipe Connection | 12.7 mm flare |
| Drain Connection | VP13, External Dia. 18 mm / Internal Dia. 13 mm |
| Installation Type | Wall mounted |
| Panel Design | Flat panel design |
Application Scope
| Application Area | Details |
|---|---|
| Villas & Apartments | Suitable for bedrooms, living rooms, and compact residential spaces. |
| Hotel Rooms | Provides quiet and comfortable cooling with a neat wall mounted design. |

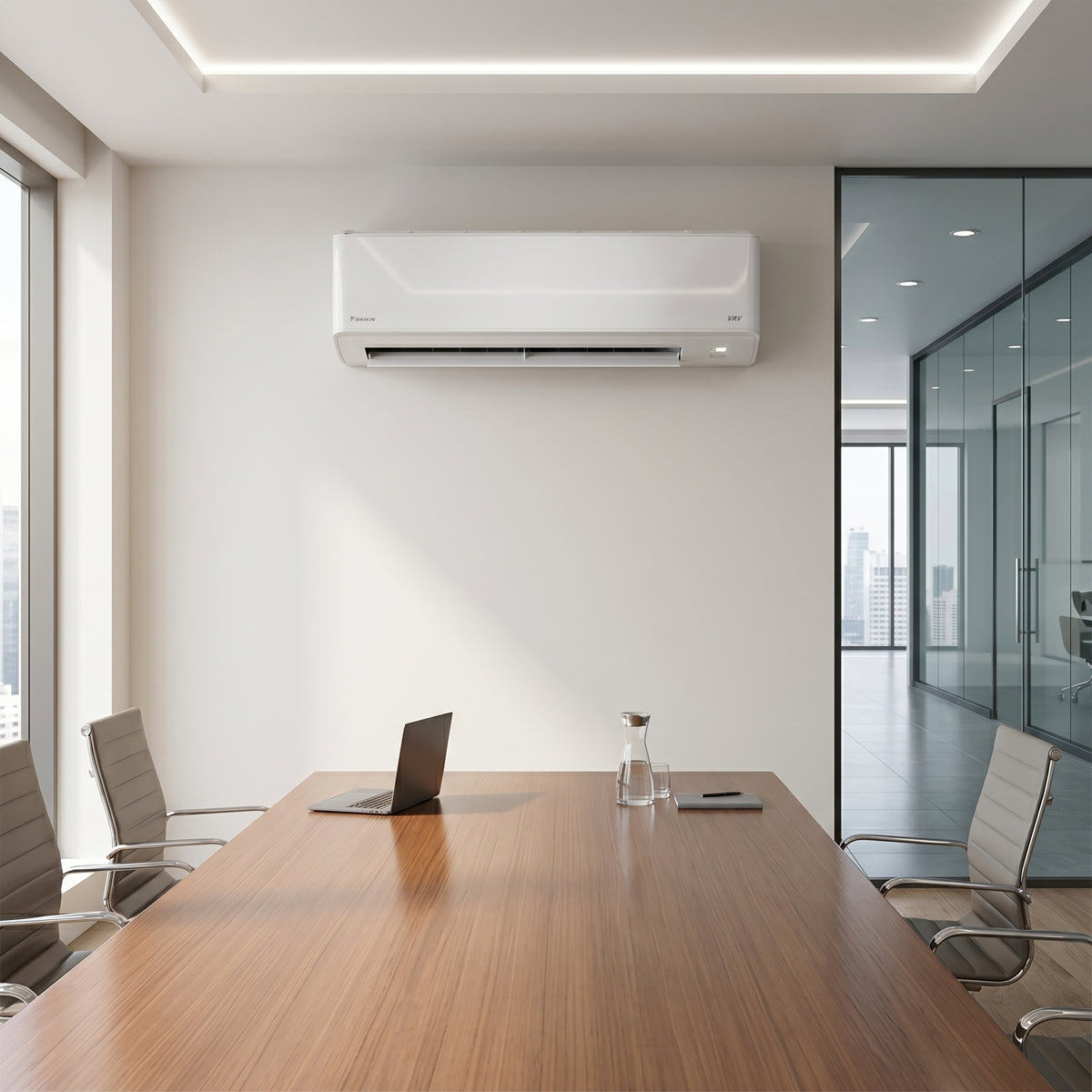

| Offices | Ideal for private cabins, meeting rooms, and small office areas. |
| Retail Spaces | Suitable for boutiques, shops, showrooms, and customer-facing interiors. |
| Commercial Interiors | Works well where compact wall mounted VRV indoor cooling is required. |
| Modern Interiors | Blends smoothly with décor due to its slim flat panel appearance. |
Main Benefits
- Compact VRV wall mounted indoor unit
- Cooling capacity of 2.2 kW / 7,500 Btu/h
- Stylish flat panel design for modern interiors
- Easy-to-clean smooth surface
- Vertical auto-swing for efficient air distribution
- Quiet indoor operation at 35 / 31 dB(A)
- Flexible left or right drain pipe connection
- Optional drain pump kit support
- Suitable for homes, offices, hotels, villas, and retail spaces ⚙️
