Description

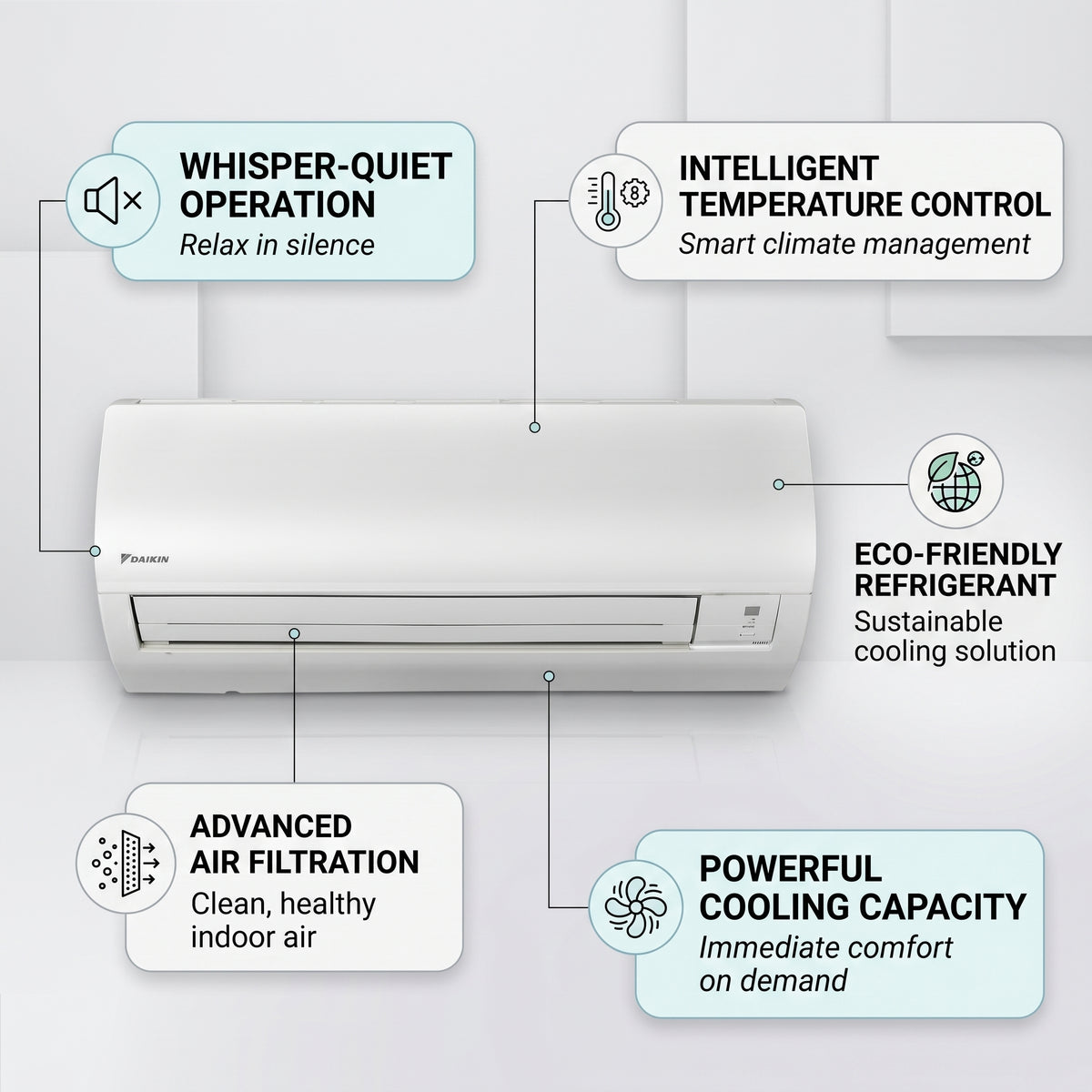

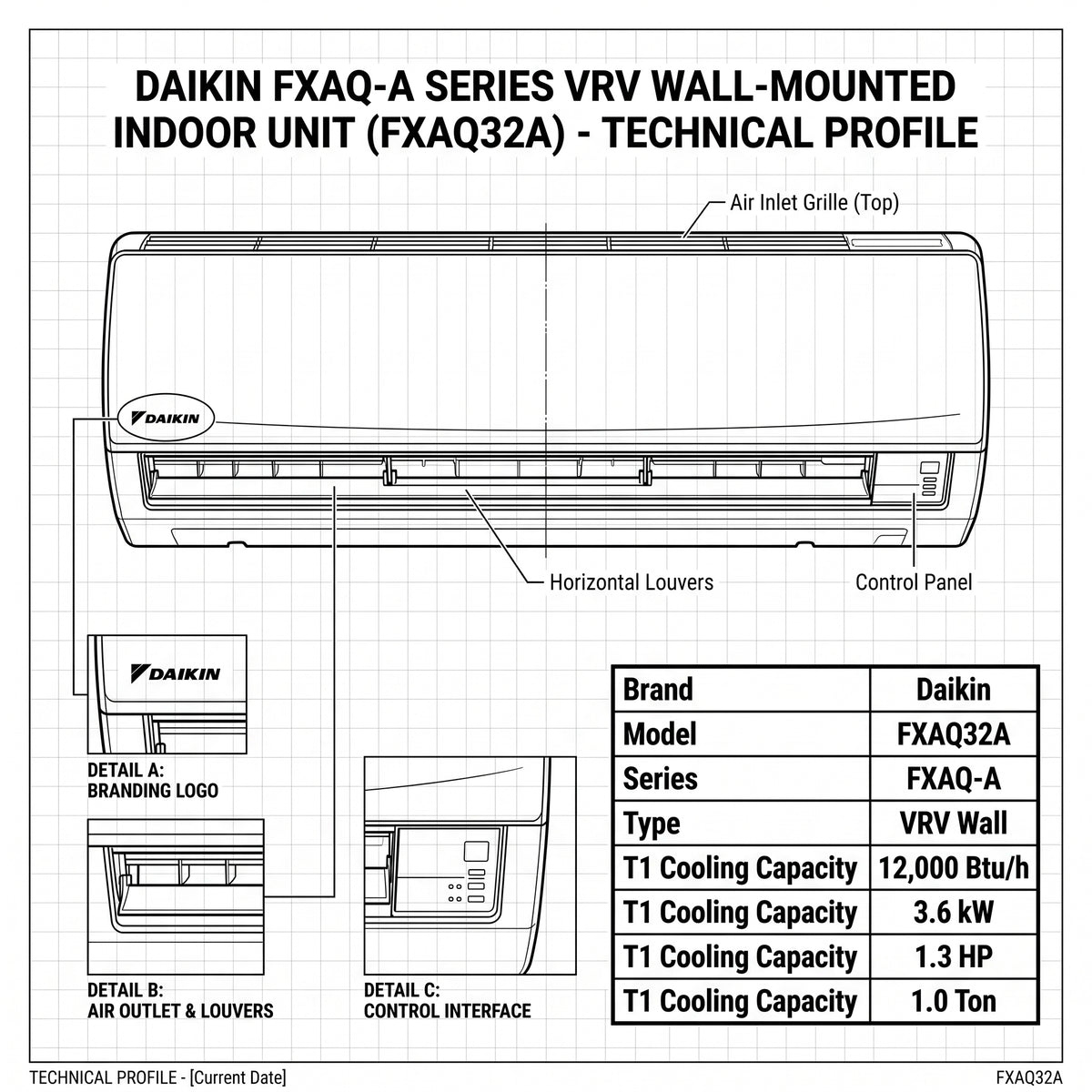

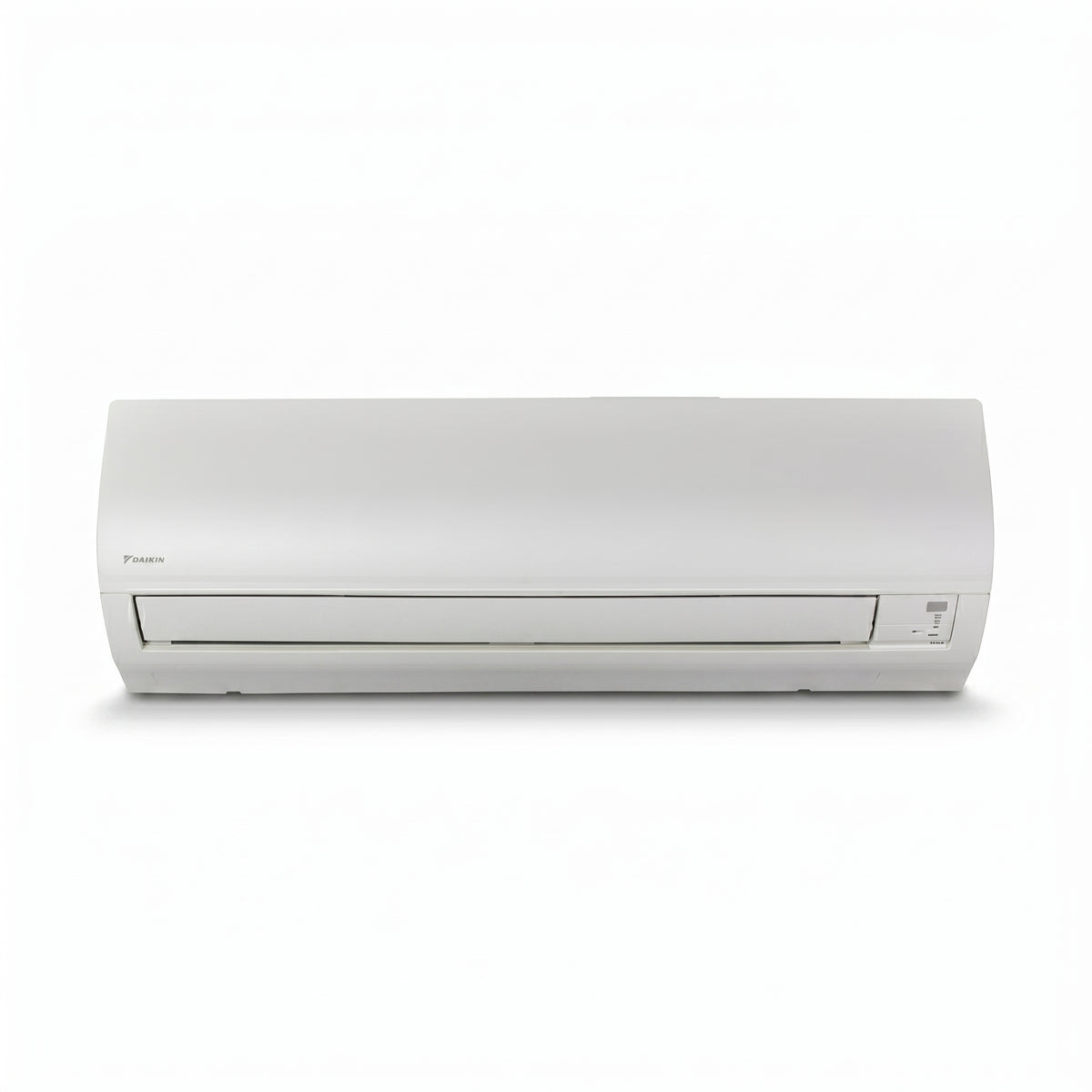

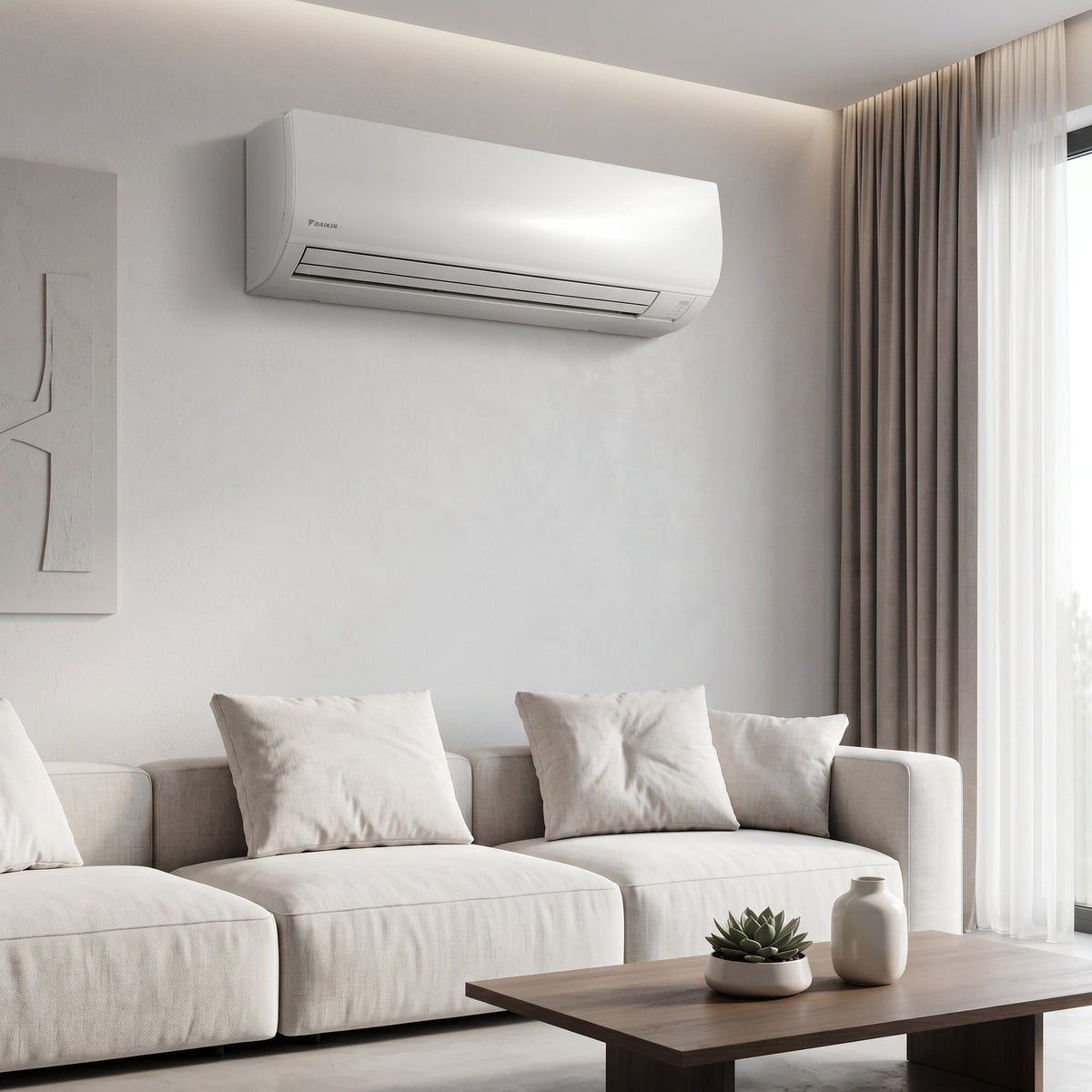

The Daikin FXAQ32A is a stylish VRV wall mounted indoor unit designed to provide efficient cooling and heating, quiet operation, and comfortable air distribution. Its flat front panel blends smoothly with interior décor, making it suitable for homes, villas, apartments, offices, hotel rooms, retail spaces, and refurbishment projects. ❄️
Key Features
| Feature | Description |
|---|---|
| Brand | Daikin |
| Model | FXAQ32A |
| Series | FXAQ-A |
| Product Type | VRV wall mounted indoor unit |
| Installation Type | Wall mounted |
| Cooling Capacity | 3.6 kW |
| Heating Capacity | 4.0 kW |
| Power Supply | 1-phase, 220V / 240V, 50 Hz |
| Casing Colour | White |
| Refrigerant | R-410A |
| Sound Pressure Level | 37.5 / 28.5 dB(A) cooling |
| Application | Homes, villas, apartments, hotel rooms, offices, and commercial interiors |
Product Features
| Feature | Details |
|---|---|
| Stylish Flat Front Panel | Flat and modern front panel blends easily with any interior décor and is simple to clean. |
| Easy Installation | Can be installed in both new and refurbishment projects, making it a versatile indoor unit. |
| Cooling & Heating Operation | Provides cooling and heating comfort for year-round indoor climate control. |
| DC Fan Motor | Specially developed DC fan motor helps reduce energy consumption and improve operation efficiency. |
| Vertical Auto-Swing | Comfortably spreads air upward and downward for even room air distribution. |
| Five Discharge Angles | Airflow direction can be programmed through the remote controller. |
| Whisper Quiet Operation | Designed for quiet indoor use, making it suitable for bedrooms, offices, and hotel rooms. |
| Fan Only Operation | Can be used as a fan without cooling or heating when only air circulation is needed. |
| Dry Programme | Helps reduce humidity without major changes in room temperature. |
| Auto Cooling / Heating Changeover | Automatically selects cooling or heating mode to reach the set temperature. |
| Home Leave Operation | Maintains indoor temperature at a selected comfort level during absence while helping save energy. |
| Easy Front Maintenance | Maintenance operations can be performed easily from the front of the unit. |
| Air Filter | Washable resin net filter helps remove airborne dust particles. |
| Weekly Timer | Can be set to start cooling or heating on a daily or weekly schedule. |
| Auto Restart Function | Automatically restarts the unit with original settings after a power failure. |
| Self-Diagnosis Function | Simplifies maintenance by indicating system faults or operating anomalies. |
| Remote Control Options | Compatible with infrared and wired remote controller options. |
| Centralised Control Support | Can be connected to a centralised control system for managing multiple units from one point. |
| Optional Drain Pump Kit | Optional drain pump kit supports easier condensation drainage from the indoor unit. |
Technical Parameters
| Specification | Details |
|---|---|
| Model | FXAQ32A |
| Cooling Capacity | 3.6 kW |
| Heating Capacity | 4.0 kW |
| Power Input Cooling | 0.03 kW |
| Power Input Heating | 0.04 kW |
| Dimensions H × W × D | 290 × 795 × 266 mm |
| Machine Weight | 12 kg |
| Casing | White |
| Airflow Rate Cooling High / Low | 9.8 / 7.0 m³/min |
| Air Filter Type | Washable resin net |
| Sound Power Level Cooling | 55.0 dB(A) |
| Sound Pressure Level Cooling High / Low | 37.5 / 28.5 dB(A) |
| Sound Pressure Level Heating High / Low | 38.5 / 28.5 dB(A) |
| Refrigerant Type | R-410A |
| GWP | 2087.5 |
| Liquid Pipe Connection OD | 6.35 mm |
| Gas Pipe Connection OD | 12.7 mm |
| Drain Connection | VP13, I.D. 15 mm / O.D. 18 mm |
| Power Supply | 1-phase, 50 Hz, 220–240V |
| Maximum Fuse Amps | 16 A |
| Infrared Remote Control | BRC7EA628 / BRC7EA629 |
| Wired Remote Control | BRC1H51W / S / K, BRC1E53A / B / C |
Application Scope
| Application Area | Details |
|---|---|
| Villas & Apartments | Suitable for bedrooms, living rooms, and residential indoor spaces. |
| Hotel Rooms | Provides quiet cooling and heating with a clean wall mounted appearance. |
| Offices | Ideal for private offices, meeting rooms, cabins, and workspaces. |
| Retail Spaces | Suitable for shops, showrooms, boutiques, and customer-facing interiors. |
| Commercial Interiors | Works well where wall mounted VRV indoor cooling and heating are required. |
| Refurbishment Projects | Suitable for renovation projects due to its simple wall mounted installation. |
Main Benefits
- Stylish VRV wall mounted indoor unit
- Cooling capacity of 3.6 kW
- Heating capacity of 4.0 kW
- Flat front panel blends with modern interiors
- Quiet operation for comfortable indoor use
- DC fan motor for improved energy efficiency
- Vertical auto-swing for better air distribution
- Five discharge angle settings via remote controller
- Fan only and dry operation modes
- Auto cooling / heating changeover
- Easy front maintenance
- Infrared and wired remote control compatibility
- Centralised control system support
- Optional drain pump kit for flexible installation ⚙️
