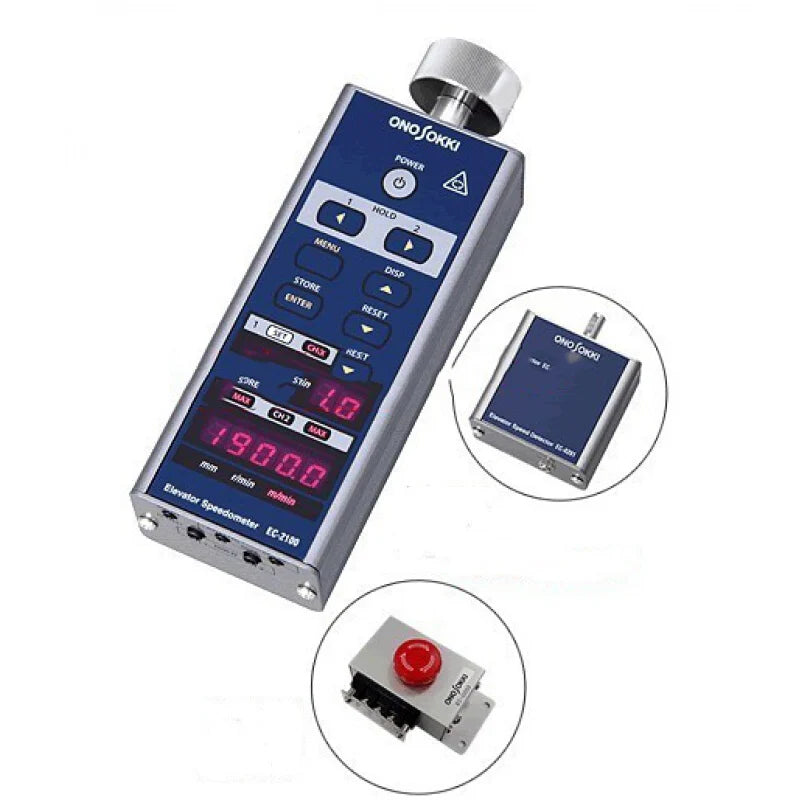

EC-2100 Elevator Speedometer Suitable For Onosokki Speedometer

The EC-2100 Elevator Speedmeter is a compact, lightweight, handheld instrument designed for elevator adjustment, maintenance, and inspection. Powered by a rechargeable battery, it provides accurate speed measurement for both standard and high-speed elevators.

Compared with the previous EC-900 model, the EC-2100 offers twice the measurement range (up to 2000 m/min) and a 10 ms calculation time, making it suitable for modern high-speed elevator systems.

The device measures elevator speed by gently contacting the sling pulley of the elevator traction machine. A bright red LED display ensures clear visibility, even in low-light environments.

Using the optional EC-0201 External Detector or compatible fixing accessories, a single technician can conveniently perform elevator speed testing. The measured values can be locked using either the function button on the device or an external input signal, ensuring reliable and stable measurements.

The EC-2100 features dual indicators, allowing two measured values to be independently locked and retained. When equipped with the optional EC-0202 Distance Measurement Module, it can also measure the elevator's travel distance within a specified time. Combined with the EC-0203 Trigger Device, it can measure the emergency stopping distance of escalators.

Key Features

• Handheld, compact, and lightweight design
• Designed for elevator adjustment, maintenance, and inspection
• Measurement range up to 2000 m/min
• Ultra-fast 10 ms calculation time
• Suitable for high-speed elevator speed measurement
• Bright red LED display for easy reading in dark environments
• Dual value hold function for independent measurement locking
• Stores up to 10 groups of measurement data
• Standard analog voltage output and pulse output
• Maximum value hold function
• Average processing function with configurable averaging (1–200 samples)
• Automatic power-off feature
• Battery level indicator
• Optional distance measurement capability
• Optional remote measurement using an external detector
• Can be used as a handheld tachometer with the optional KS-300 accessory

Optional Accessories

• EC-0201 External Detector
  • Enables remote measurement from the testing point.
  • Allows one-person elevator speed testing.
• EC-0202 Distance Measurement Function
  • Measures elevator travel distance within a preset time.
  • Rotation direction symbol can be configured.
• EC-0203 Trigger Device
  • Used with the distance measurement function to measure escalator emergency stopping distance.
• KS-300
  • Enables use as a handheld tachometer.
