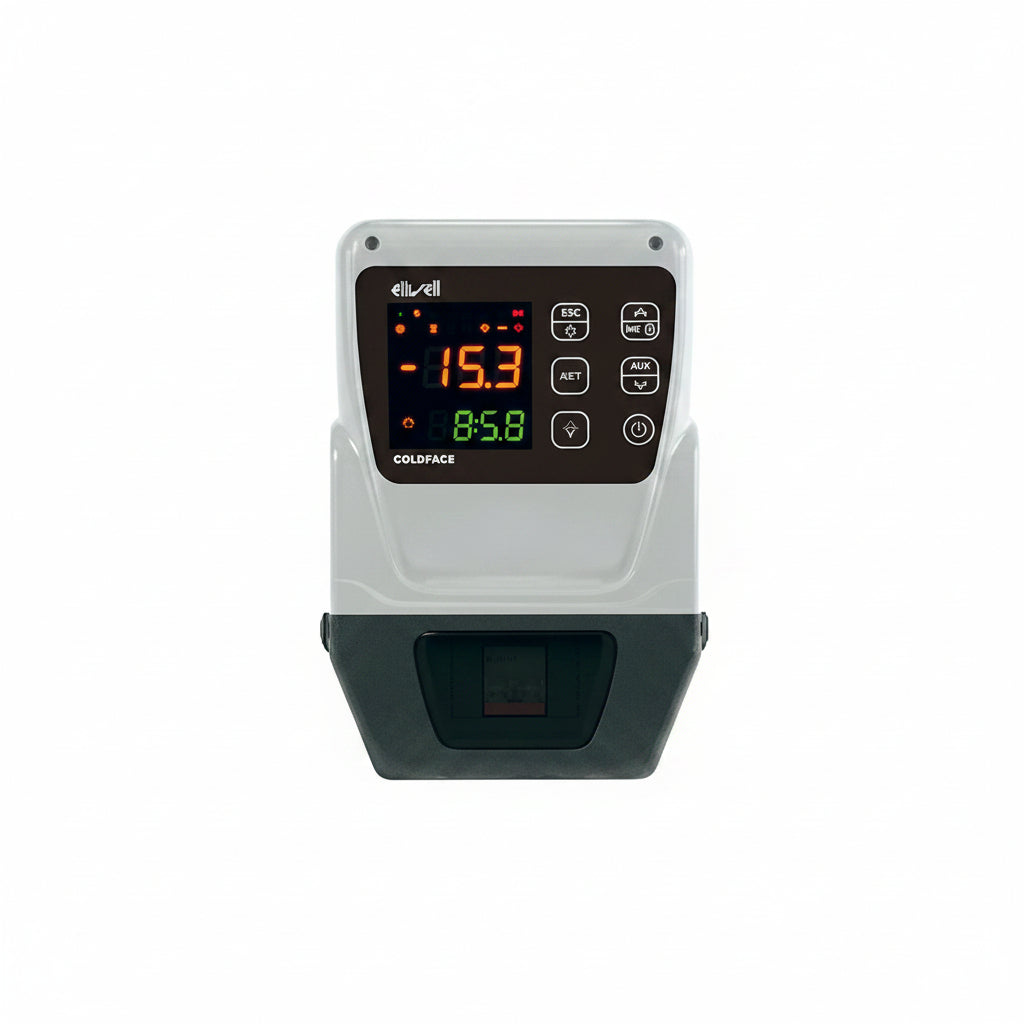

EWRC 500 NT –SPA -RTC - HACCP-BUZ-AIR RCNS3UDTX2S700

Vendor F A J Trading LLC
Short Description

Operating Temperature: -5...50
Storage Temperature: -20…85
Ambient Humidity: 10…90% RH (non-condensing)
Power Supply: 220/230 Vac

No Hidden Charges
Payment Badge
Reliable Delivery
Payment Badge
Electronic Payments
Payment Badge
Buy Now Pay Later
This is a pre order item. We will ship it when it comes in stock.

Description

Power Draw
14W max
Power Terminals
screw-type
Display Range
NTC: -50,0…+110,0°C
PTC: -55,0…+150,0°C
N. Analogue Inputs
3
Analogue Inputs
3x PTC or NTC
N. Digital Inputs
2
Digital Inputs
2x voltage-free
N. Digital Outputs
5
Digital Outputs
Common-line max 18A
1x 2HP 12(8)A 250Vac
1x 1HP 8(8)A 250Vac
1x 1/2HP 8(4)A 250Vac
1x 1HP 8(8)A 250Vac
1x SPDT 1/2HP NO 8(4)A, NC 6(3) A 250Vac
Display
2x LED 3 digits + Sign
Resolution
1 or 0,1°C
Measurement Range
-55…+150°C
Connectivity
TTL and RS485 port for HACCP Module (Eliwell AIR), Unicard, TelevisSystem and ModBus RTU systems
N. Serial Ports
1
Serial Ports
1x TTL
1x RS485 Optional
Weight (g) Net
1713
Width (L) Net
221
Height (Ht) Net
318
Depth (P) Net
107
Weight (g) Packaging
2015
Width (L) Packaging
321
Height (Ht) Packaging
217
Depth (P) Packaging
135
