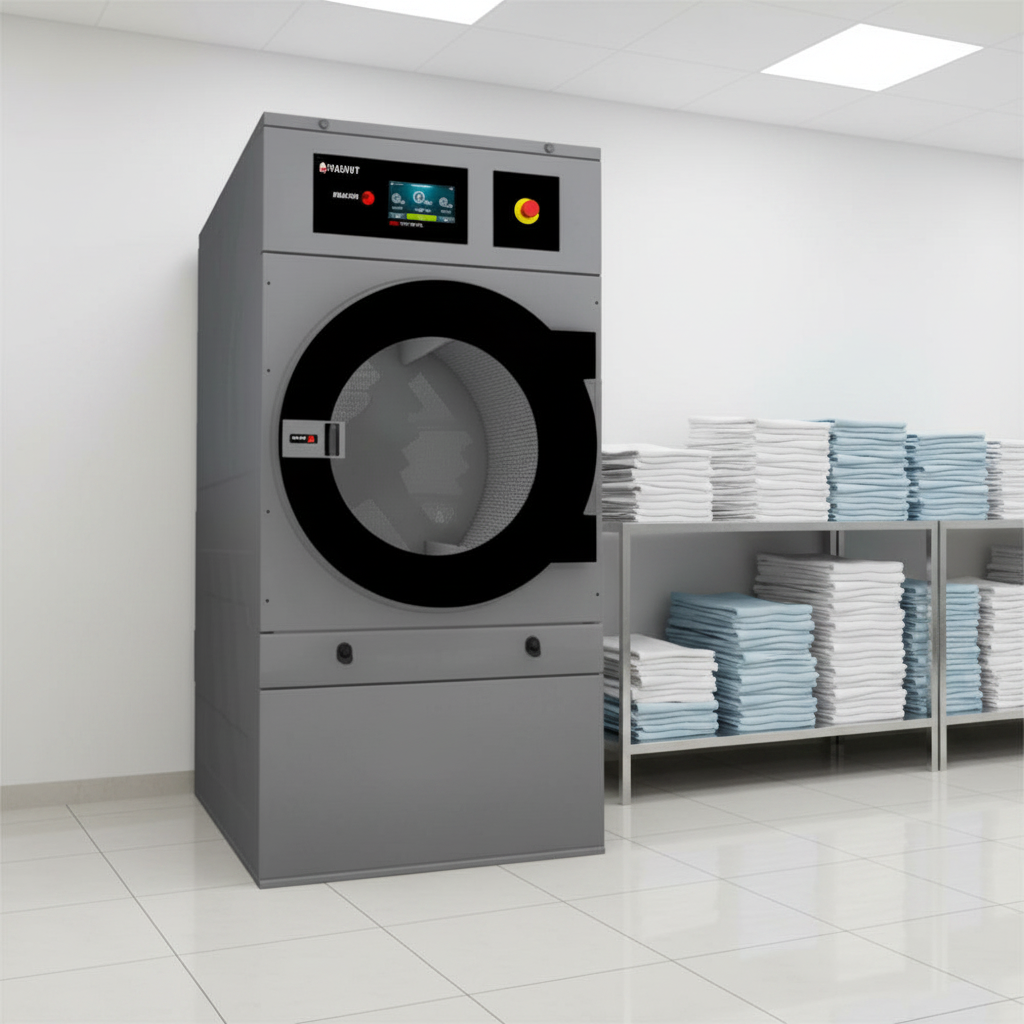

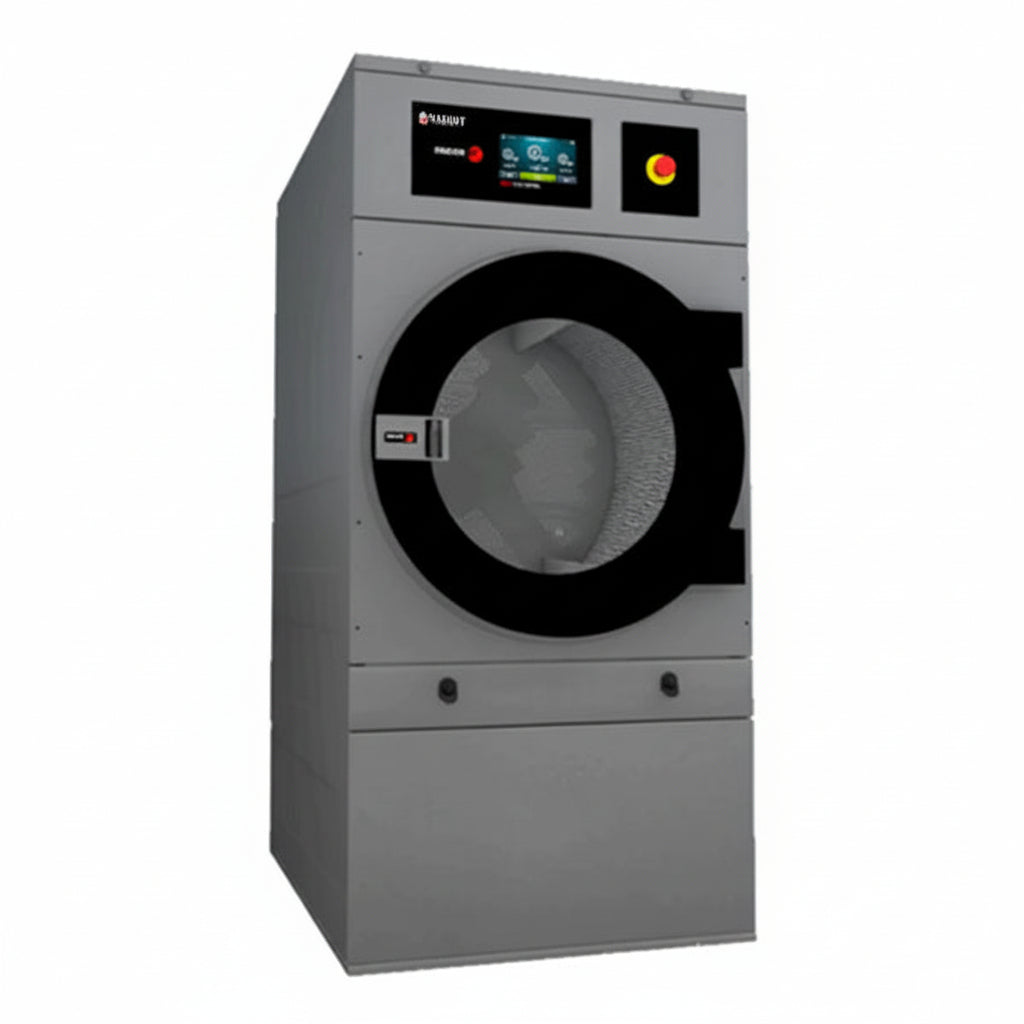

Fagor Laundry Dryers (Up to 460 Litres) SR-22 M E

• Capacity: 22-24 kg
• Easy Control “M”.
•  All models offer reverse motor rotation. This makes the drying process more efficient and offers greater uniformity in the clothes drying process.
• The reverse rotation drum system is performed by the inverter.
• Drum: 835 mm / Drum length: 800 mm
• Drum volume: 440 l / Door: 574 mm

Power: (Electric / Gas)

• Installed heating power: 24 kW / Gas power: 105775,6 Btu/hr
• Installed electrical power: 24,97 KW / Gas Power: 0,97 KW
• Installed heating power gas: 31 kW
• Evaporation capacity: 17 l/hr / For Gas : 20 l/hr
• Hourly output: 34 Kg/h / For Gas: 40 Kg/hr
• Gas inlet: 1/2” BSPP ISO 228-1

 Steam Power:

• Installed heating power steam: 49,2 kW
• Installed electrical power: 0,97 kW
• Ventilation: Nominal air flow: 1200 m³/h , Air outlet Ø: 200mm
• Fan motor power: 0,55 kW
• Total max heat dissipation: 2,4 kW
• Front panel max heat dissipation: 1,68 kW
• Voltage: 400V 3N 50 Hz
• Net / Gross weight: 210 / 230 kg
• Dim: 890 x 1255 x 1812 mm.
• SR-22 M E / Fogor Professional / Italy made.
