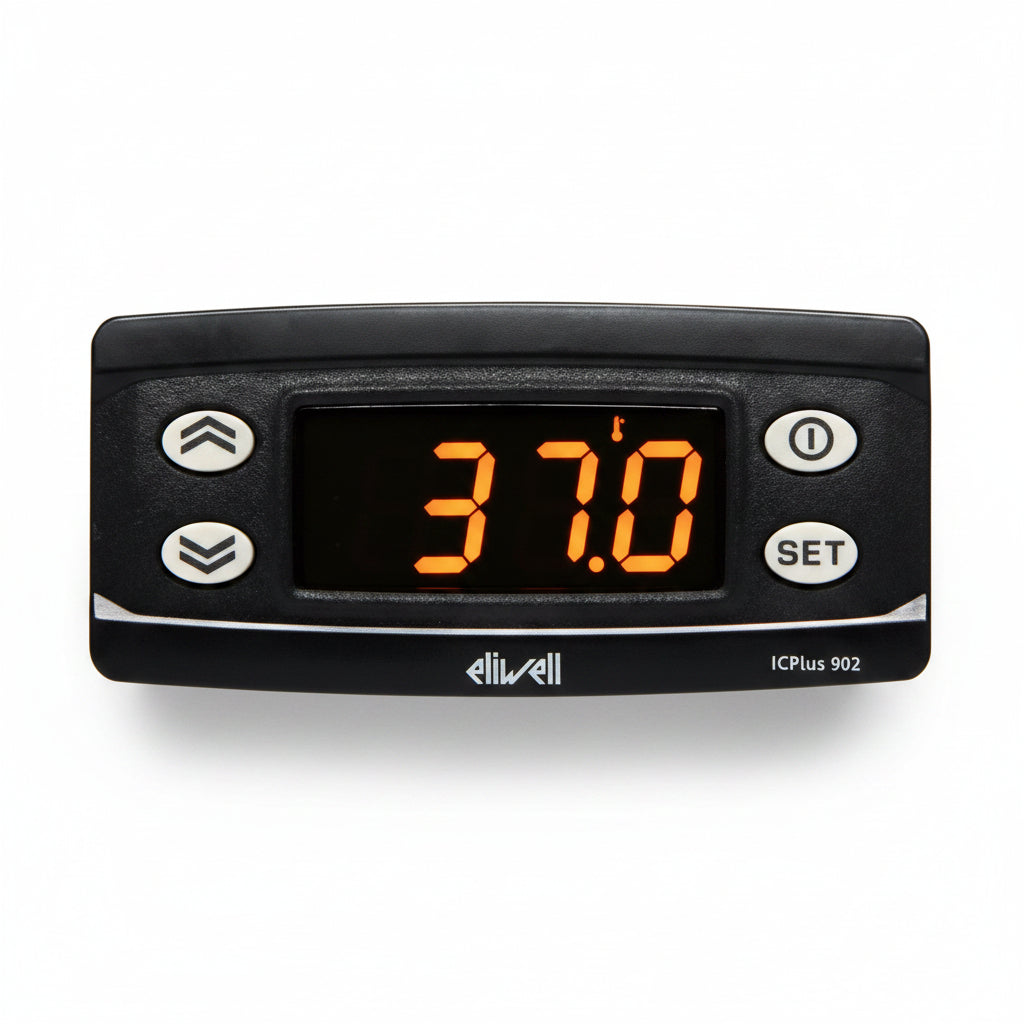

IC PLUS 902 NTC/PTC 12-24V ICP11D0450000

Key features

Operating Temperature: 0...55
Storage Temperature: -30…85
Ambient Humidity: 10…90% RH (non-condensing)
Power Supply: 12…24Vac or 12…36Vdc
Power Draw: 3W max

Shop with confidence

Payment Badge
Fast Delivery
Payment Badge
Buy Now Pay Later
Payment Badge
Secure Payments
Payment Badge
Trusted Quality
Display Range
NTC: -50,0…+110,0°C
PTC: -50,0…+140,0°C
N. Analogue Inputs
1
Analogue Inputs
1x PTC or NTC
N. Digital Inputs
0
N. Digital Outputs
1
Digital Outputs
1x SPDT 8(4)A 250Vac
Display
LED 3 digits + sign
Resolution
1 or 0,1°C
Measurement Range
-50…+140°C
Accuracy
better than 0,5% of full scale + 1 digit
Connectivity
TTL port for connection to USB Unicard, TelevisSystem and systems with Modbus protocol
N. Serial Ports
1
Serial Ports
1x TTL
Installation
panel, 71x29mm
Weight (g) Net
150
Width (L) Net
79
Height (Ht) Net
37
Depth (P) Net
59
Weight (g) Packaging
157
Width (L) Packaging
130
Height (Ht) Packaging
90
Depth (P) Packaging
50
