F A J Trading L.L.C

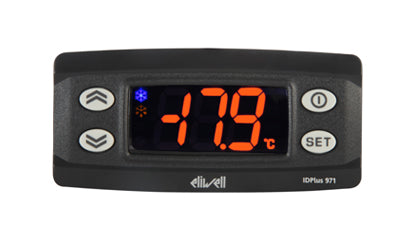

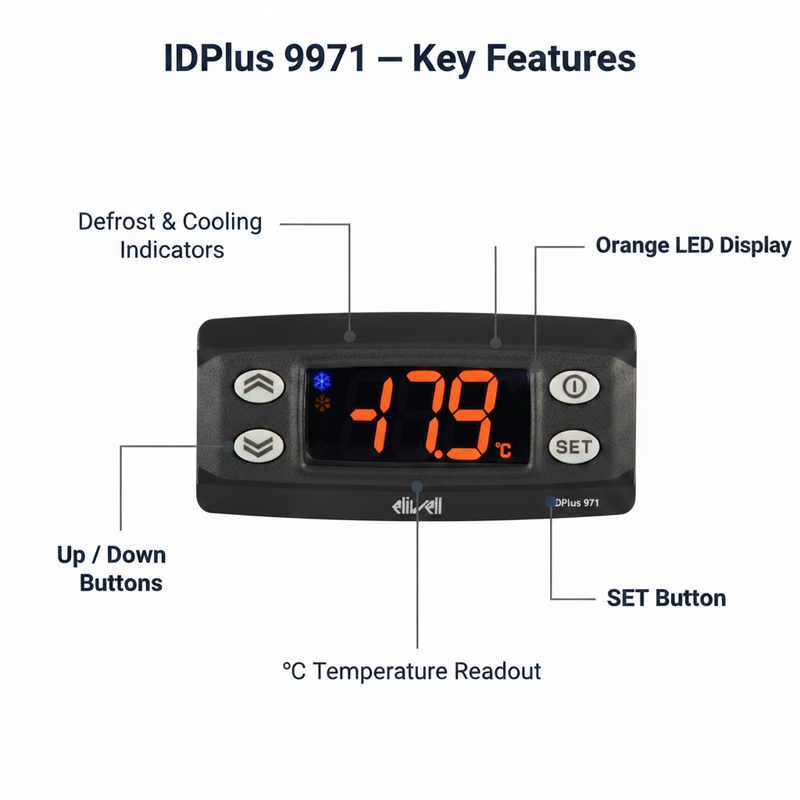

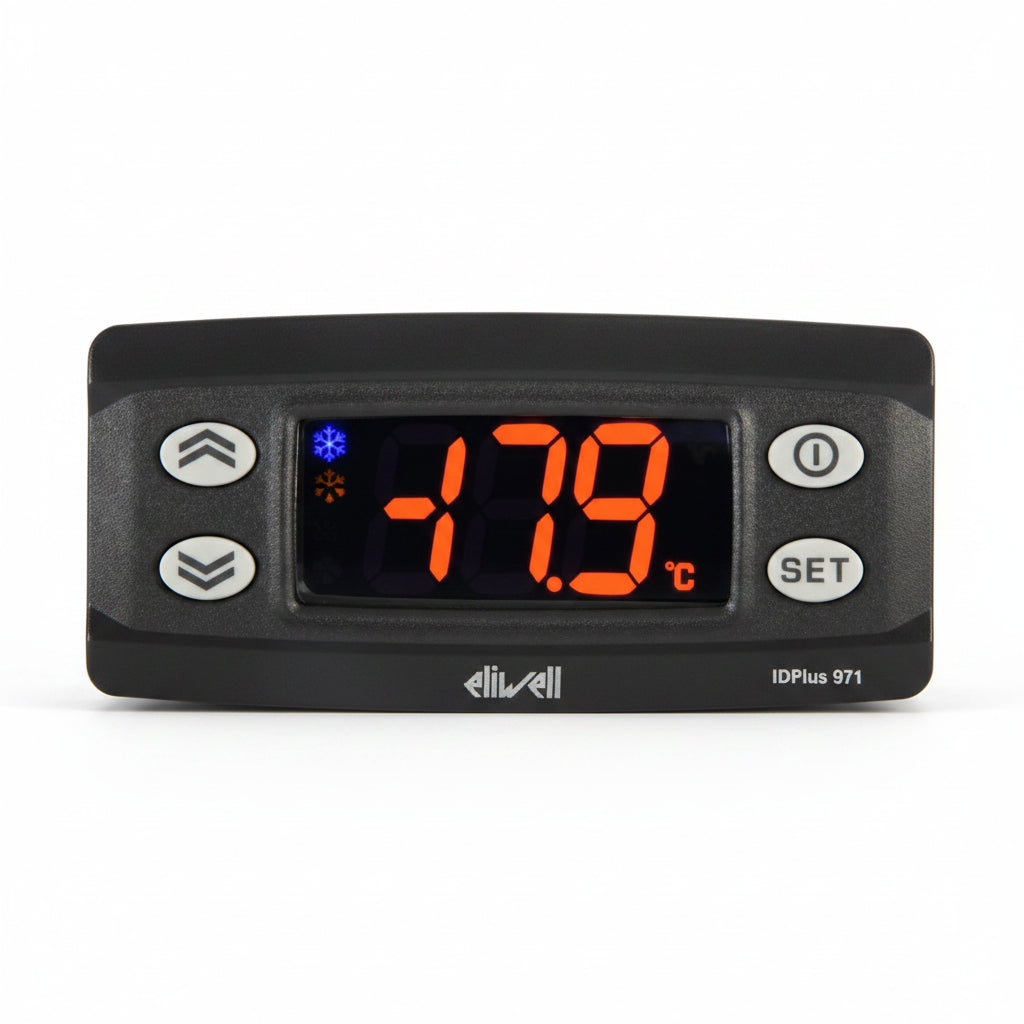

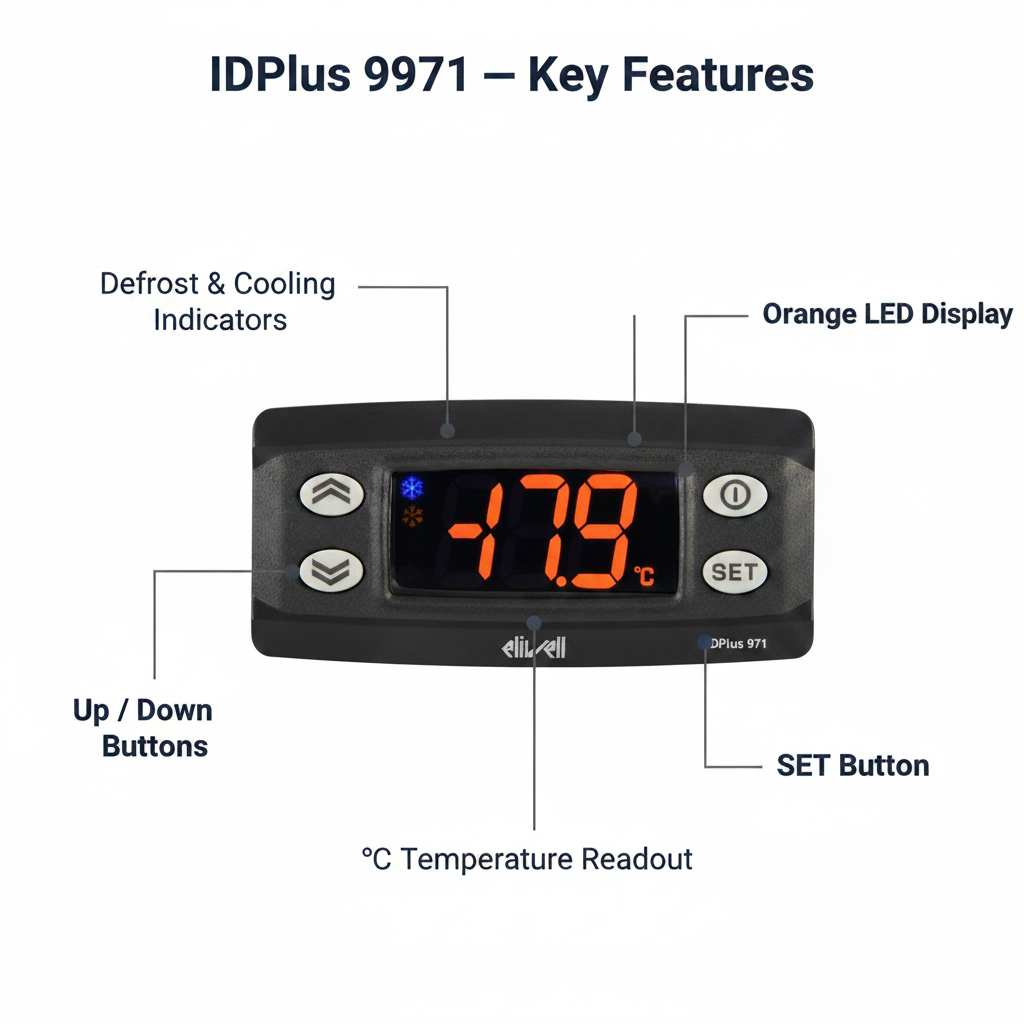

ID PLUS 971 NTC 2HP BUZ 12Vac-dc IDP29DB300000

Get a Quote

Key features

Operating Temperature: -5...55
Storage Temperature: -30…85
Ambient Humidity: 10…90% RH (non-condensing)
Power Supply: 12 Vac-dc
Power Draw: 3W max

Shop with confidence

Payment Badge
Fast Delivery
Payment Badge
Buy Now Pay Later
Payment Badge
Secure Payments
Payment Badge
Trusted Quality
Display Range
NTC: -50,0…+110,0 °C
PTC: -55,0…+140,0 °C
Pt1000: -55,0...+150,0 °C
N. Analogue Inputs
2
Analogue Inputs
2x PTC or NTC or Pt1000
N. Digital Inputs
1
Digital Inputs
1x SELV
N. Digital Outputs
2
Digital Outputs
1x SPDT 1/2Hp 8(4)A 250Vac
1x SPST 2Hp 12(12)A 250Vac
Display
LED 3 digits + sign
Resolution ( 0.1°C with decimal point )
1 or 0,1°C
Measurement Range
-55,0…+150,0°C
Accuracy
better than 0,5% of full scale + 1 digit
Connectivity
TTL port for connection to UnicardCopy Card or TelevisSystemModBus monitoring device
N. Serial Ports
1
Serial Ports
1x TTL
Installation
panel, 71x29mm
Accessories
Unicard USB/TTL
Functions
HACCP, DCC, Easy Map, COH, TTL configurable as DI2
Weight (g) Net
150
Width (L) Net
79
Height (Ht) Net
37
Depth (P) Net
59
Weight (g) Packaging
167
Width (L) Packaging
130
Height (Ht) Packaging
90
Depth (P) Packaging
50
