Janitza

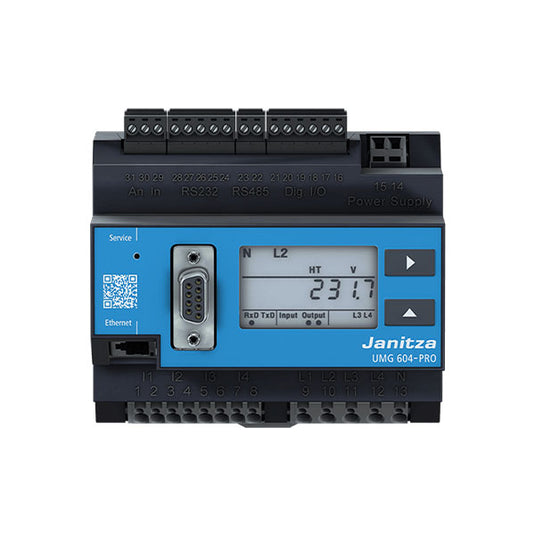

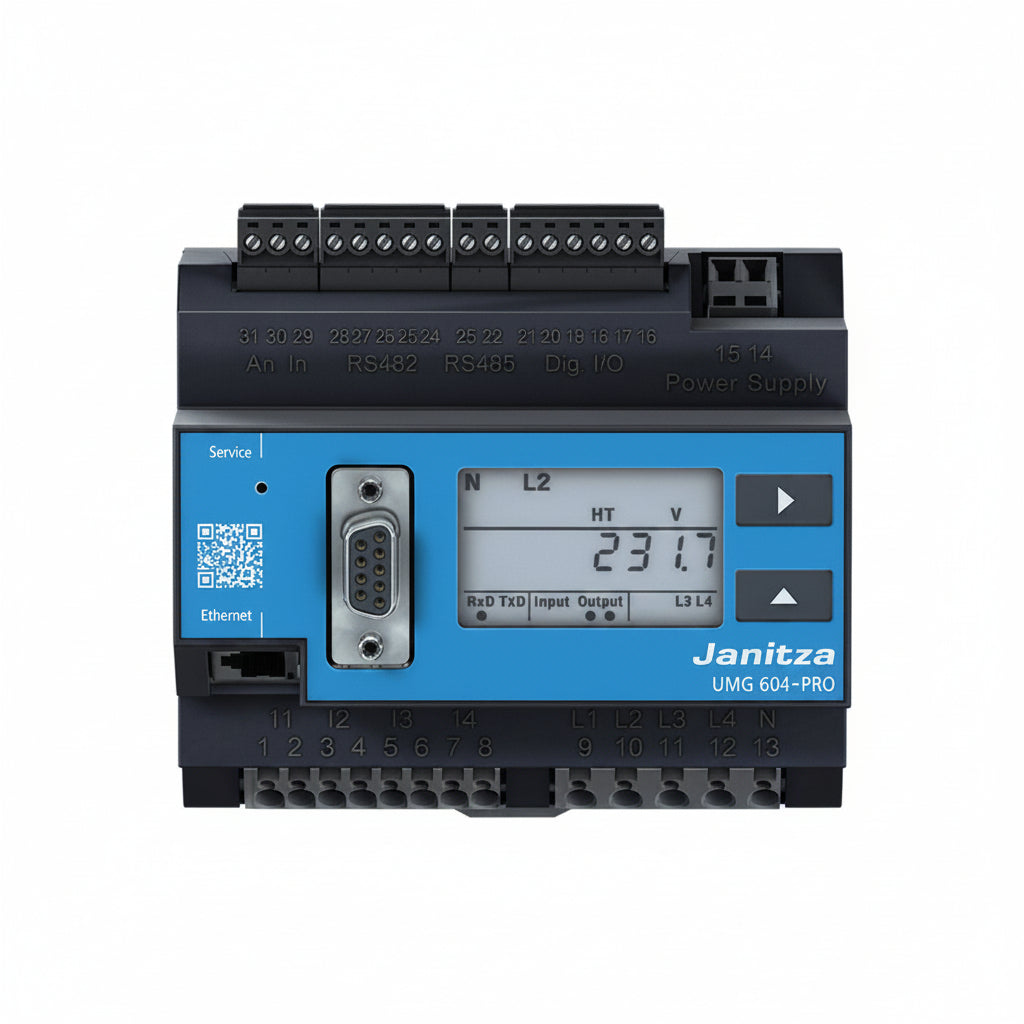

Janitza Power supply Analyzer UMG 604 E PRO 230V UL, E

Key features

  • Measurement: IT, TN, and TT systems
  • Registers: Over 800 measured values
  • Inputs: 4 voltage & 4 current measurement inputs
  • Scanning: Continuous voltage and current scanning
  • Energy Measurement: Class 0.5 for 5A transformers, Class 1 for 1A transformers

Shop with confidence

Payment Badge
Fast Delivery
Payment Badge
Buy Now Pay Later
Payment Badge
Secure Payments
Payment Badge
Trusted Quality
  • Fourier analysis 1st to 40th harmonic component for U, I, P (consumption/supply) and Q (inductive/capacitive)
  • Registering and storage of transients (>50 µs)
  • 2 digital inputs
  • Temperature measurement input
  • LC display, backlight (optional)
  • 2 keys
  • Profibus DPV0 (optional)
  • RS485 (Modbus RTU, Modbus master)
  • RS232, – Ethernet (web server, EMAIL) (optional)
  • Programming own applications in Jasic
  • Operating temperature range -10°C .. +55°C
  • Mounting on top hat rails 35 mm
  • Suitable for installation in distribution boards
  • Suitable for measurements in networks with frequency inverters
