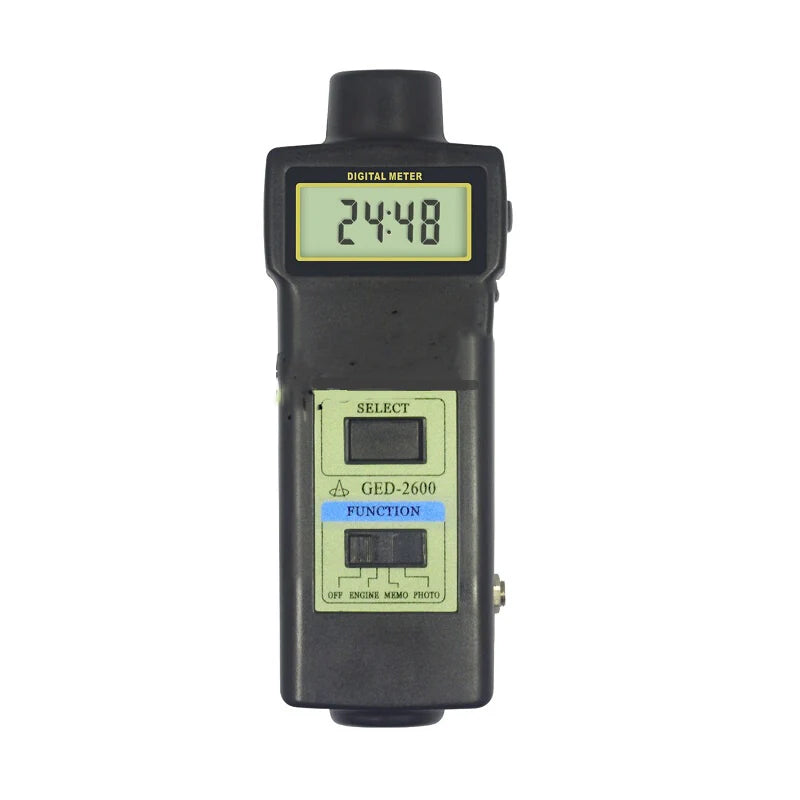

Non Contact Laser Tachometer With Electromagnetic Induction And Light Reflection

It can make the engine tachometer, through the electromagnetic induction method for non-contact measure the speed of all kinds of gasoline engines. Also can make the laser tachometer, through light reflection method for non-contact measuring the motor or engine) of a rotating object. Widely used in automobile manufacturing, maintenance

• One meter for multiple purposes，The same instrument can be used as engine tachometer，Measure the speed of various gasoline engines，It can also be used as a laser tachometer，Non contact measurement of rotational speed of objects with various rotational speeds ( r / min ) 。
  * digital display，Parallax free。
  * Wide measurement range，High resolution。
  * Automatic memory of large values during measurement、Small value and the next measurement。
  * Strong structure、delicate、be easy to carry about，The whole machine adopts durable advanced electronic components；The shell is light and hardABSPlastic，Beautiful appearance，Easy to use。

Key Features

• Application: 2-Stroke Engines with 1, 2, 3, or 4 Cylinders
• Application: 4-Stroke Engines with 1, 2, 3, 4, 5, 6, or 8 Cylinders
• Engine Speed Range: 100–20,000 r/min
• Laser Speed Range: 2.5–99,999 r/min
• Engine Speed Method: Electromagnetic Induction Method
• Laser Speed Method: Light Reflection Method
• Measuring Distance: 30–200 mm, Up to 2 m for Laser
• Resolution: 0.1 / 1
• Accuracy: ±0.05% n + 1d
• Memory Value: Maximum, Minimum, and Last Value
• Operating Environment: 0–50℃, 85% RH
• Power Supply: 4 × No. 5 Batteries
• Dimensions & Weight: 178 × 68 × 39 mm, 164 g Without Battery
• Standard Configuration: Host, External Antenna, Manual, Portable Case, and Reflection Tape
