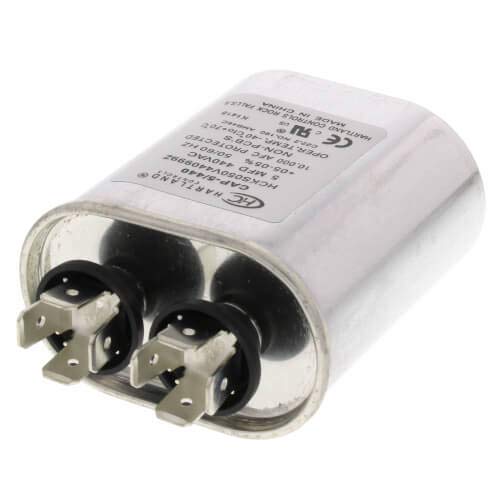

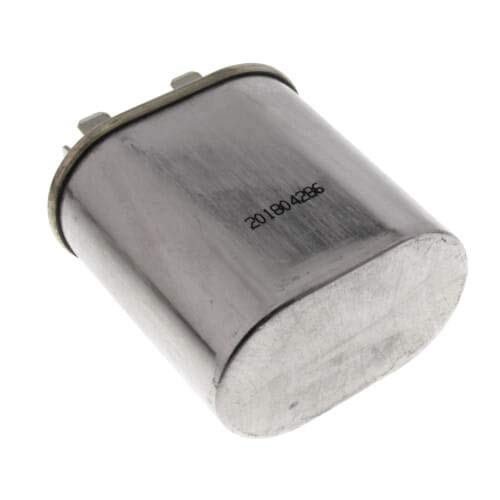

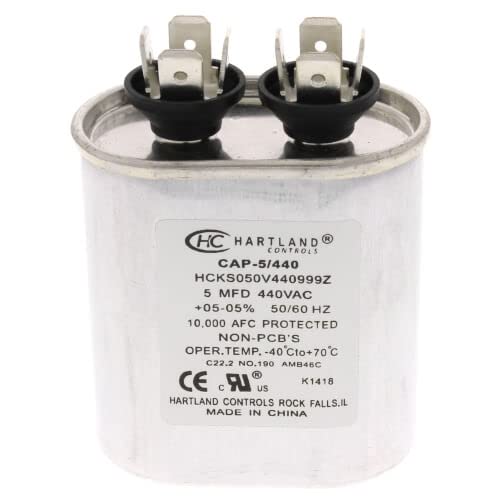

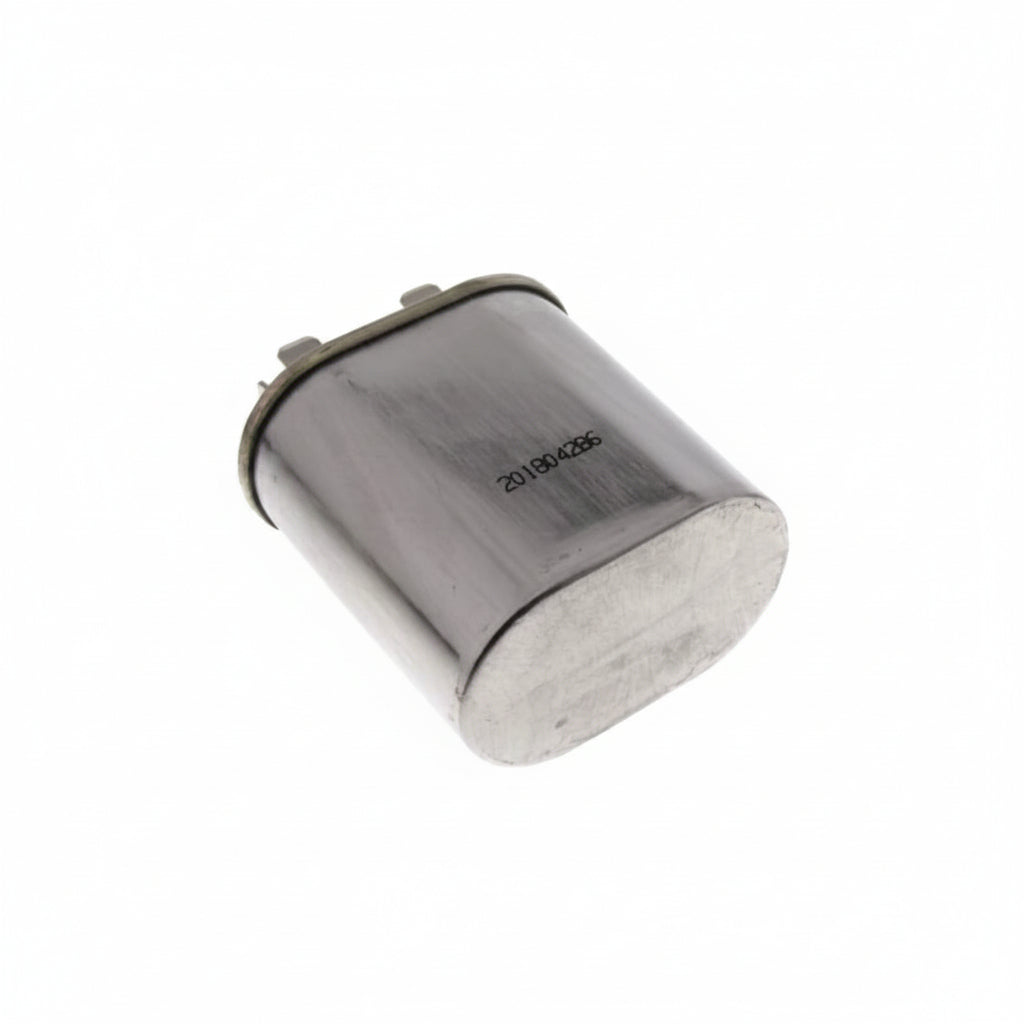

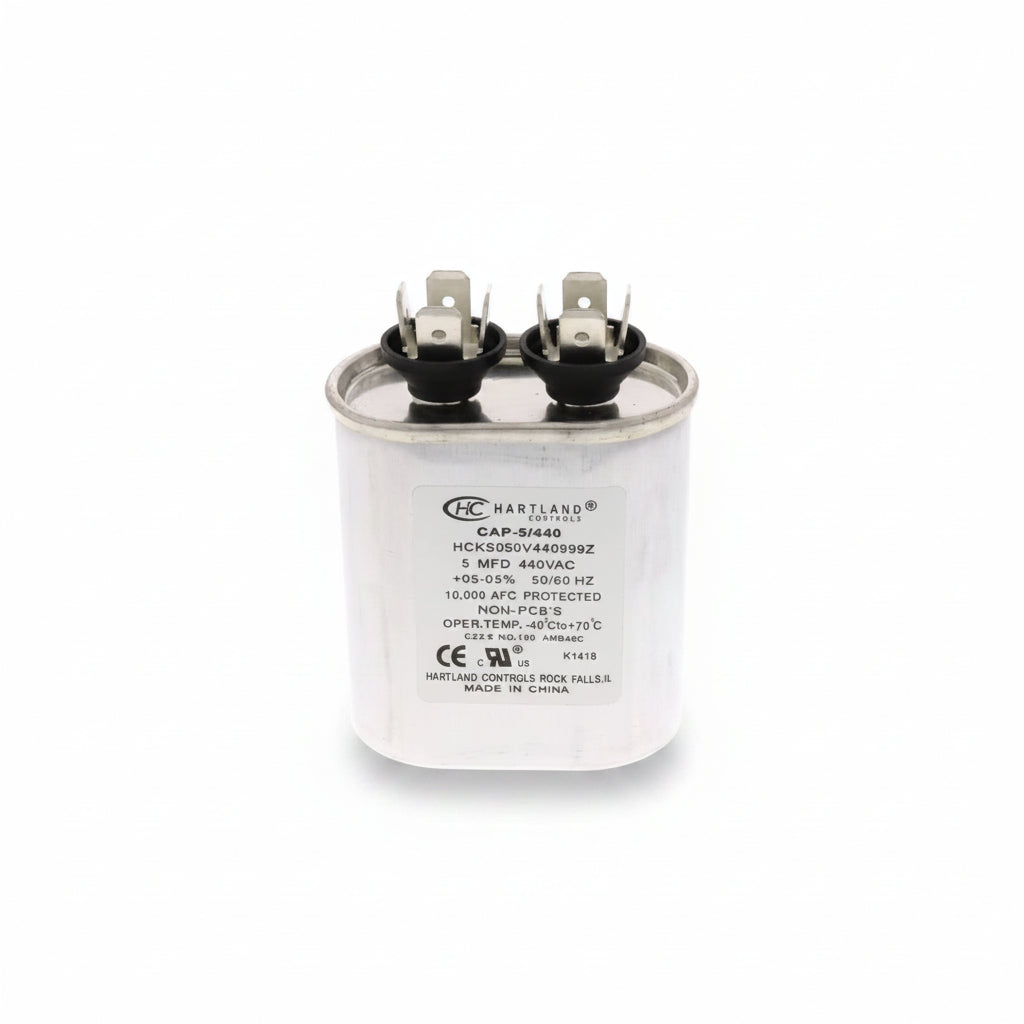

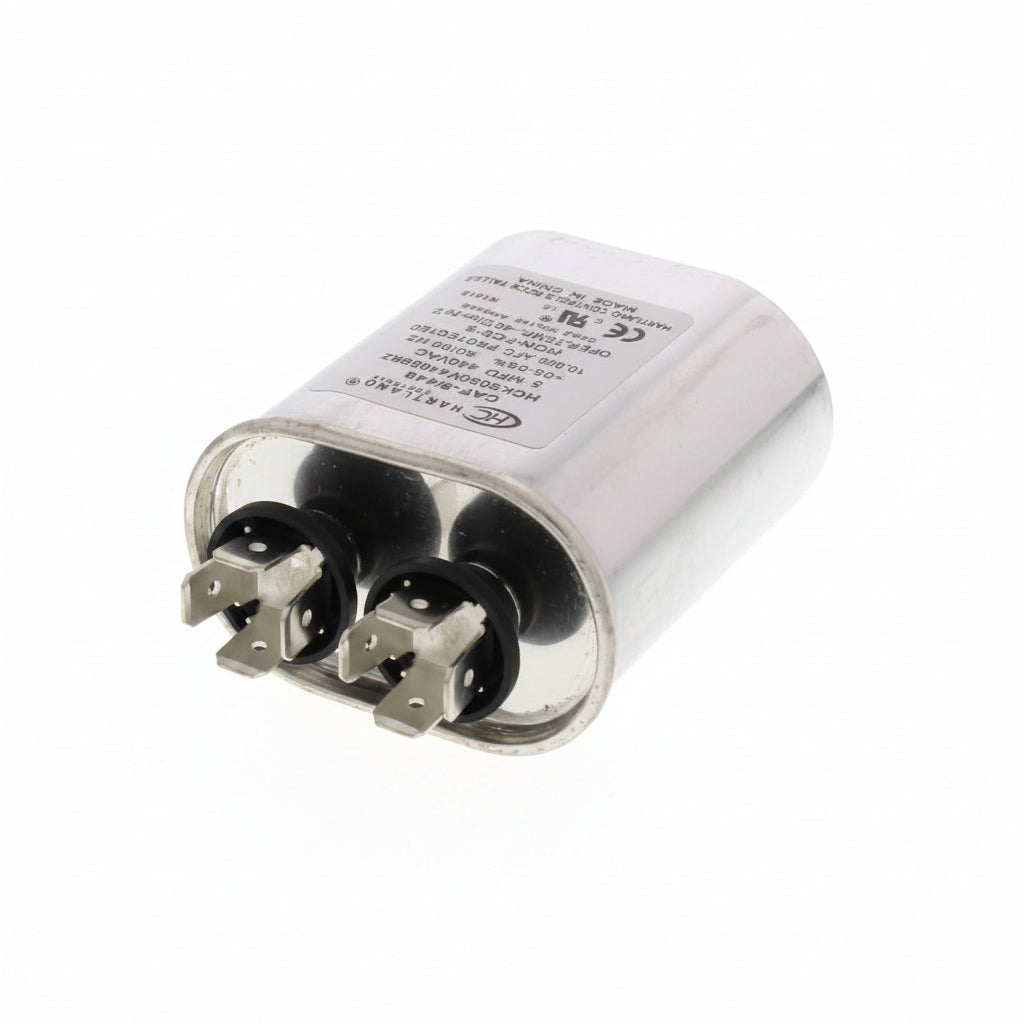

Oval Run Capacitor 5 MFD, 370 or 440 VAC 5uf for Fan Motor Blower Condenser in Air Handler Straight Cool or Heat Pump Air Conditioner and Pool Pumps by The HVAC Genius
Key features
Shop with confidence
- 5uf / 5MFD 370 Volt or 440 Volt Capacitor. Replaces BOTH 370VAC & 440VAC capacitors
- OVAL motor run capacitor. Can size measures 2″ Wide , 2.5″ Tall and 1.25 ” thick. Operating temperature range -40 C. to +70 C/ -40F to 158F
- Replacement for: TOCF5 , CPT00072 , 97F5705, Z97F5705 , 97F95702 , Z97F5702 , TT-CAP-5/440 , C305L ,PW-5, TP-CAP-5/440
- Built to the toughest USA standards for AC motor run capacitors including EIA-456-A and IEC 60252-1:2001
A capacitor is an electric component that temporarily stores an electrical charge. A "run capacitor" supports electric motors, such as in air conditioner or heat pump units, a fan motor, and a compressor motor. The capacitor has two terminals. Capacitors come in a variety of sizes, depending on the capacitance (µF or MFD), such as 40 plus 5 µF, and also the voltage. A 440-volt capacitor can be used in place of a 370-volt, as it is built better, but the 370 can’t be used in place of a 440-volt. It will work for a while and will fail prematurely, as exceeding the capacitor's rated voltage will cause the dielectric to break down and the capacitor to short out. Same as an electric wire- 600V rated wire is better than 300V one. The capacitance(µF or MFD) must be the same or stay within 10%+ or 5%- of its original value. Example: 50 µF cap can be substituted by 47.5 to 55 µF with the same or better voltage rating capacitor. Round oval-shaped run capacitors are commonly used for air conditioning, to help in the starting of the compressor and the condenser fan motor.
